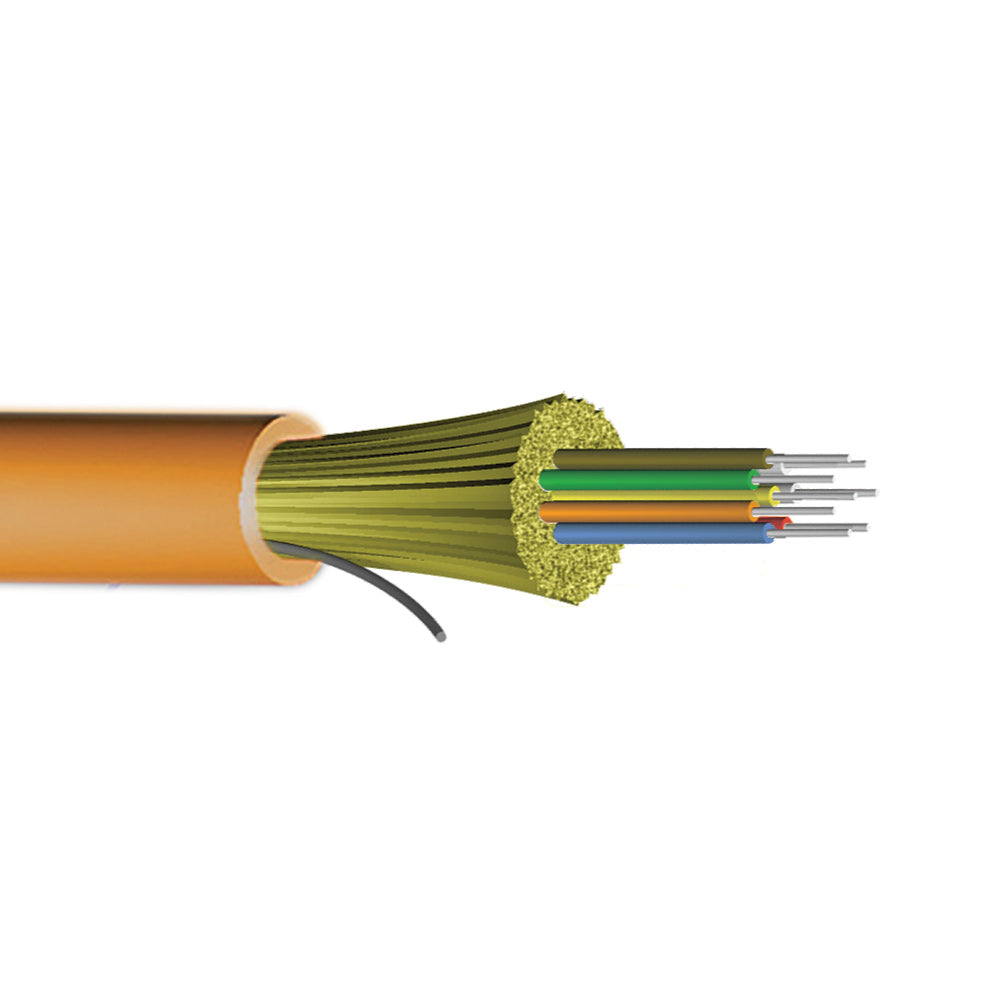

OM2 Multimode 50 Micron Indoor/Outdoor AFL (Corning ClearCurve) - OFNR Riser Fiber Bulk Cable (per meter)

Fiber Optic Bulk CableSKU: BK-F6D-OM2-R
No reviews

Sale price$1.48 USD
Sold out


This bulk 6-strand OM2 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.

This cable can be used in all environments: riser, general inside plant and outside plant.

  • Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696.
  • Approved for mining applications.
  • RoHS/REACH Compliant.
  • Physical Characteristics
    Color Orange

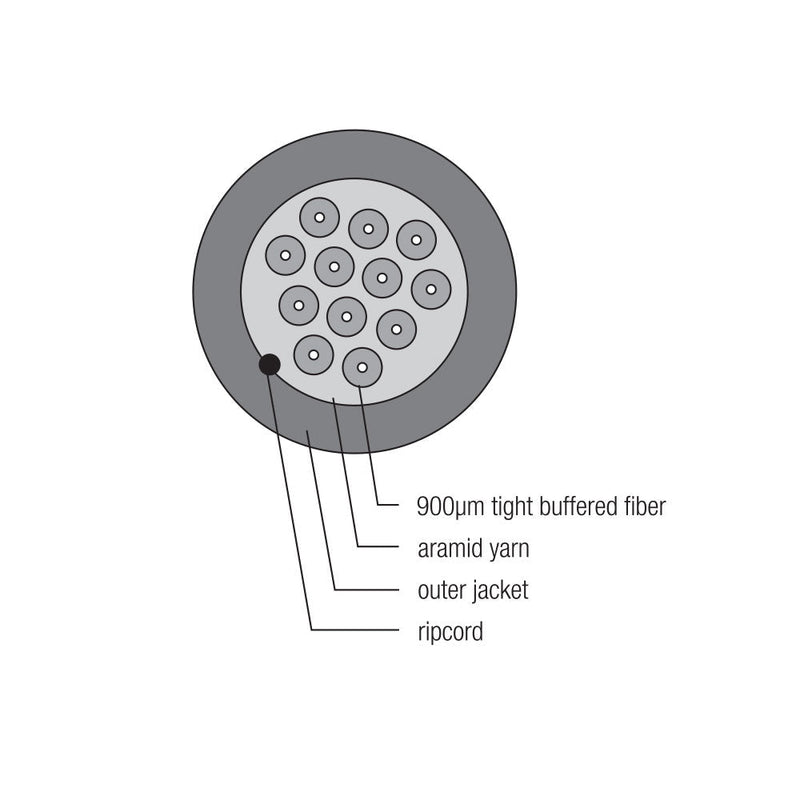

    Fiber Optic Type OM2 50 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable
    Fiber Count 6-Strand
    Glass Fiber Corning ClearCurve
    Sub Unit Diameter 900 Micron
    Nominal Diameter 5.3mm
    Tension(Installation) 150 lbs
    Tension(Long Term) 45 lbs
    Bending Radius(Installation) 3.1cm
    Bending Radius(Long Term) 2.1cm
    Operating Temperature -40℃ ~ +75℃
    Storage Temperature -40℃ ~ +75℃
    Installation -20℃ ~ +75℃
    Attenuation Range @850nm 3.5dB/km
    @1300nm 1.5dB/km
    Bandwidth Range @850nm > 500 MHz/km
    @1300nm > 500 MHz/km
    Gigabit Ethernet Min. Link Distance 850nm = 600
    1300nm = 650
    10 Gigabit Ethernet Min. Link Distance 850nm = 82
    Fire Rating OFNR
    UV Stabilizer Yes
    Anti-Fungus Protection Yes
    ETL Yes
    c(ETL) Yes
    Product Support
    RoHS Yes
    Country of Origin USA
    Packaging Information
    Package Quantity 1
    Product Weight 0.08 lbs [0.03 kg]
