Description

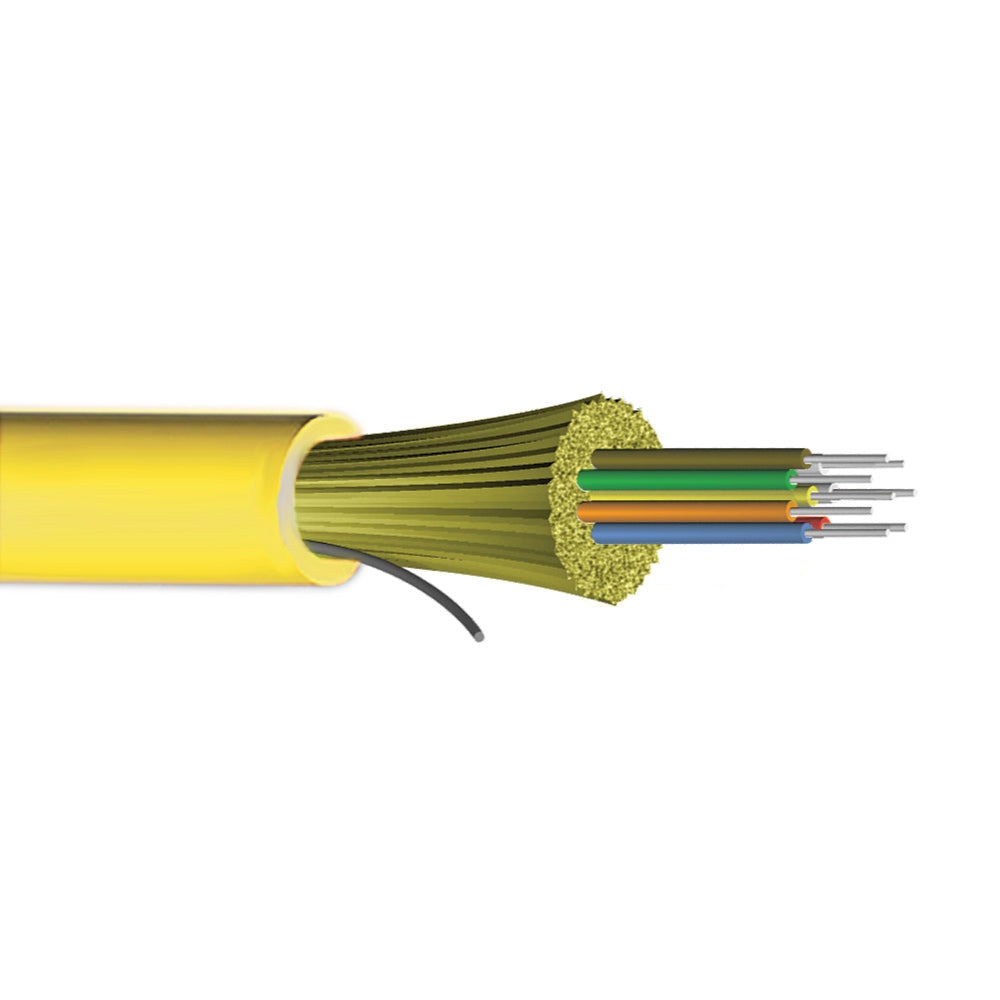

This bulk OS2 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
This cable is suitable for installations inmost spaces requiring UL flame ratings: Plenum, Riser, General Purpose and outside plant.
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9µ Singlemode Plenum Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 6-Strand / 12-Strand |
| Glass Fiber | Corning SMF-28 Ultra |

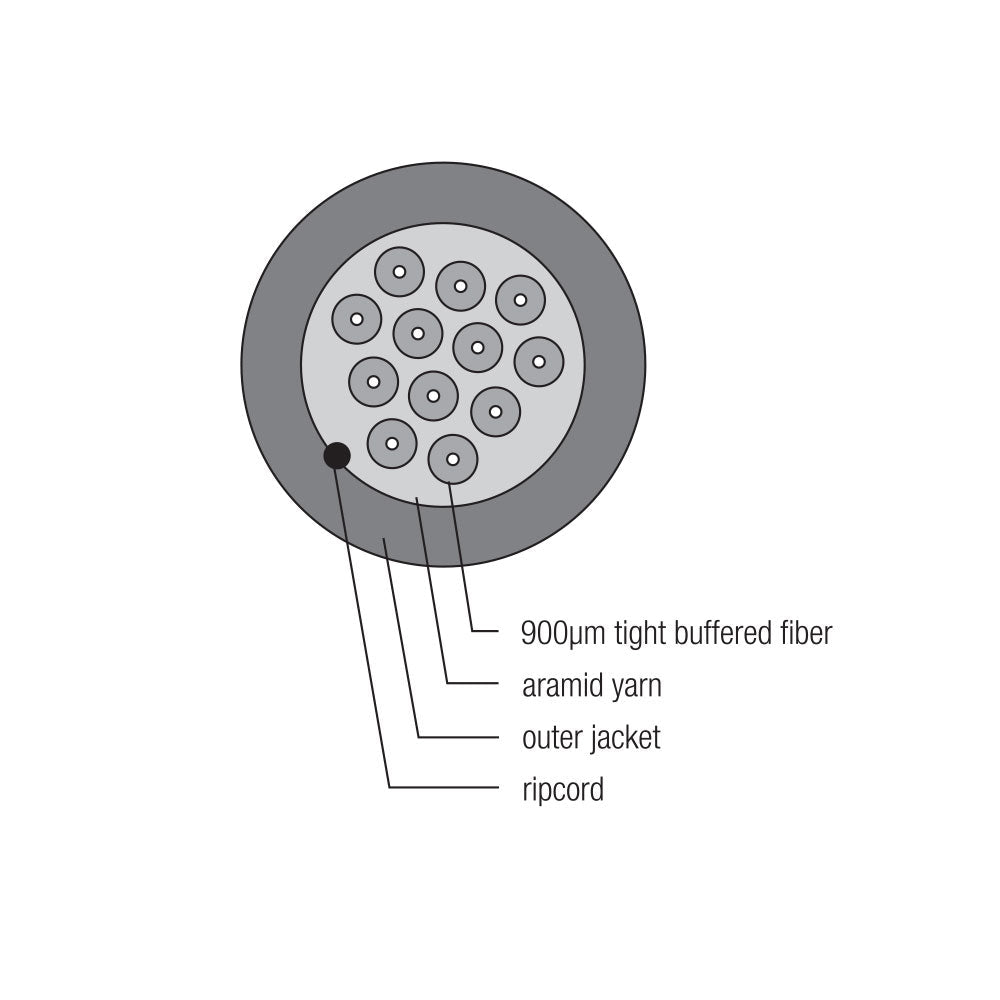

| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 6.4mm (6-Strand) 7.0mm (12-Strand) |
| Tension(Installation) | 300 lbs |
| Tension(Long Term) | 90 lbs |
| Bending Radius(Installation) | 9.6cm (6-Strand) 10.5cm (12-Strand) |
| Bending Radius(Long Term) | 6.4cm (6-Strand) 7.0cm (12-Strand) |
| Operating Temperature | -40°C ~ +70°C (6-Strand) -40°C ~ +75°C (12-Strand) |
| Storage Temperature | -40°C ~ +70°C (6-Strand) -40°C ~ +75°C (12-Strand) |
| Installation | -10°C ~ +70°C (6-Strand) -20°C ~ +75°C (12-Strand) |
| Attenuation Range | @1300nm 0.5dB/km @1550nm 0.5dB/km |
| Gigabit Ethernet Min. Link Distance | 1300nm = 5000 |
| 10 Gigabit Ethernet Min. Link Distance | 1300nm = 10000 |
| Fire Rating | OFNP |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Package Quantity | 1 |
| 6-strand | 12-strand |
|---|---|
| 0.12 lbs | 0.14 lbs |
