1000ft 4 Pair CAT6 550Mhz Solid Shielded STP FT4/CMR Bulk Cable

Category Bulk CableSKU: BK-C6SL-4BKS

Color: Black
Sale price$251.77 USD
In stock

This item does not qualify for free shipping.

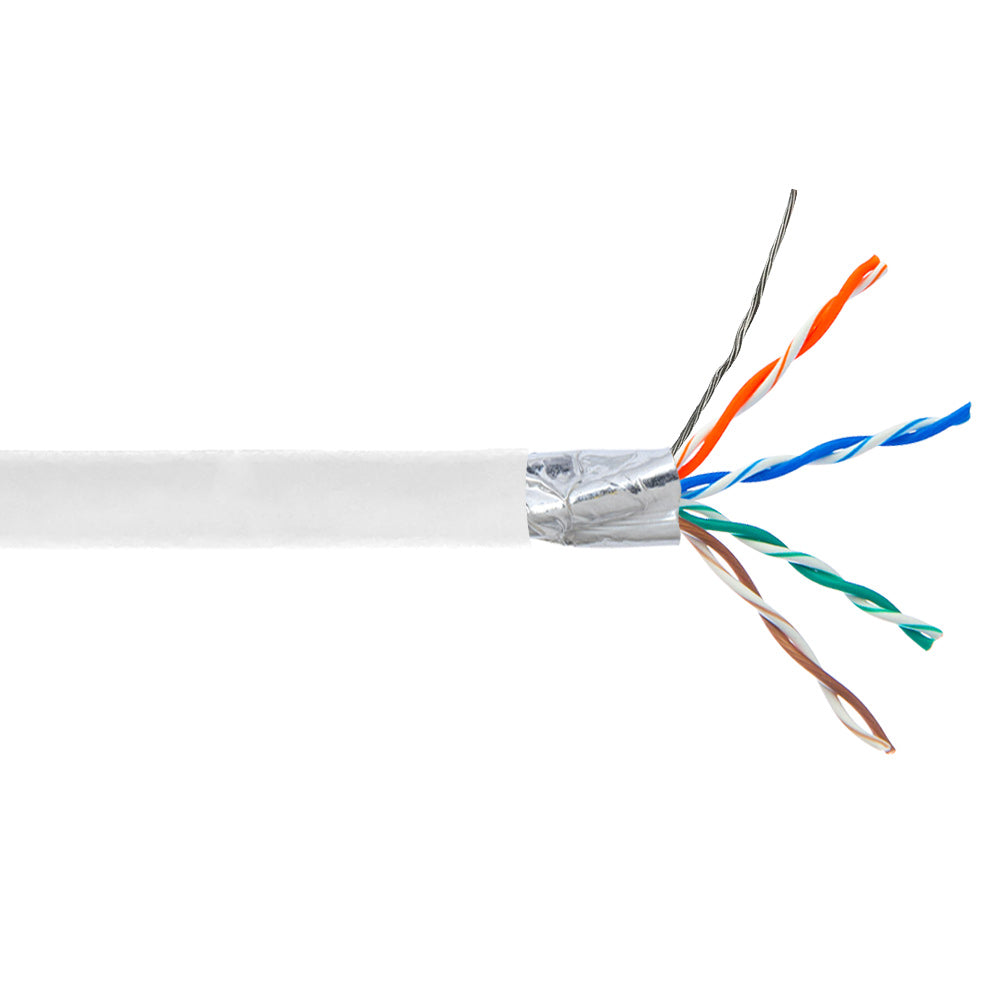

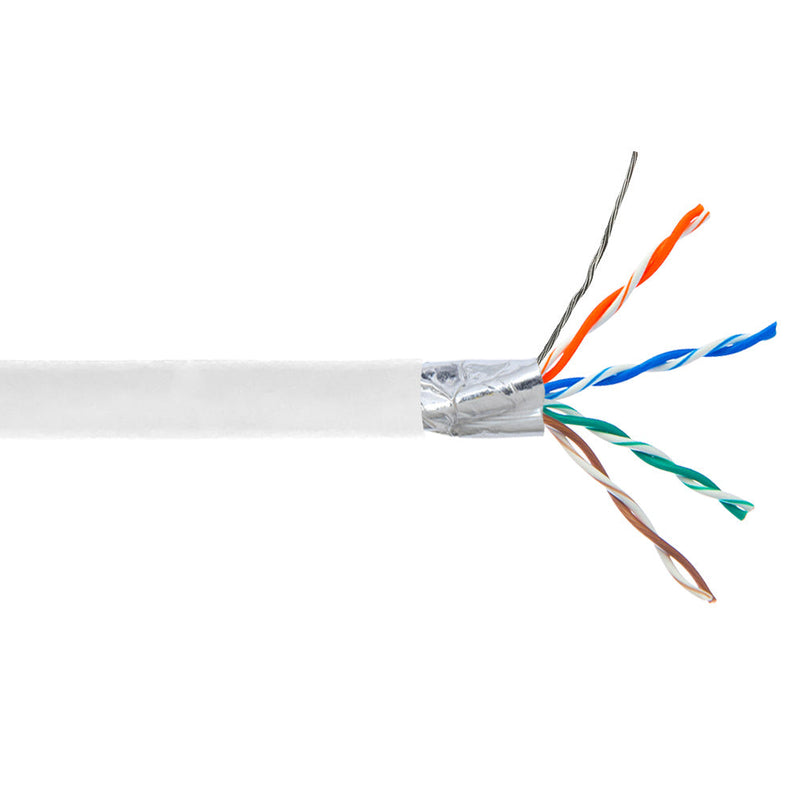

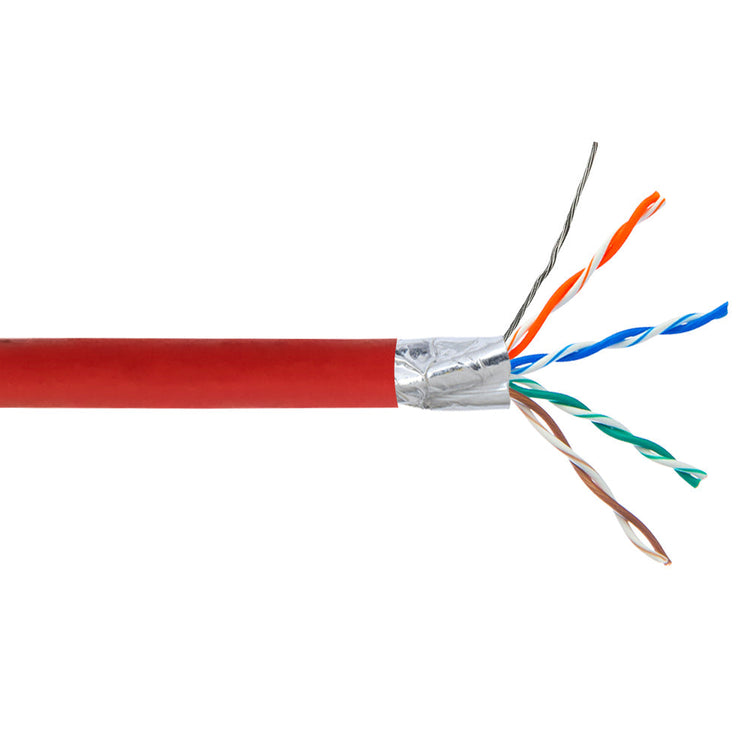

This bulk riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6 jack. It is great for all high bandwidth applications such as high speed networks.

100% Bare Copper Solid Conductors

This cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The solid core is excellent for long distance transmission and suited for installations.

Great for High Speed Networks

Our CAT6 bulk cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection.

The Quality and Convenience You Need

This cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses a shielded twisted pair (STP) structure to retain a high quality signal when passing near high voltage or power cables.



Physical Characteristics
Cable Length 1000ft [305m]
Cable Diameter 6.60 mm
Number of Pairs 4 Pairs
Color of Pairs White-Blue
Wire Gauge 24AWG Solid
Conductor Material 100% Bare Copper
Conductor Outer Diameter 0.5 + 0.03mm
Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Diameter 6.6 + 0.2mm
Outer Jacket Average Thickness 0.55mm Above
Stranding Count & Diameter
Jacket Rating CMR/FT4 [Riser Rated]
Insulator Material HD-PE
Insulator Diameter 1.05 + 0.03mm
Insulator Average Thickness 0.20 + 0.02mm
Cable Shielding 100% Aluminum Foil Shield
Shielding AL/Pet Tape 0.050 x 22mm
Shielding Drain Wire 1/0.5mm (Tinned copper)
Rip Cord
Yes - Nylon
Temperature Rating 75¬ļC
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1

Product Weight

30.9lbs [14kg]
