Description

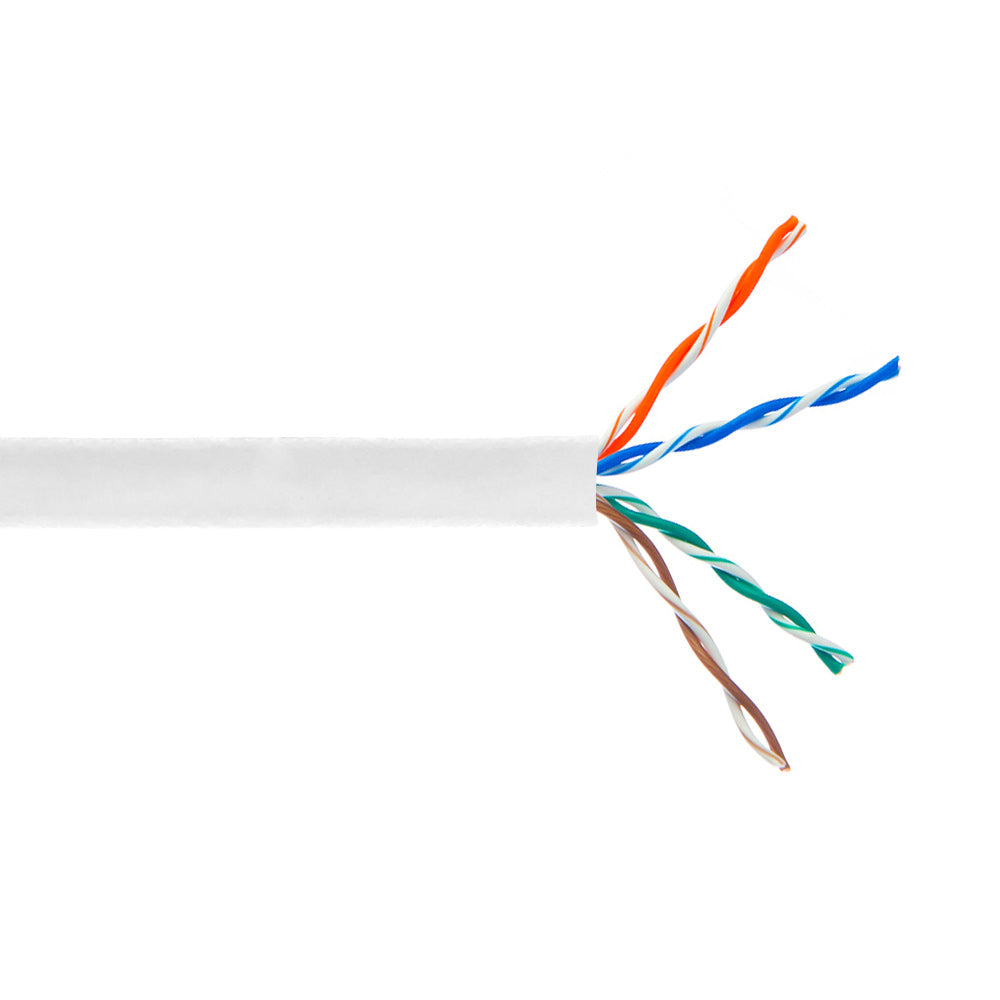

This bulk CAT5E plenum rated cable consists of 4 pairs of 24AWG solid bare copper wires. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a CAT5E jack.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 5.0 mm |
| Wire Gauge | 24AWG Solid |
| Insulation | 0.90mm Color-coated PE * 4 Pairs |
| Conductor Material | 100% Bare Copper |
| Shielding | None |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Operating Temperature | -20ĀŗC ~ 80ĀŗC |
| Performance | |
| Frequency | 350MHz |
| FlukeĀ® CAT6 Channel Test |
Compliant |
| FlukeĀ® CAT6 Permalink Test | Compliant |
| FlukeĀ® CAT6 Patch Cable Test | Compliant |
| PoE Compliance | |
|
PoE / IEEE 802.3af Type 1 |
15.4W (37-57V) |
|
PoE+ / IEEE 802.3at Type 2 |
30W (42.5-57V) |
| PoE++ / IEEE 802.3bt Type 3 | 60W (42.5-57V) |
| 4PPoE / IEEE 802.3bt Type 4 | 100W (41.1-57V) |
| Approvals | |
| c(UL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 29.70 lbs [13.47kg] |
Ā
Product Weights
| SKU | Weight | |
| BK-C5E600-WH-AE | 23.0 lb |
