Description

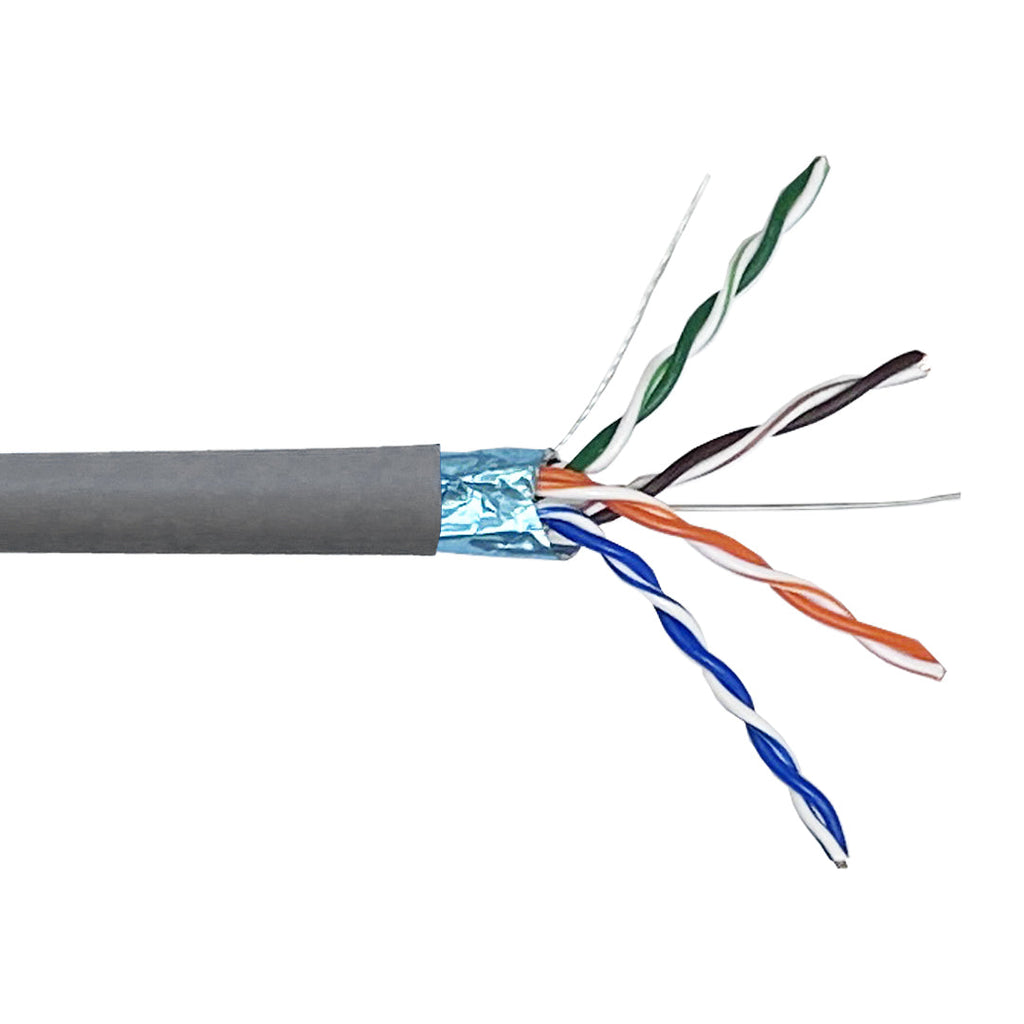

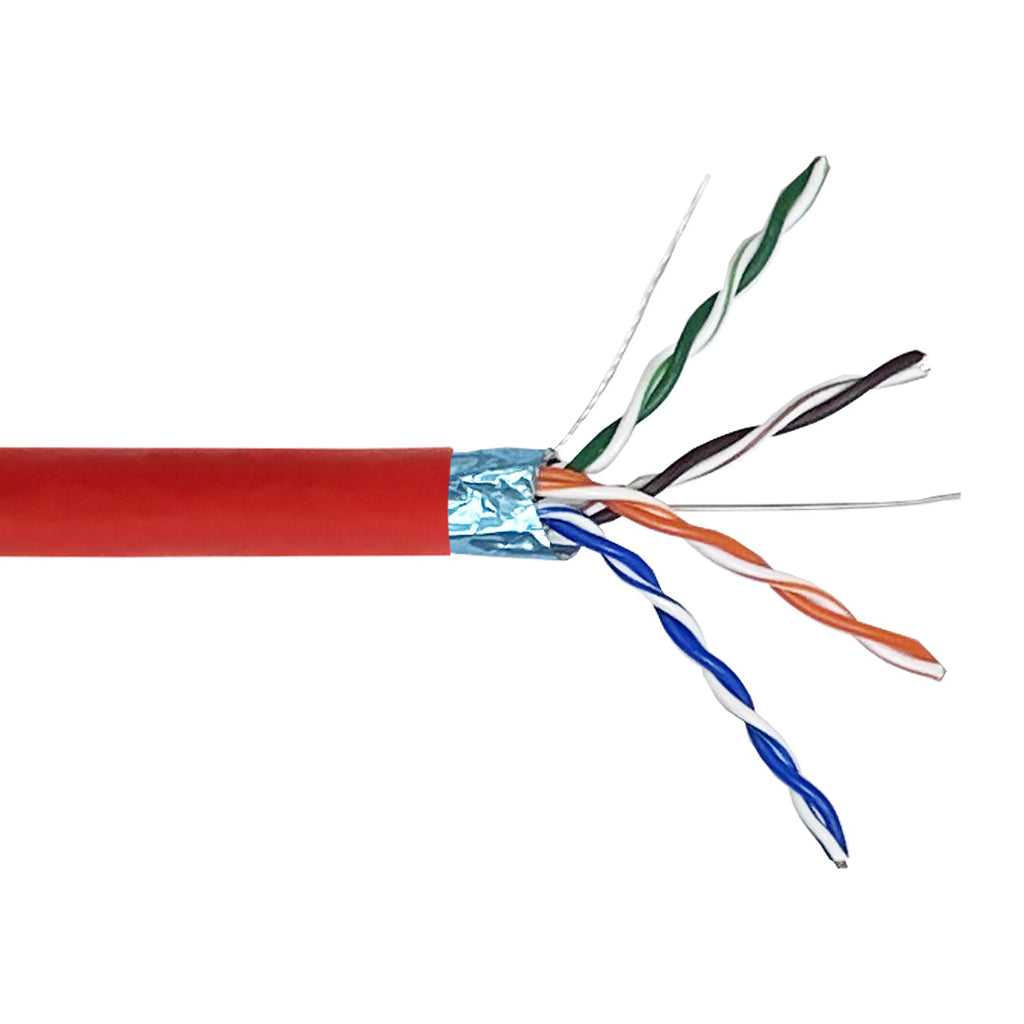

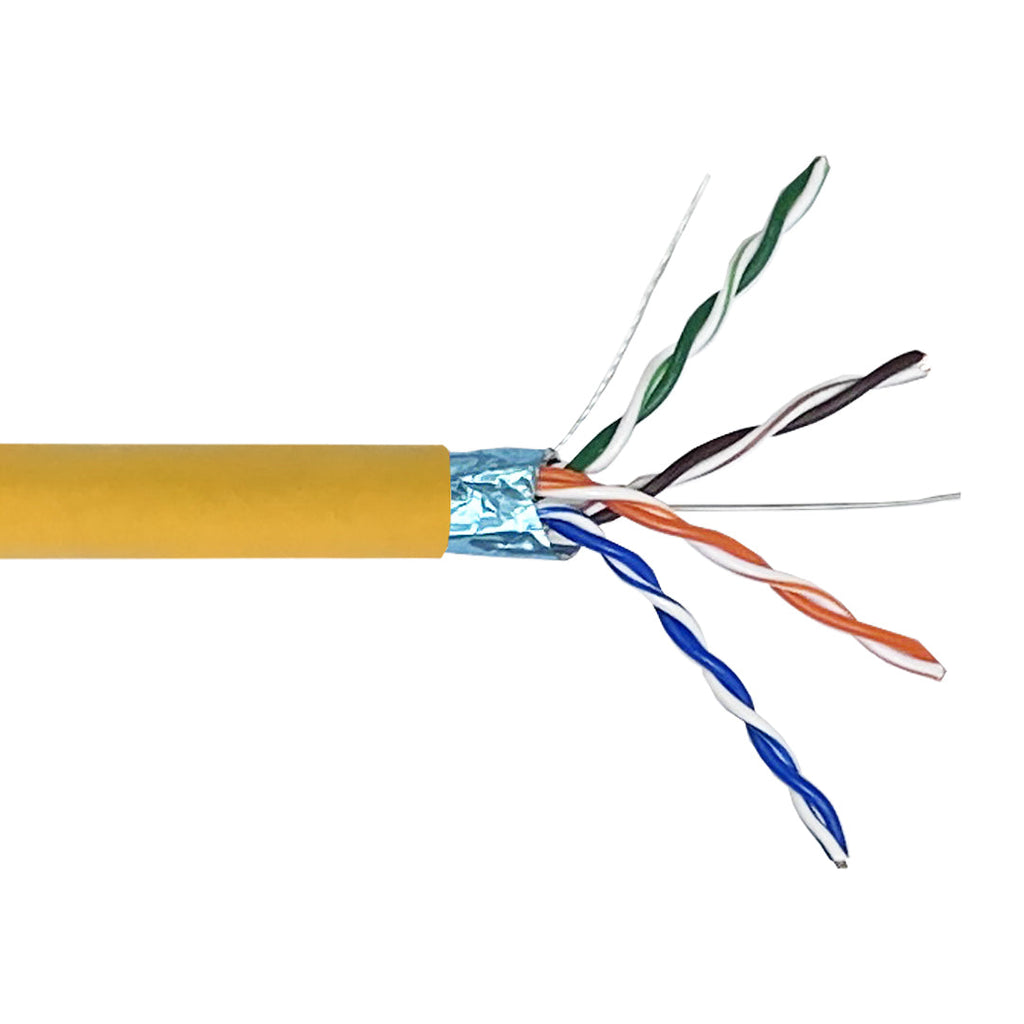

This bulk riser rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat5e jack. It is great for all high bandwidth applications such as high speed networks.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000ft |
| Color | Black/Blue/Green/Grey/Red/White/Yellow |
| Number of Pairs | 4 Pairs Twisted |
| Wire Gauge | 4 Pairs of 24AWG solid + 24AWG TC Drain Wire |
| Conductor Material | 100% Bare Copper |
| Product Standard Certification | CMR |
| Jacket Material | PVC |
| Jacket Rating | Riser |
| Jacket Diameter | 6.7mm |
| Aluminum Foil | Compliant |
| Rip Cord | Compliant |
| Cable Shielding | Aluminium Foil |
| Insulation | PE |
| Temperature | -20℃~75℃ |
| Voltage Rating | 300V |
| Performance | |
| Spark Test |
2.0KV AC |
| Dielectric Strength | 2500 Vdc/2secs |
| Insulation Resistance | >5GΩ.km |
| Mutual Capacitance | 5.6nF/100m nominal |
| Capacitance Unbalance | 330pF/100m |
| Conductor Resistance | < 9.38Ω/100m |
| Resistance Unbalance | 2.5 % Max |
| Impedance | 100±15Ω |
| Electrical Characteristics | |
| Frequency (MHz) | 1 | 4 | 10 | 16 | 20 | 31.25 | 100 | 200 | 250 |
| Insertion Loss (dB/100m) |
2 | 4 | 6.3 | 8 | 9 | 11.4 | 21.4 | 30.3 | 34.5 |
| NEXT (dB) | 73.3 | 64.3 | 58.3 | 55.2 | 53.8 | 50.9 | 43.4 | 38.8 | 37.3 |
| PSNEXT (dB) | 70.3 | 61.3 | 55.3 | 52.2 | 50.8 |
47.9 | 40.3 | 35.8 | 34.3 |
| ACR-F (dB) | 78.8 | 66.8 | 58.8 | 54.7 | 52.8 | 48.9 | 38.8 | 32.8 | 30.8 |
| PSACR-F (dB) | 76.8 | 64.8 | 56.8 | 52.7 | 50.8 | 46.9 | 36.8 | 30.8 | 28.8 |
| Return Loss (dB) | 25 | 28 | 30 | 30 | 30 | 28.6 | 25.1 | 23 | 22.3 |
| PoE Compliance | ||
|---|---|---|
| PoE / IEEE 802.3af Type 1 | 15.4W (37-57V) | |
| PoE+ / IEEE 802.3at Type 2 | 30W (42.5-57V) | |
| PoE++ / IEEE 802.3bt Type 3 | 60W (42.5-57V) | |
| 4PPoE / IEEE 802.3bt Type 4 | 100W (41.1-57V) | |
| Environmental | ||
| RoHS | Compliant | |
| Approvals | ||
| c(ETL)us | Compliant | |
| NEC Compliance | Article 800 CMR | |
| Flammability Standard Compliance |
Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021] |
|
| TIA/EIA Compliance |
ANSI/TIA 568.C.2 ANSI/TIA 568.D |
|
| ISO/IEC Compliance | ISO/IEC 11801-1 IEC61156-5 | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 30.35 lbs [14kg] | |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-C5E402-BK | Black | 21.0 lb |
| BK-C5E402-BL | Blue | 21.0 lb |
| BK-C5E402-WH | White | 21.0 lb |
| BK-C5E402-GN | Green | 21.0 lb |
| BK-C5E402-GY | Grey | 21.0 lb |
| BK-C5E402-RD | Red | 21.0 lb |
| BK-C5E402-YL | Yellow | 21.0 lb |
