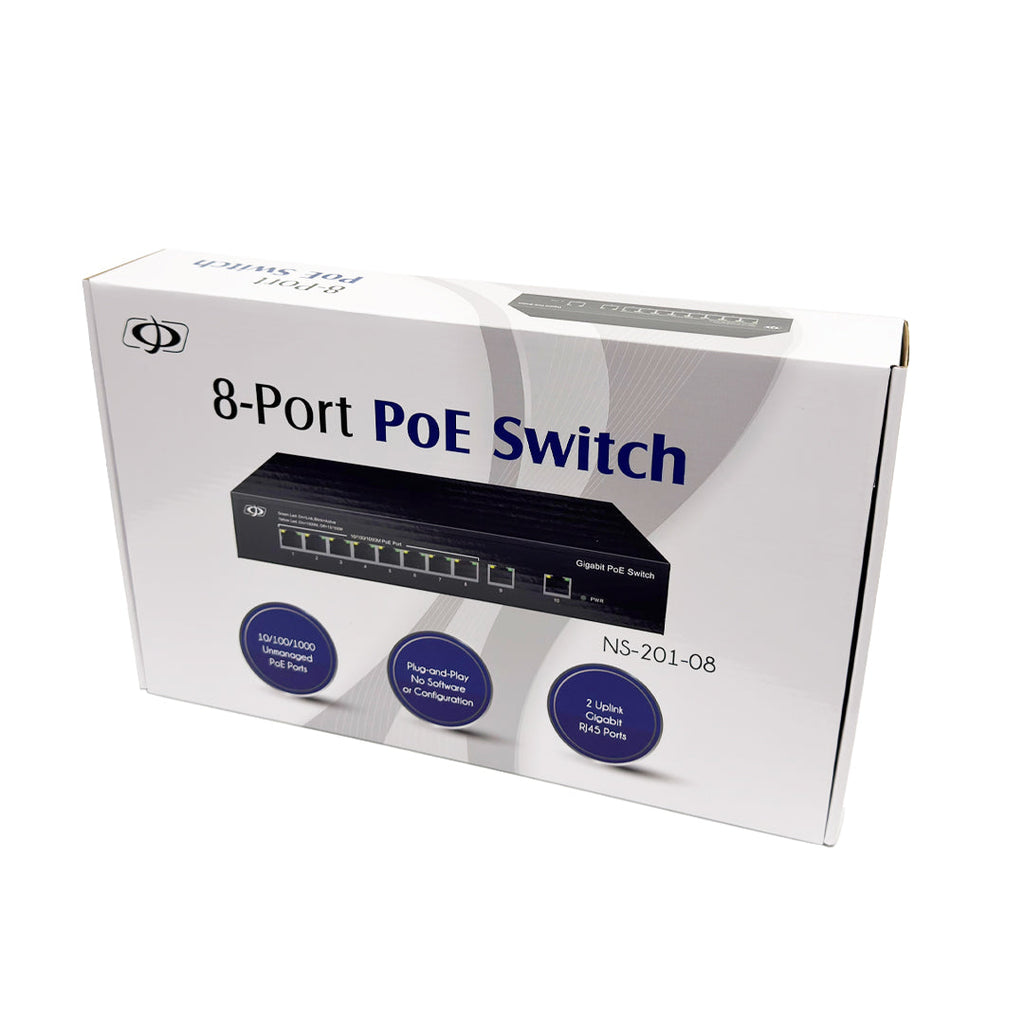

8-Port Gigabit 120W PoE+ Switch + 2-Port RJ45 Uplink - Desktop - Unmanaged - IEEE 802.3at/af

PoE SwitchesSKU: NS-201-08

Price:
Sale price$61.35 USD
Stock:
In stock

Description

Overview

This is a 8+2-port gigabit Ethernet switch, providing 8x 10/100/1000Mbps PoE+ ports, and two RJ45 uplink ports.  The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.

Features

  • 8 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
  • Ports 1-8 supports IEEE802.3af/at - Max. 30W
  • 2 x RJ45 Gigabit Uplink Ports
  • Power Budget: 120W
  • Support auto MDI/MDIX
  • Network Topology: Star/Bus/Tree Topology
  • Solid high-strength metal shell




Application



Specifications

Physical Characteristics
Dimensions 270 x 44 x 181 mm
Shell Metal Material, Fan-Free Design
Operating Temperature -10°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity /
Storage Humidity
10% to 90% (no condensation)
Thermal Method Natural cooling
Power Supply 100 - 240 VAC ~ 50/60Hz
Total Power Consumption ≤150W
Main Board Power <6W
Ports

8 x Gigabit PoE+ ports

2 x Gigabit RJ45 port - Uplink

Port Type RJ45 port, Full duplex, MDI/MDI-X adaptive
PoE Power Supply

PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: Support 4-core power supply, and Ethernet cable 1/2+/3/6- provide power supply.
PoE Port: Ports 1 to 8
PoE Output: 52V/0.6A Max.
Maximum Port Power: 30 W
PoE Power Budget: 120 W

Cable Type Twisted-pair: 0-100m
Network Topology

Ring Topology: Not Support

Star/ Bus/ Tree Topology: Support

Performance
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
MAC Address Table 4K
Forwarding Delay <10us
Transfer Mode Store-and-forward switching
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MDI/MDIX Support
Jumbo Frame 9Kbytes
Internal Cache/ Buffer 2 Mbits
MTBF 100000 hours
Surge protection of Ethernet port IEC 61000-4-5 Level 4 (6/2KV) (10/700us)
DIP IEC 61000-4-11 Level 3 (10V)
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free Fall 0.5m
Approval
c(ETL)us
Yes
Environmental
RoHS Yes
FCC, CE Yes
Packaging Information
Package Quantity 1x Ethernet Switch
1x 5ft power cord
1x Manual
Product Weight 2.8 lbs
