Flexible Electrical Cord Cable - 12AWG 3C SJT 300V 105C - Black (Per Meter)

Power Bulk CableSKU: BK-PWC3C12-SJT

Sale price$2.16 USD
Sold out

This item does not qualify for free shipping.

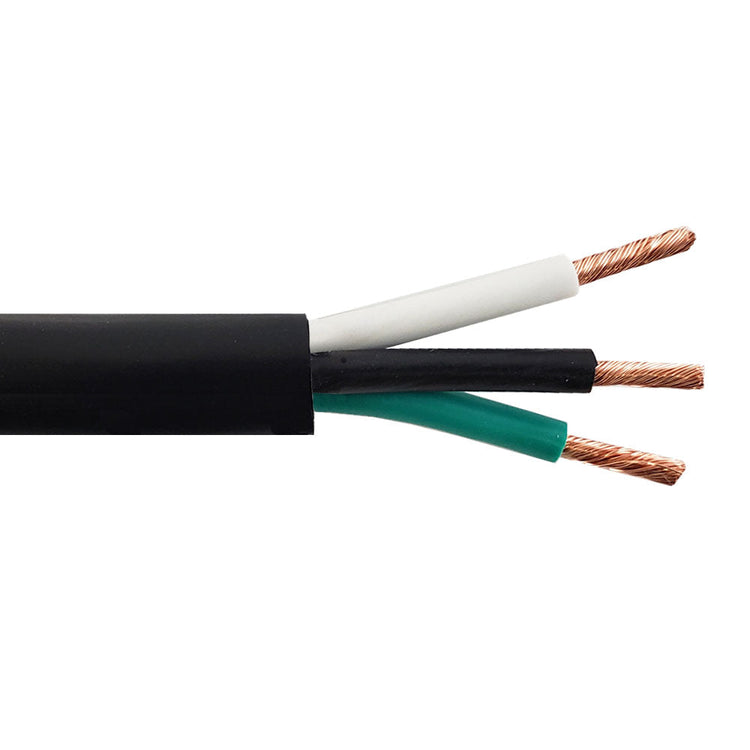

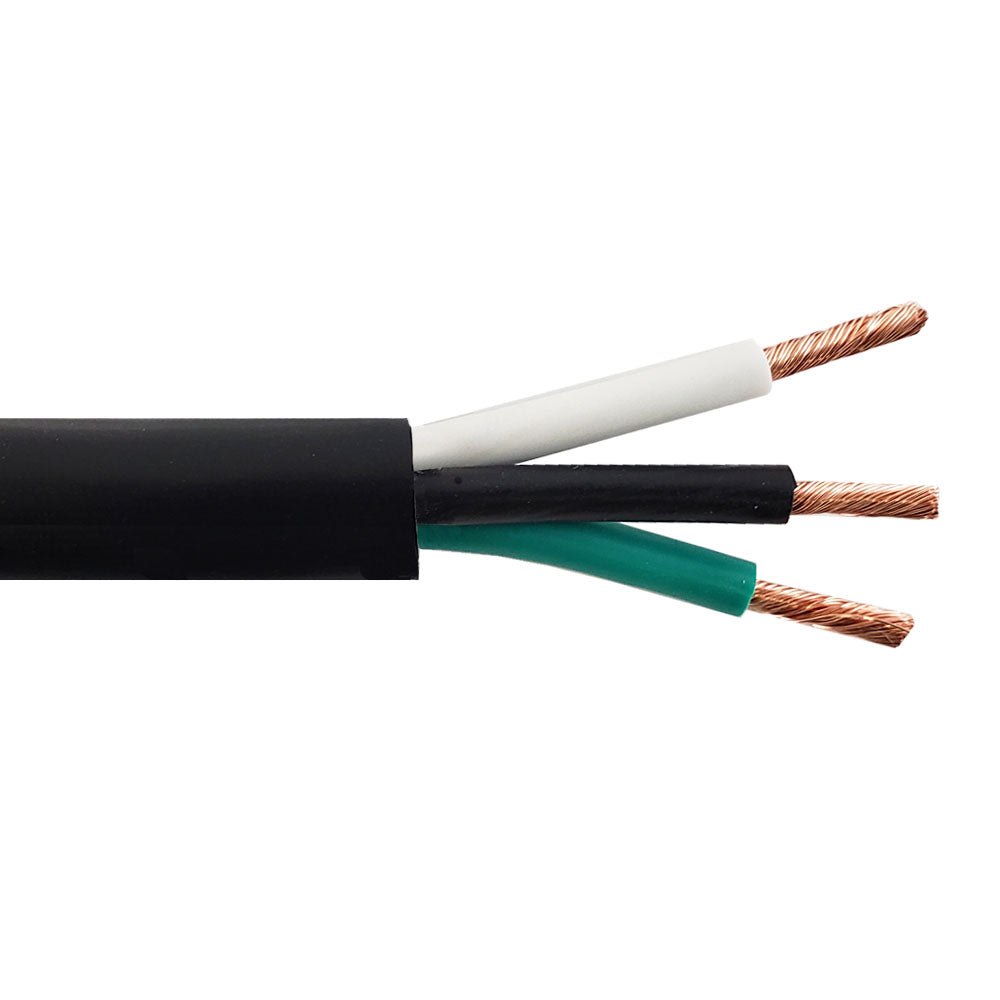

This bulk power cable consists of three 12 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.

Note: We offer a maximum of 100m spool size.

Bare Copper Conductors

This cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.

The Quality and Convenience You Need

This cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.


Physical Characteristics
Color Black
Color Code Black, White, Green
Wire Gauge 12AWG
Construction 65/ɸ0.254±0.008
Number of Conductors 3
Conductor Material Bare Copper
Conductor Diameter 2.36
Insulation Material PVC - Polyvinyl Chloride
Insulation Diameter 4.0 ± 0.10
Insulation Thickness 0.82
Jacket SJT
Jacket Material PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Jacket Overall Diameter 11 ± 0.15
Minimum Average Thickness 1.20mm
Cable Diameter 8.60
Extrusion : Extrude tmax >= 0.87mm
tmin >= 0.77mm
Extrusion : Talcum Powder Extrude
tmax <= 1.30mm
tmin >= 1.14mm
Temperature Rating 105℃
Rating Voltage 300V
Conductor Resistance 6.07ohm/Km at 20℃ Max
Unaged Tensile Strength (Mpa) Insulation :>=10.29
Jacket :>=10.29
After Aging Tensile Strength (Mpa)
Insulation :>=7.2
Jacket :>=7.2
Unaged Elongation Rate (%) Insulation :>=100
Jacket :>=100
After Aging Elongation Rate 10d 100℃
Insulation :min65
Jacket :min65
Cold Bend Test -20±2℃ x 4hr No Crack
Heat Shock Test 121±1℃ x 1hr No Crack
c(UL)us Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.03 lbs per meter
Max. Spool Size 100m
