Description
Overview

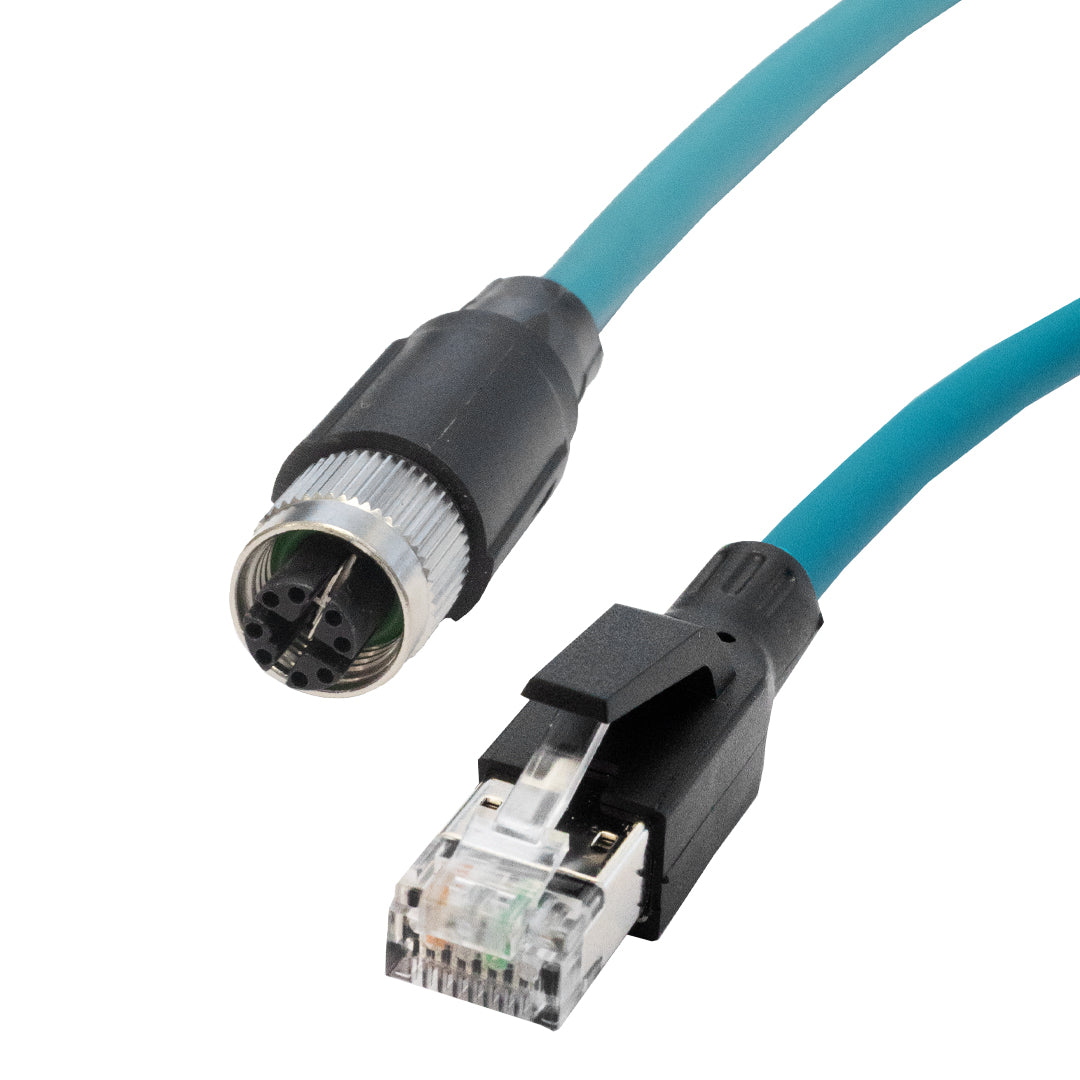

This M12 8-pin X-Code cable is designed for industrial automation network protocols with up to 10G speeds, such as Ethernet/IP, EtherCAT, PROFINET, etc. It is suitable for use in drag chain application or systems with constant movement. It is typically used to interconnect process controls, robotics and automation systems.
Application:
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Teal | |
| Cable Diameter | 6.8±0.2mm | |
| Wire Gauge | 26AWG | |
| Shielding | SF/UTP (100% Overall Foil Shield & 80% Tinned Copper Braid) | |
| Conductor Structure | 30 x 0.08mm | |
| Sheath Material | PUR | |
| Wire Cross Section |
36.3mm2 | |
| Temperature Range (Mobile) | -25℃ to 70℃ | |
| Temperature (Fixed) | -25℃ to 80℃ | |
| Temperature Range (Cable: Fixed) | -40℃ to 80℃ | |
| Dragchain Capable | 10 million times | |
| Cable: Torsion Capable | 5 million times | |
| Bending Radius (Mobile) | min. 15 x OD | |
| Bending Radius (Fixed) | min. 8 x OD | |
| Operating Voltage | max. 60 VDC | |
| Nominal Voltage | 300 V | |
| Contact Resistance | max. 30 mohm | |
| Operating Current per Contact | max. 0.5A | |
| Chemical Resistance | No | |
| Flame Resistance | UL94 | |
| Oil Resistance | ASTM 1 oil, Mineral oils, limited to hydraulic oils | |
| Acid and Alkali Resistance | No | |
| Pollution Degree | 3 | |

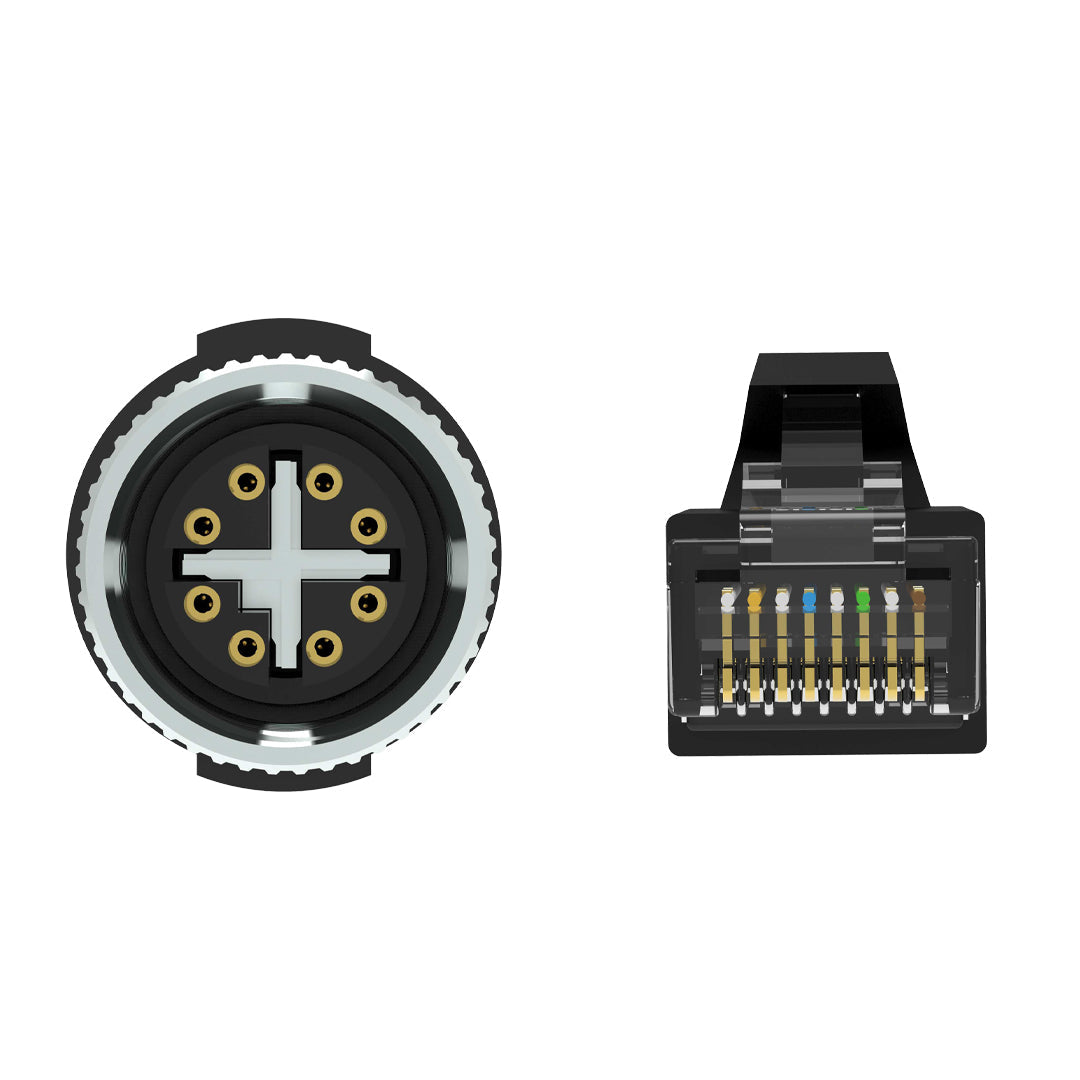

| Connector(s) | Connector A | Connector B |
|
|
|
| Connection | M12 | RJ45 |
| Angle Cable Outlet | 0 Degree | 0 Degree |
| Gender | Female | Male |
| Coding | X | - |
| No. of Poles | 8 | 8 |
| Width Across Flats | SW13 | - |
| Tightening Torque | 0.6 Nm | - |
| Knurled Nut Material | Zinc-pressure die casting, Surface Ni | - |
| Degree of Protection | IP66K, IP67 | IP20 |
| O-Ring | Silica | - |
| Approvals/Environmental | ||
| CE, c(UL)us | Yes | |
| RoHS | Yes | |
| Silicon-Free | Yes - Cable | |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| M12-8121X1-50CM | 50cm | 0.11 lb |
| M12-8121X1-01M | 1m | 0.17 lb |
| M12-8121X1-02M | 2m | 0.24 lb |
| M12-8121X1-03M | 3m | 0.35 lb |
| M12-8121X1-05M | 5m | 0.55 lb |
| M12-8121X1-10M | 10m | 0.79 lb |
| M12-8121X1-15M | 15m | 1.52 lb |
