Description

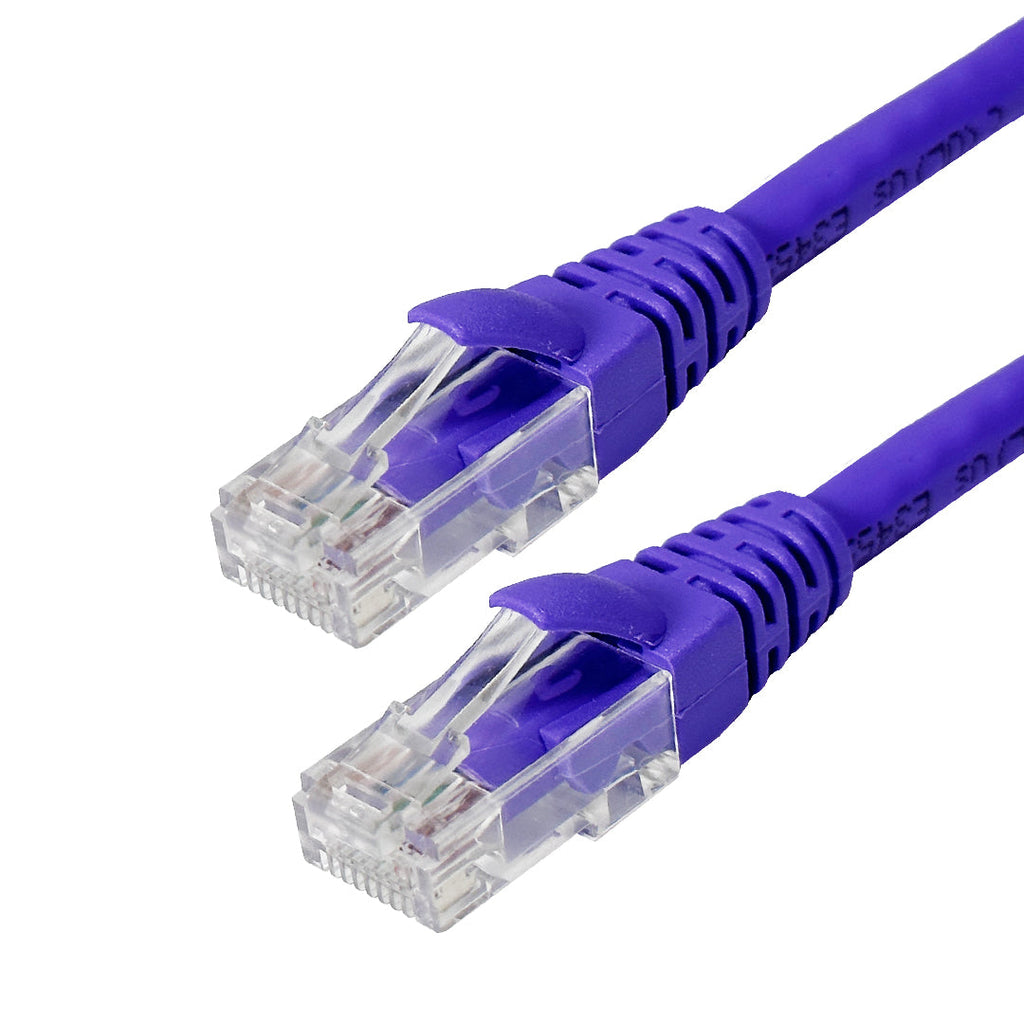

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 5.5mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC | Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 350 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| CAT5ECM-0.8PR | 8 inch | 0.05 lb |
| CAT5ECM-01PR | 1ft | 0.07 lb |
| CAT5ECM-02PR | 2ft | 0.1 lb |
| CAT5ECM-03PR | 3ft | 0.15 lb |
| CAT5ECM-04PR | 4ft | 0.17 lb |
| CAT5ECM-05PR | 5ft | 0.2 lb |
| CAT5ECM-06PR | 6ft | 0.21 lb |
| CAT5ECM-07PR | 7ft | 0.24 lb |
| CAT5ECM-08PR | 8ft | 0.26 lb |
| CAT5ECM-09PR | 9ft | 0.24 lb |
| CAT5ECM-10PR | 10ft | 0.33 lb |
| CAT5ECM-11PR | 11ft | 0.32 lb |
| CAT5ECM-12PR | 12ft | 0.38 lb |
| CAT5ECM-13PR | 13ft | 0.44 lb |
| CAT5ECM-14PR | 14ft | 0.46 lb |
| CAT5ECM-15PR | 15ft | 0.5 lb |
| CAT5ECM-16PR | 16ft | 0.57 lb |
| CAT5ECM-17PR | 17ft | 0.64 lb |
| CAT5ECM-18PR | 18ft | 0.71 lb |
| CAT5ECM-19PR | 19ft | 0.78 lb |
| CAT5ECM-20PR | 20ft | 0.63 lb |
| CAT5ECM-21PR | 21ft | 0.7 lb |
| CAT5ECM-22PR | 22ft | 0.71 lb |
| CAT5ECM-23PR | 23ft | 0.72 lb |
| CAT5ECM-24PR | 24ft | 0.74 lb |
| CAT5ECM-25PR | 25ft | 0.77 lb |
| CAT5ECM-30PR | 30ft | 0.95 lb |
| CAT5ECM-35PR | 35ft | 1.1 lb |
| CAT5ECM-40PR | 40ft | 1.33 lb |
| CAT5ECM-45PR | 45ft | 1.4 lb |
| CAT5ECM-50PR | 50ft | 1.55 lb |
| CAT5ECM-75PR | 75ft | 2.26 lb |
| CAT5ECM-100PR | 100ft | 3.0 lb |
