Description

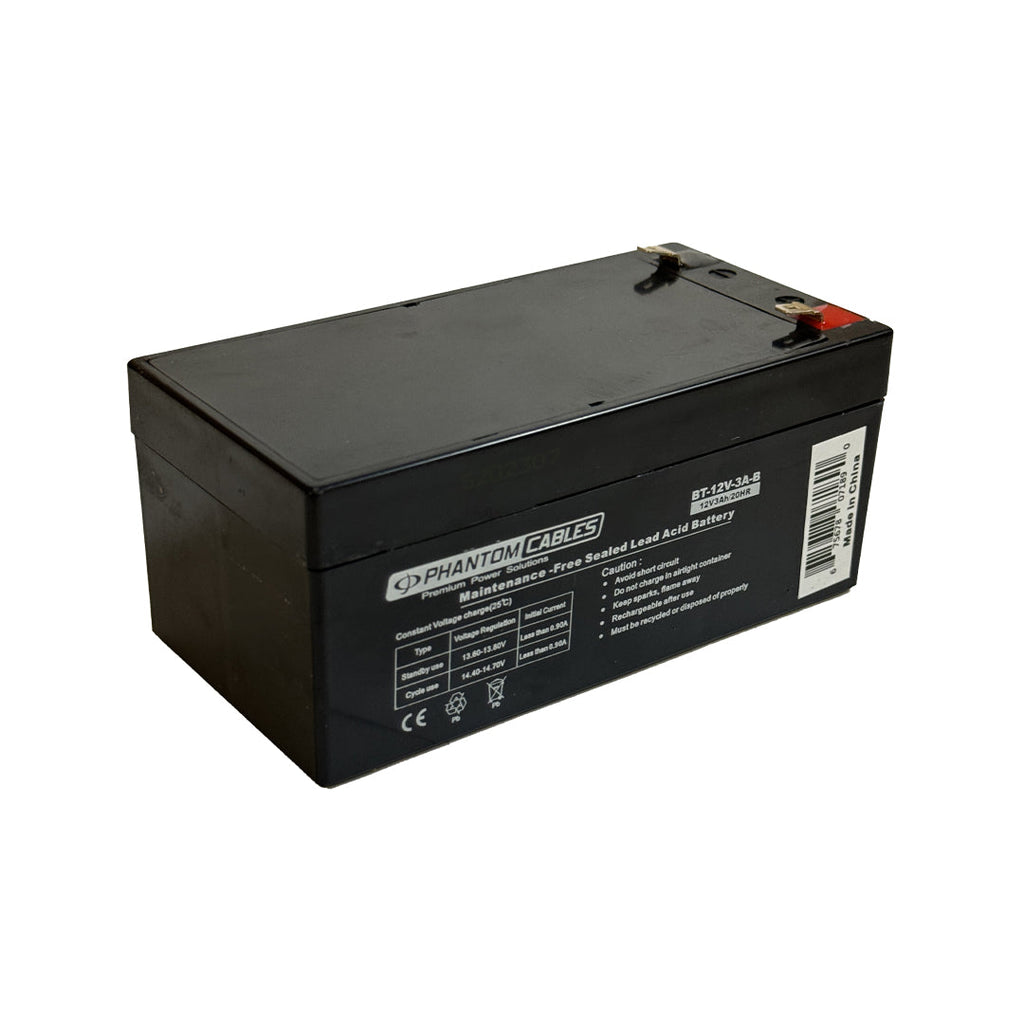

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications. Note that the positive terminal is located on the left side of the battery.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Internal Resistance | Approx.40m٦ |
| Max. Discharge Current | 60A(5S) |
| Rated Capacity | 3.30AH (20hr, 1.75V/cell,25℃/77℃F) 3.11AH (10hr, 1.75V/cell,25℃/77℃F) 2.79AH (5hr, 1.75V/cell,25℃/77℃F) 2.55AH (3hr, 1.75V/cell,25℃/77℃F) 1.90AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature |
40℃ 103% 25℃ 100% 0℃ 86% -15℃ 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Warranty | 6 Months |
Product Weights
| SKU | Weight | |
| BT-12V-3A-B | 2.7 lb |
