Description
Overview

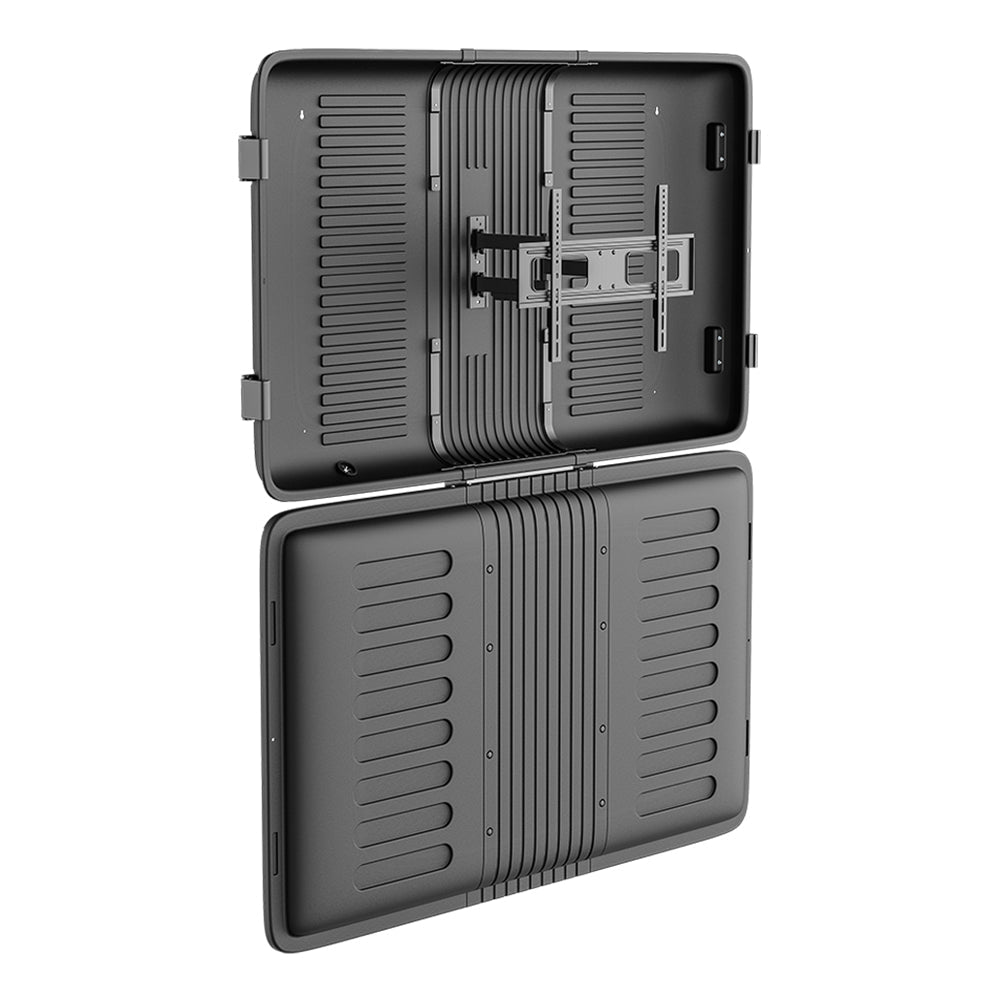

This swivel and tilting outdoor TV enclosure is designed to hold most 55 inch to 75 inch flat screen displays with a maximum VESA hole pattern of 600x400. It offers up to a +10° to -20° tilt and +90° to -90° swivel. This protective enclosure offers effective rain, wind, UV and vandal resistance, preventing the TV from any damage. Included is a full-motion mount for optimized viewing angles.
 |
Dust, Weatherproof and Theft ProtectionThis protective TV enclosure offers rain, wind, UV resistance and theft protection due to its hard case and lockable construction. Size AccommodationsThis TV enclosure offers a wide VESA spacing to accommodate larger TVs and can accommodate TV sizes of 55 inch to 75 inch.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating |

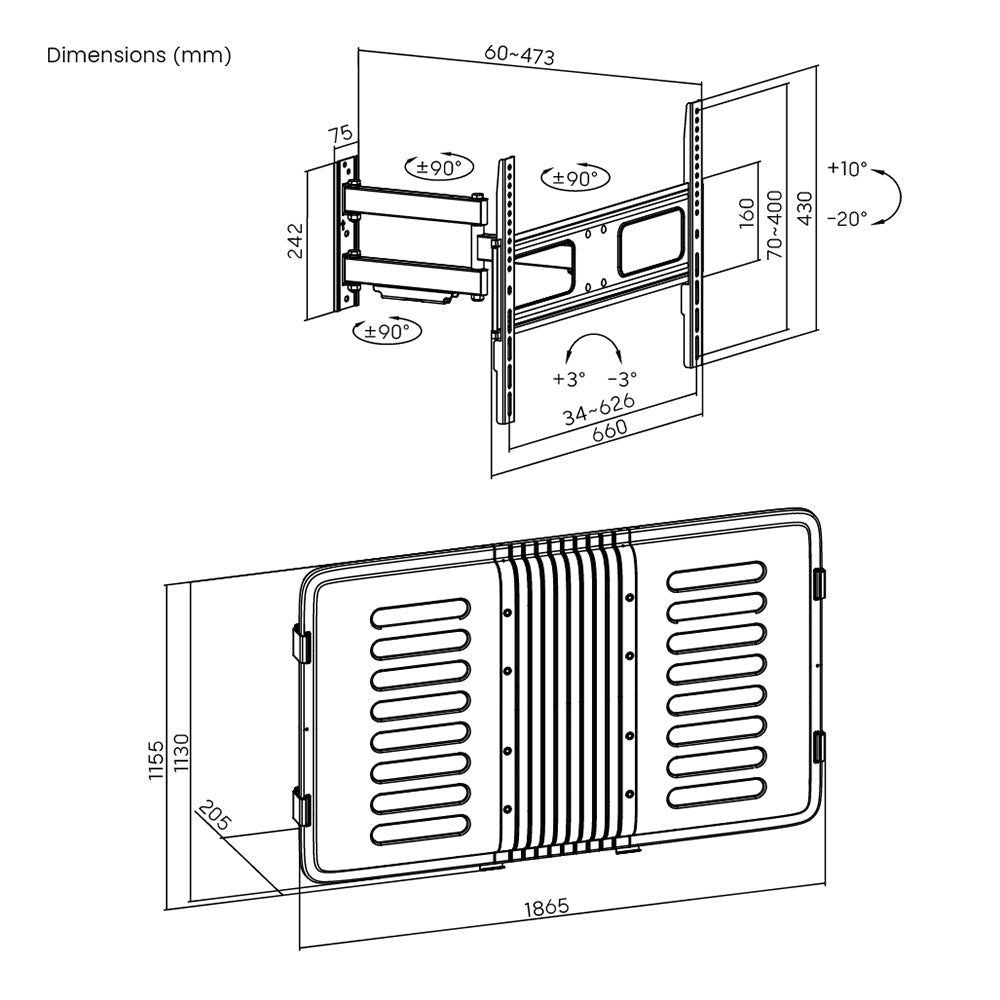

| Dimensions | 1865x1150x205mm (73.4"x45.3"x8.1") |
| Mounting Pattern | VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400 |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet, VESA Panel THK=2mm cold-rolled sheet, Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.079" cold-rolled sheet, VESA Panel THK=0.079" cold-rolled sheet, Wall Plate THK=0.098" pickling sheet) |
| Pipe Size | 40x20x1.5mm Square Steel Tube (1.6"x0.79"x0.059" Square Steel Tube) |
| Screen Size | 55"-75" |
| Weight Capacity | 110 lbs [50kg] |
| Tilt | +10° ~ -20° |
| Swivel | +90° ~ -90° |
| Profile | 2.4"~18.6" |
| Level Adjustment | -3° ~ +3° |
| Screen Freely Tilting |
Yes |
| Panel Type |
Detachable Panel |
| Wall Plate Type |
Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management |
Yes |
| Anti-theft |
Yes |
| Installation | Single Stud, Solid Wall |
| Certification | IPX4 |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 8 - ST6.3x55 Screws 4 - ST3.5x50 Screws 8 - Concrete Anchors 4 - Anchors 4 - D6 Washers 4 - D5 Washers |
| Product Weight | 60.7lbs [27.5kg] |
