Description

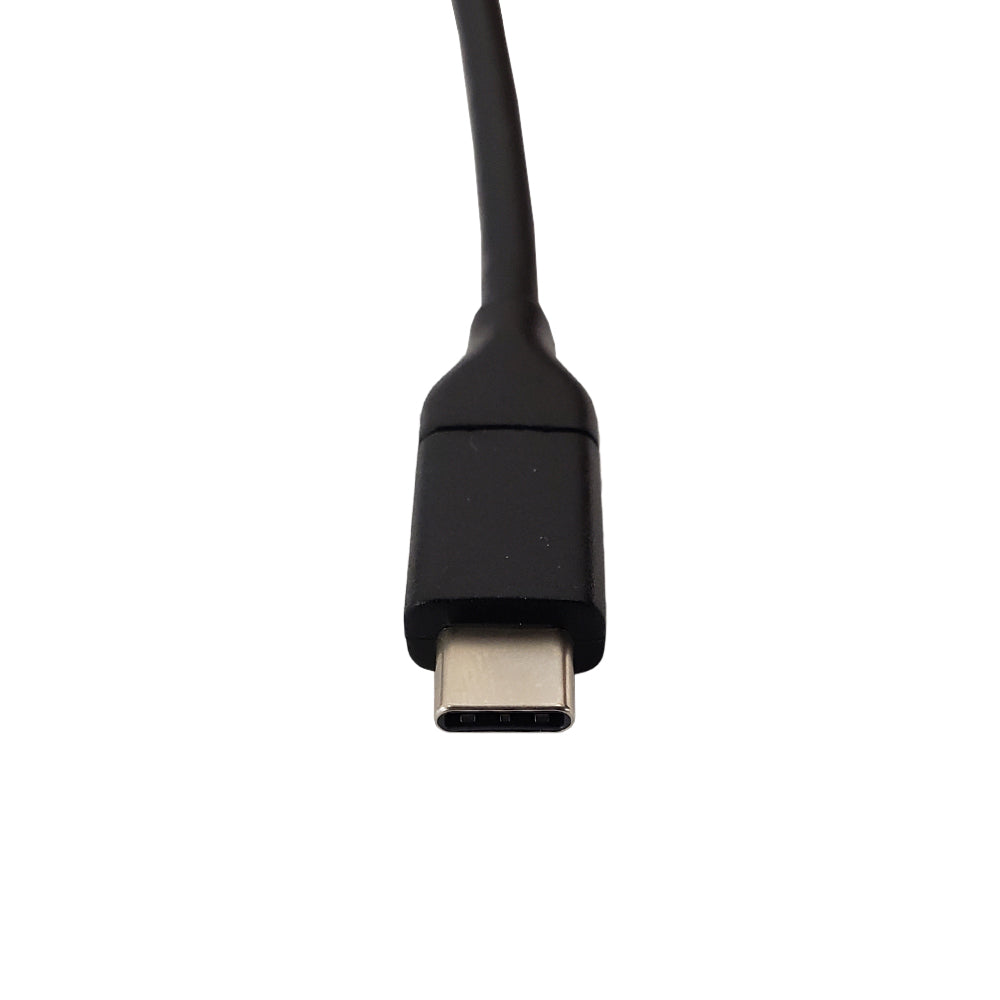

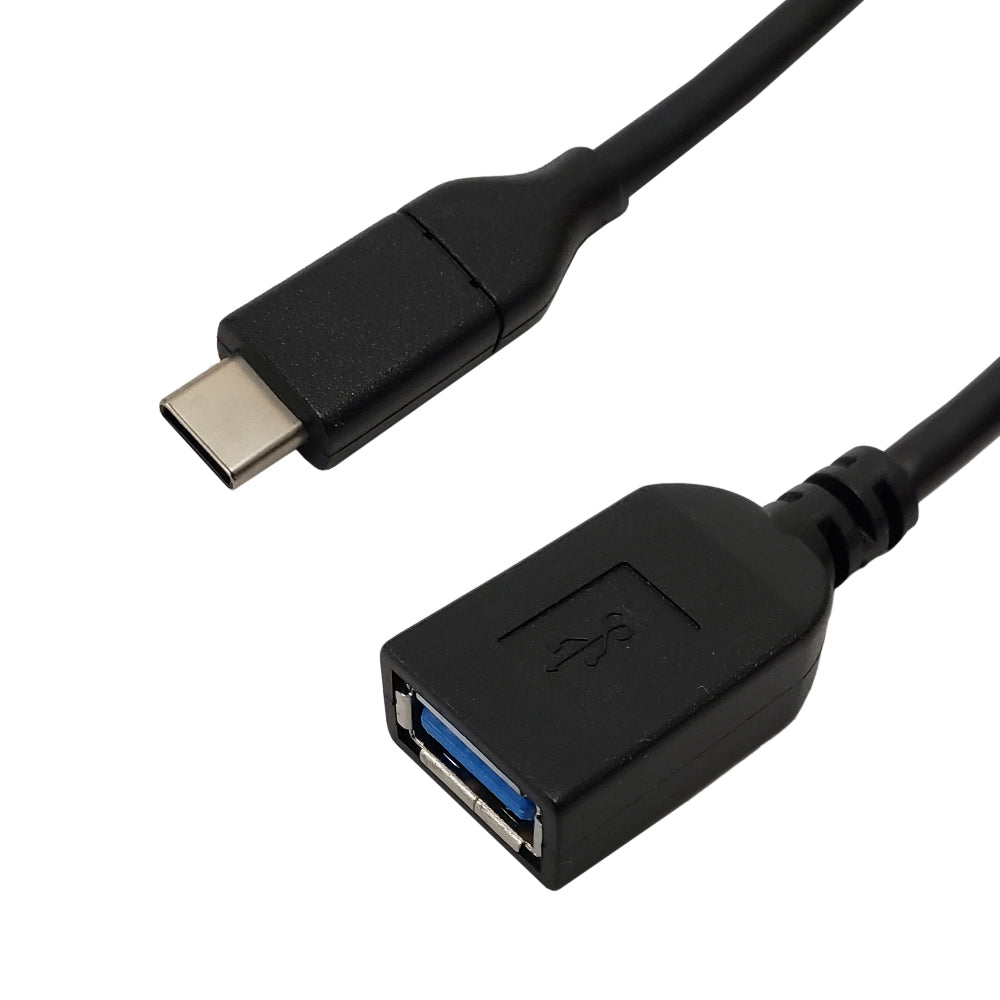

This USB 3.1 cable consists of a USB type-C male on one end and a USB A female on the other end. It is capable of transferring data up to 5Gbps and is typically used to connect USB 3.0 and 2.0 peripherals to USB-C devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt 3 ports.
| Physical Characteristics | |
|---|---|
| Length | 0.15m |
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.2 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
| Connector(s) | |
| Connector A | 9-pin USB 3.1 Type-A SuperSpeed Female |
| Connector B | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed |
| Speed | 5 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 3 Amp |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.04 lbs |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
| SKU | Weight | |
| USB-326-0.15M | 0.04 lb |
