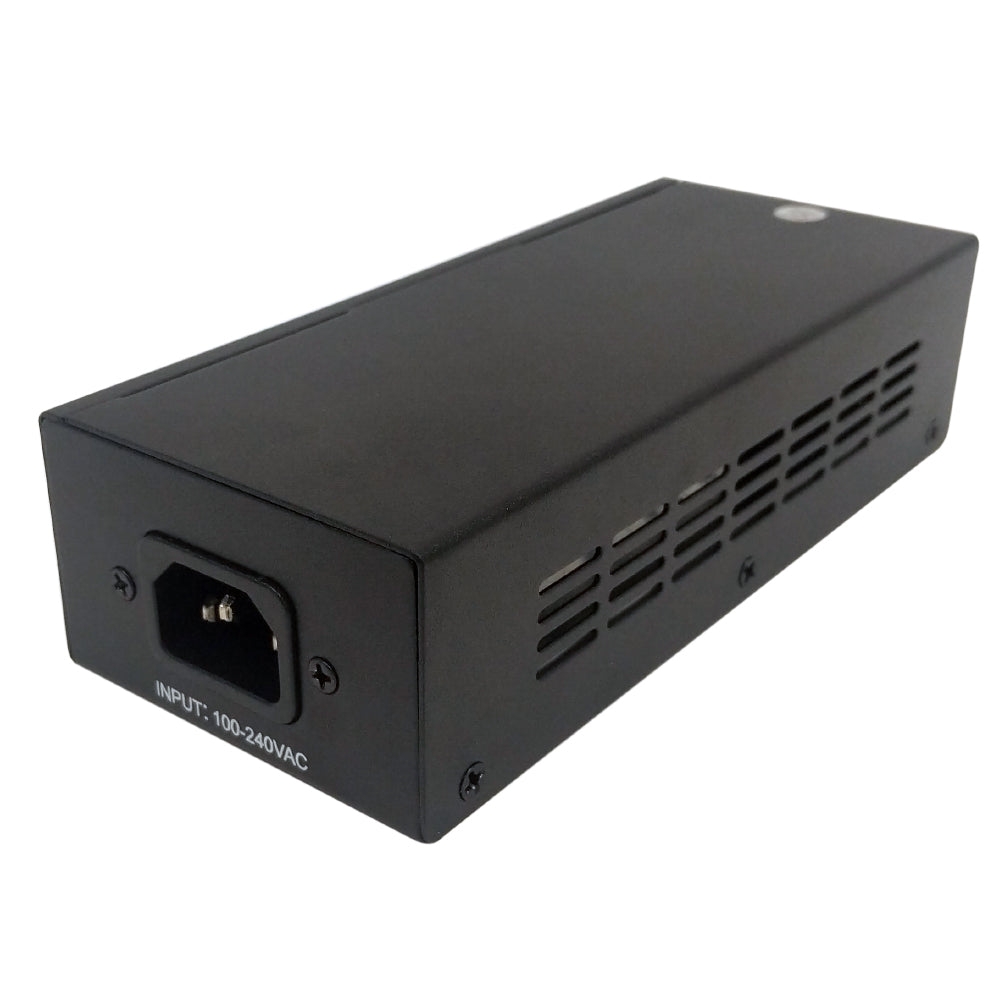

1-Channel 10/100/1000M PoE Injector - 60W - IEEE 802.3af/at

PoE Injectors & ExtendersSKU: POE-IN110-60W

Price:
Sale price$44.44 USD
Stock:
In stock

Description

Overview

This compact 60 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.

Features

  • Up to 60W of power on 4-pairs
  • Supports 10/100/1000 Base-T applications
  • Power input LED indicators
  • Internal AC/DC converter
  • No need for external power supply
  • Easy plug-and-play installation
  • Multi-protection

Application

Specifications

Physical Characteristics
No. of Channels 1
Body Material Metal Enclosure
Operating Temperature -0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Humidity
Maximum 85% (no condensation)
Storage Humidity Maximum 90% (no condensation)
Dimensions 168 x 73.5 x 44mm
Connectors Shielded RJ45, EIA 568A and 568B
Indicators PWR Indicator: AC Power
PoE Indicator: Channel Power
Performance
Pass Through Data Rates 10/100/1000 Mbps
Max Power 60 Watts
PoE Pin Assignment & Polarity 1/2 (-), 3/6(+), 4/5(+), 7/8(-)
PoE Output Voltage DC 50V, 1.2A
User Port Power 30W & 60W
AC Input Current/Voltage 0.5A / 100 to 240 VAC
Power Consumption 1 Watts
Frequency 50 to 60 Hz
Over Current Protection Yes
Over Load Protection Yes
Over Voltage Protection Yes
Anti-interference Protection Yes
Approval
c(UL)us Yes
CE, FCC Yes
Environmental
RoHS Yes
Warranty Information
Warranty 2 Years
Packaging Information
Package Quantity 1 - PoE Injector
1- 3 foot C13 to 5-15P Power Cable
Product Weight 1.36 lbs [0.62kg]

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
