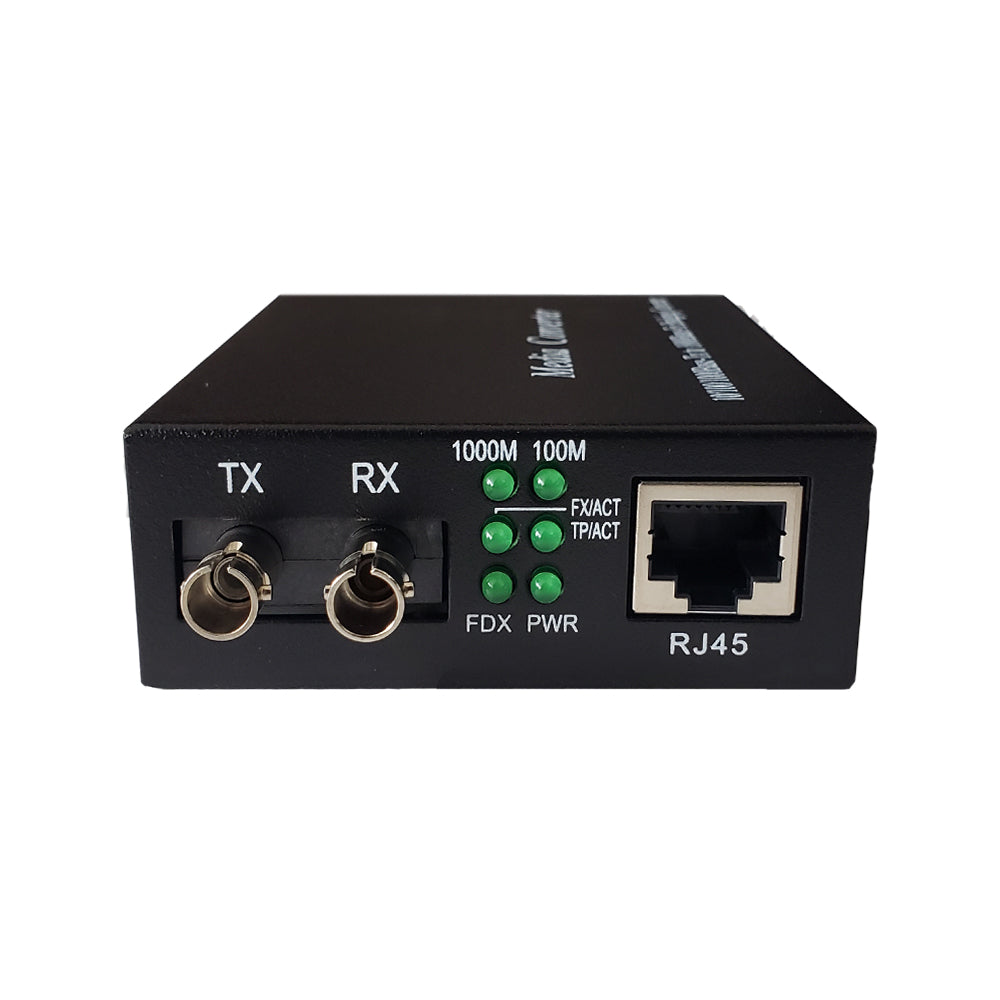

10/100/1000 Multimode Media Converter 550m ST (850nm)


Price:
Sale price$26.81 USD
Stock:
In stock

Description

This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 550m over a multimode ST fiber optic cable. The converter can be used as a standalone unit or in pairs.Ā

Features

  • Supporting IEEE802.3 10 Base-T standard, IEEE802.3u 100Base-TX/FX standard
  • Supporting maximum 2M buffer memory built in chip
  • Supporting back pressure flow control for full duplex IEEE 802.3X and half duplex
  • Supporting automatic identification of MDI/MDI-X cross line
  • Supporting high performance 1.4Gbps memory bandwidth
Physical Characteristics
Color Black
Dimensions 98mm x 70mm x 26mm (L x W x H)
Housing Metal
Operating Temperature -10ā„ƒ ~ 55ā„ƒ
Relative Humidity 5% to 90% (non-condensation)
Standards

IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX

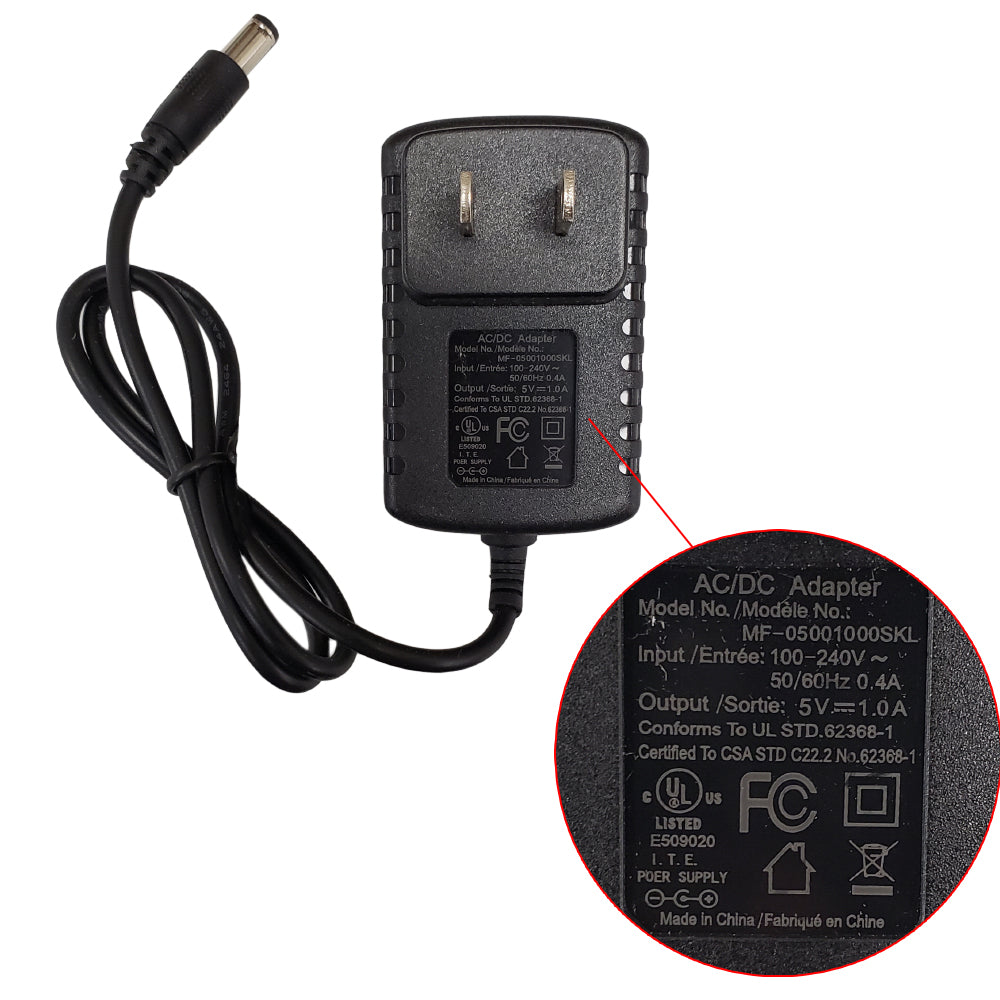

Power
Power Supply

Input: 100-240VAC 50/60Hz
Output: DC 5V 1A

Connectors
Fiber Connector ST
Ethernet Connector RJ45 UTP
Performance
Referenced Transmission Distance

Duplex-Fiber 62.5/125 Multimode up to 220m
Duplex-Fiber 50/125 Multimode up to 550m

Data Forward Rate 10Mbps, 100Mbps, 1000Mbps
Wavelength 850nm
LED PWR (power LED)
100M (UTP port)
FX ACT (Fiber port link/action status LED)
1000M (UTP port speed LED)
TP/ACT (UTP port link/action status LED)
FDX (UTP duplex LED)
Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.85 lbs [0.03kg]
Warranty Information
Warranty 1 Year
