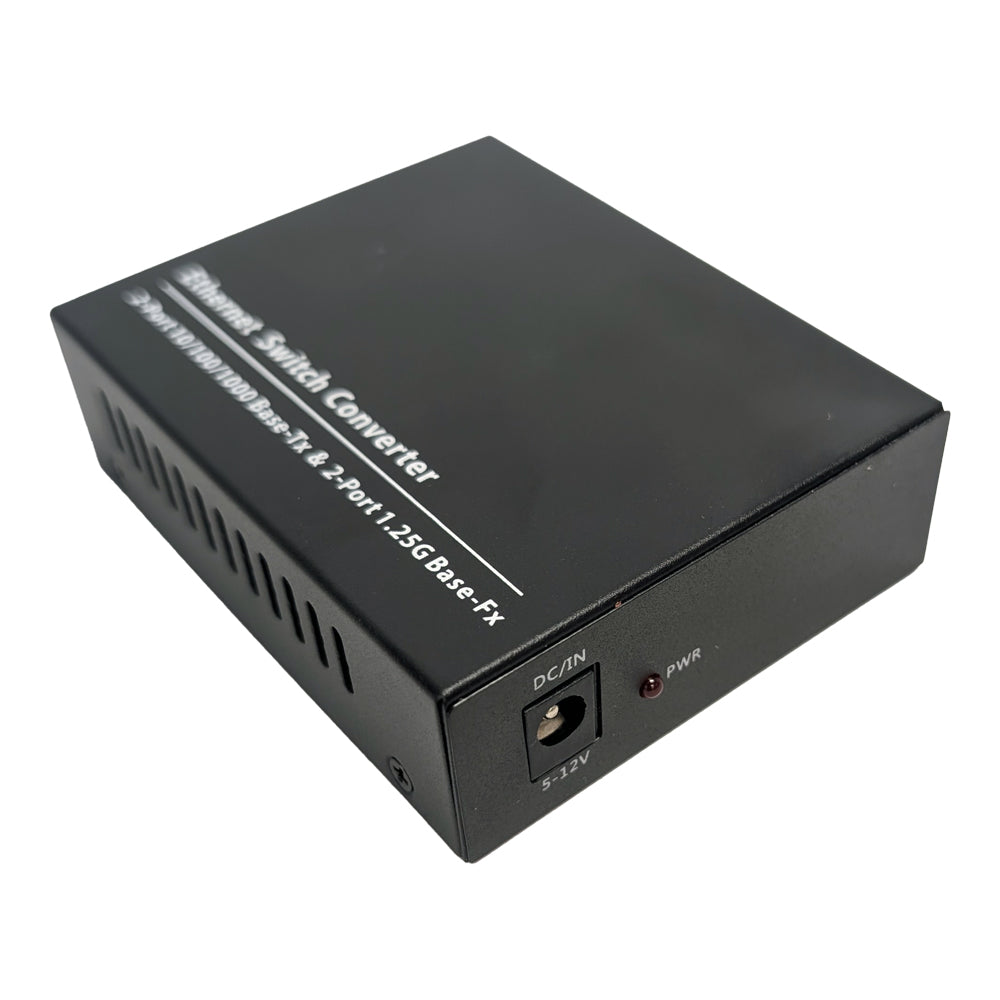

This bi-directional 10/100/1000Mbps singlemode to multimode media converter allows communication between singlemode and multimode fiber optic cable networks. It can support a total distance of 2km over a SC multimode cable and 20k over a SC singlemode cable.
| Physical Characteristics |
|---|
| Color |
Black |
| Dimensions |
94mm x 72mm x 25mm (L x W x H) |
| Housing |
Metal |
| Operating Temperature |
0ā ~ 70ā |
| Relative Humidity |
5% to 90% (non-condensation) |
| Wavelength |
Singlemode:1300nm, 1310nm, 1550nm
Multimode: 1310nm, 1300nm, 850nm
|
| Standard |
IEEE802.3u 100Base-FX
IEEE802.3z 1000BaseSX/LX |

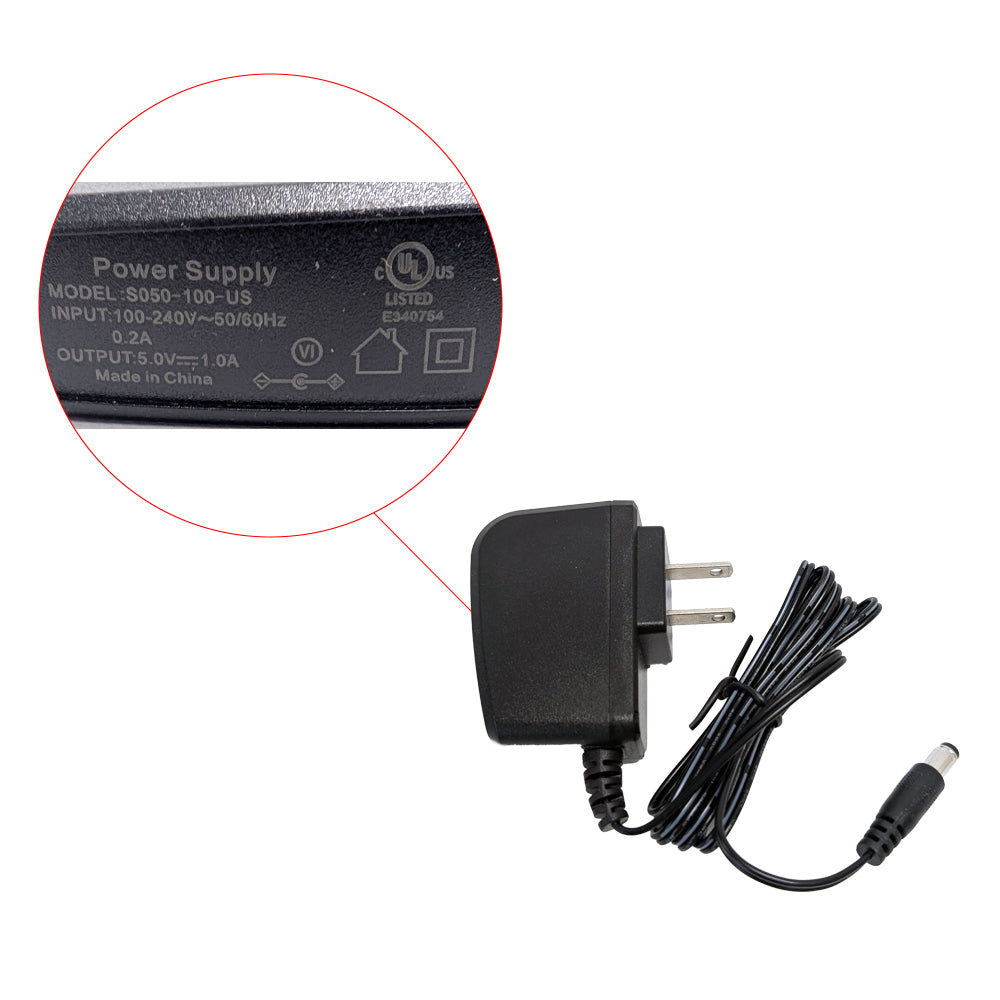

| Power |
|---|
| Power Supply |
DC 5V 1A |
| Power Consumption |
2.5W |

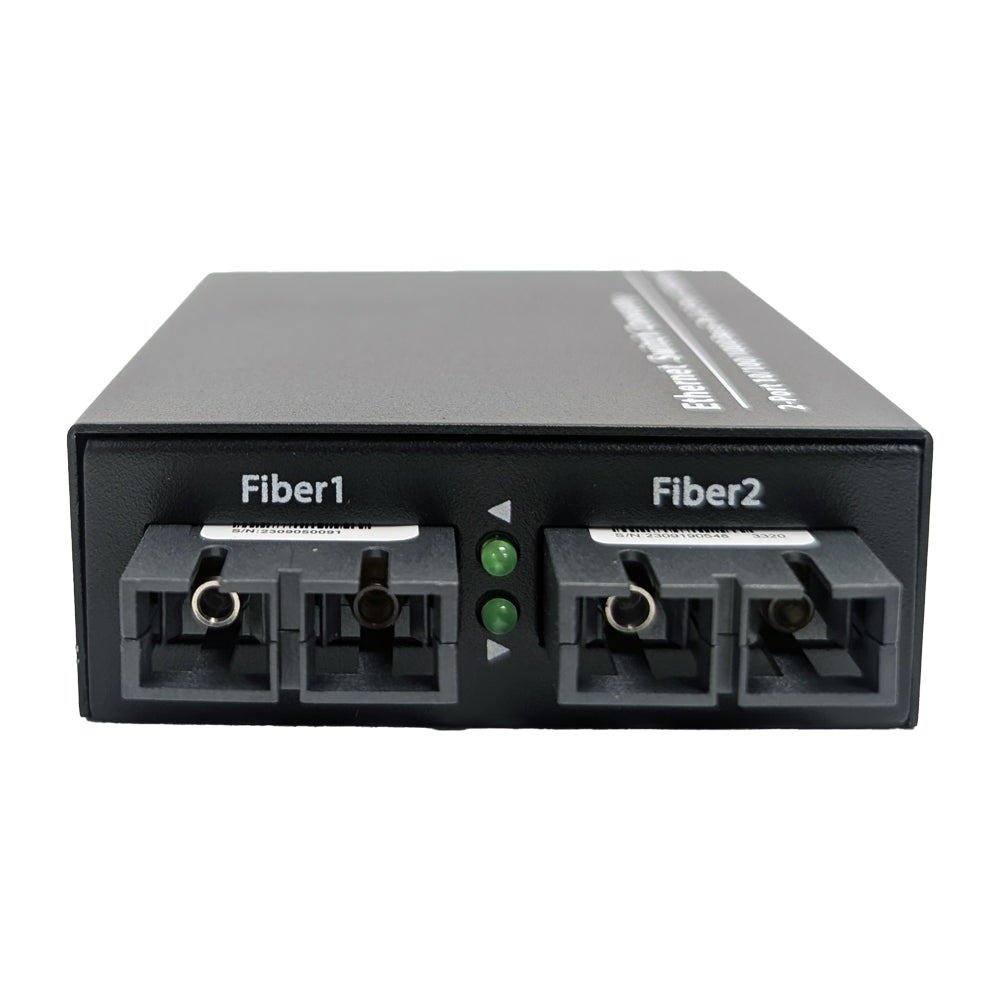

| Connectors |
|---|
| Multimode Connector |
SC |
| Singlemode Connector |
SC |
| Performance |
|---|
| Media Supported |
Singlemode Fiber (8.3/125um, 8.7/125, 9/125um, 10/125um)
Multimode Fiber (50/125um, 62.5/125um, 100/140um)
|
| Referenced Transmission Distance |
Dual-Fiber Singlemode - 2~80km
Dual-Fiber Multimode - 2km
|
| Data Forward Rate |
10Mbps, 100Mbps, 1000Mbps |
| Features |
Wavelength Switch, Mode Switch, Fiber Switch, Wavelength Switch |
| Certifications |
|---|
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.85 lbs [0.03kg] |
| Warranty Information |
|---|
| Warranty |
1 Year |
