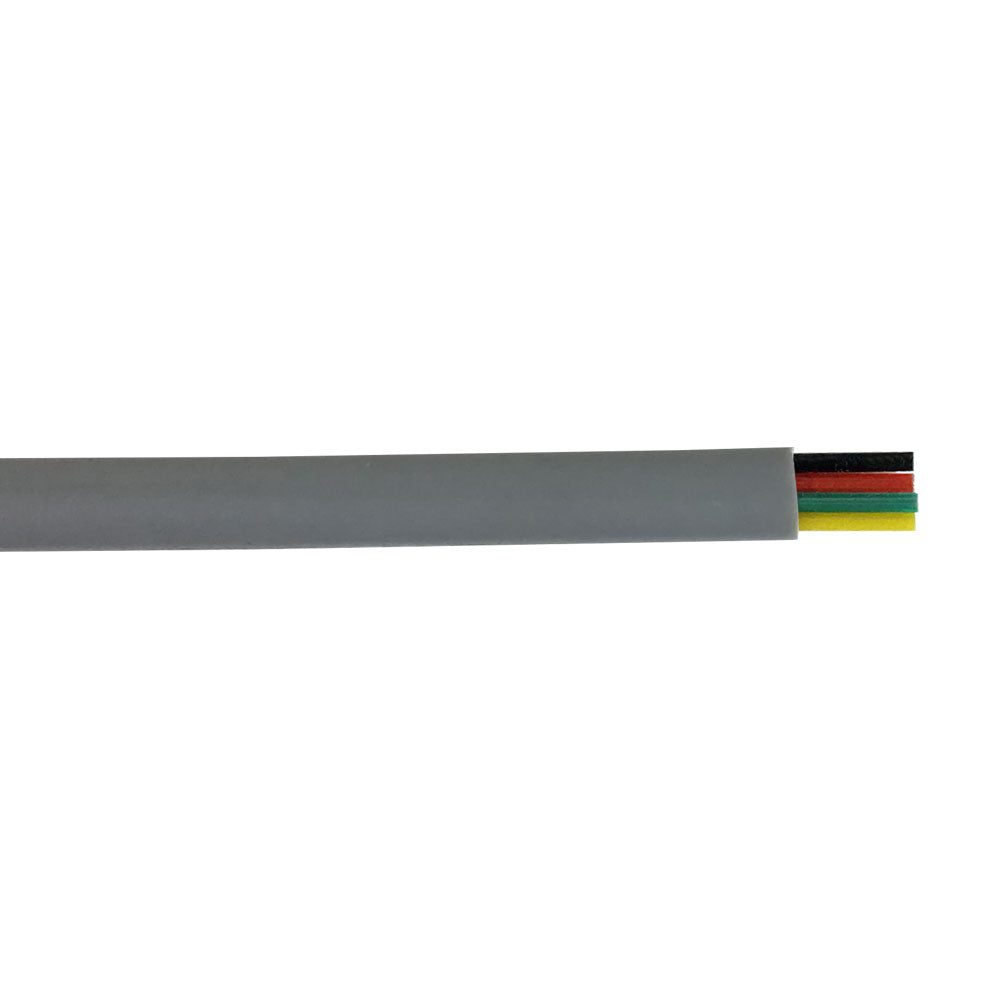

1000ft 26AWG Stranded Modular Flat Phone Cable


Size: 4 Conductors
Color: Silver
Price:
Sale price$62.44 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

This bulk modular flat phone cable consists 8, 6 or 4 conductors and is 26 gauge. It is typically used to manufacture modular phone/data cables.Ā

Physical Characteristics
Cable Length 1000 foot [305m]
Color Black | Silver Satin
No. of Conductors
Cable Diameter
4 Conductor
5mm x 2.5mm

6 Conductor
6.85mm x 2.5mm

8 Conductor
8.8mm x 2.5mm

Wire Gauge 26AWG CCA
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating VW-1
Temperature Rating -10ā„ƒ to +60ā„ƒ
Cable Voltage Rating 150V
Approvals
UL Yes
cUL Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 4 Conductor
9.35 lbs [4.21 kg]
6 Conductor
14.15 lbs [6.41 kg]
8 Conductor
17.88 lbs[8.11 kg]
SKU Options Weight
BK-PH04C26 4 Conductors / Silver 15.0 lb
BK-PH04C26-BK 4 Conductors / Black 15.0 lb
BK-PH06C26 6 Conductors / Silver 14.15 lb
BK-PH06C26-BK 6 Conductors / Black 14.15 lb
BK-PH08C26 8 Conductors / Silver 17.8 lb
BK-PH08C26-BK 8 Conductors / Black 17.8 lb
