Description
This 2 conductor 18AWG stranded unshielded control cable is 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black/White |

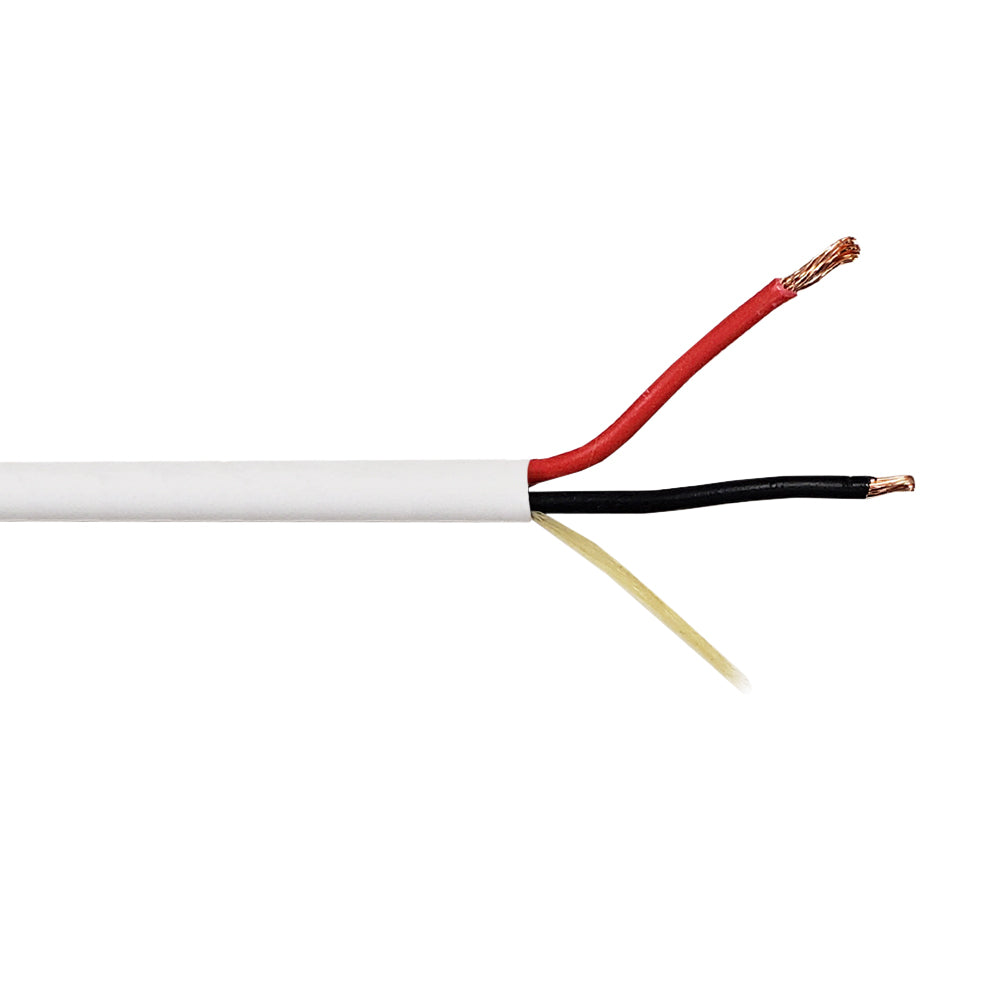

| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Min Average Jacket Thickness | 0.38mm |
| Jacket Outer Diameter | 4.6 +/- 0.20mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Min Average Insulation Thickness | 0.24mm |
| Insulation Outer Diameter | 1.7 +/- 0.05mm |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | DuPont KevlarĀ® |
| Conductor Resistance | 21.8 ohms/km (at 20ā Max) |
| Tensile Strength | Unaged: Min 1500psi Aged: Min 70% |
| Elongation | Unaged: 100% Min Aged: 65% Min |
| Heat Shock Test | No Crack |
| Cold Bend Test | No Crack |
| Deformation Test | Max 50% |
| Flame Test | UL910/CMP |
| Approvals | |
| c(ETL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |

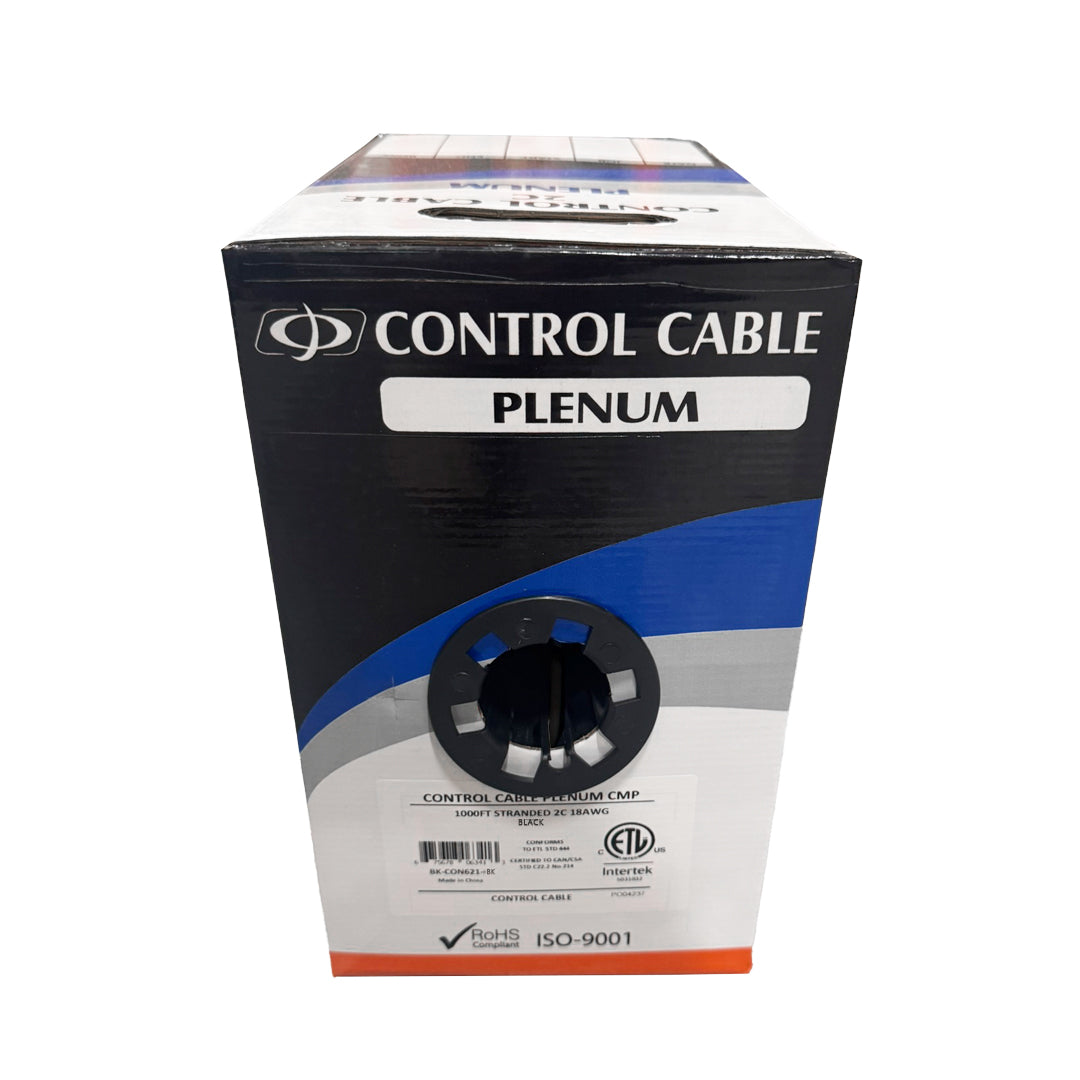

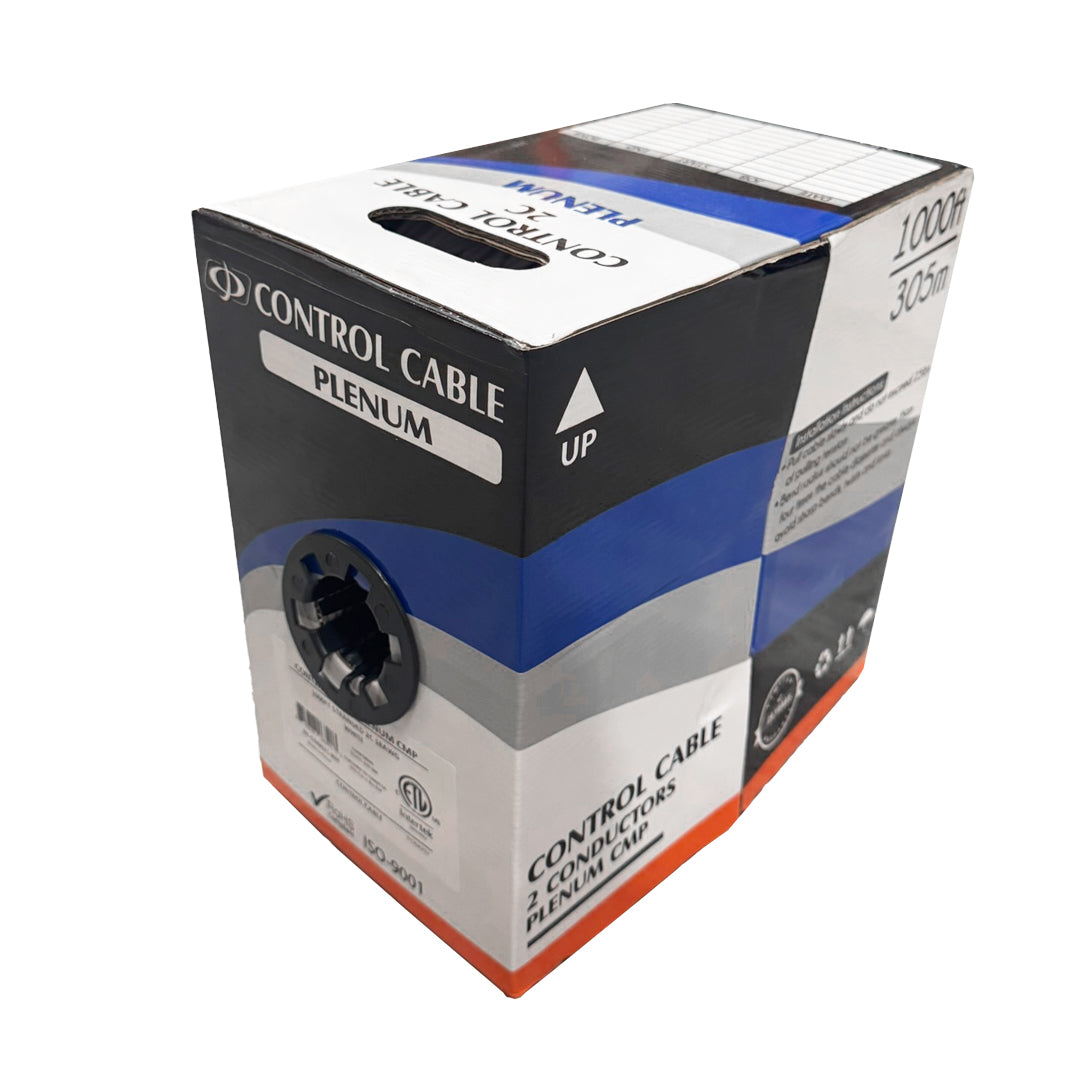

| BK-CON621-BK | Black | 21.0 lb |

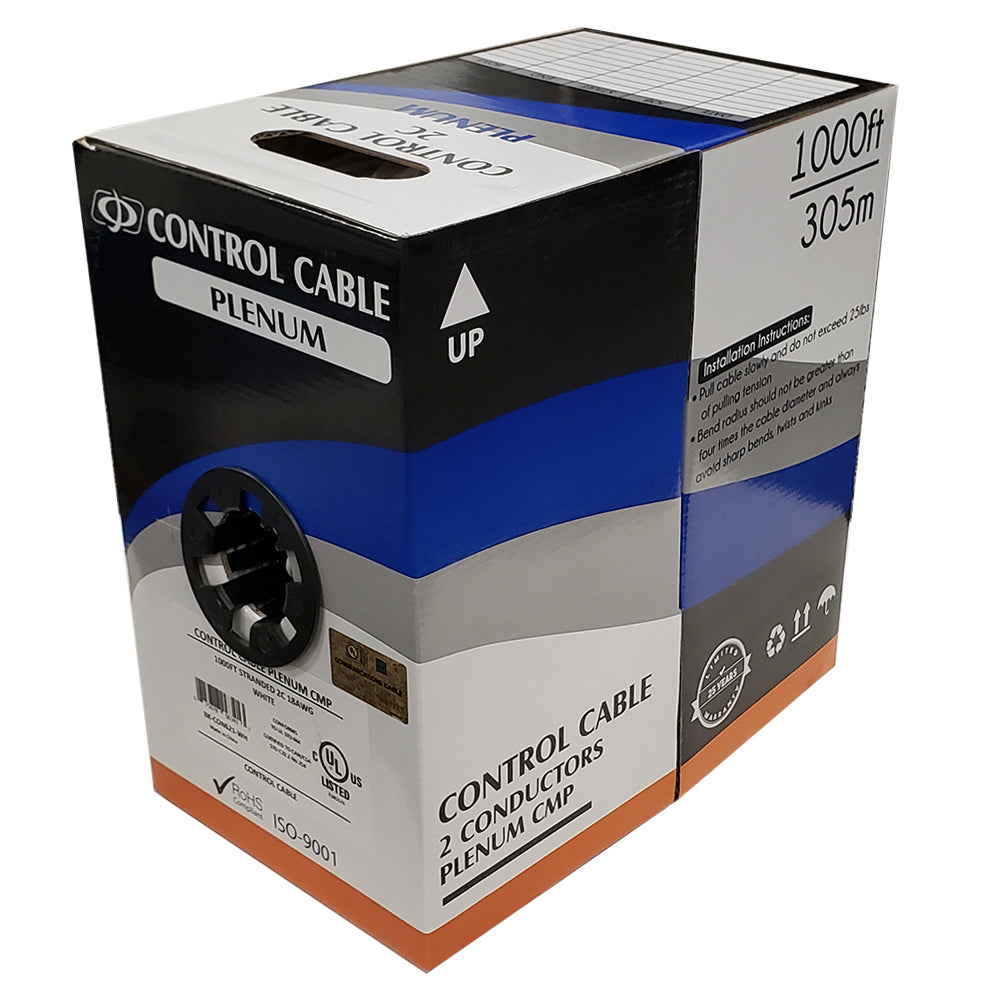

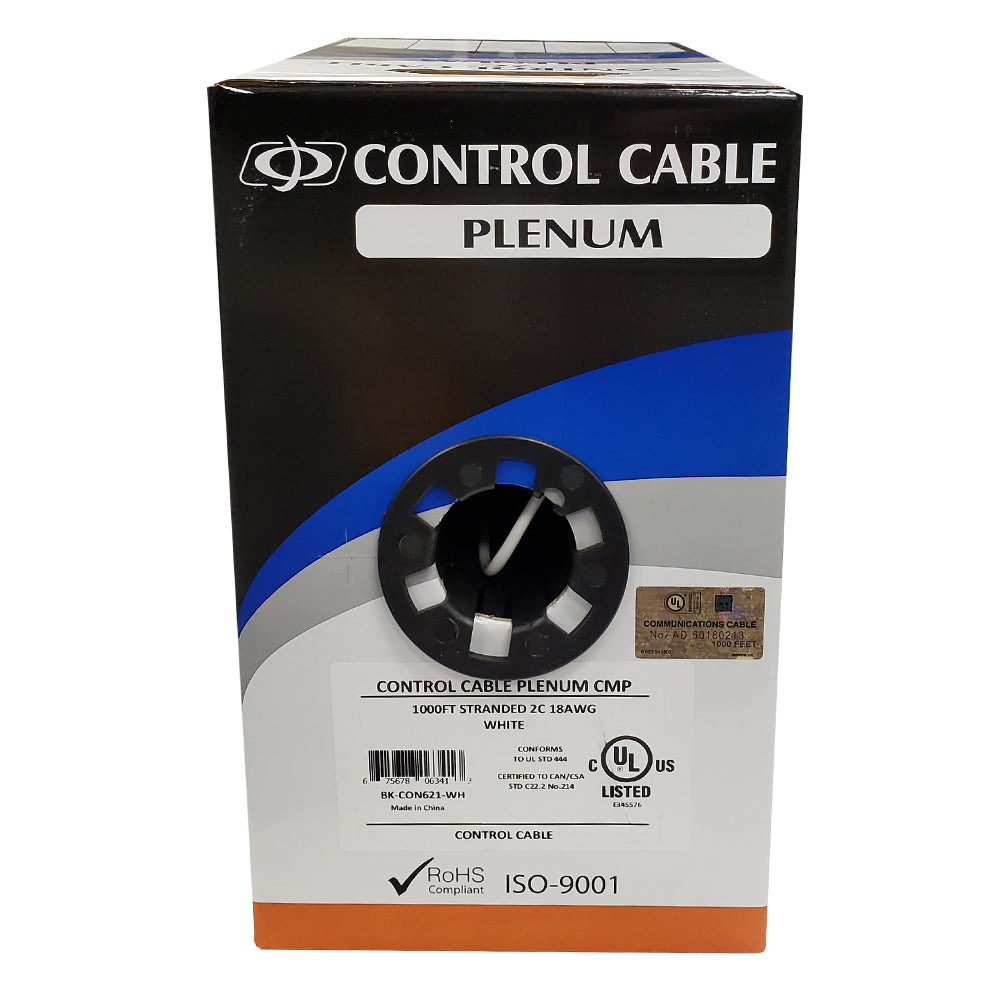

| BK-CON621-WH | White | 21.0 lb |
