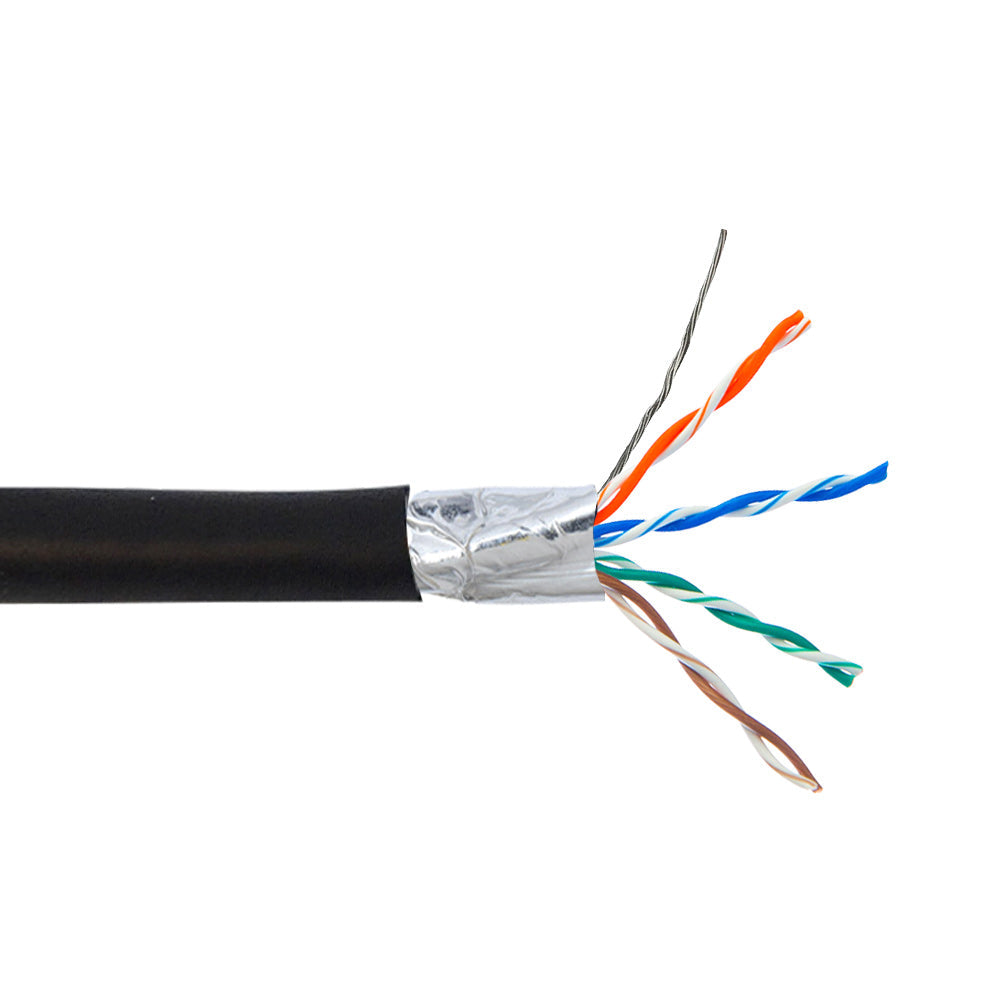

This bulk outdoor rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
Physical Characteristics |
Cable Length |
1000 foot [305m] |
Color |
Black |
Cable Diameter |
6.20Ā±0.10mm |
Number of Pairs |
4 Pairs |
Wire Gauge |
24AWG Solid |
Conductor Material |
100% Bare Copper |
Conductor Diameter |
0.515Ā±0.005mm |
Cable Shielding |
Aluminum Foil Shield |
Temperature Rating |
-40ā ~ +75ā |
UV |
Yes |
Jacket Material |
LLDPE |
Jacket Rating |
Direct Burial / UV |
Jacket Average Thickness |
0.65mm |
Jacket Minimum Thickness |
0.60mm |
Insulation |
PE |
Insulation Average Thickness |
0.228mm |
Insulation Minimum Thickness |
0.205mm |
Insulation Diameter |
0.97Ā±0.01mm |
Assembly Diameter |
4.95Ā±0.20mm
|
Twisted Pair Diameter |
1.94Ā±0.02mm |
Drain Wire (mm) |
0.40 TC |
Rip Cord |
Yes - Nylon |
Bend Radius |
80mm |
Electrical Characteristics |
Before Aging |
Tensile Strength (Mpa): >=10.6 Elongation (%): >=300
|
Aging Condition (ā x hrs) |
100x168 |
After Aging |
Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
Environmental |
RoHS |
Yes |

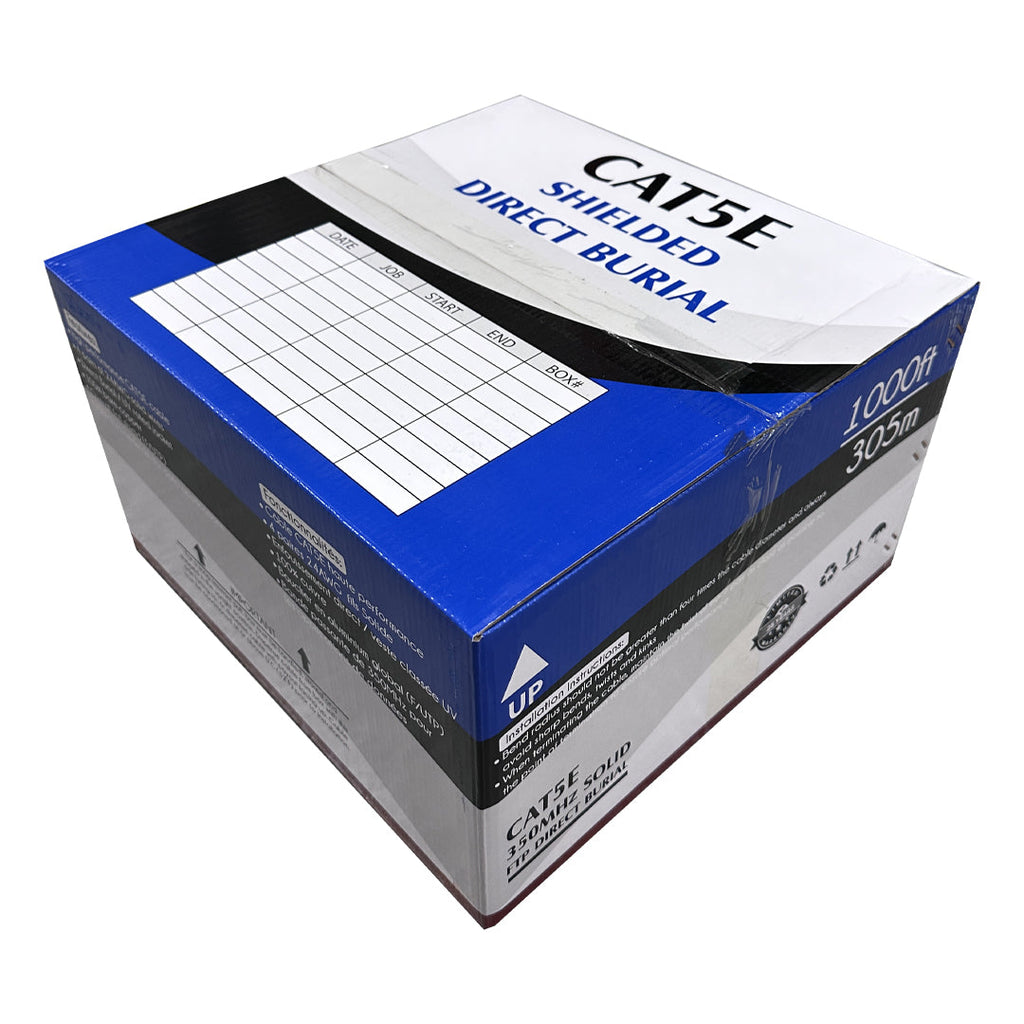

Packaging Information |
Package Quantity |
1 |
Product Weight |
30.9lbs [14kg] |
