Description

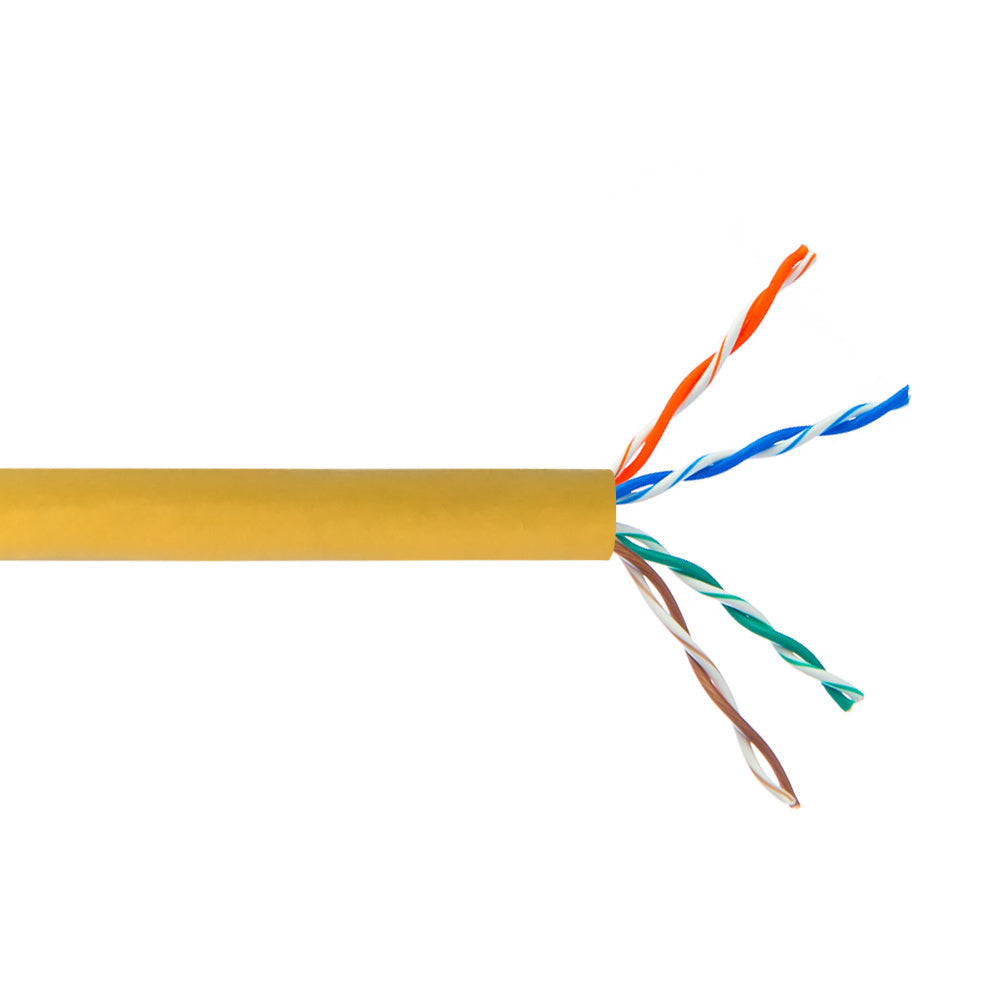

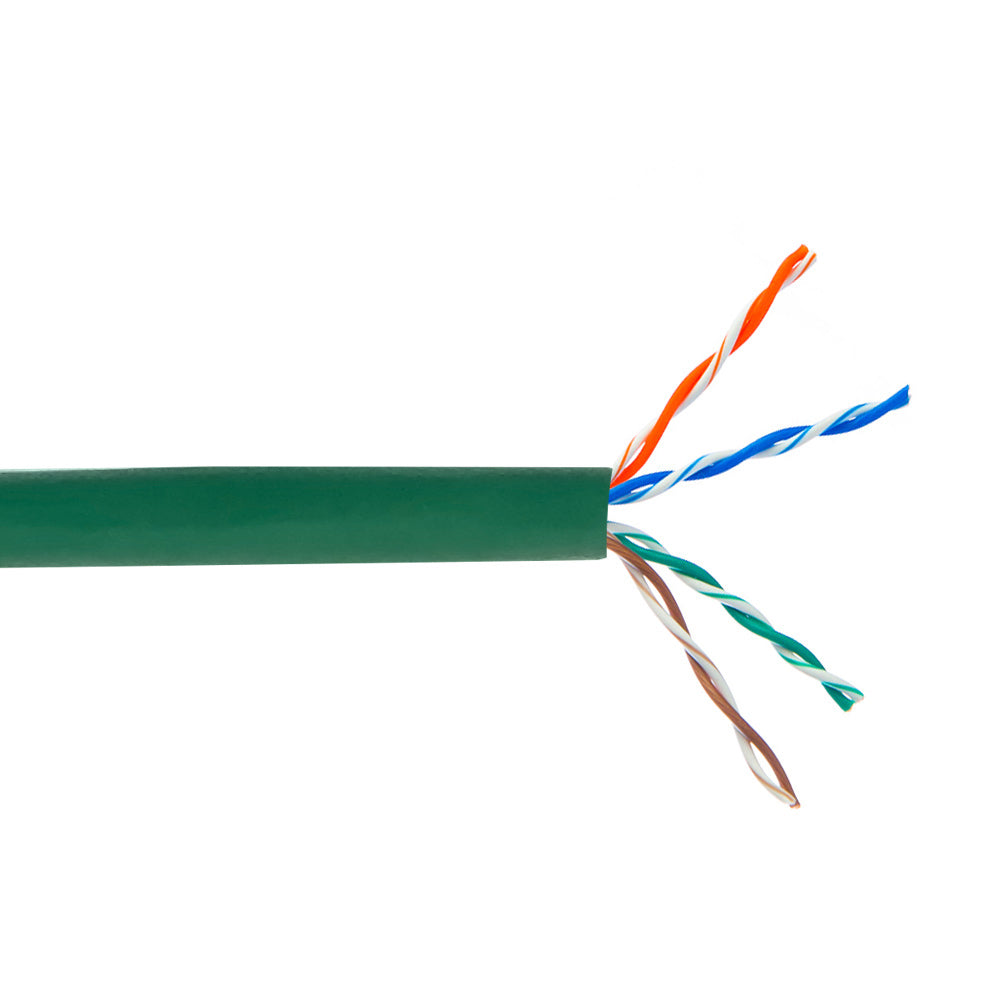

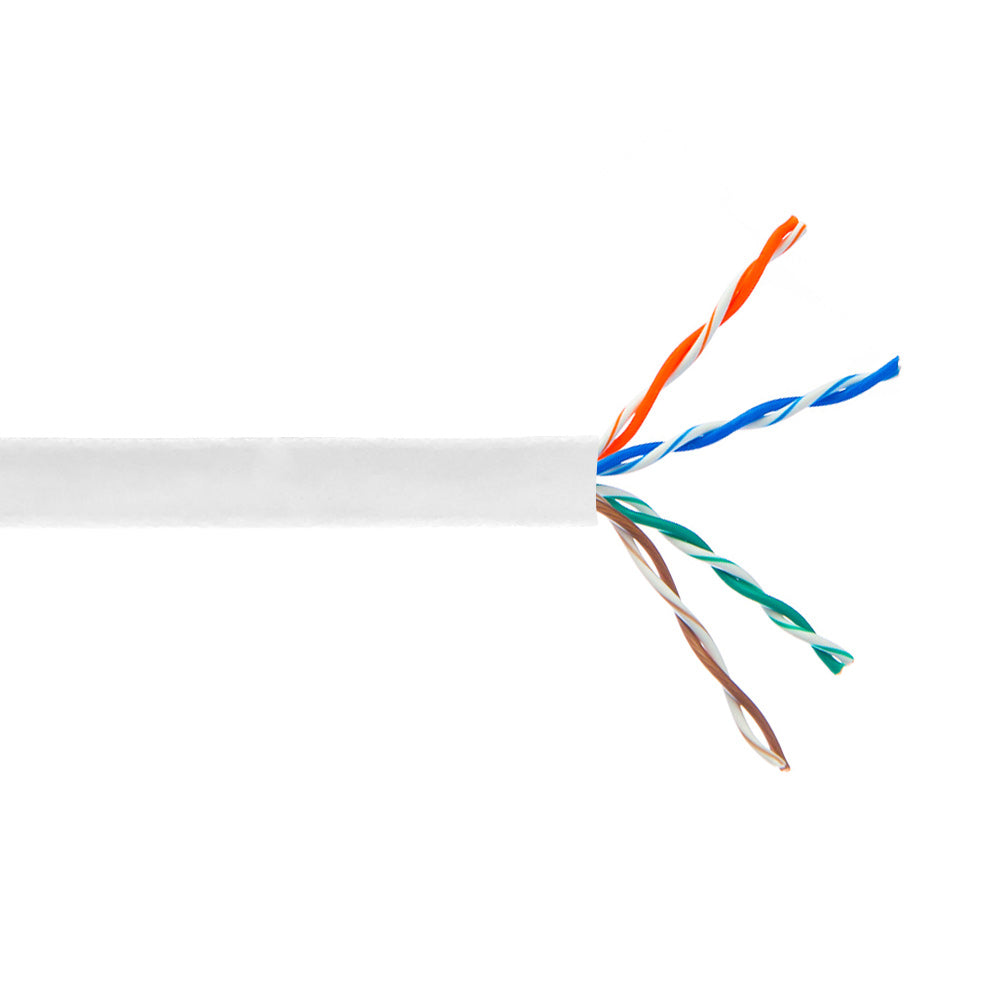

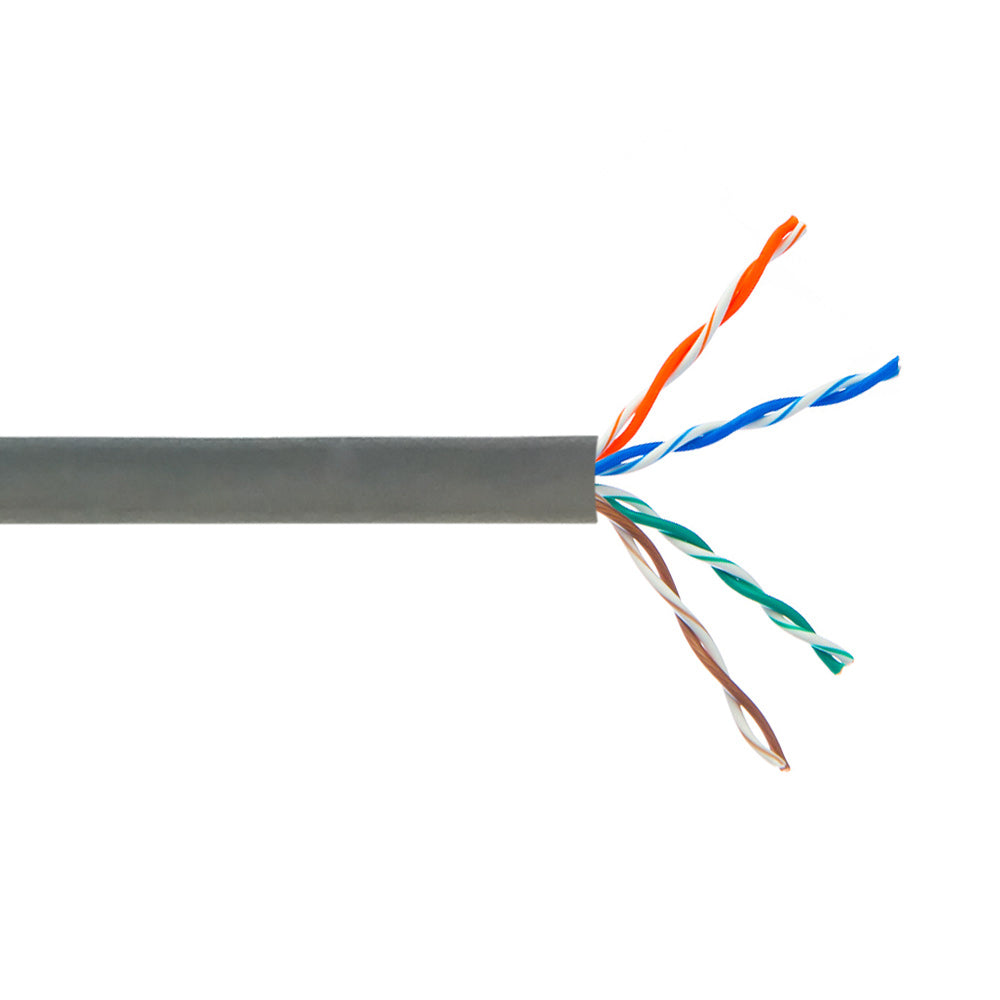

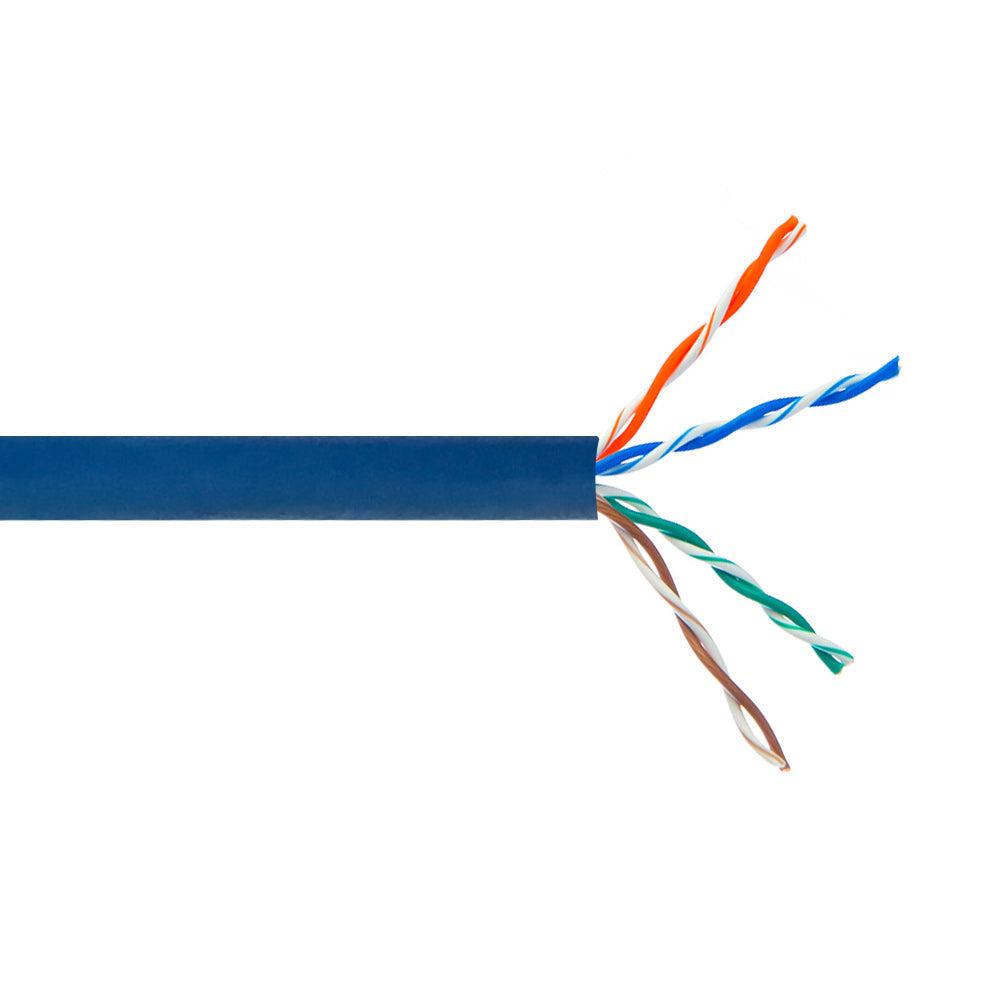

This bulk CAT5E plenum rated cable consists of 4 pairs of 24AWG solid bare copper wires. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a CAT5E jack.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 5.0 mm |
| Wire Gauge | 24AWG Solid |
| Insulation | 0.90mm Color-coated PE * 4 Pairs |
| Conductor Material | 100% Bare Copper |
| Shielding | None |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Operating Temperature | -20ĀŗC ~ 80ĀŗC |
| Performance | |
| Frequency | 350MHz |
| FlukeĀ® CAT6 Channel Test |
Compliant |
| FlukeĀ® CAT6 Permalink Test | Compliant |
| FlukeĀ® CAT6 Patch Cable Test | Compliant |
| PoE Compliance | |
|
PoE / IEEE 802.3af Type 1 |
15.4W (37-57V) |
|
PoE+ / IEEE 802.3at Type 2 |
30W (42.5-57V) |
| PoE++ / IEEE 802.3bt Type 3 | 60W (42.5-57V) |
| 4PPoE / IEEE 802.3bt Type 4 | 100W (41.1-57V) |
| Approvals | |
| c(UL)us |
Compliant (BK-C5E600-BK/BL/GY/WH) |
| c(ETL)us | Compliant (BK-C5E600-GN/RD/YL) |
| ISO/IEC 9001 |
Compliant |
| ANSI/TIA-568.C.2 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Conflict Minerals Compliant | Compliant |
| Packaging Information | |

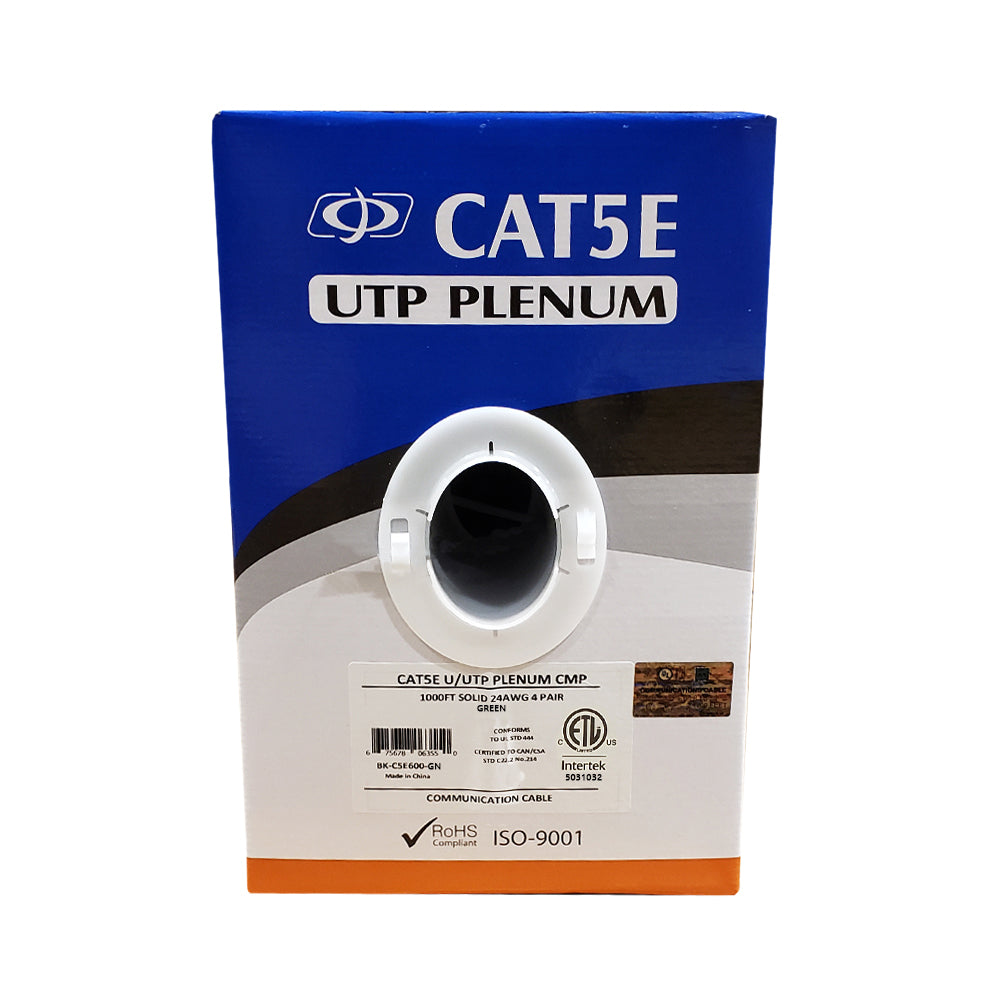

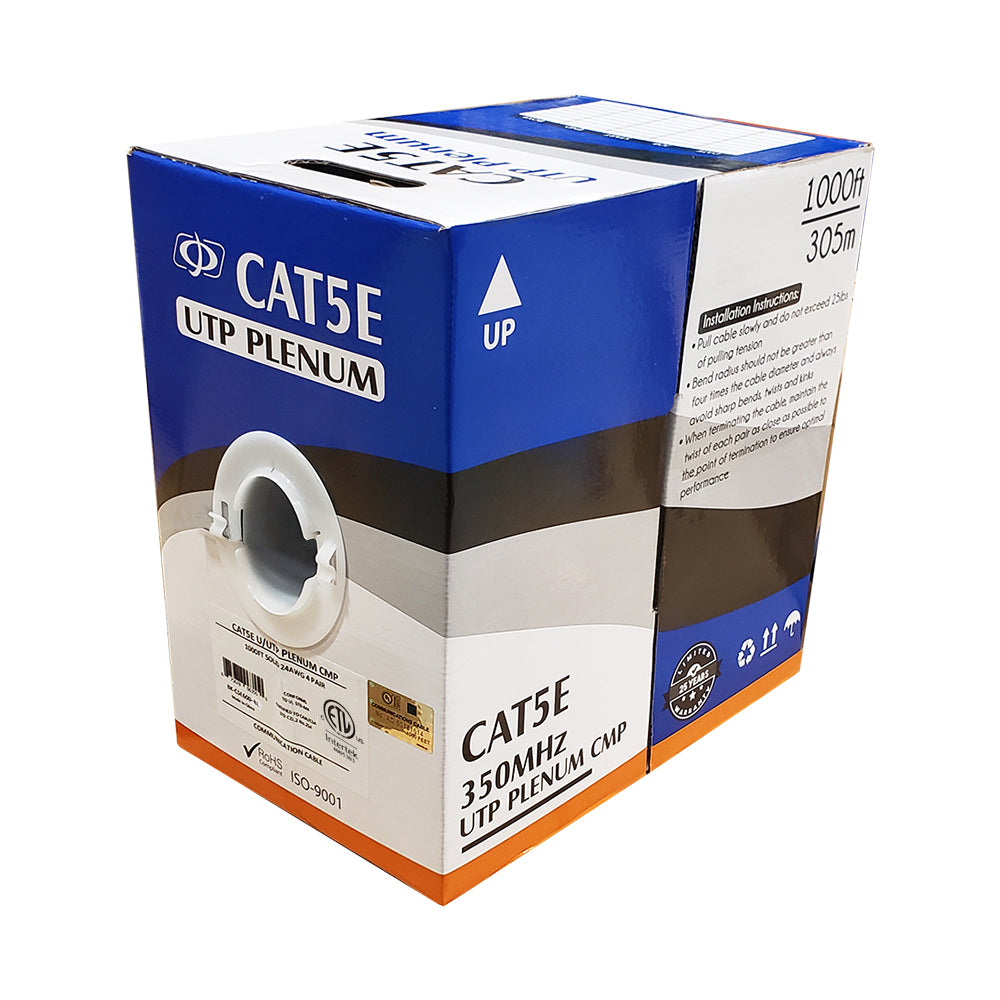

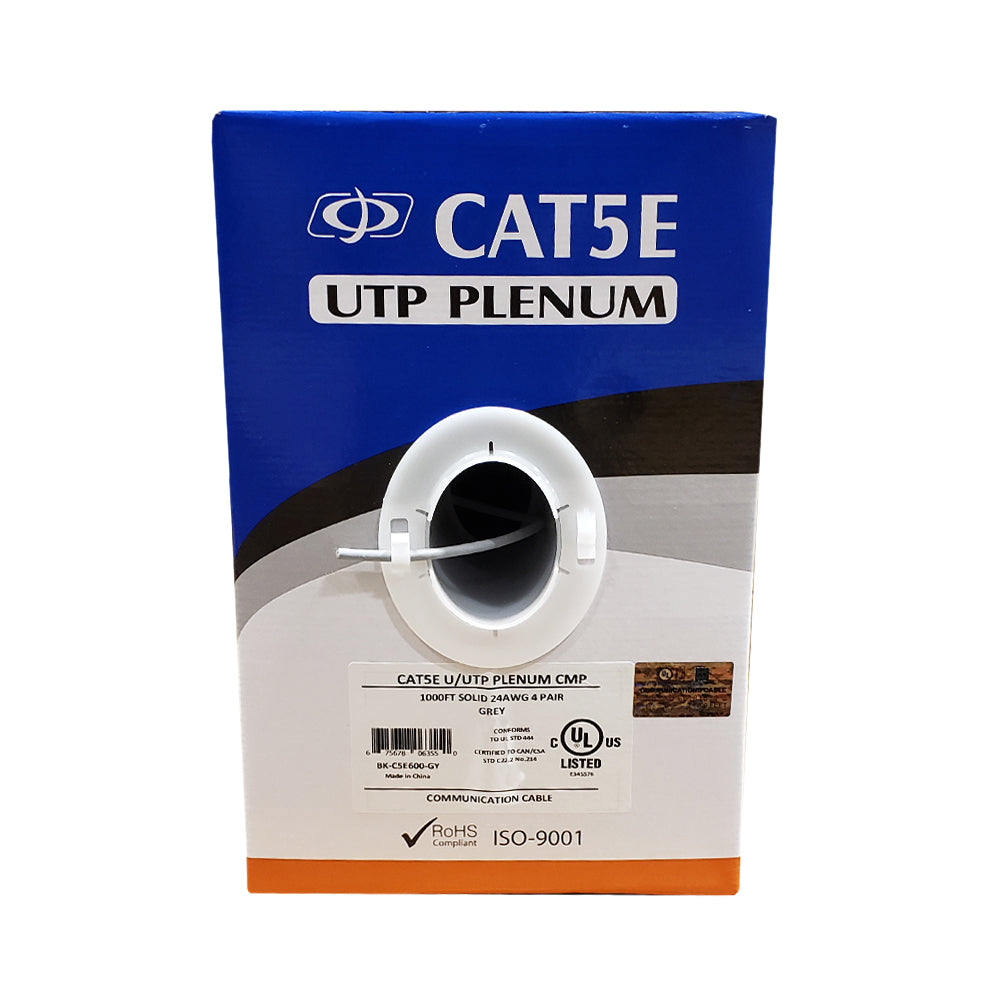

| Package Quantity | 1 Pull Box |
| Product Weight | 29.70 lbs [13.47kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |

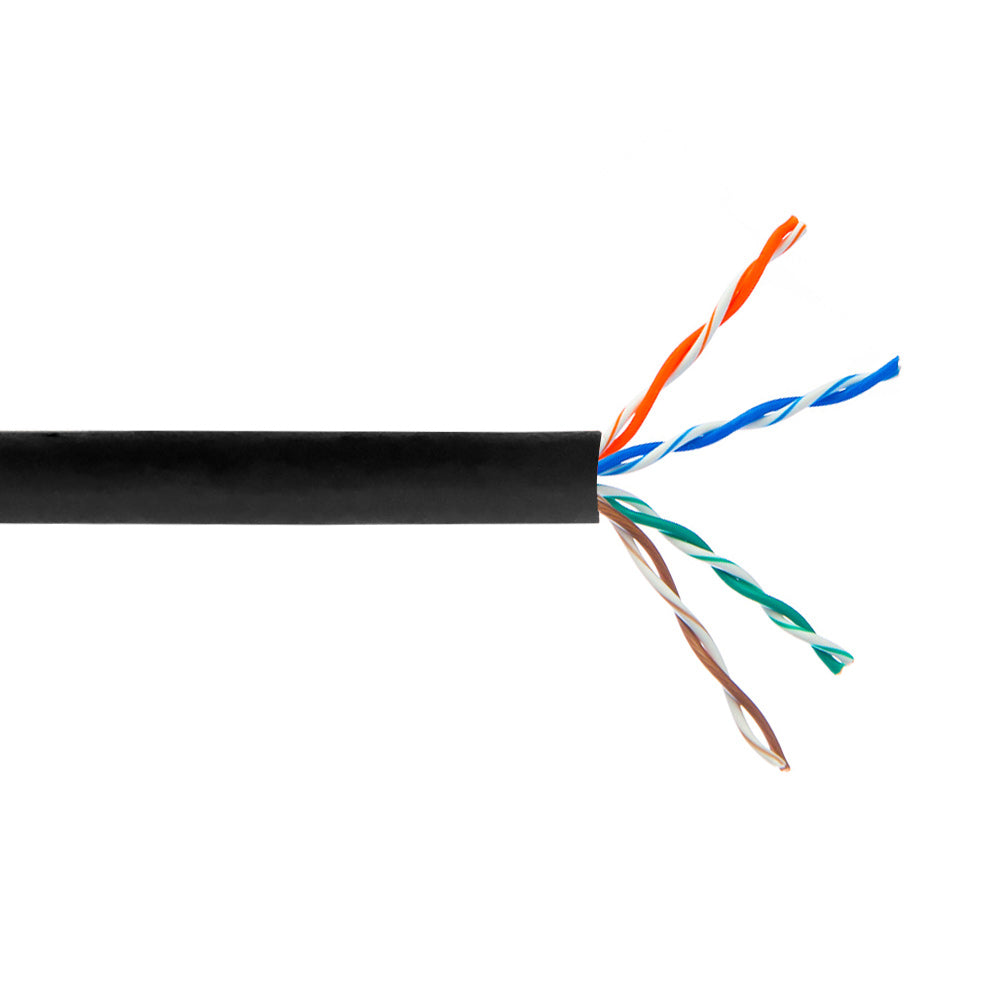

| BK-C5E600-BK | Black | 29.7 lb |
| BK-C5E600-BL | Blue | 29.7 lb |
| BK-C5E600-GN | Green | 29.7 lb |
| BK-C5E600-GY | Grey | 29.7 lb |

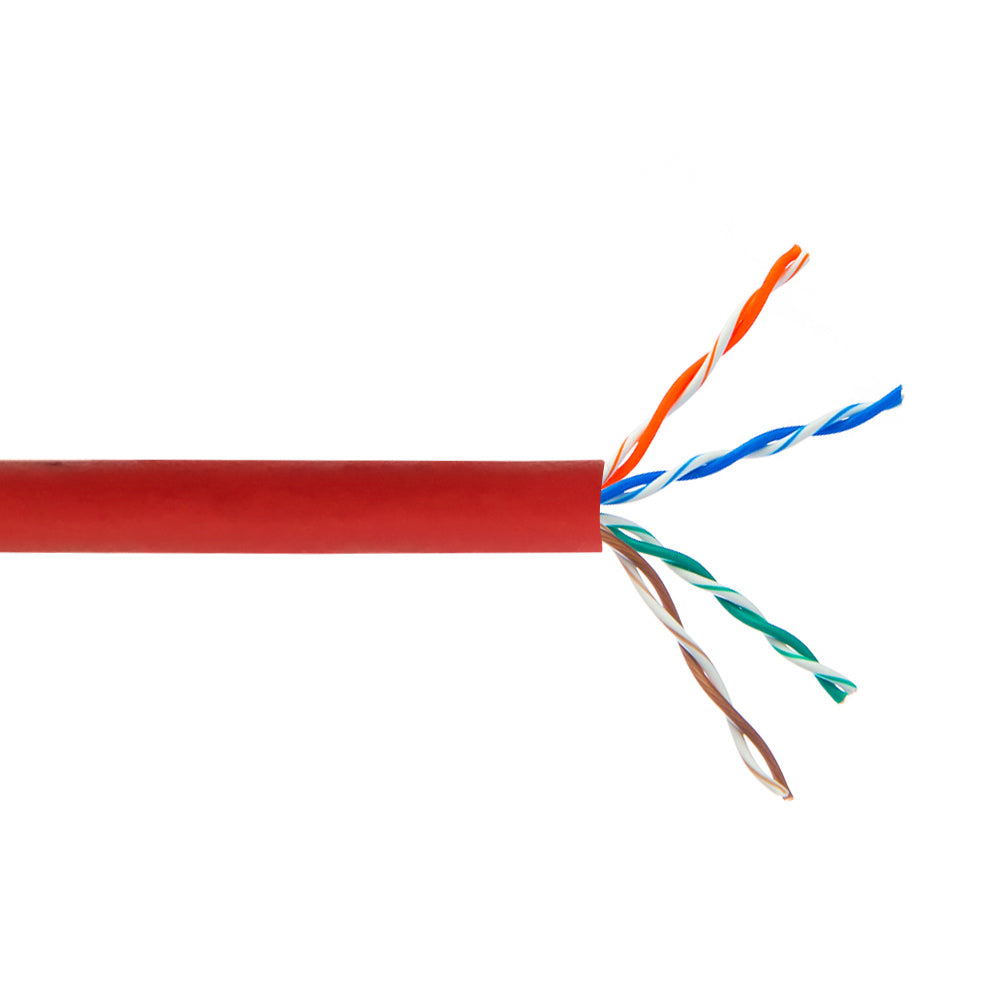

| BK-C5E600-RD | Red | 29.7 lb |
| BK-C5E600-WH | White | 29.7 lb |
| BK-C5E600-YL | Yellow | 29.7 lb |
