Description

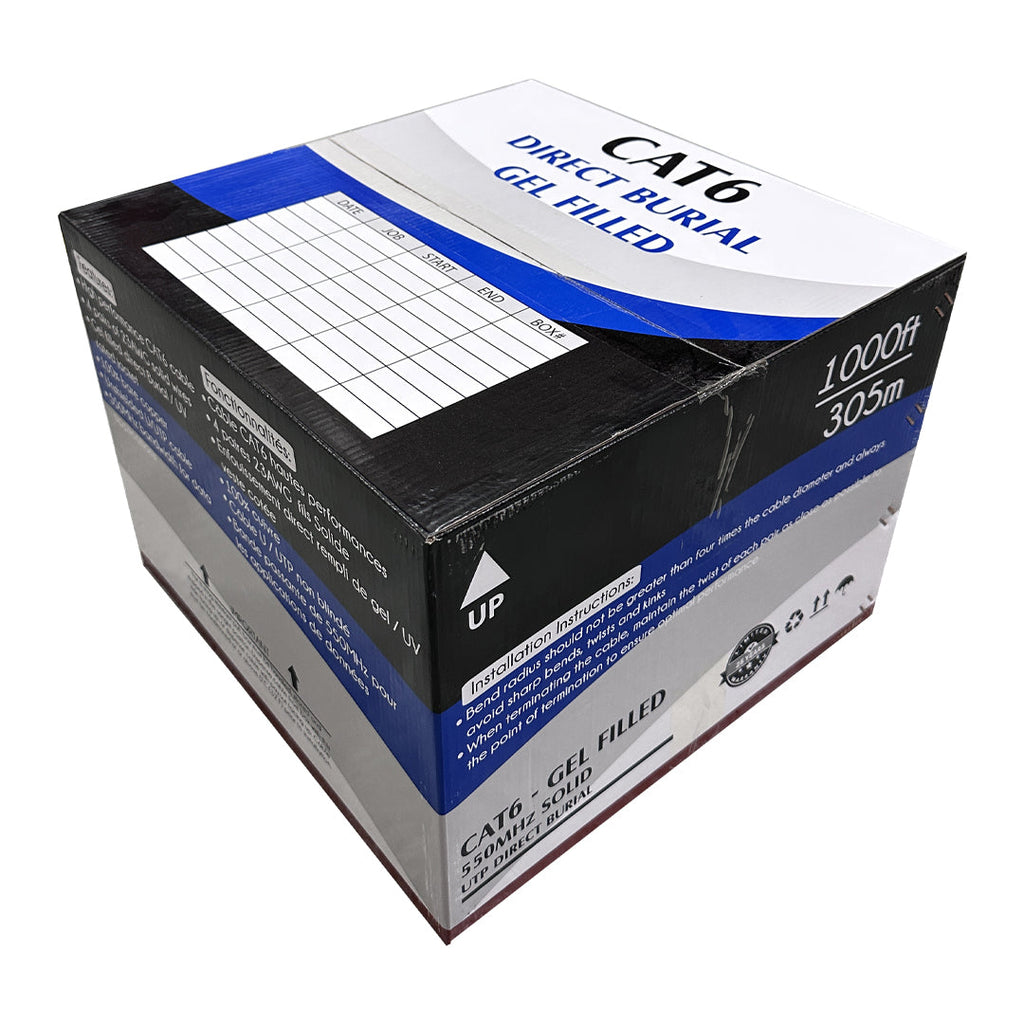

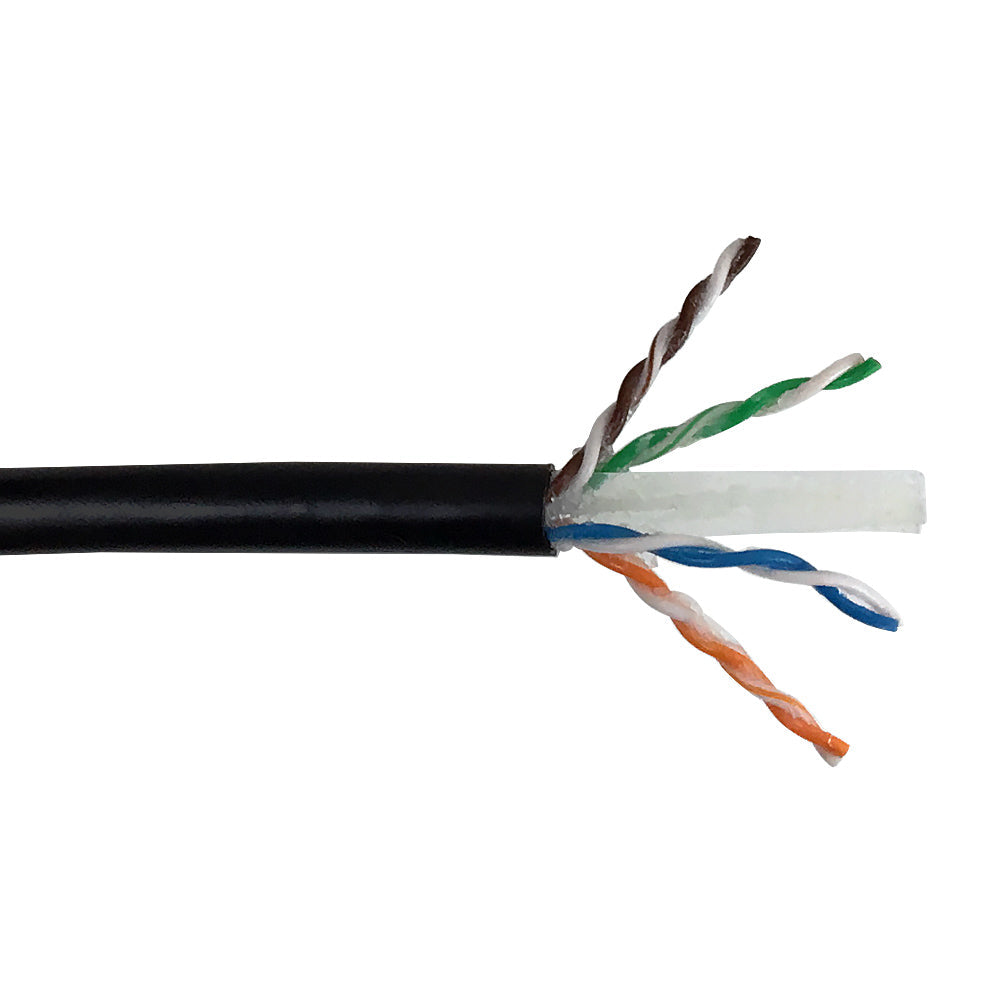

This outdoor rated, gel filled Cat6 bulk cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires. The gel fills the gaps between conductors and outer jacket which prevents damage caused by water. It is typically used outdoors for in ground, direct burial application as premise wiring to connect network devices.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 6.80±0.10mm | ||
| Number of Pairs | 4 Pairs | ||
| Wire Gauge | 23AWG Solid | ||
| Conductor Material | 100% Bare Copper | ||
| Jacket Material | LLDPE | ||
| Jacket Rating | Direct Burial / UV | ||
| Cable Shielding | None | ||
| Temperature Rating | -40°C ~ +75°C | ||
| UV | Yes | ||
| Jacket Average Thickness | 0.60mm | ||
| Jacket Minimum Thickness | 0.54mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.220mm | ||
| Insulation Minimum Thickness | 0.205mm | ||
| Insulation Diameter | 1.01±0.01mm |
||
| Assembly Diameter | 5.50±0.20mm |
||
| Twisted Pair Diameter | 2.02±0.02mm | ||
| Rip Cord | Yes - Nylon | ||
| Separator | Polyolefin | ||
| Filler | Gel | ||
| Electrical Characteristics | |||
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
||
| Aging Condition (ºC x hrs) |
100x168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
| Environmental | |||
| RoHS | Yes | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 28.01 lbs | ||
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-C6SL-4GEL | 37.0 lb |
