Description

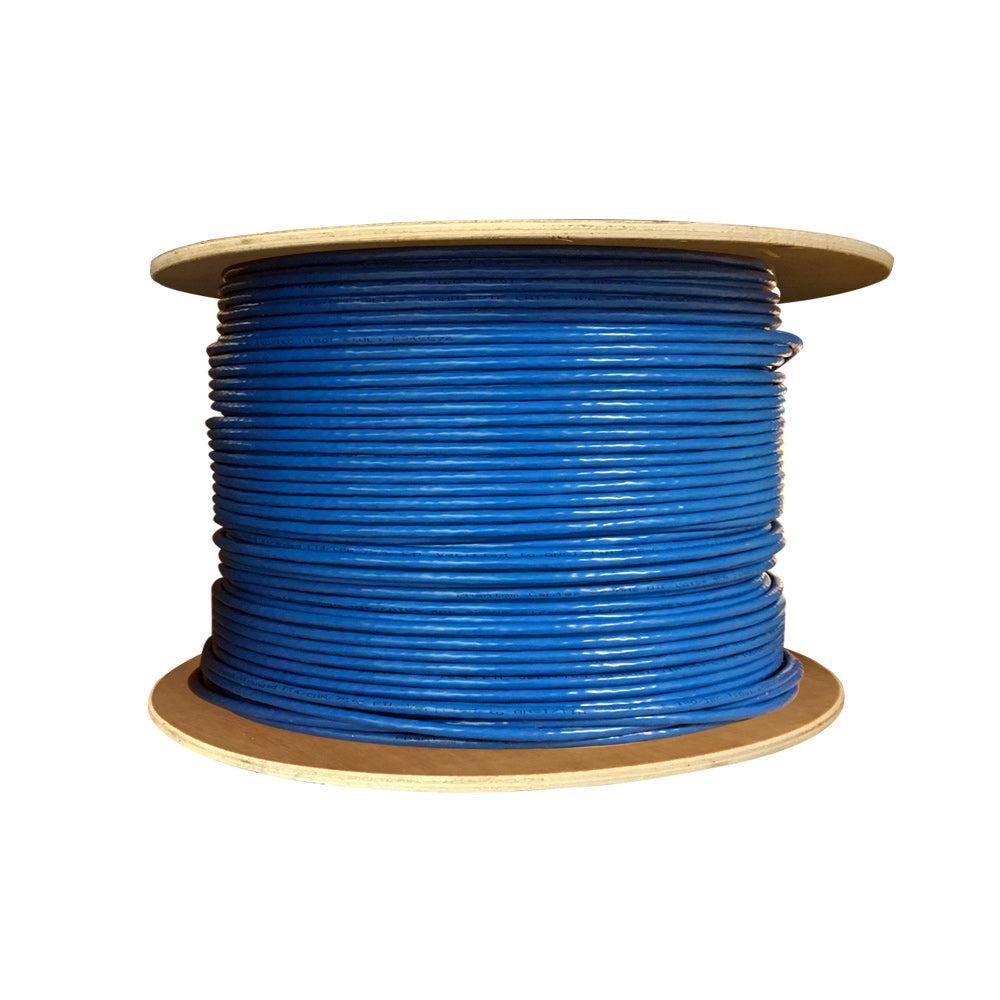

This bulk riser rated Cat8 cable is 1000 feet in length and consists of 4 pairs of 22AWG solid wires with individually foil shielded pairs plus an overall braid.Ā It is designed for use inĀ data centers and server rooms for high-speed switch-to-switch communications, typically supporting 25G and 40G networks. The cable is riser (CMR) rated and ETLus / c(UL)us listed, RoHS and REACH Compliant.Ā It is typically used in riser environments terminated directly onto a CAT8 patch panel or CAT8 jack.
Features:
- High performance of transmission
- High quality of safety property
- Sweep frequency up to 2000 M
Applications
- Transmission of digital and analogue for data, video, voice and audio applications
- Metal shielded and braided providing good protection from EMI noise
- Beyond IEEE Std 802.3bq-2016 25G/40GBASE-T and legacy speeds
- Top-of-Rack (ToR), End-of-Row (EoR), Middle-of Row (MoR) and for data center cabling
- CDDI / ATM I Token Ring
- IEEE 802.3af (PoE) I IEEE 802.3at (PoE+)
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 8.6 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 22 AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Braid | Tinned Copper (>40 % coverage) |
| Insulation | Foam Polyolefin (PO) |
| Color code & Diameter | Blue & White : 1.58Ā± 0.02 mm Orange & White : 1.58Ā± 0.02 mm Green & White : 1.58Ā± 0.02 mm Brown & White : 1.58Ā± 0.02 mm |
| Jacket Material | Low smoke flame retardant polyvinyl chloride (LSFRPVC) |
| Jacket Rating | CMR [Riser Rated] |
| Jacket Outer DiameterĀ | 8.6mmĀ±0.2mm |
| Jacket Nominal Thickness | 0.5Ā±0.2mm |
| Pair Shield | Al Mylar tape (100 % coverage and aluminum side facing out) |
| Temperature Range | Operation : -20Ā°C to 60Ā°C Installation : 0Ā°C to 60Ā°C Storage : -20Ā°C to 75Ā°C |
| Minimum Bending RadiusĀ | ā„4 times of overall diameter |
| Maximum Pulling TensionĀ | ā¤110N |
| Electrical Characteristics | |
| Temperature Rating | 75Ā°C |
| Spark Test | 2.5 KV DCĀ |
| AC Leakage Current through Overall JacketĀ | ā¤10mA (1.5KV AC) |
| Cable Cold BendĀ | -20Ā°C for 4 hr |
| Conductor DC Resistance | ā¤2.1Ā Ī©/30m |
| Resistance Unbalance (Within a pair) | ā¤2% |
| DC Resistance Unbalance | Max. 2% |
| Dielectric Strength | 1. 7 KV ac for 2 s |
| Insulation Resistance |
ā„5000MĪ© ā¢ km |
| Capacitance Unbalance Pair-to-GroundĀ | ā¤36 pF/30m |
| Approvals | |
| c(UL)usĀ Ā Ā | Approved |
| ETLus | Approved |
| CSA | Approved |
| IEC 61156-9 Category 8.2 |
Approved |
| ISO/IEC 11801 (Edition 2.2) |
Approved |
| UL 1666 (CMR) : Flame Test |
Approved |
| UL444 |
Approved |
| Environmental | |
| RoHS2 | Compliant |
| LVD | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-C8406-BL-A | 32.0 lb |
