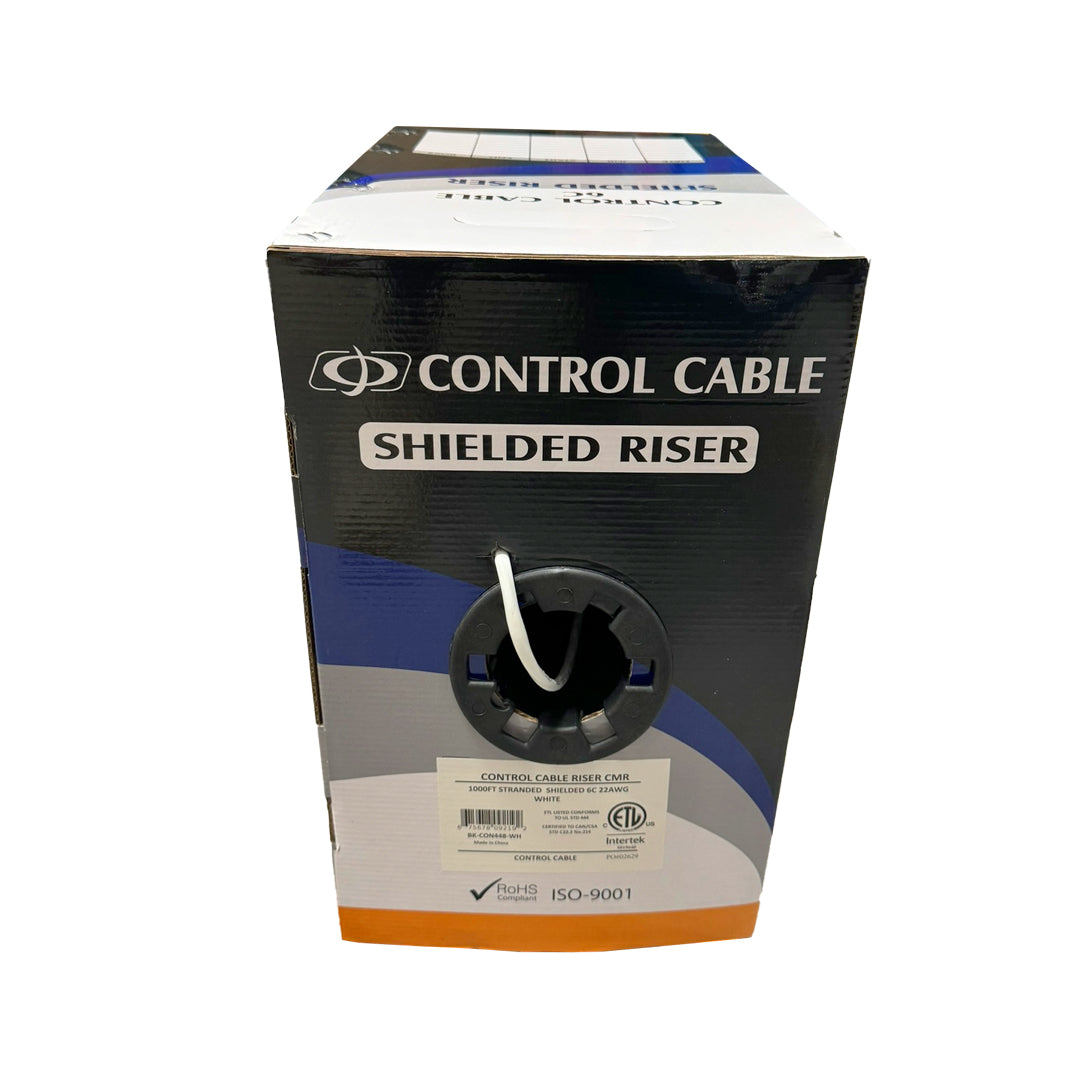

1000ft 6C 22AWG Stranded Control Cable - CMR Shielded - White

Control Bulk CableSKU: BK-CON448-WH

Price:
Sale price$166.07 USD
Stock:
In stock

Description

This 6 conductor 22AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.

Physical Characteristics
Cable Lengths Available 1000 foot [305m] Pull Box
Color (Jacket) White
Number of Conductors 6 Conductors (Black/Red/Green/White/Brown/Yellow) Oxygen Free Copper (OFC)
Jacket Material PVC
Wire Gauge 22 AWG
Material (conductors) Oxygen Free Copper
Stranding 7*0.25mm
Insulation Material
PVC
Nominal Insulation Thickness 0.38mm
Nominal Insulation Diameter 1.3mm
Shielding Overall Foil Shielded 110%
Drain Wire 7*0.2mm Tinned Copper Drain Wire
Ripcord Nylon
Temperature Rating -20℃ ~ 75℃
Operating Voltage 300V
Flammability Test CMR (Riser Rated)
Mechanical Characteristics
Before Tensile Strength >=13.8
Aging Elongation (%) >=100
Aging Condition (℃xhrs) 100x168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend (-20±2º Cx4hrs)
No Crack
Certifications
RoHS Yes
Reach Yes
c(ETL)us Yes
Packaging Information
Package Quantity 1 Pull Box
Product Weight 36 lbs
SKU Weight
BK-CON448-WH 36.0 lb
