Description

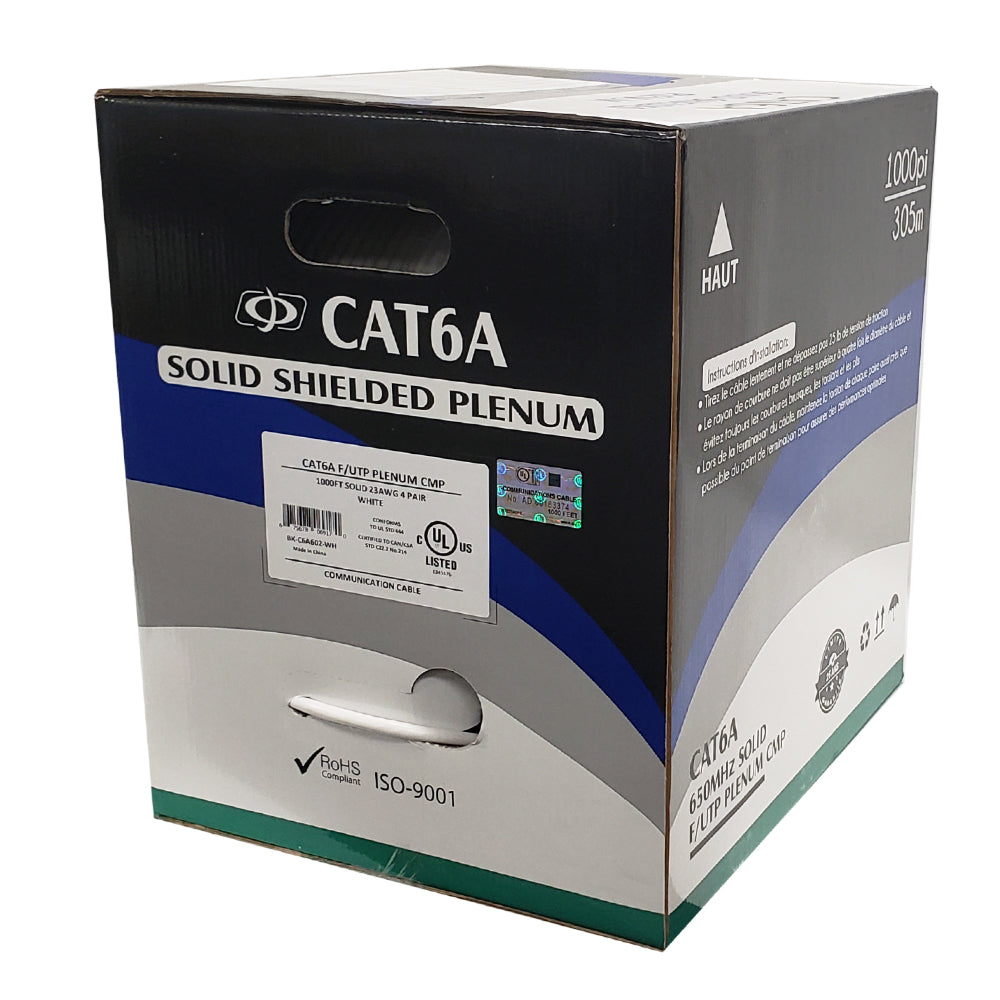

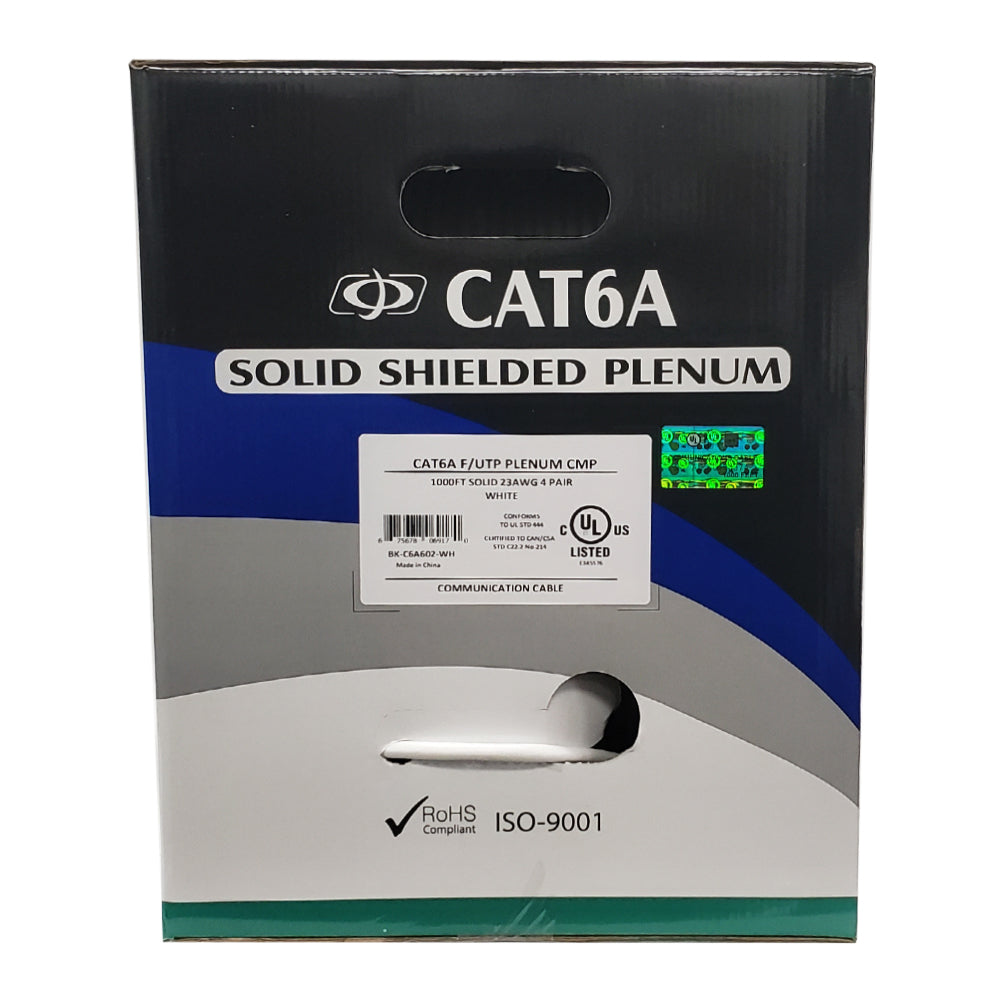

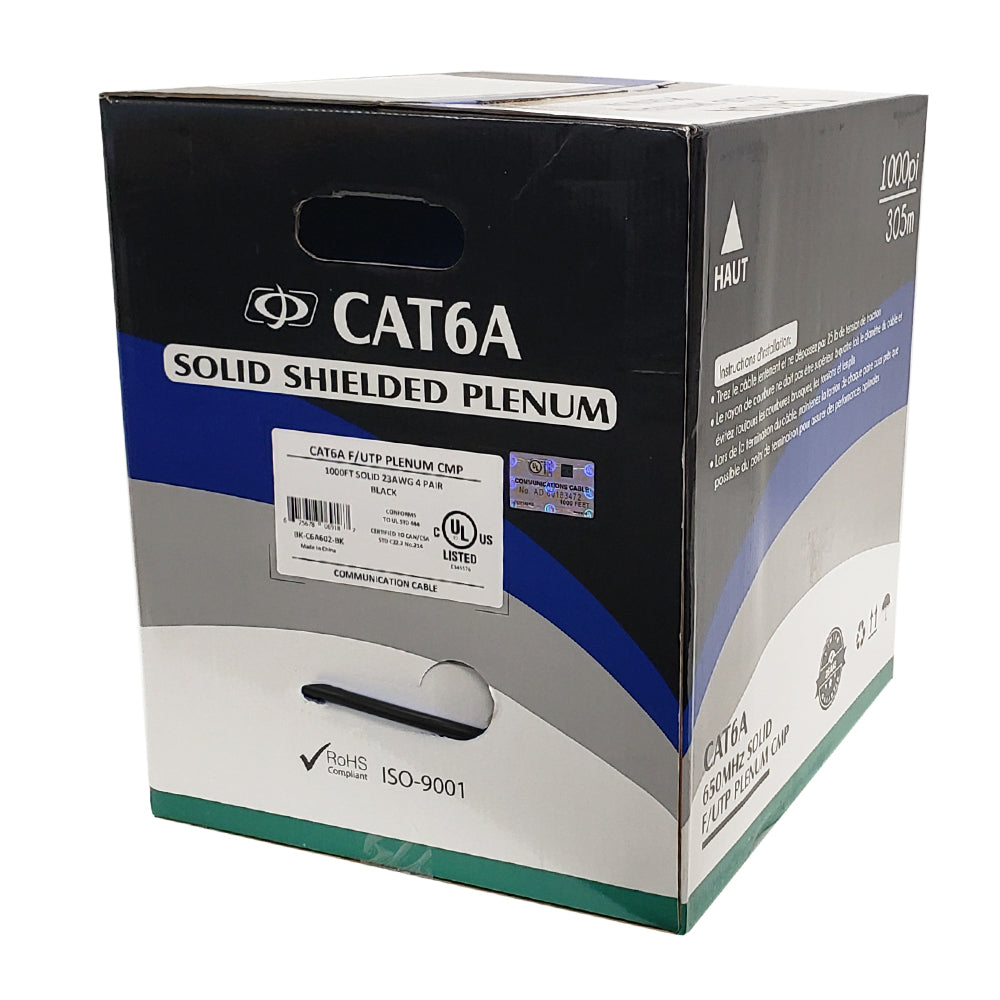

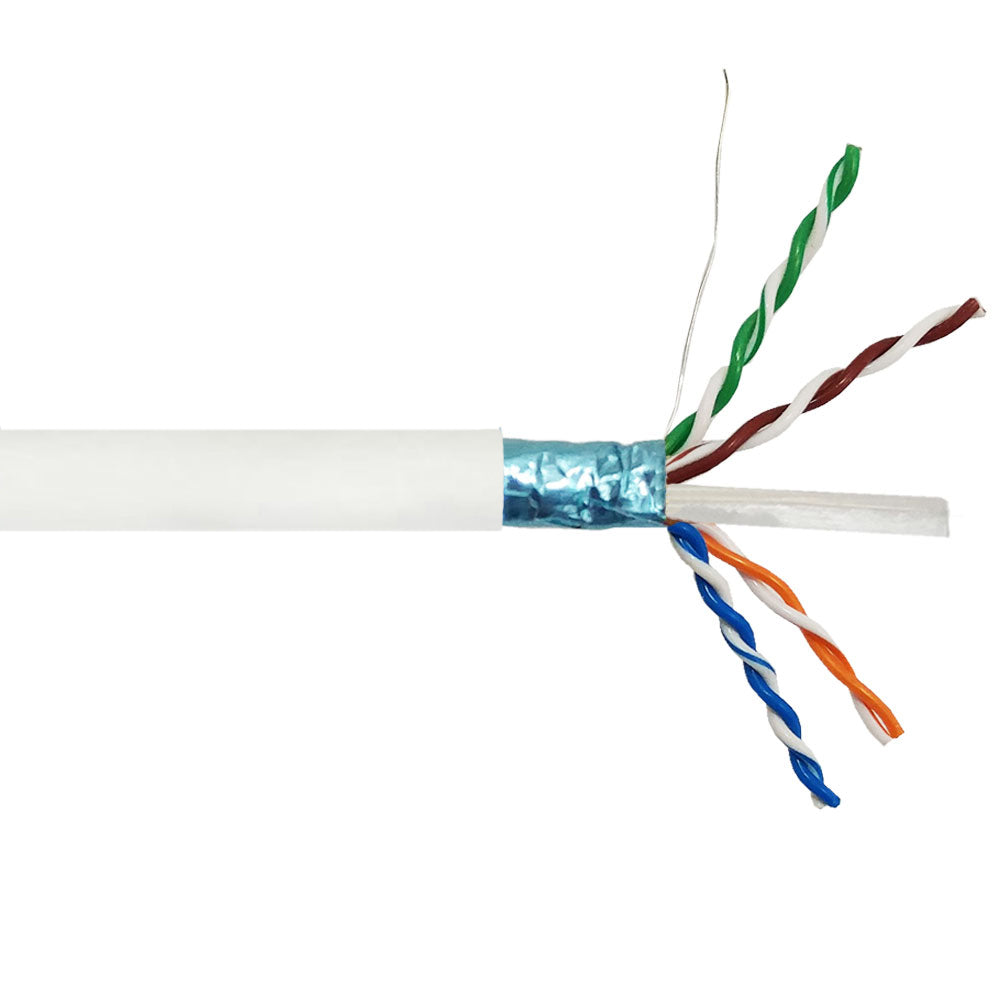

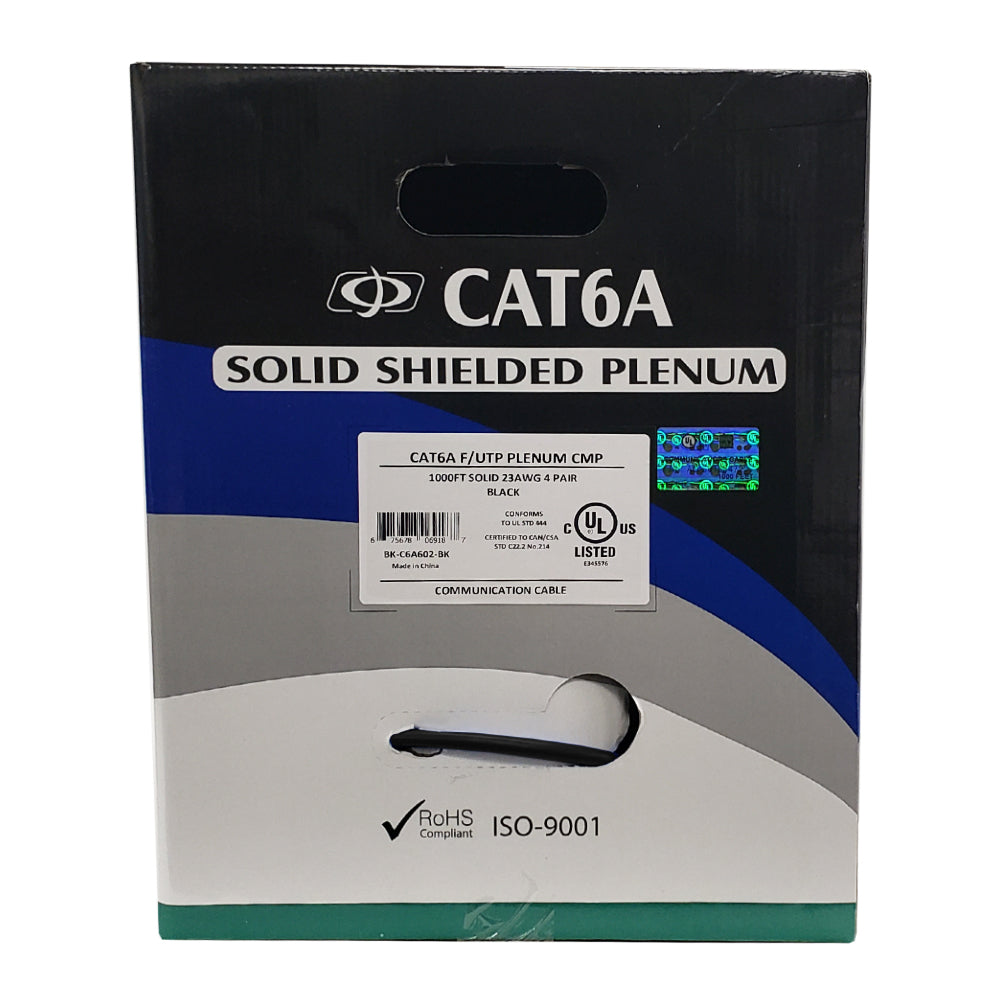

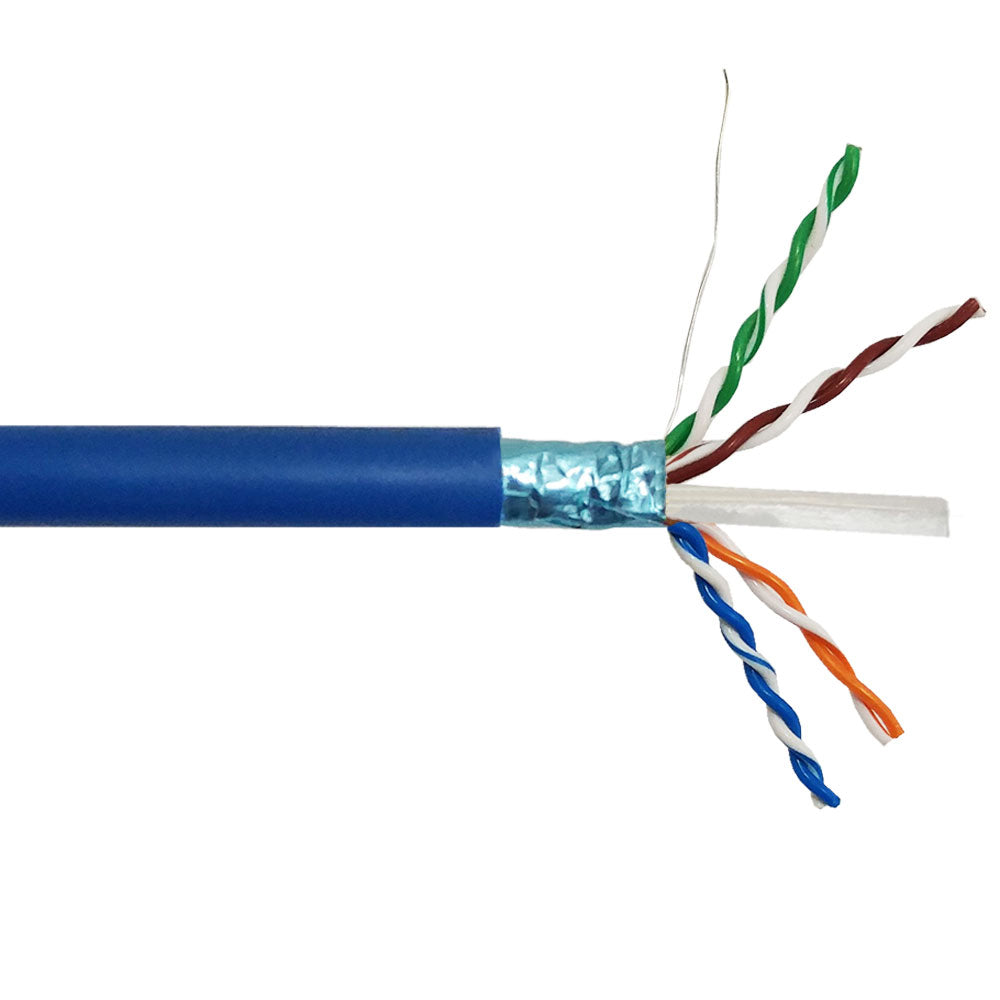

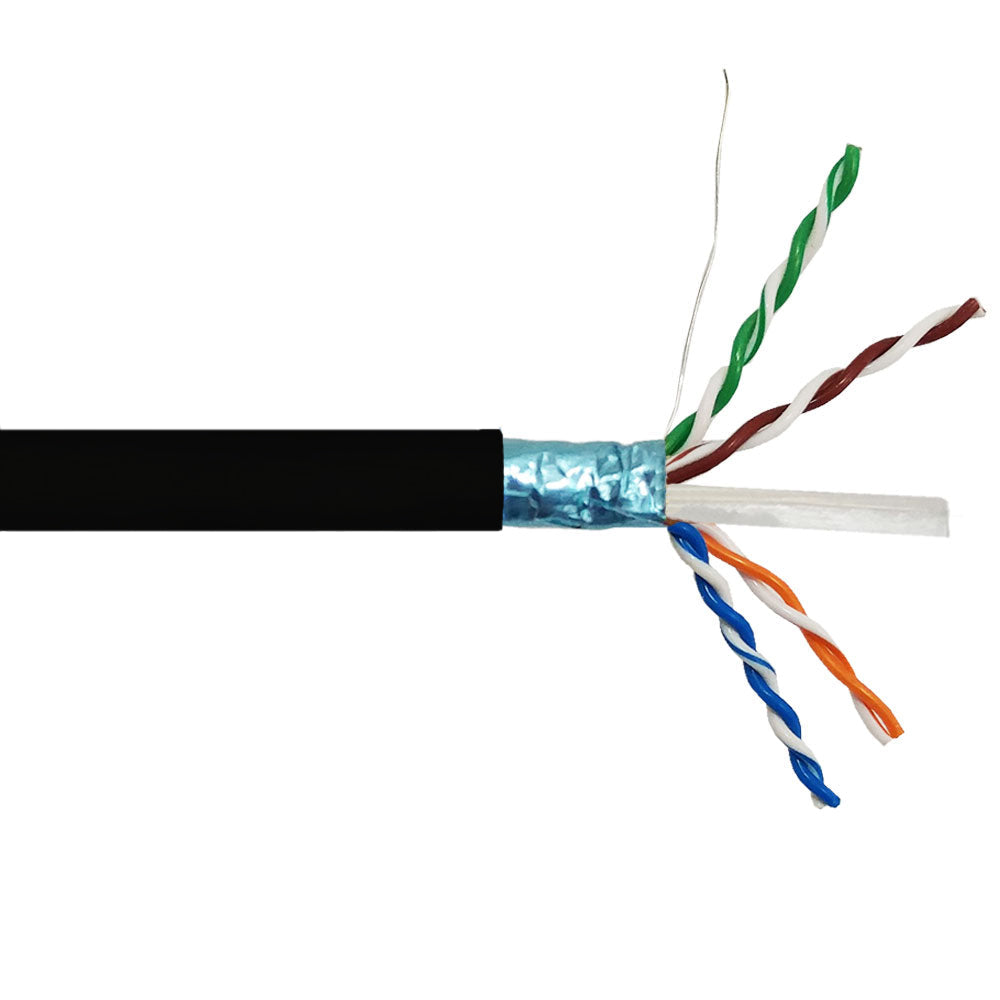

This bulk plenum rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6a jack.
| Physical Characteristics | |
|---|---|
| Voltage | 30V |
| Capacitance | 5.6nF/100m .Nom |
| Characteristic Impedance | 1-100MHz,100Ā±15%;101-250MHz,100Ā±22%;251-550MHz,100Ā±25% |
| Velocity of Propagation | ā„65% |
| DCR Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance | ā¦5% |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 46.18 lbs [20.8kg] |
