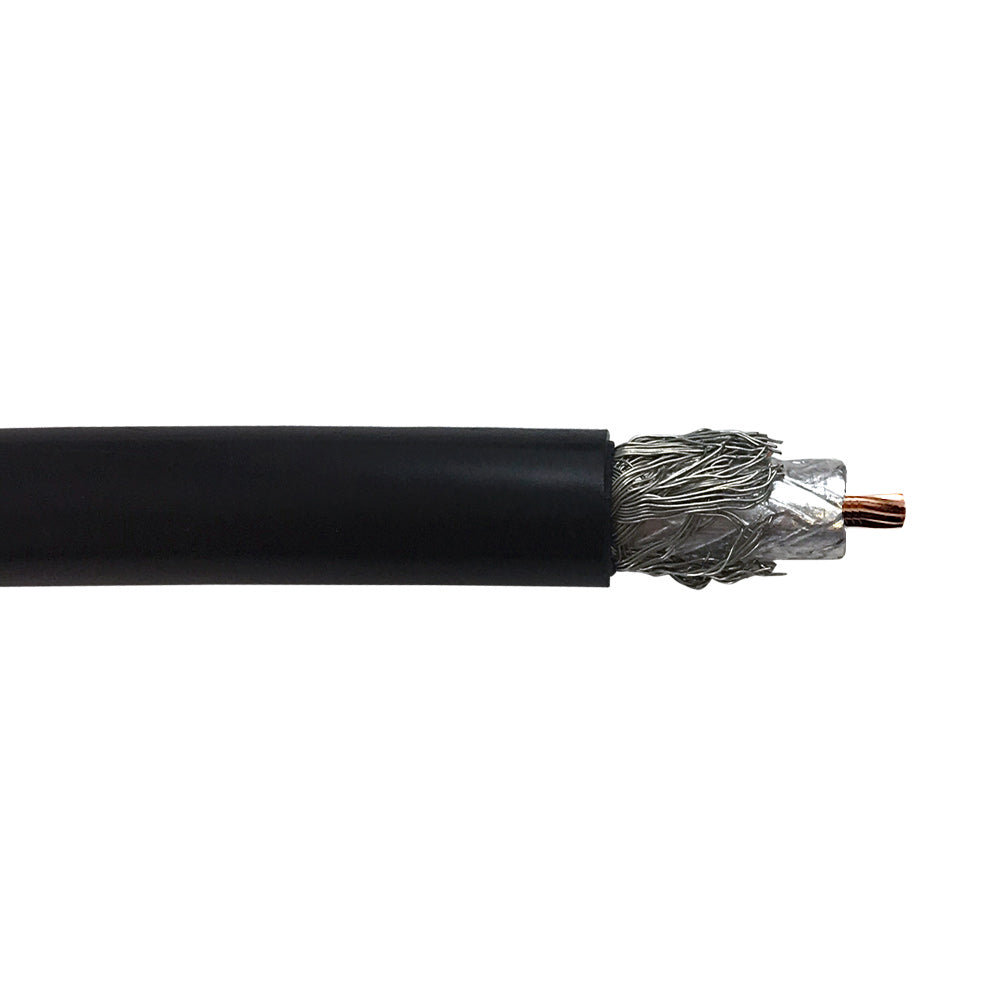

This low loss bulk flexible RF-400 cable is 1000 feet in length and consists of a 2.74mm stranded bare copper wire. It is ideal for jumper assemblies in wireless communication systems, antenna feeder runs, GPS and mobile antenna applications.
| Physical Characteristics |
| Color |
Stranded Black |
| Inner Conductor Material |
Bare Copper |
| Inner Conductor Diameter |
2.74mm (7x0.93) |
| Dielectric Material |
Foam PE |
| Dielectric Diameter |
7.24mm
|
| First Shield Material |
Bonded Aluminum Foil |
| First Shield Diameter |
7.39mm |
| Second Shield Material |
Tinned Copper Wire Braid (168*0.16) 90% Coverage |
| Second Shield Diameter |
8.13mm |
| Jacket Material |
TPE |
| Jacket Diameter |
10.29mm |
| Performance |
| Impedance |
50±3Ω |
| Capacitance |
78pF/m |
| Velocity of Propagation |
85%
|
| Shielding Effectiveness |
≥90dB |
| Voltage With Stand |
2500V |
| Installation Temperature |
-40℃ ~ +85℃ |
| Operating Temperature |
-40℃ ~ +85℃ |
Max. Operating Frequency
|
8.0Ghz |
| Attenuation (@20℃ ) |
| 150Mhz |
220Mhz |
450Mhz |
900Mhz |
1500Mhz |
1800Mhz |
2000Mhz |
2500Mhz |
5800Mhz |
| 6.1dB/100m |
7.4dB/100m |
10.7dB/100m |
15.4dB/100m |
20.2dB/100m |
22.3dB/100m |
23.6dB/100m |
26.6dB/100m |
42.6dB/100m |
| Packaging Information |
| Package Quantity |
1 spool |
| Product Weight |
74.6 lbs |
