Description
- Description
- Spec Sheets
- Product Weights
Description

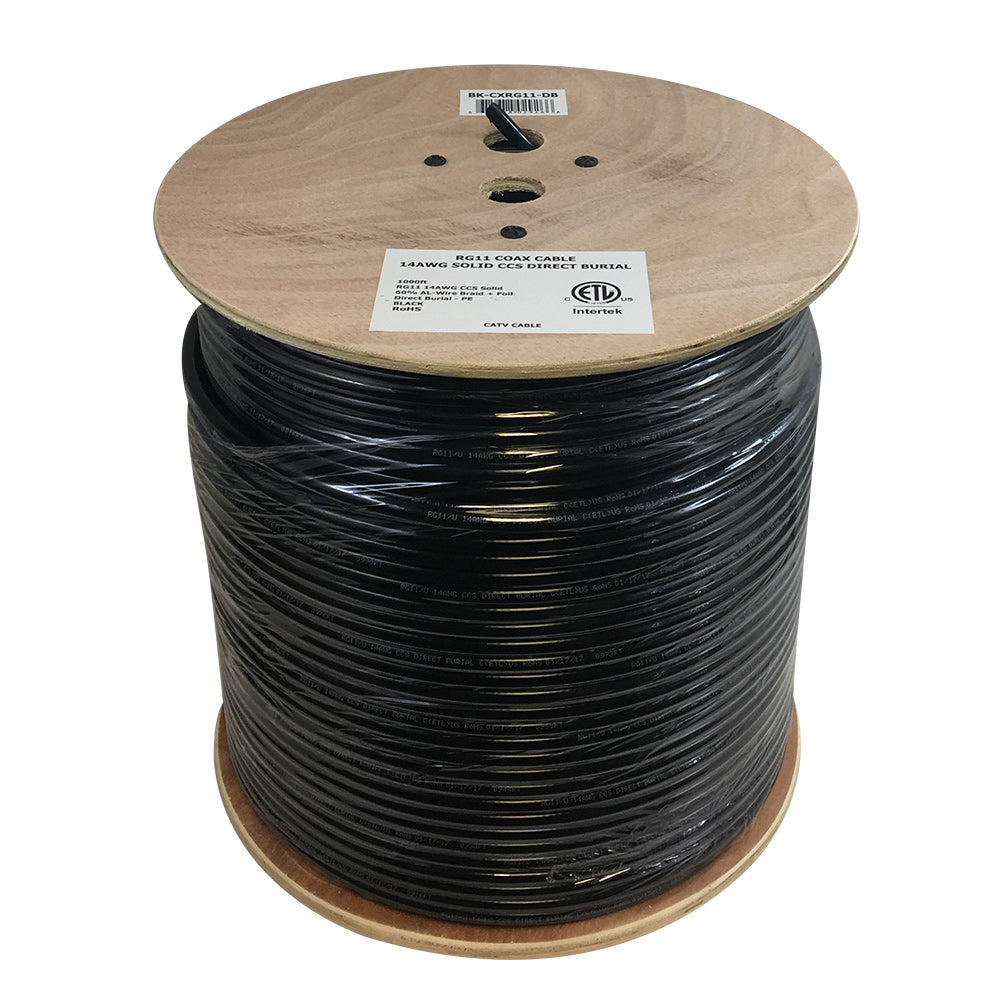

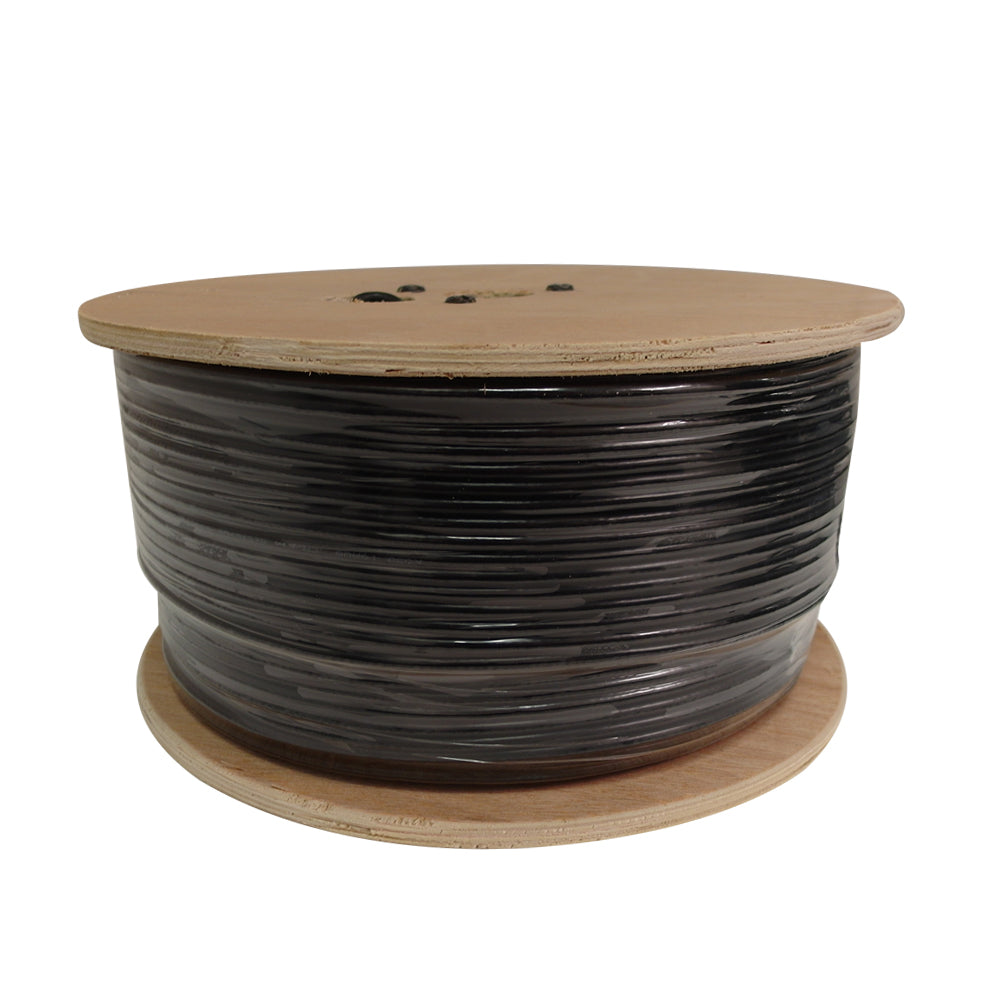

This bulk direct burial RG11 cable is 1000 feet in length and consists of a 14AWG solid center conductor. It is ideal for outdoor and direct burial CATV video applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 10.16mm |
| Wire Gauge | 14AWG |
| Inner Conductor Material | Copper Clad Steel |
| Inner Conductor Diameter | 1/1.6mm |
| Insulation Material | Foamed Polyethylene |
| Insulation Diameter | 7.11mm |
| Shield | 60% AL |
| Shield Diameter | 5/16/0.16mm |
| Jacket Material | Black PE |
| Jacket Rating | CMX |
| Temperature Rating | -40 ~ +105ā |
| Performance | |
| Impedance | 75Ā±3Ī© |
| Max. Attenuation | 1GHz |
| Capacitance | 54Ā±3pF/m |
| Return Loss | 20dB Min |
| Approvals | |
| c(ETL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 60 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CXRG11-DB | 45.0 lb |
