Overview

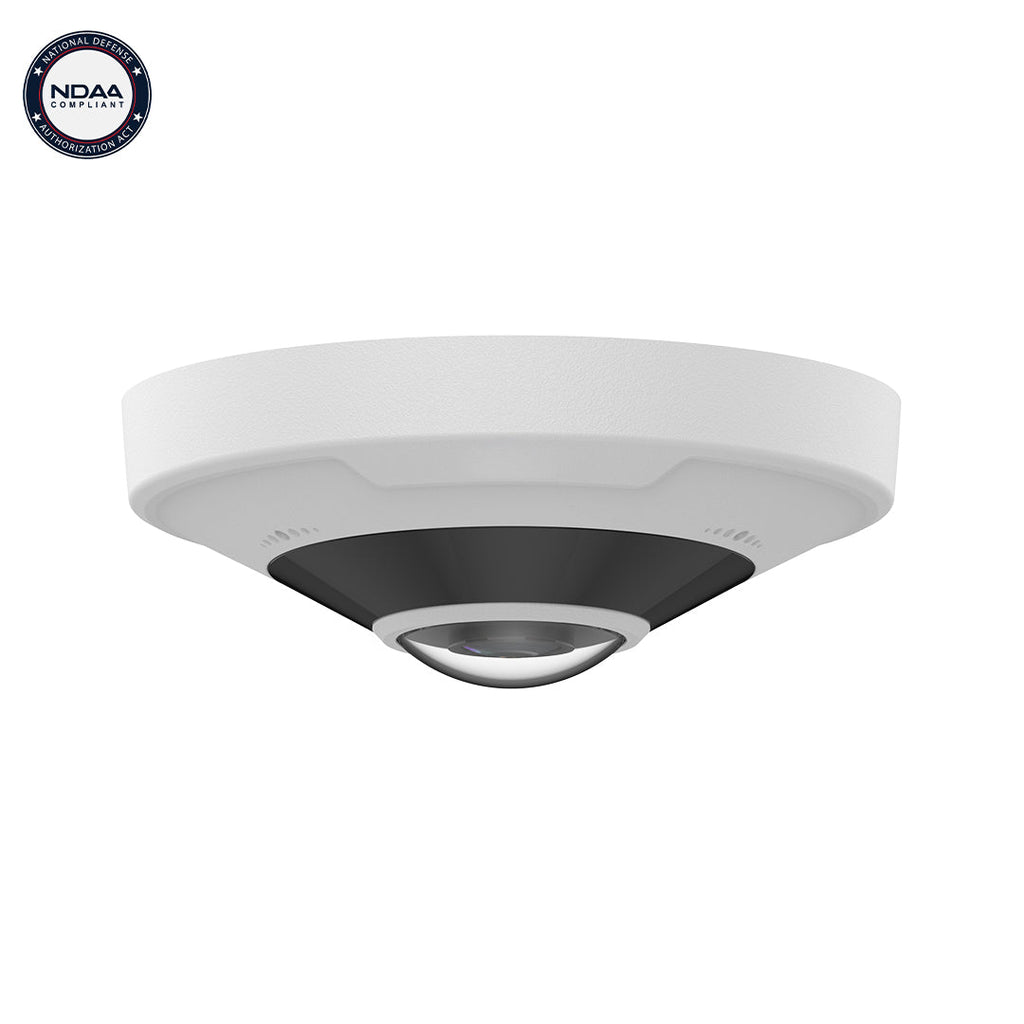

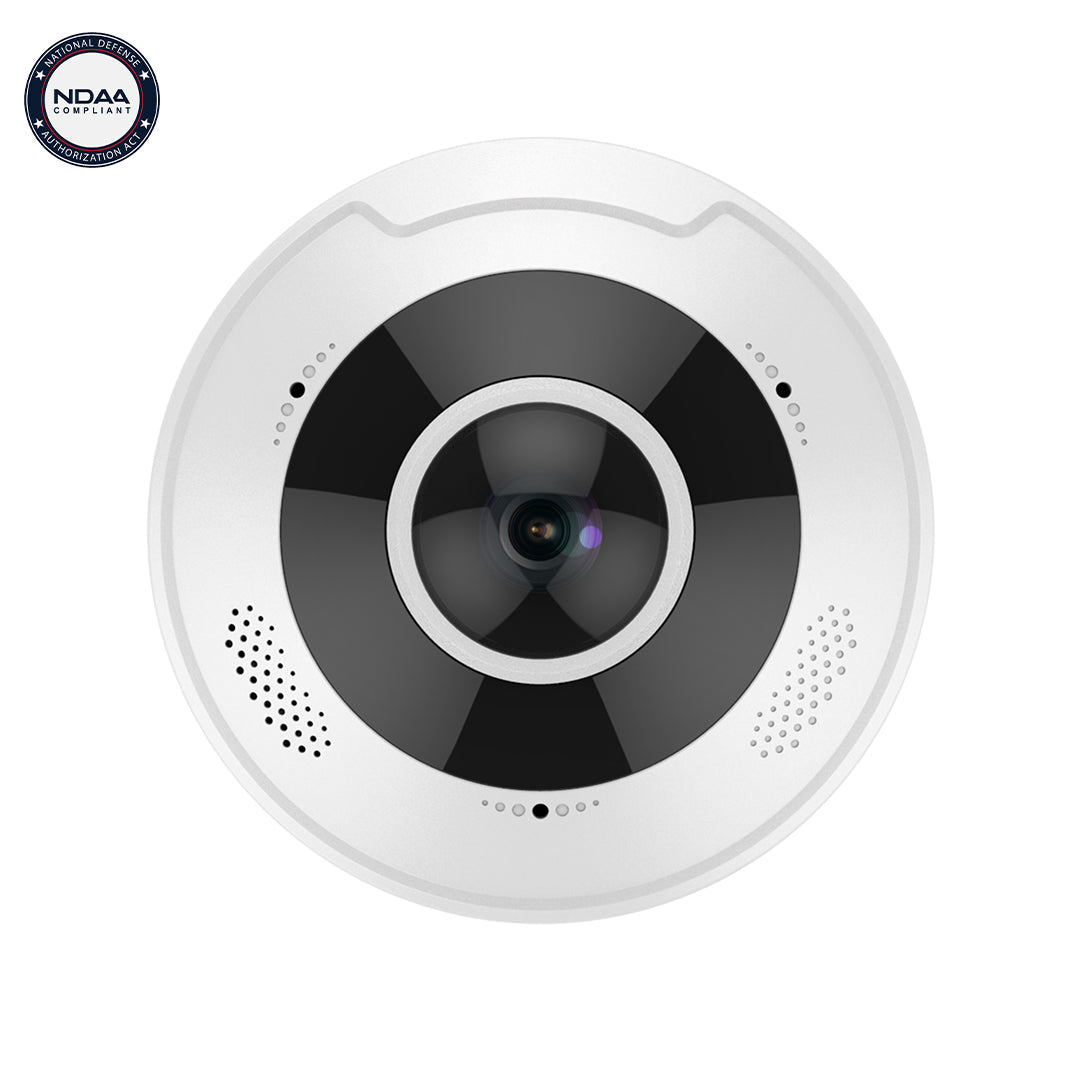

This 12MP fisheye IP based camera provides sharp, high definition images in daylight or night time settings. The camera has a 1.8mm ultra wide-angle fixed lens which provides 360 degree panoramic image. Its maximum resolution is 4000 x 3000 at 20 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. It offers a 49.2ft (15m) IR range which provides well lit images in low light conditions using embedded infrared light and 360° fill-in light. It also features motion detection, audio detection and a tampering alarm.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/1.7" (12MP) CMOS |
| Minimum Illumination | Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52dB |
| WDR | DWDR |
| Lens | |
| Lens Type | 1.8mm @ F2.0 |
| Angle of View | 360° |
| DORI | |
| DORI Distance | 1.8mm Lens, 43.8m Detect, 17.5m Observe, 8.8m Recognize, 4.4m Identify |
| Illuminator | |
| IR Range | Up to 15m (49.3ft) IR Range |
| Supplemental Light | IR |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: Fisheye View: 12 MP (4000 × 3000)@20 fps; 3000 × 3000@20 fps; 2560 × 2560@25 fps; Panorama View: 12 MP (4000 × 3000)@20 fps; 3000 × 2000@20/25 fps; 3000 × 1500@20/25 fps; PTZ View: 1920 × 1080@20/25 fps Sub Stream: Fisheye View: 2000 × 1500@20 fps; 2000 × 2000@25 fps Third Stream: Fisheye View: D1 (720 × 576)@20/25 fps; CIF (352 × 288)@20/25 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Supported |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection |
| Statistical Analysis | Heat map (Working with management platform) |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio Detection |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 512GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols |
IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation APP |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Live View Display | |
| Hardware Decoding |
Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
| Software Decoding |
Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ |
| Interface | |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-In Mic | Built-in dual-mic |
| Built-In Speaker | Supported |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω, amplitude 1 V [p-p] |
| Certification | |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| NDAA Compliant | Compliant |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC12V(±25%), PoE (IEEE 802.3af) Power consumption: MAX 12.0W |
| Power Interface | Ø 5.5mm coaxial power plug |

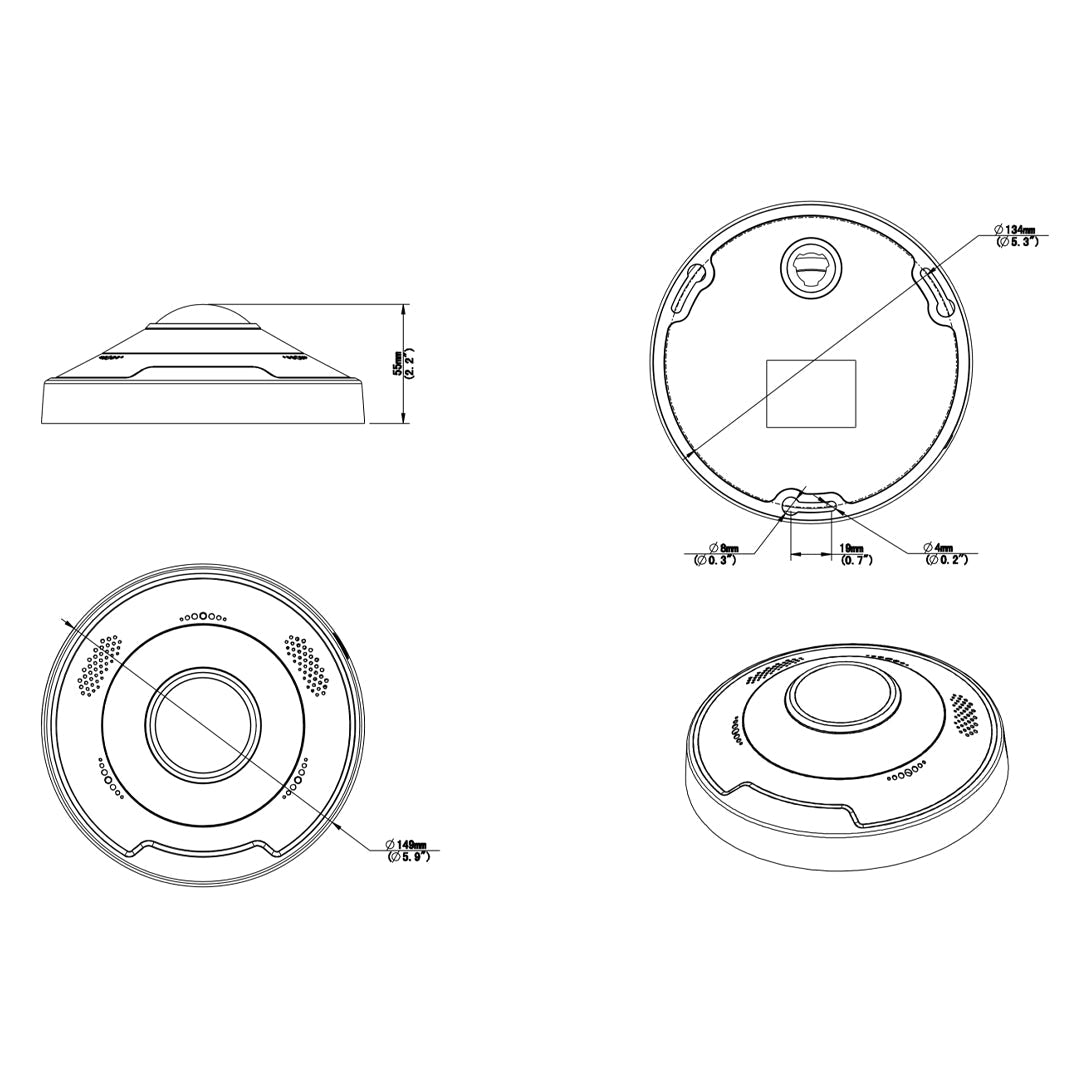

| Dimensions (Ø x H) |
Ø149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H) |
| Weight | 0.524kg (1.16lb) |
| Material | Metal + Plastic |
| Working /Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
Downloads
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SC-86CEB-AF18KC-IO | 1.6 lb |
