16-Port 10/100/1000Mbps Gigabit Ethernet Network Switch - Desktop/Wall Mount/Rack Mount - Unmanaged - 1U - 32Gbps Total Bandwidth

Network SwitchesSKU: NS-101-16

Price:
Sale price$84.85 USD
Stock:
In stock

Description

This 16-port switch is a gigabit Ethernet switch, providing 16 Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

Note: The ports labeled as uplinks can be used as a regular ethernet port or as an uplink port to another switch.

Features

  • 16 x 10/100/1000M Gigabit Unmanaged Ethernet ports
  • Metal enclosure
  • Reliable fan-free design
  • -10°C to 50°C temperature range
  • Support auto MDI/MDIX
  • Panel indicators to monitor working status and help fault analysis
  • Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
  • Port 1-8 supports QoS data priority
  • Loop alarm
  • 32 Gbps total bandwidth

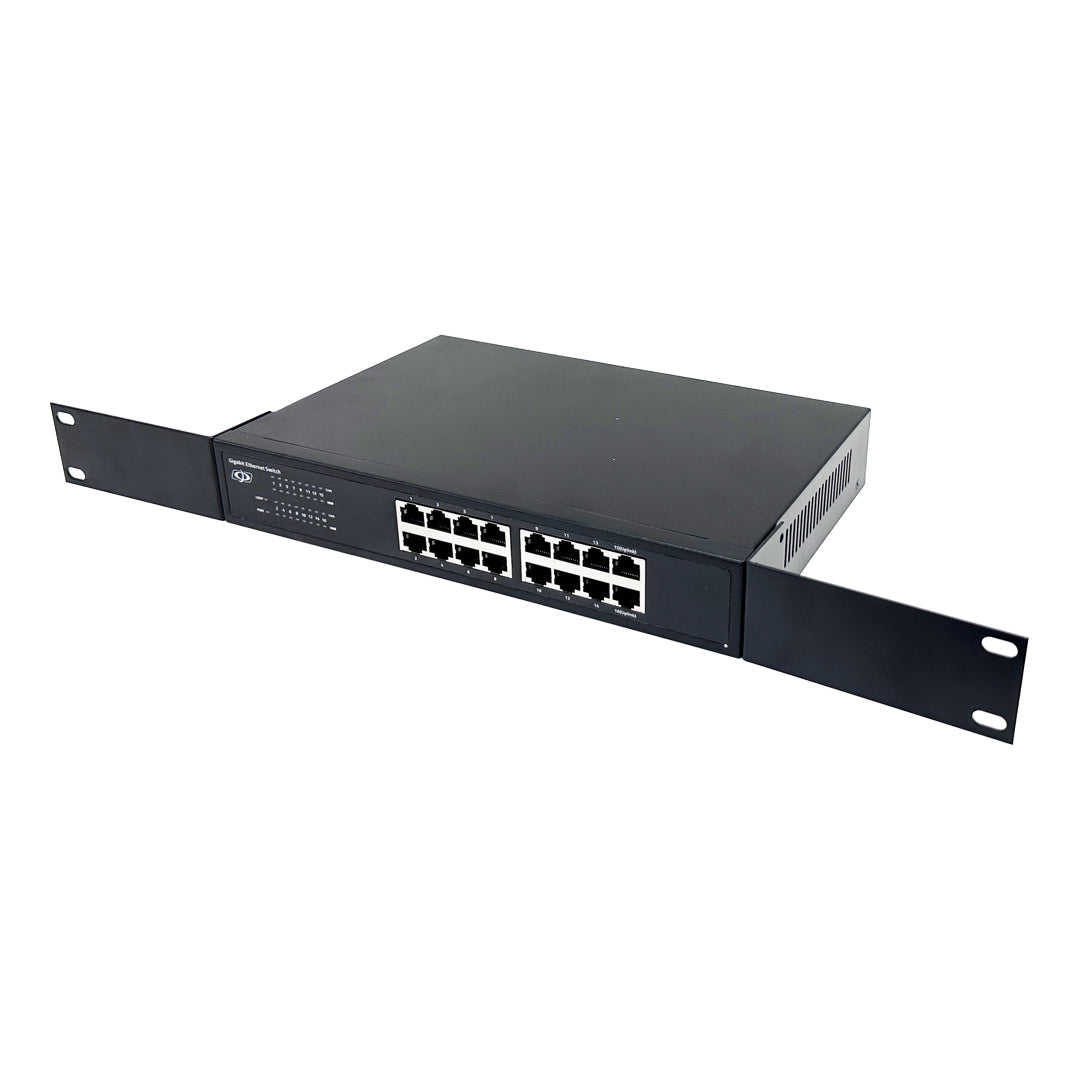

  • Support rack mount installation

Application



Specifications

Physical Characteristics
Dimensions 268 x 181 x 44mm
Shell Metal Material, Fan-Free Design
Operating Temperature -10°C to 50°C
Storage Temperature -40 °C to 70 °C
Operating Humidity /
Storage Humidity

Working Humidity: 10%~90%, non-condensing

Storage Humidity: 5%~90%, non-condensing

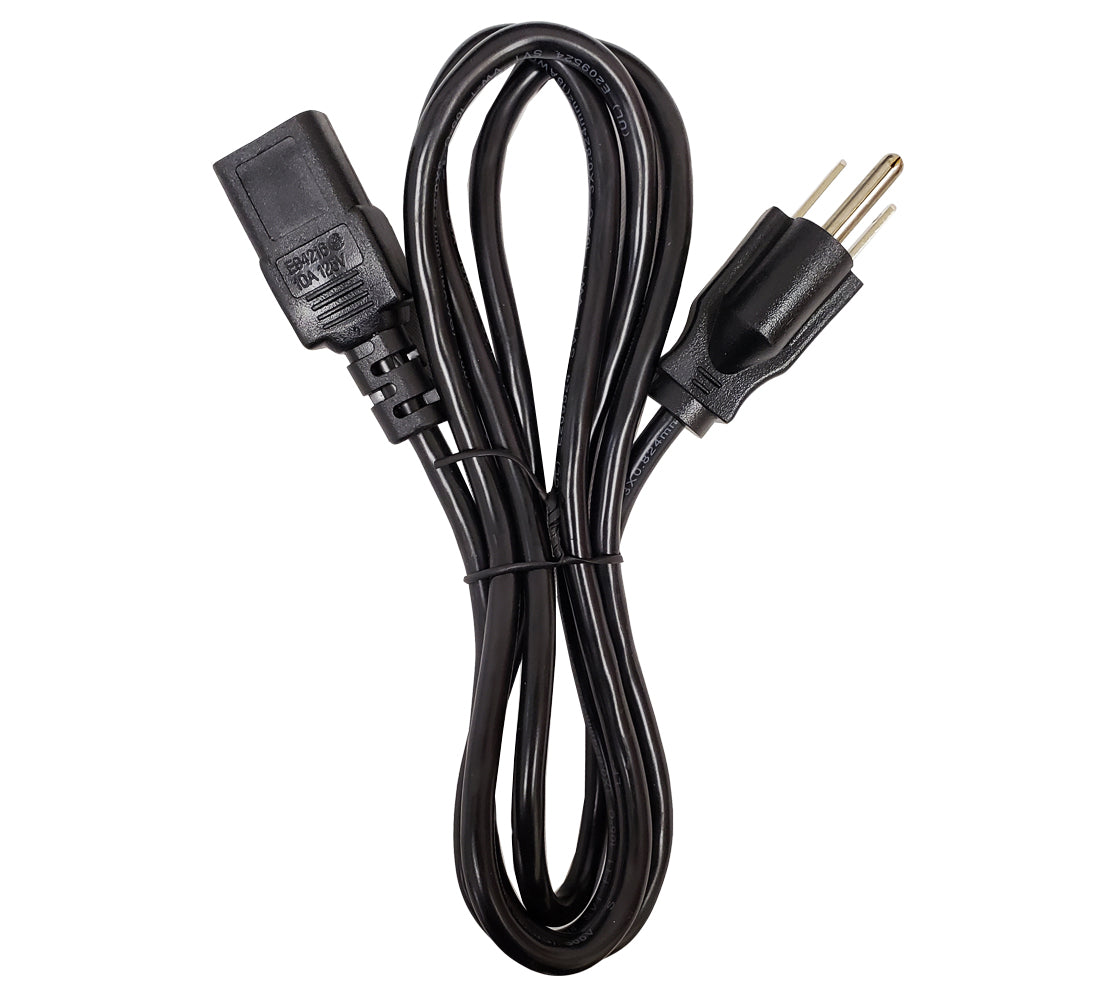

Power Supply Input: 100-240V AC, 50/60Hz

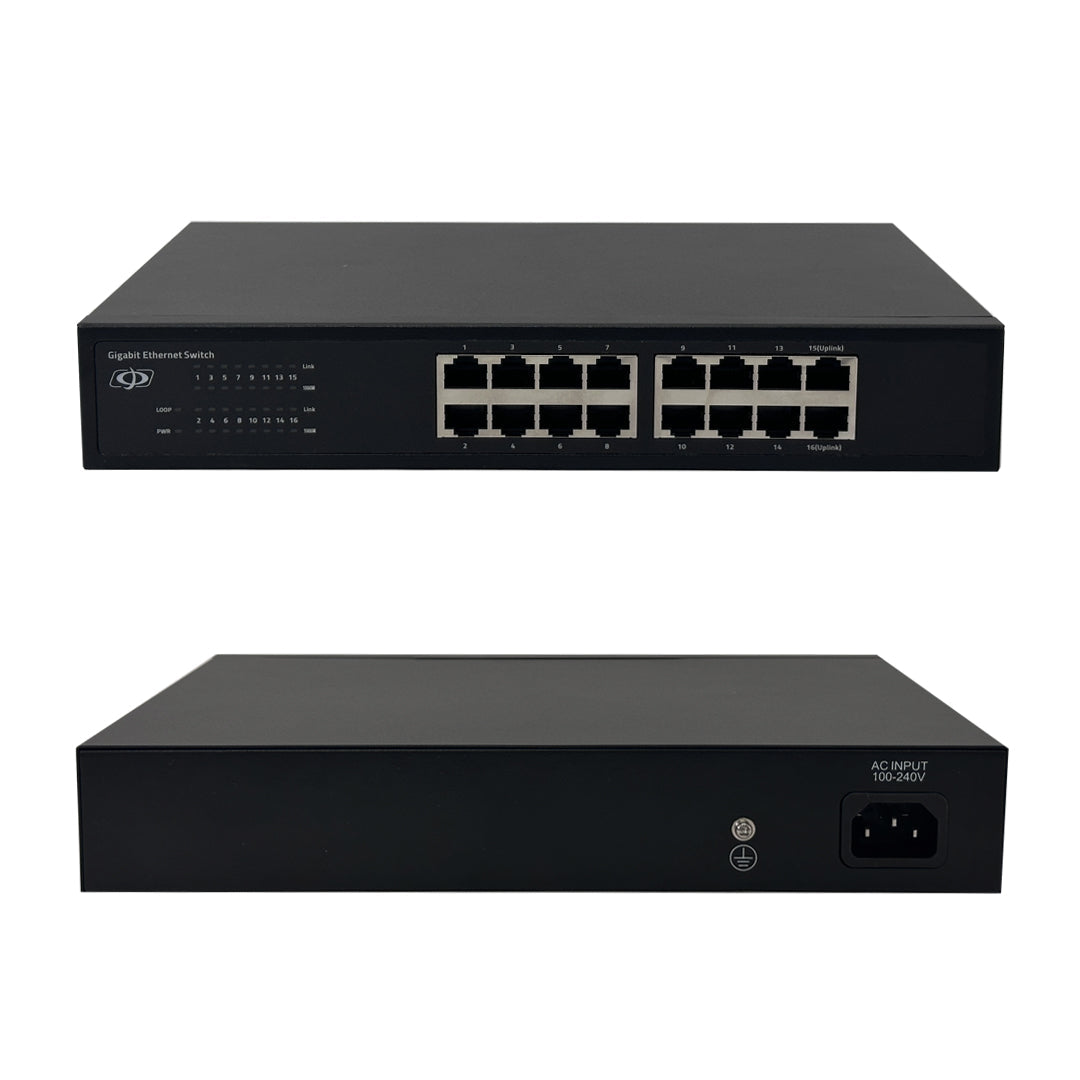

Ports 16 x 10/100/1000Mbps auto-negotiation RJ45 ports
Port Loopguard Supported
Port Type RJ45 port, Full duplex, MDI/MDI-X adaptive
Upink Port Port 15 and Port 16
LED Indicator 1 * Power LED
16 * Link/Act LED

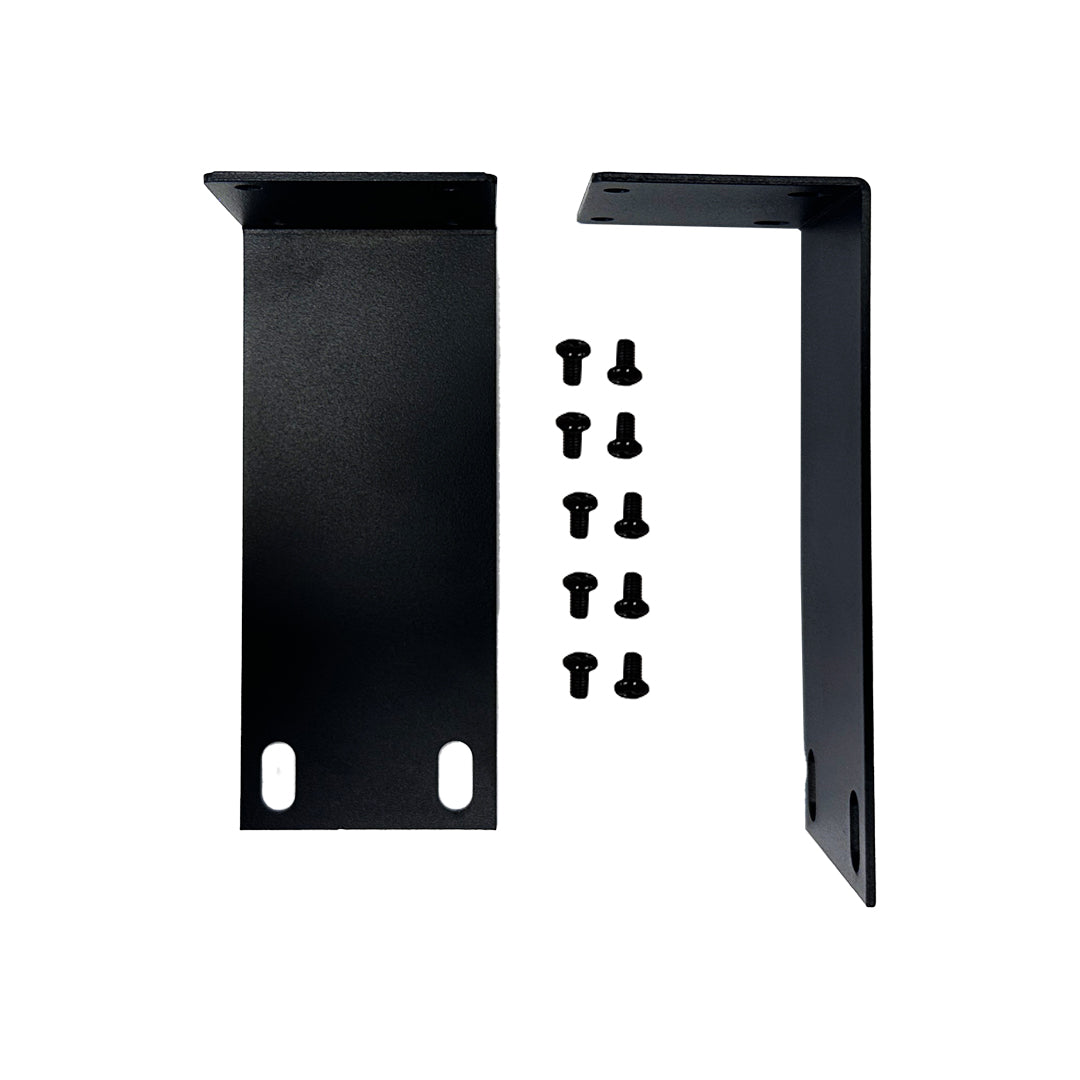

Mounting Ears Yes
Rackmountable Yes
Performance
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Total Bandwidth 32Gbps
Network Medium

10Base-T: Cat3, 4, 5 or above UTP (≤100m)

100Base-TX: Cat5 or above UTP (≤100m)

1000Base-TX: Cat5 or above UTP (≤100m)

MAC Address Table 8K
Jumbo Frame 4Kbytes
Transfer Mode Store-and-forward switching
Packet Forwarding Rate 23.8 Mpps
Internal Cache/ Buffer 4 Mbits
Switching Capacity 32 Gbps
MTBF 100000 hours
Environmental
RoHS Yes
FCC Yes
CE Yes

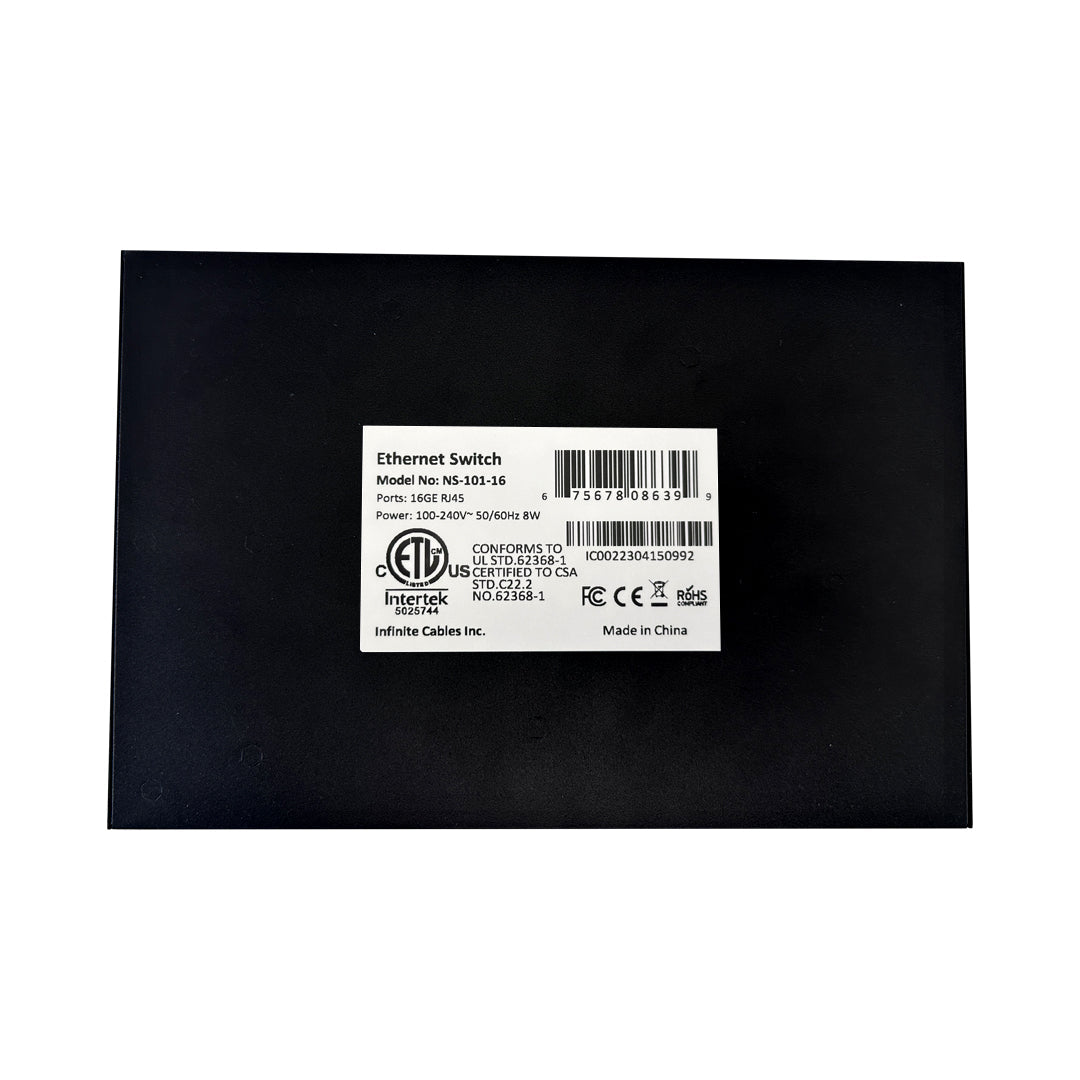

c(ETL)us  Yes
Packaging Information
Package Quantity 1
Product Weight 2.5 lbs

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
NS-101-16 3.7 lb
