Overview

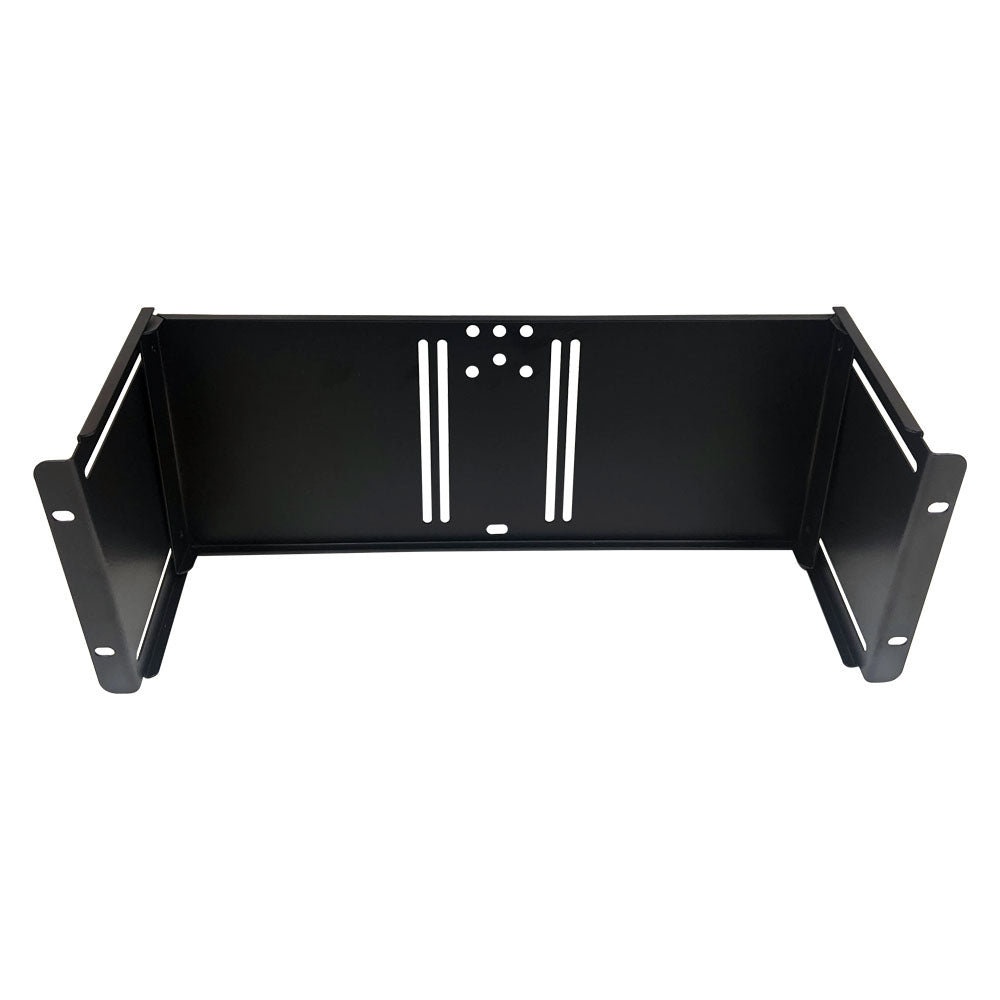

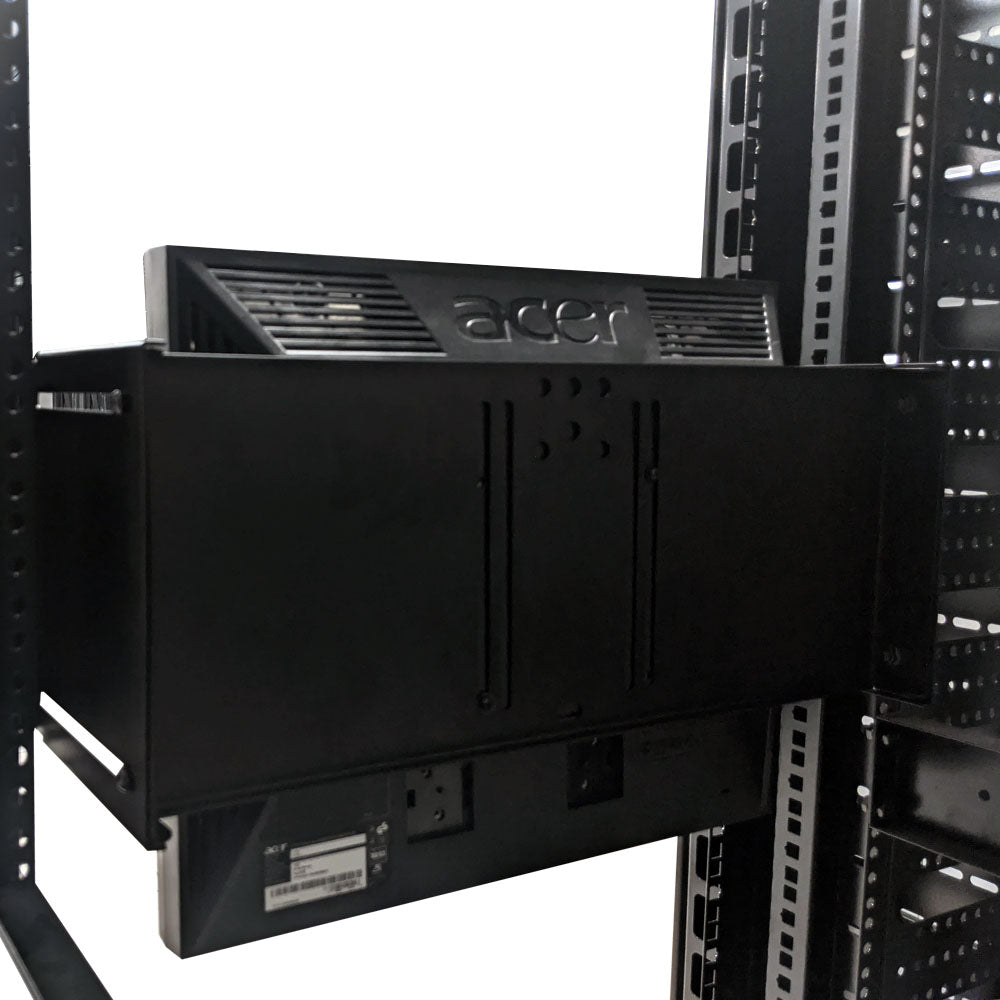

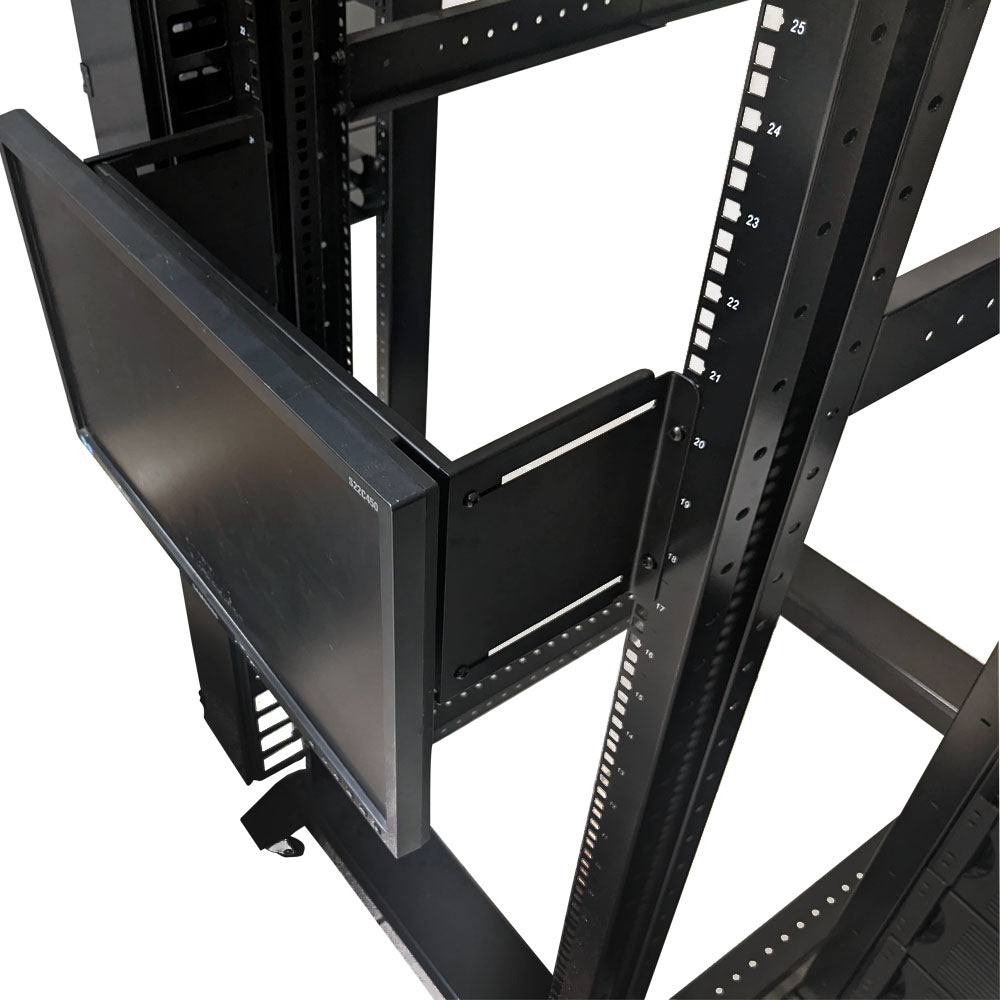

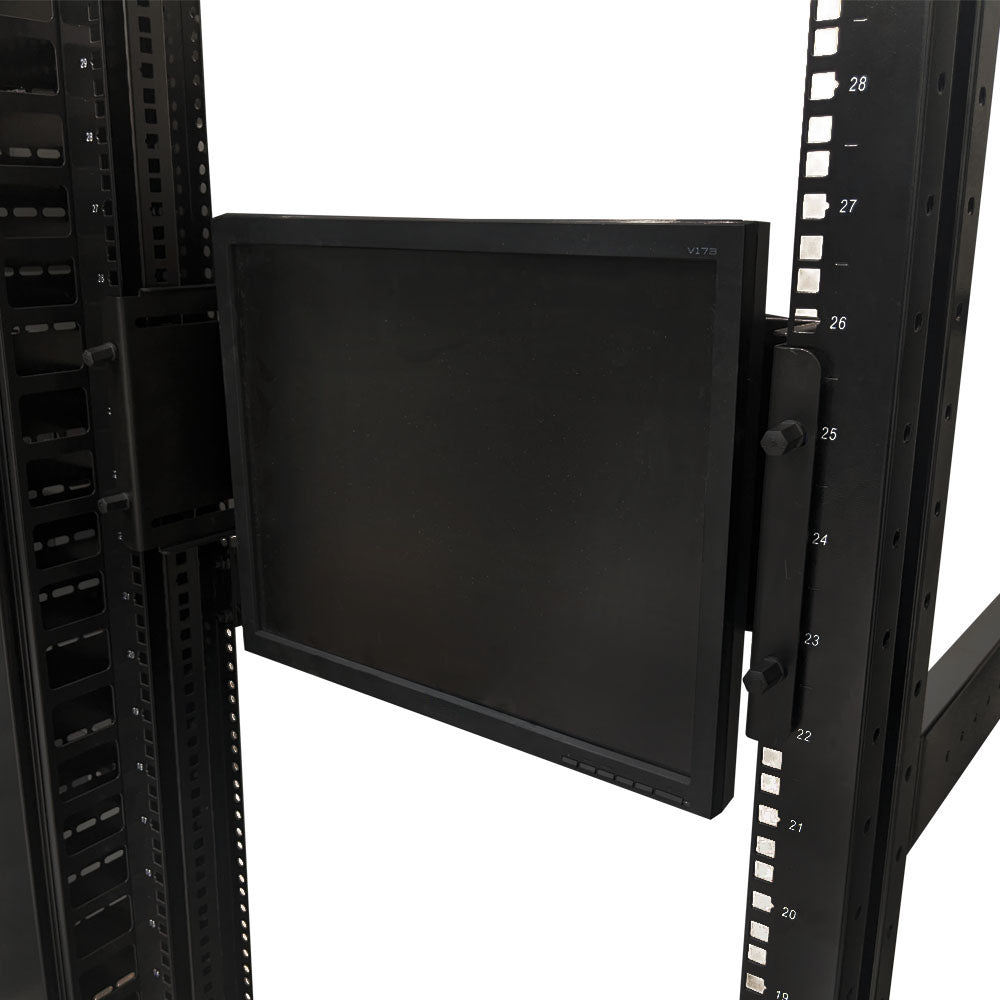

This monitor mount is 4U in height and mounts on any standard 19" rack or cabinet. It is typically used to mount a 17 to 19 inch monitor within a cabinet or rack. it has versatile mounting options and can be mounted in front or behind the cabinet or racks mounting rails. The mount also works in conjunction with some of our swivel and tilt mounting brackets so that the monitor can be positioned properly for a better viewing angle.
 |

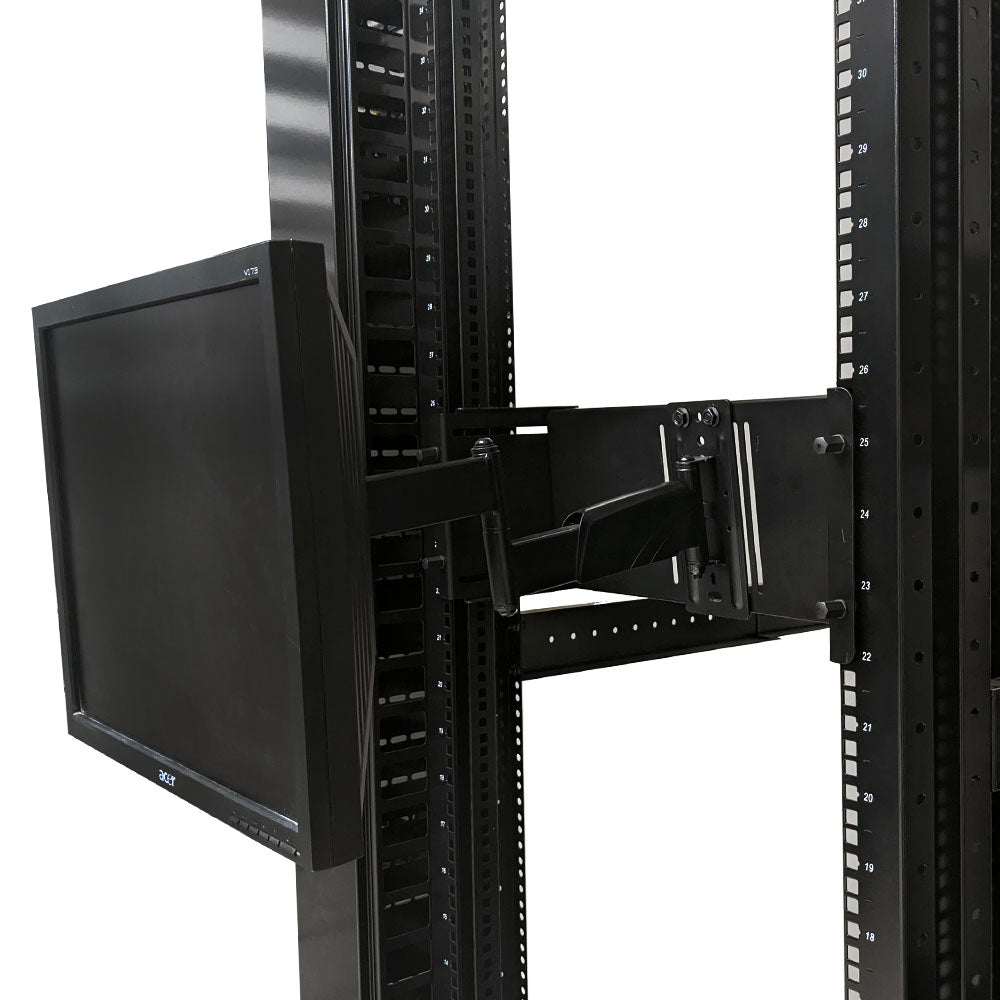

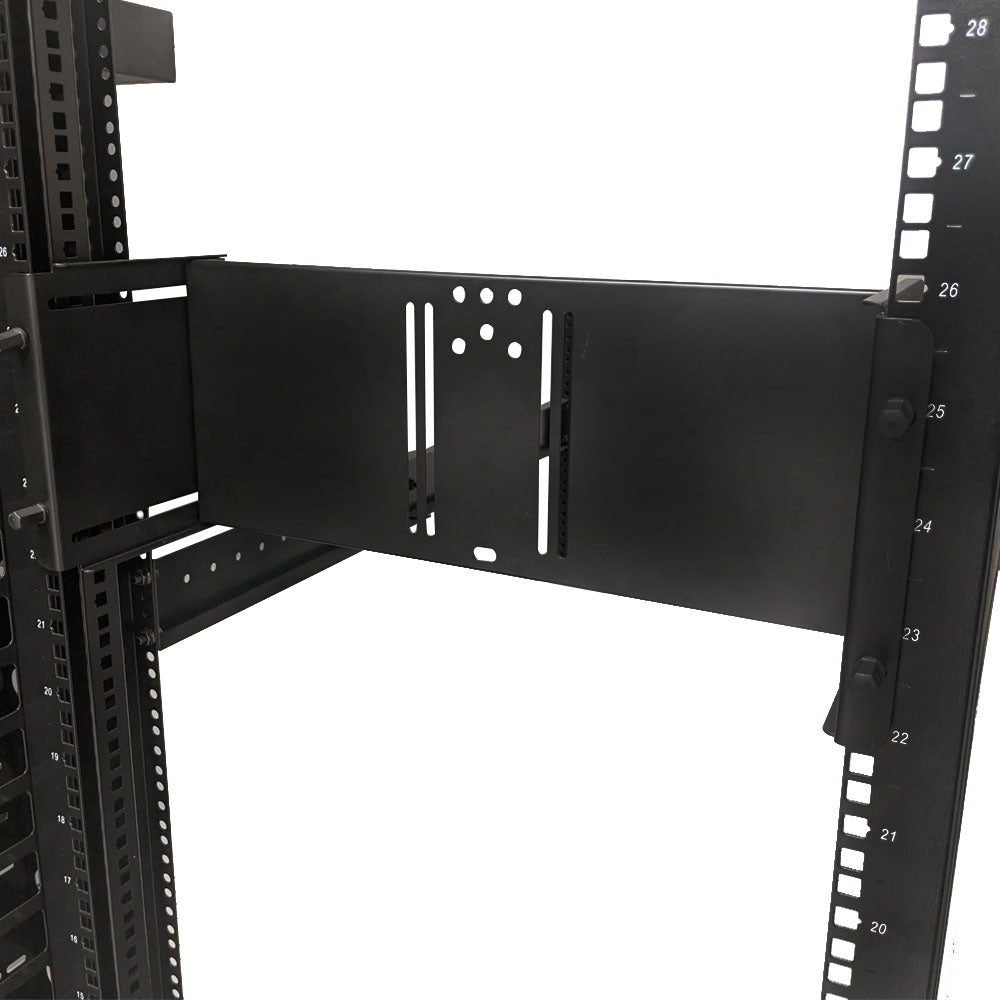

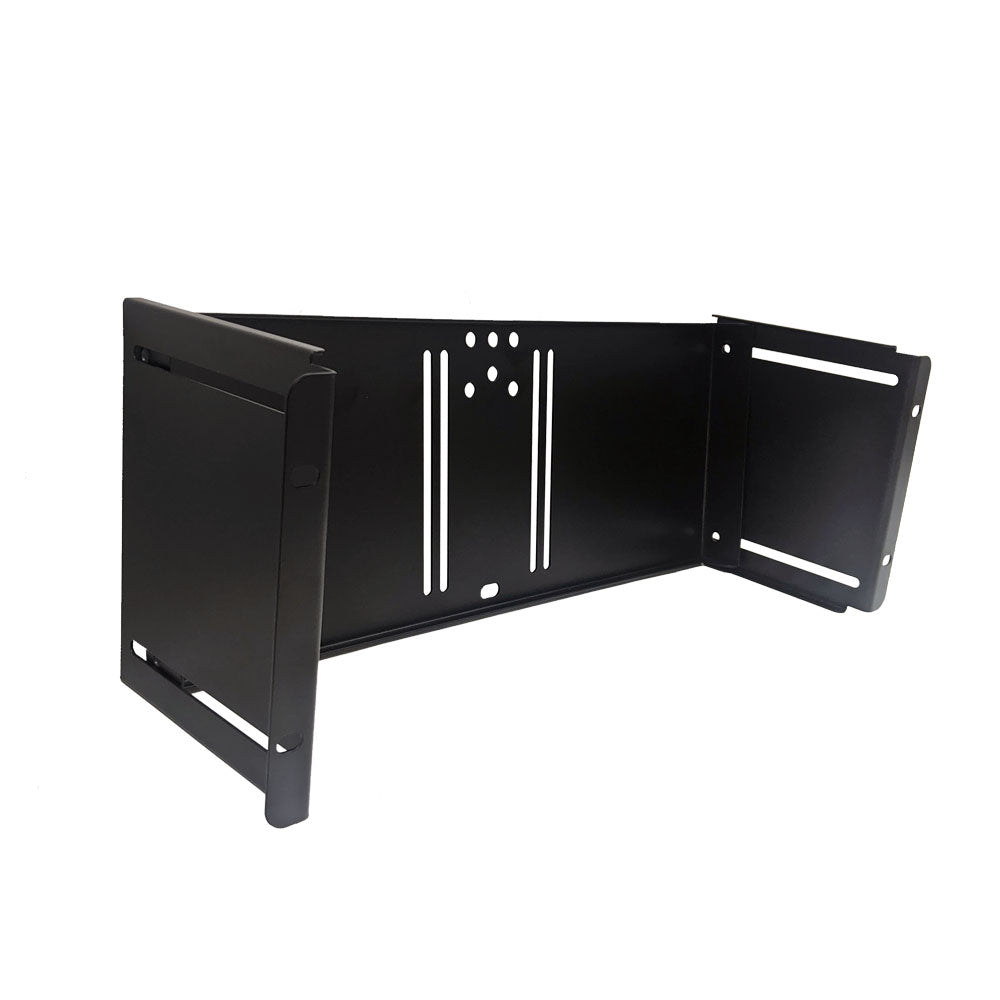

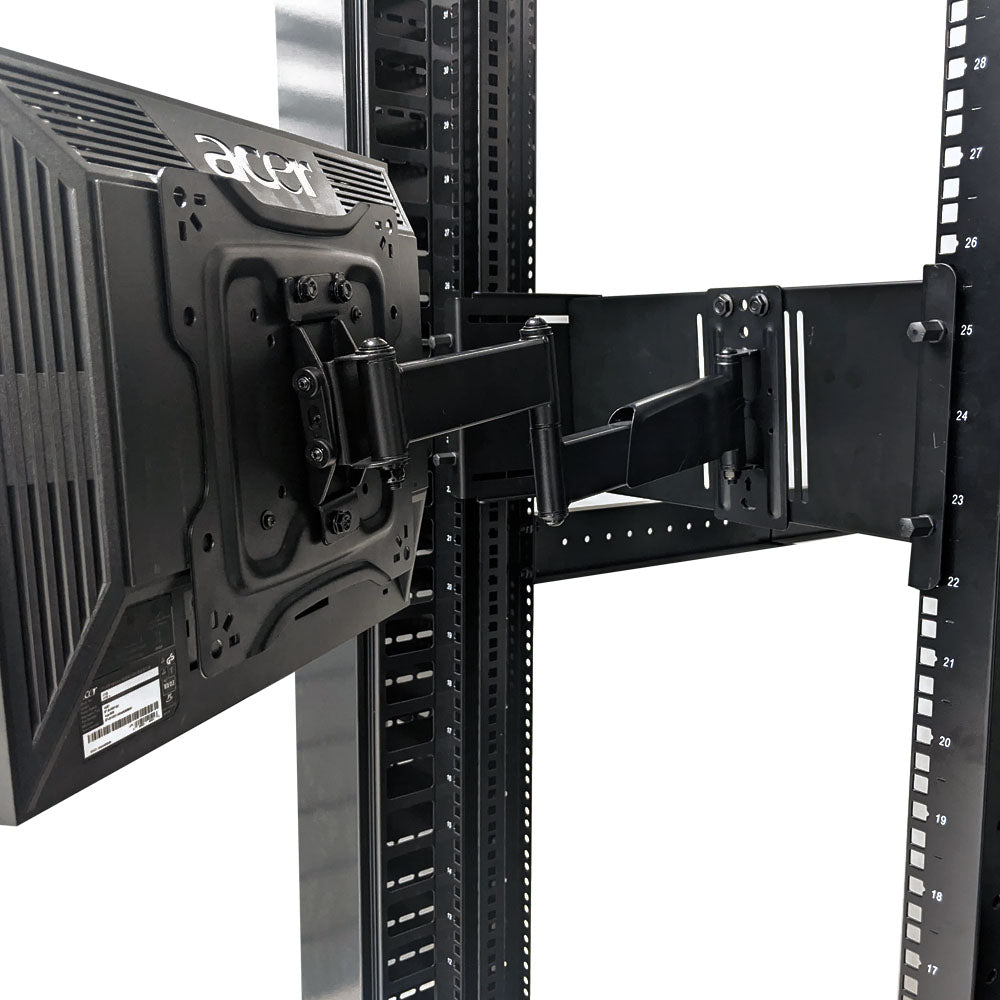

Adjustable Mounting OptionsThe mount can be mounted in front or behind the 19"�mounting rails. The mounting depth is also adjustable. Adding a Swivel and Tilt MountOne of our swivel and tilt mounts can also be mounted onto the RM-395-4U so that the monitor can be positioned for the best viewing angle. VESA Hole PatternThe mount has adjustable VESA 75x75 and 100x100 hole patterns to better accommodate a monitors input ports.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Mounting Style |
Monitor Mount |
| Finish | Powder Coated |
| Material | 1.5mm Thick Steel |
| Height in Units | 4U |
| Height in Inches | 6.85 inches [17.4cm] |
| Depth in Inches | 6.10 inches [15.5cm] |
| Number of Mounting Holes | 4 |
| VESA Pattern |
75x75, 100x100 |
| Depth Adjustment |
Flush ~ 6.10 inches [15.5cm] |
| Weight Capacity |
15KG |
| Mounting Hardware | Included |
| Compatible Swivel and Tilt Mounts | |
| MT-540-BK |
Swivel & Tilt Wall Mount LCD Bracket - Fits Sizes 23-42 inches - Maximum VESA 200x200 |
|
MT-541-BK |
Swivel & Tilt Wall Mount LCD Bracket with Arm - Fits TV Sizes 23-42 inches - Maximum VESA 200x200 |
|
MT-542-BK (Montior will be off centered when fully collapsed) |
Two Arm Swivel & Tilt Wall Mount LCD Bracket - Fits TV Sizes 23 to 42 inches - Maximum VESA 200x200 |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |

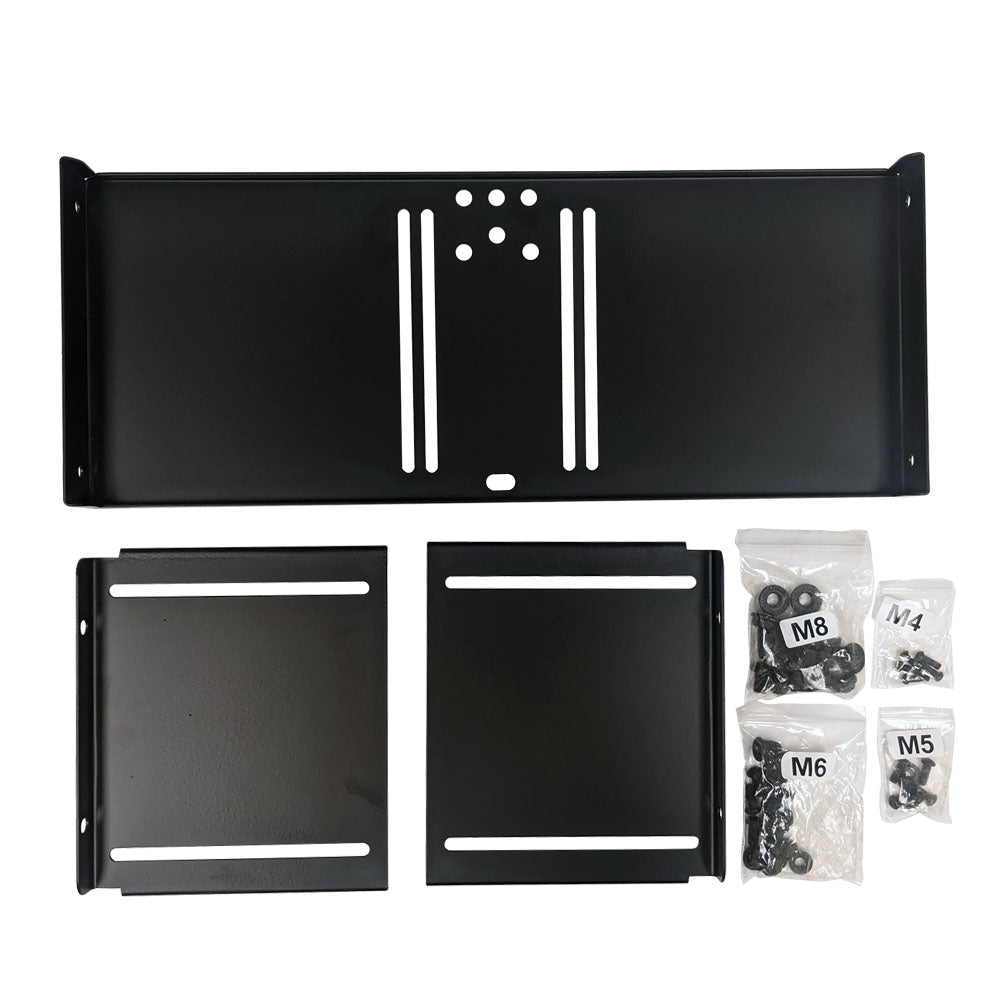

| Mounting Hardware | 5 Sets - M4 Screws 5 Sets - M5 Screws 9 Sets - M6 Screws and Cage Nuts 8 Sets - M8 Screws and Cage Nuts |
| Product Weight | 4.51 lbs [2.04kg] |
| SKU | Weight | |
| RM-395-4U | 4.5 lb |
