Description

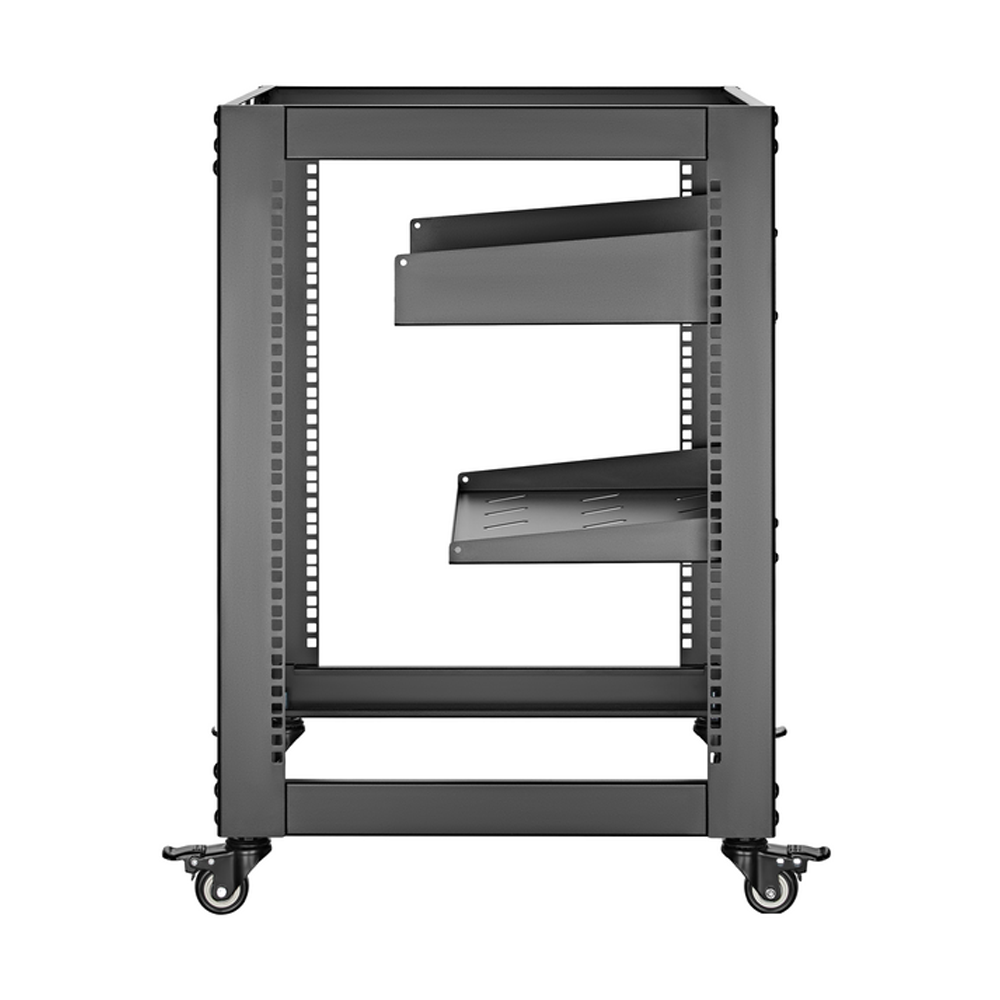

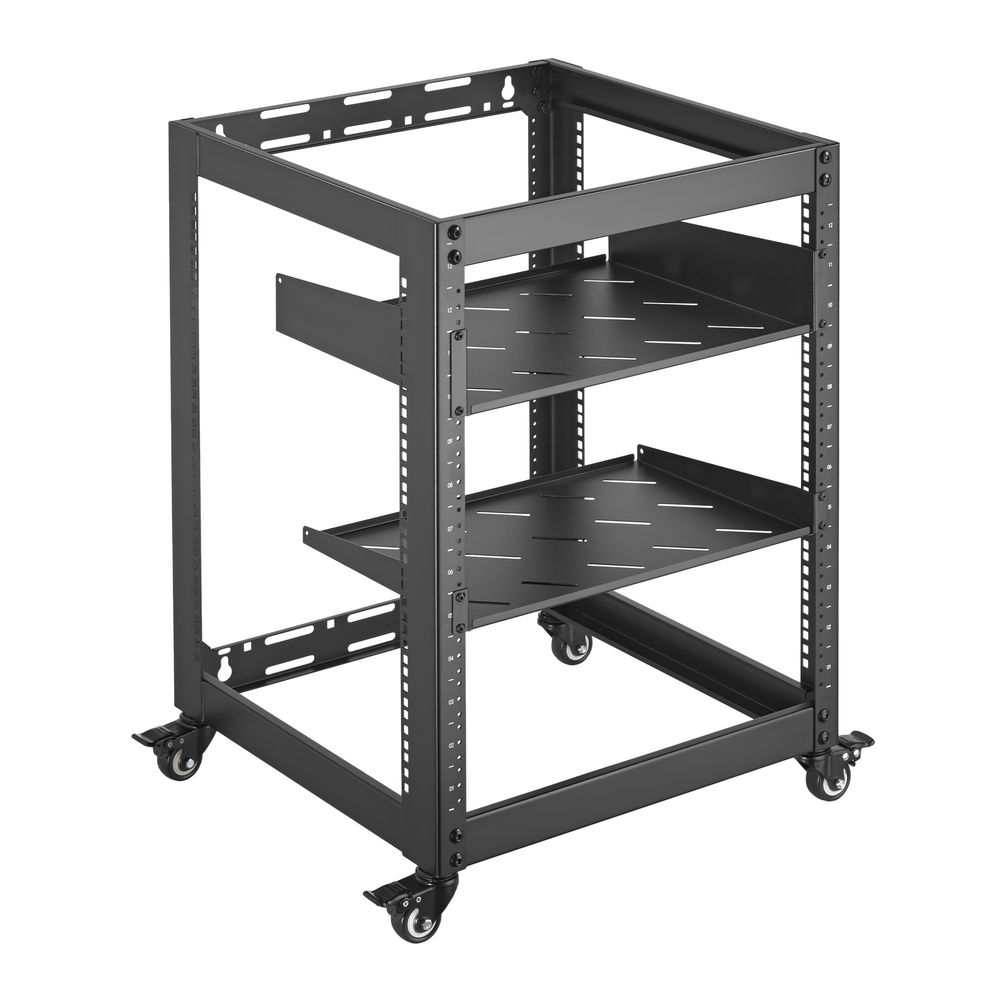

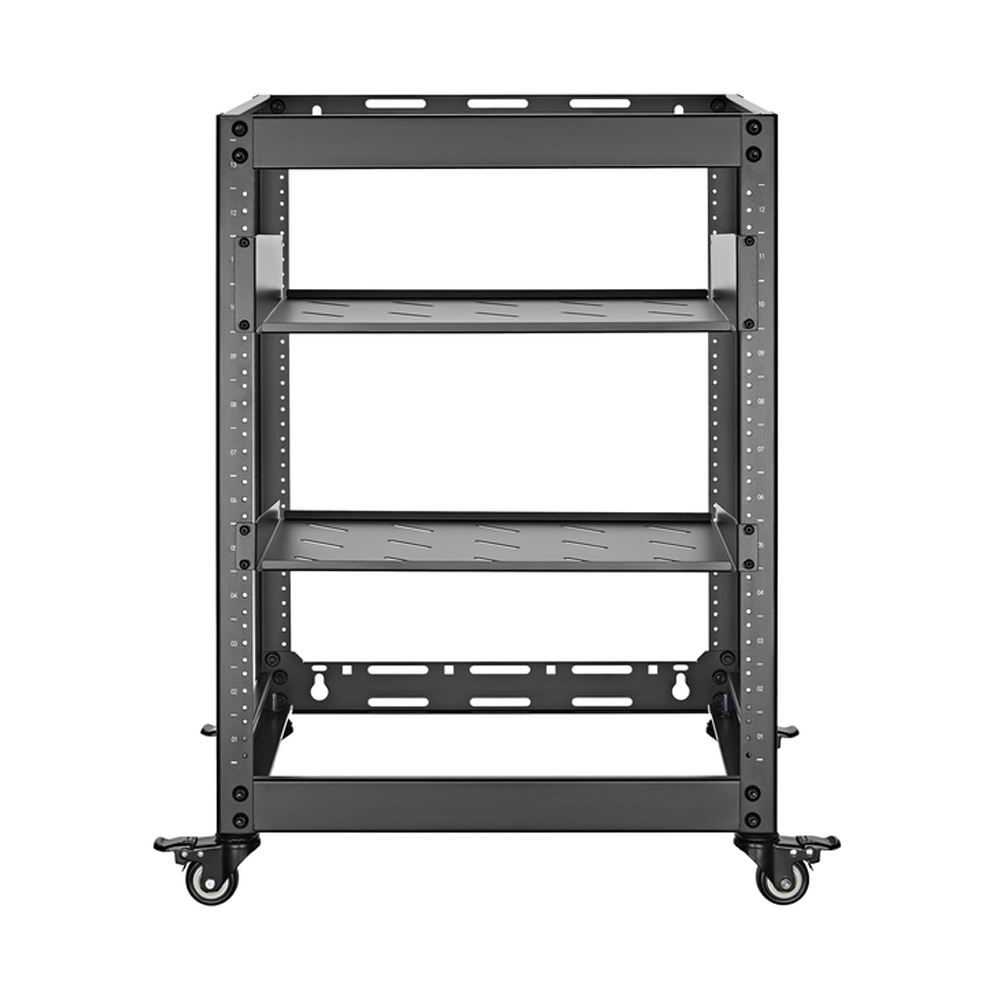

This 12U network server rack has an open frame design which ensures easy access and excellent ventilation. It can be wall mounted or free standing using the included detachable casters. It is compatible with mounting 19 inch wide networking equipment.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:2.0mm, Others: 1.5mm |
| Mounting Height in units | 12U |
| Mounting Height in inches | 21.26 inches [53.2cm] |
| Mounting Depth | 19 inch |
| Rail Mounting Style | 10-32 Threaded Hole |

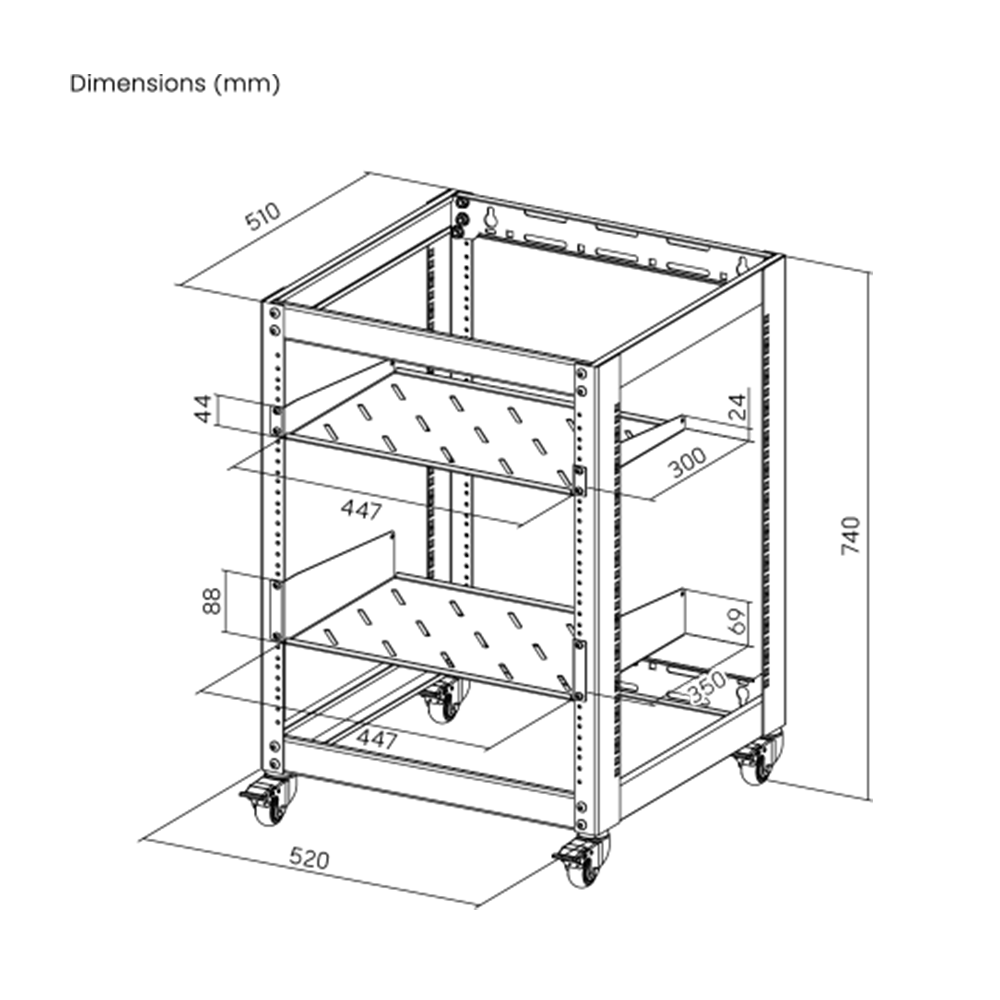

| Overall Dimensions | 20.42 x 20.04 x 26.25 inch |
| Weight Capacity |
440 lbs/200 kg (free stand) 240 lbs/100 kg (wall mounted) |
| Weight Capacity (Shelf) | 44 lbs/20kg |
| Wall Mounting Hardware |
Included |
| Shelves |

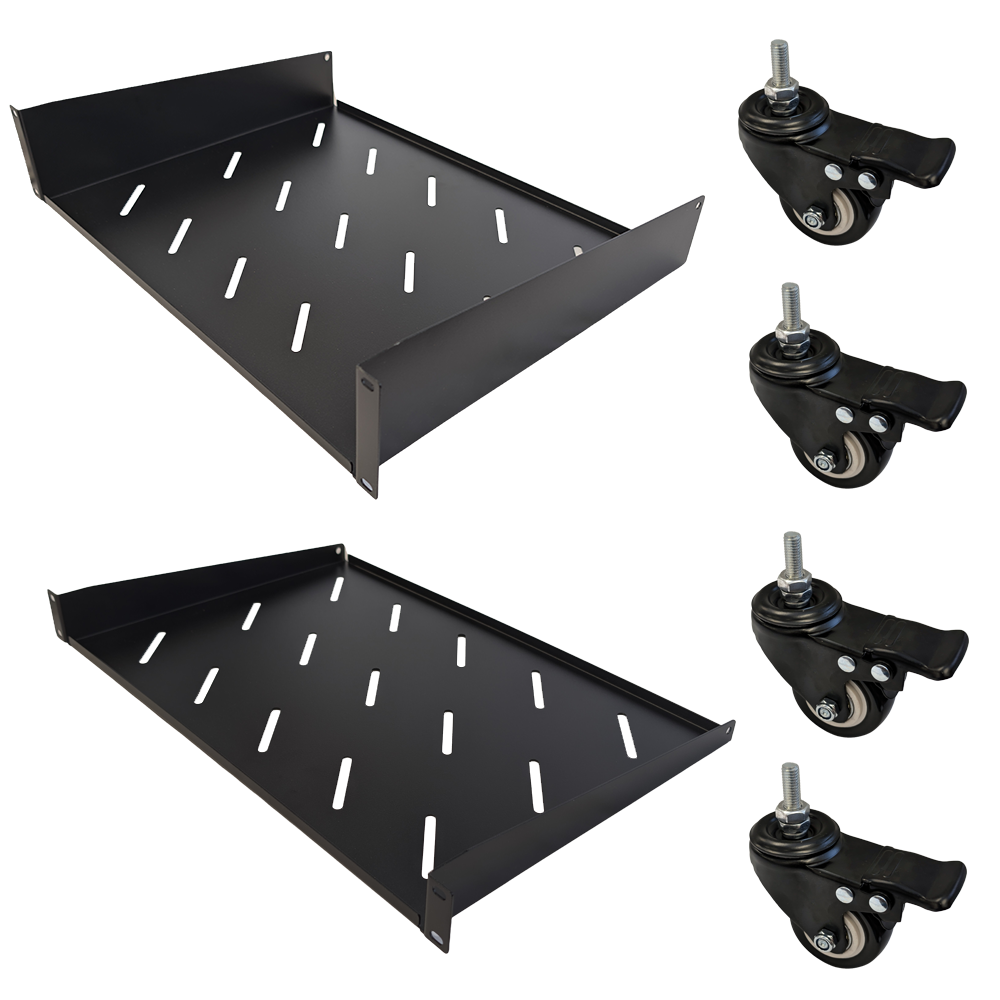

Included: 2 Vented Shelves, 1U and 2U |
| Casters | Included: Detachable and Lockable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |

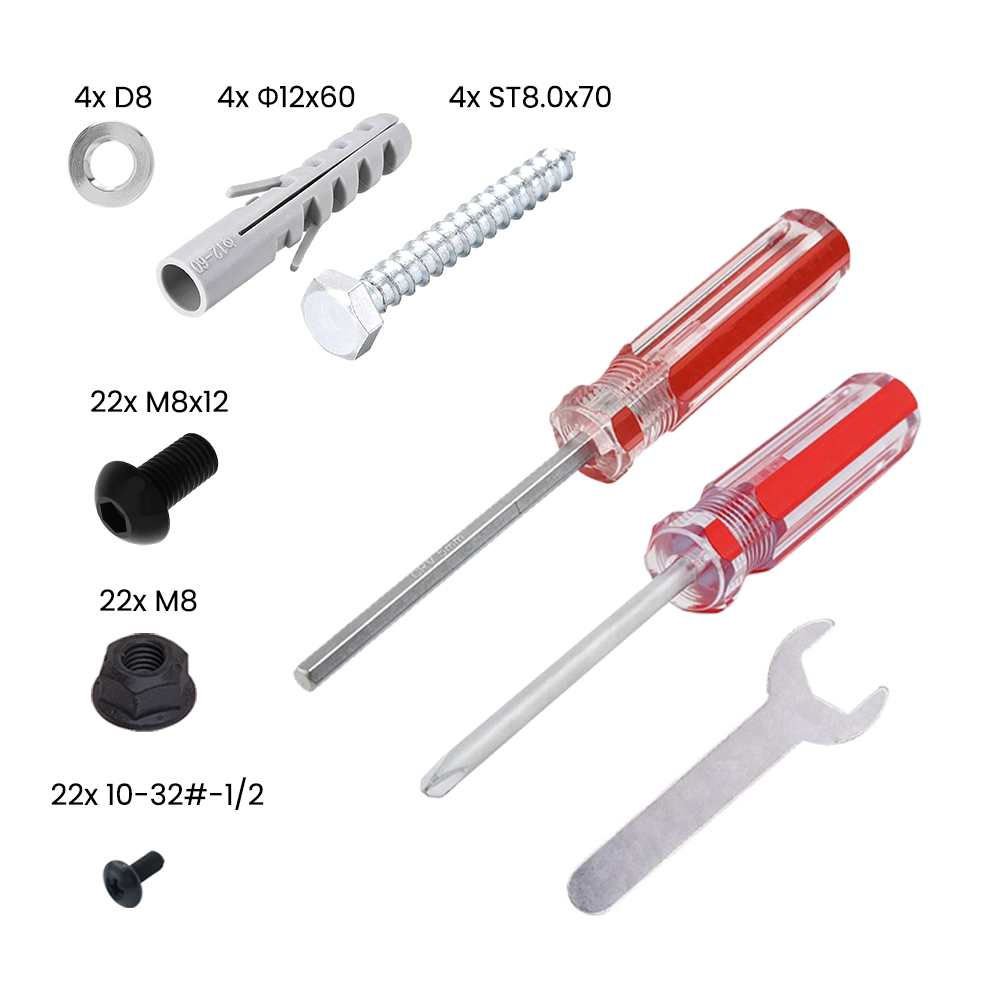

| Package Quantity | 1x Rack (Un-Assembled, Flat Packed) 1x 1U Shelf 1x 2U Shelf 4x Casters 22x M8x12 Screws 22x 10-32#-1/2 Screws 22x M8 Hex Nuts 4x ST8.0x70 Screws 4x Φ12x60 Plastic Anchors 4x D8 Washer |
| Product Weight |
27.1 lbs [33.7 kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| RM-1253 | 27.1 lb |
