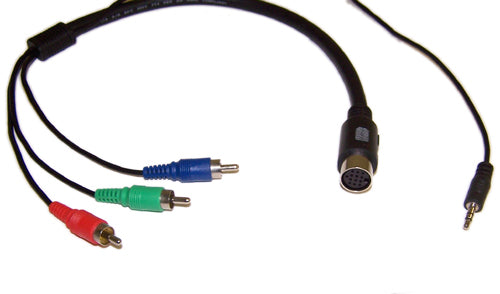

This disconnecting SVGA/UXGA adapter consists of 3 RCA male on one end, a 3.5mm male and a slim locking connector female on the other end. It is typically used to connect with the SVGAD-XX series of cables.
- Constructed of a combination of 3 mini coax cables and 8 single conductors for optimal SVGA video quality
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Fully CL2/FT4 fire rated for in-wall use
| Physical Characteristics |
|---|
| Cable Length |
1 foot [0.31m] |
| Color |
Black |
| Connector Plating |
Nickel |
| Wire Gauge - Coax |
3 - 28AWG Mini-Coax |
| Wire Gauge - Conductors |
5 - 24AWG Pairs, 2 - 24AWG Conductors |
| Cable Diameter |
9.0 mm |
| Shielding |
85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating |
CL2/FT4 |
| Jacket Material |
PVC |
| Strain Relief |
Molded PVC |
| Connector(s) |
|---|
Connector A
|
3 - RCA (Red,Green,Blue) Male
|
Connector B
|
1 - Slim Line Connector Female
1 - 3.5mm Male
|
| Performance |
|---|
| Resolution |
1600 x 1200px |
| Impedance |
75 ohm |
| Approvals |
|---|
| c(UL)us |
Approved Cable |
| Environmental |
|---|
| RoHS |
Compliant |
| Reach |
Compliant |
| Packaging Information |
|---|
| Package Quantity |
1 - Cable |
| Product Weight |
0.15 lbs [0.07kg] |
| Warranty Information |
|---|
| Warranty |
Limited Lifetime |
