Name: 1U LGX Style Sliding Panel (holds 3 cassettes/panels) - Black
Brand: LGX Fiber Optic Patch Panels, Cassettes & Enclosures
SKU: PP-F2001-1U
Price: 46.19 USD
Availability: InStock

Description
Spec Sheets
Product Weights

Description

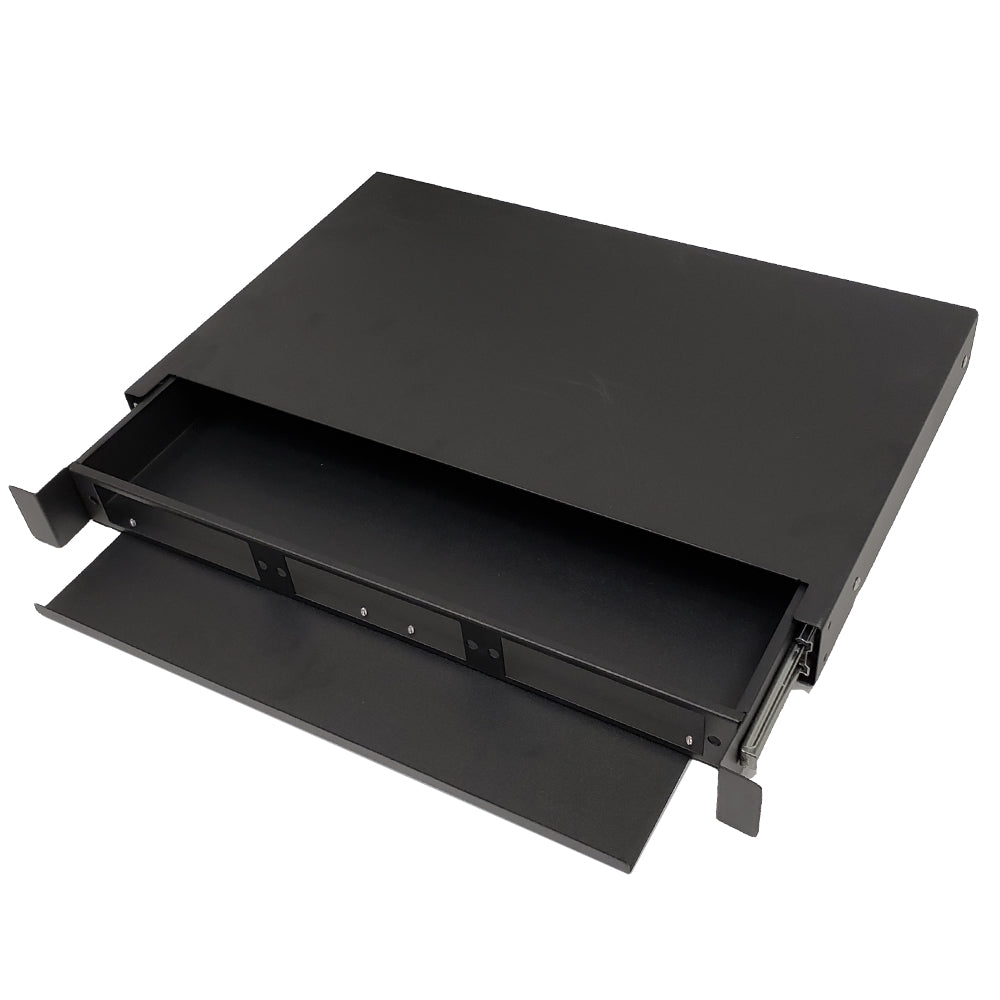

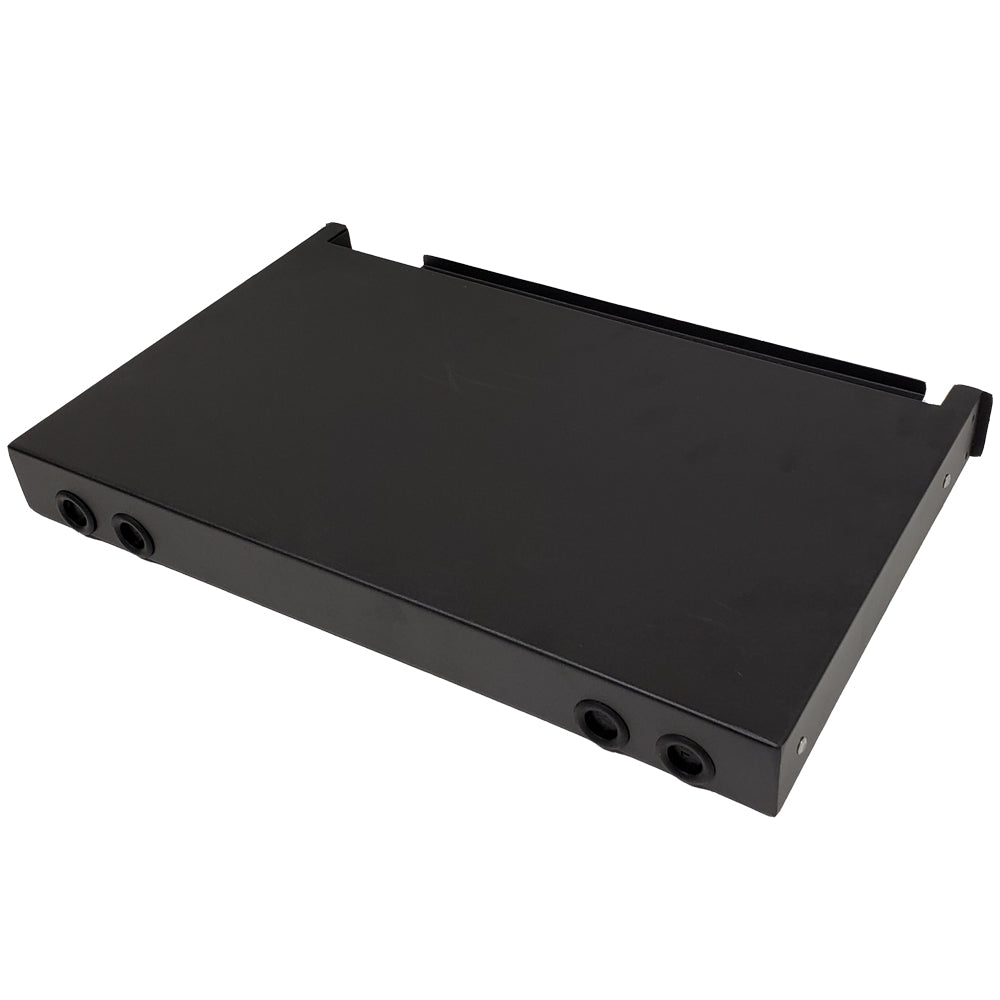

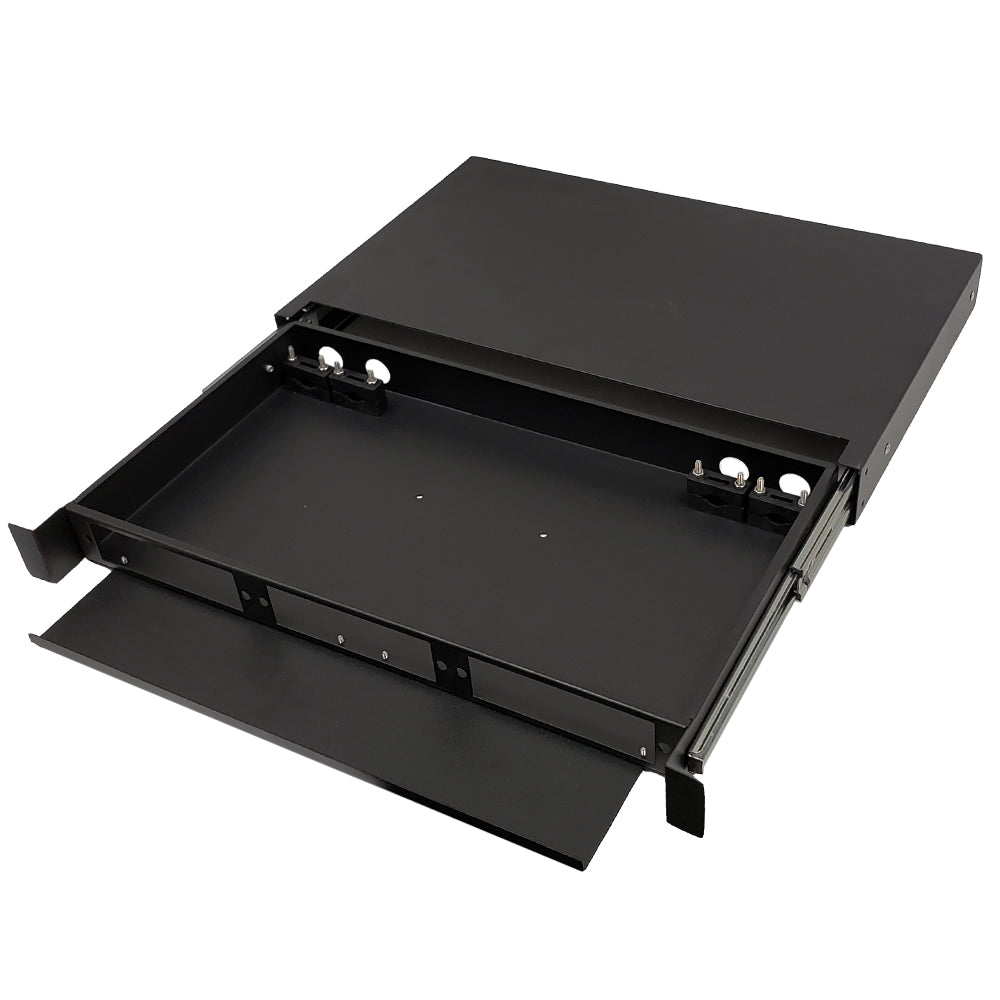

This 19 inch rackmount fiber optic enclosure is 1U in height, has a latching slide out tray for easy access and accepts up to three LGX fiber MPO cassettes or LGX adapter panels. It is used to interconnect house LGX cassettes or fiber splices and terminate fiber cables. The unit comes with three 24-fiber splice trays, 48 splice sleeves, two blank adapter panels, mounting ears, cable ties and tie-downs. Fiber adapter panels and LGX cassettes are sold separately.

Physical Characteristics
Color	Black (Powder Coat)
Material	Steel
Product Dimensions	19"W x 12.5" L x 1U H
Rackmountable	Yes
Compatible Adapter Panels and LGX Cassettes
PP-FC104-6BK	Loaded LGX Adapter Panel with 6x Duplex SC/PC Multimode - Black
PP-FC108-6BK	Loaded LGX Adapter Panel with 6x Duplex LC/PC Multimode - Black
PP-FC108-12BK	Loaded LGX Adapter Panel with 12x Duplex LC/PC Multimode - Black
PP-FC200-6BK	Loaded LGX Adapter Panel with 6x Simplex ST/UPC SM/MM - Black
PP-FC200-12BK	Loaded LGX Adapter Panel with 12x Simplex ST/UPC SM/MM - Black
PP-FC204-6BK	Loaded LGX Adapter Panel with 6x Duplex SC/UPC Singlemode - Black
PP-FC204A-6BK	Loaded LGX Adapter Panel with 6x Duplex SC/APC Singlemode - Black
PP-FC208-6BK	Loaded LGX Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FC208-12BK	Loaded LGX Adapter Panel with 12x Duplex LC/UPC Singlemode - Black
PP-FC208A-6BK	Loaded LGX Adapter Panel with 6x Duplex LC/APC Singlemode - Black
PP-FC208A-12BK	Loaded LGX Adapter Panel with 12x Duplex LC/APC Singlemode - Black
PP-FC404-6BK	Loaded LGX Adapter Panel with 6x Duplex SC/PC Multimode 10G - Black
PP-FC408-6BK	Loaded LGX Adapter Panel with 6x Duplex LC/PC Multimode 10G - Black
PP-FC408-12BK	Loaded LGX Adapter Panel with 12x Duplex LC/PC Multimode 10G - Black
PP-FC504-6BK	Loaded LGX Adapter Panel with 6x Simplex SC/PC Multimode - Black
PP-FC504-12BK	Loaded LGX Adapter Panel with 12x Simplex SC/PC Multimode - Black
PP-FC604-6BK	Loaded LGX Adapter Panel with 6x Simplex SC/UPC Singlemode - Black
PP-FC604-12BK	Loaded LGX Adapter Panel with 12x Simplex SC/UPC Singlemode - Black
PP-FC604A-6BK	Loaded LGX Adapter Panel with 6x Simplex SC/APC Singlemode - Black
PP-FC604A-12BK	Loaded LGX Adapter Panel with 12x Simplex SC/PC Multimode 10G - Black
PP-FC804-6BK	Loaded LGX Adapter Panel with 6x Simplex SC/PC Multimode 10G - Black
PP-FC804-12BK	Loaded LGX Adapter Panel with 12x Simplex SC/PC Multimode 10G - Black
PP-FC1015U-BK	12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/UPC Duplex - Black
PP-FC1025U-BK	24-Fiber Singlemode LGX Style Cassette 2x MPO Male to 12x LC/UPC Duplex, Black
PP-FC1015A-BK	12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/APC Duplex - Black
PP-FC1025A-BK	24-Fiber Singlemode LGX Style Cassette 2x MPO APC Male to 12x LC/APC Duplex, Black
PP-FC1315-BK	12-Fiber Multimode OM3 LGX Style Cassette MPO Male to 6x LC Duplex - Black
PP-FC1325-BK	24-Fiber Multimode OM3 LGX Style Cassette 2x MPO Male to 12x LC Duplex - Black
PP-FC1415-BK	12-Fiber Multimode OM4 LGX Style Cassette MPO Male to 6x LC Duplex - Black
PP-FC1425-BK	24-Fiber Multimode OM4 LGX Style Cassette 2x MPO Male to 12x LC Duplex - Black
Environmental
RoHS	Yes
Packaging Information
Package Quantity	1
Product Weight	14.25 lbs [6.4 kg]
Contents

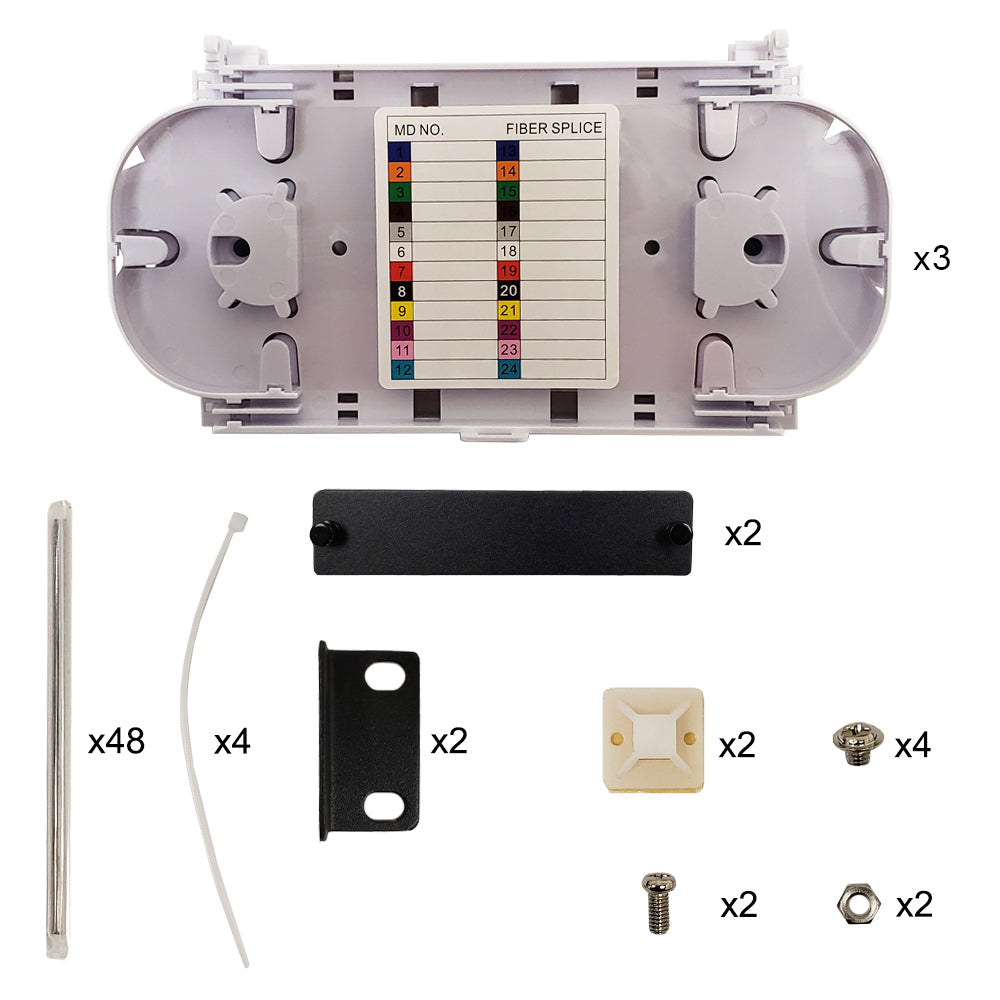

Included in Package	1 - Fiber Enclosure 2 - Blank LGX panels 2 - Mounting Ears 4 - Cable Ties 3 - 24F Splice Trays 2 - Adhesive 48 - Splice Sleeves

Spec Sheets

Download attachment

Product Weights

SKU		Weight
PP-F2001-1U		14.25 lb
