24-Fiber Multimode OM4 LGX Style Cassette 2x MPO Male to 12x LC Duplex - Black


Price:
Sale price$176.19 USD
Stock:
In stock

Description

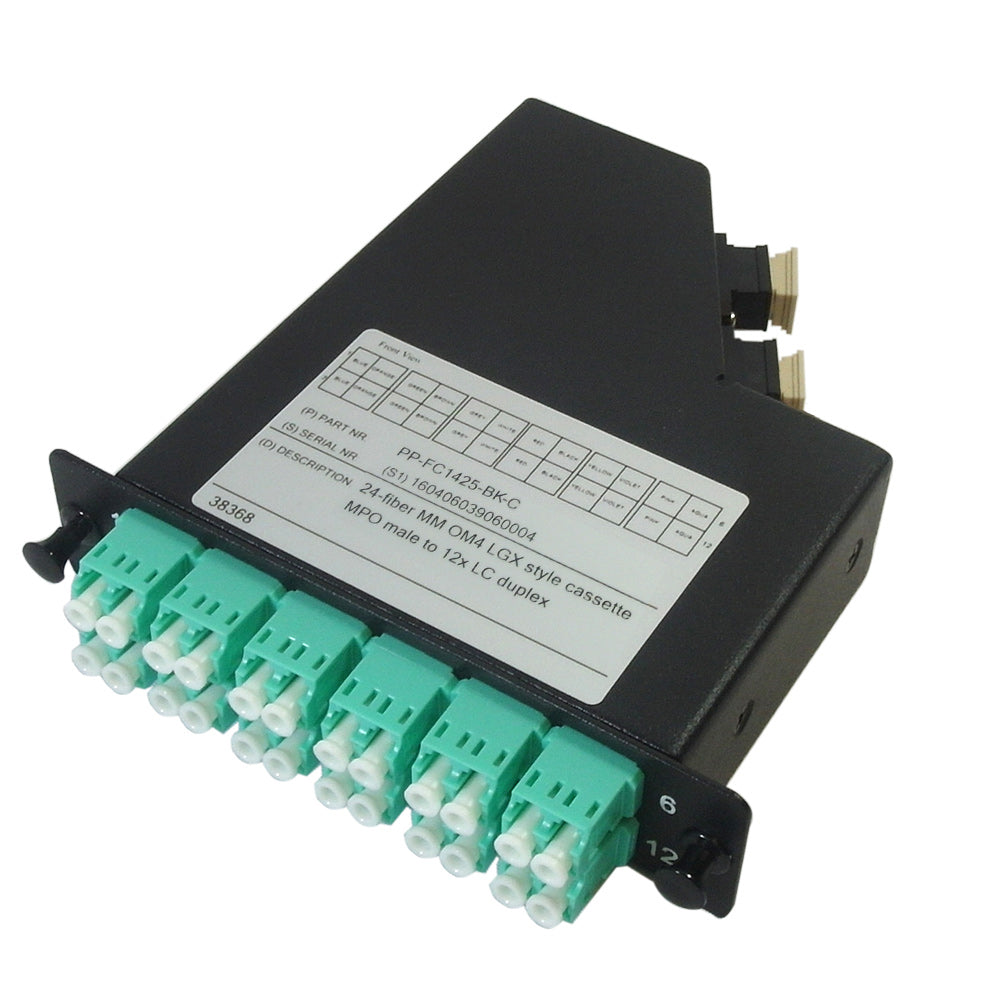

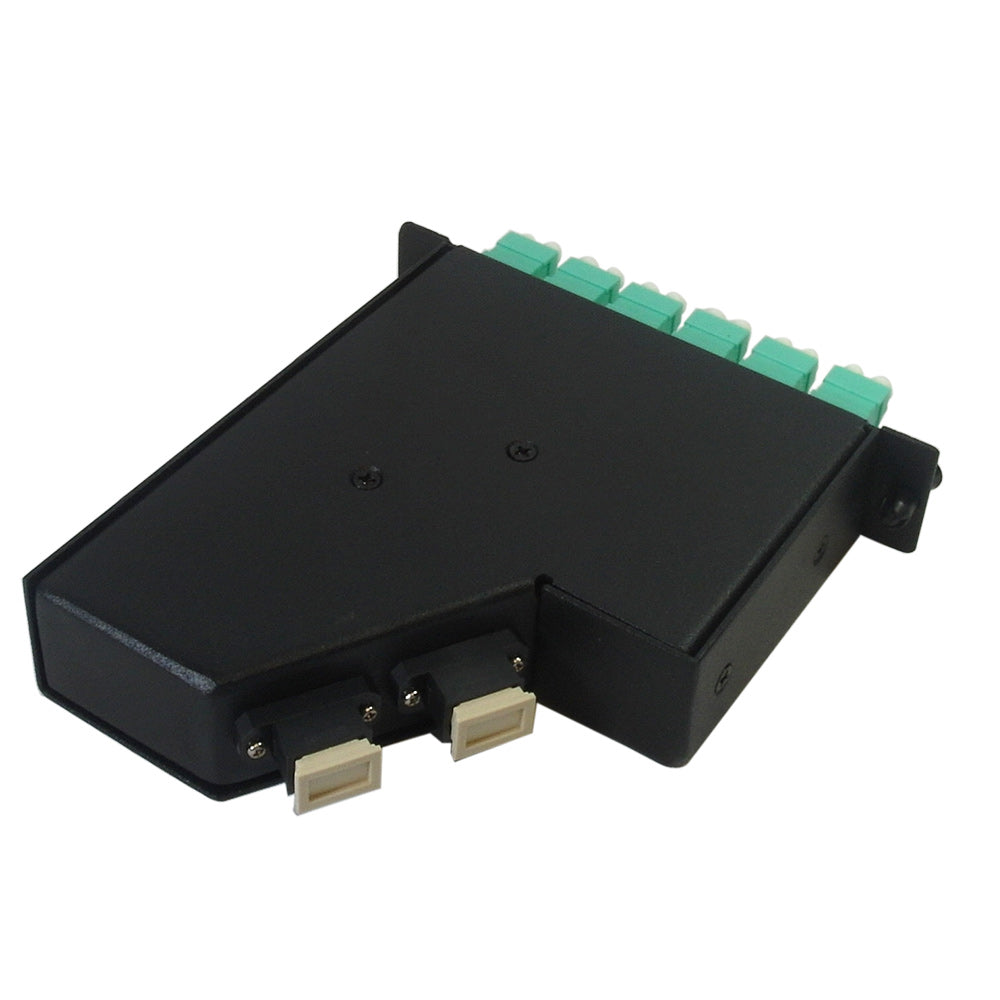

This multimode fiber optic MPO to LC cassette is made with Corning glass fiber and consists of a two MPO/MTP male connectors on one end and 12 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.

Physical Characteristics

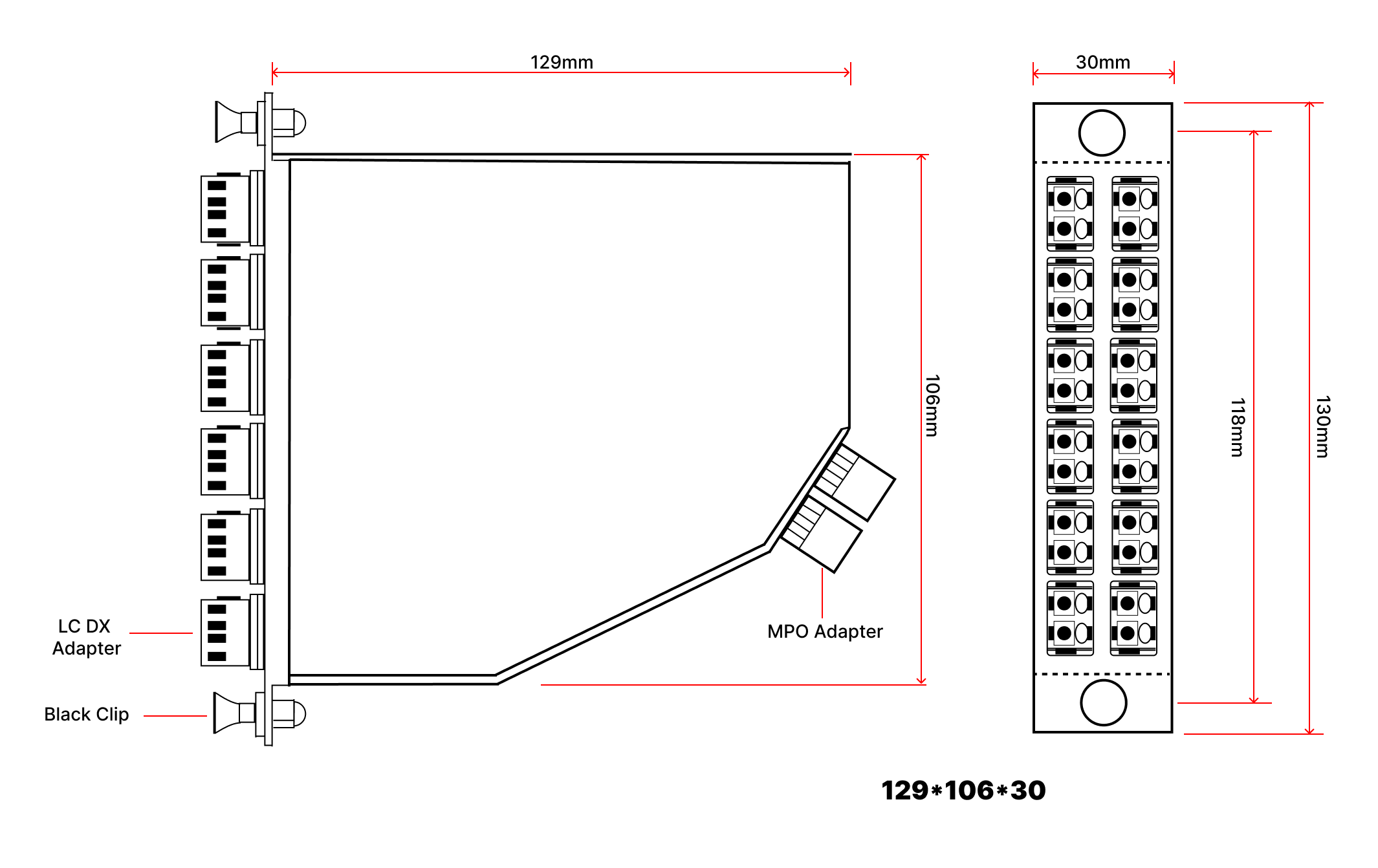

Cassette Style/Size LGX Panel
Fiber Count 24 Fibers
Fiber Type Multimode 50/125 Micron OM4
Glass Manufacturer Corning Glass
Polarity Method A
Connector(s)
Connector A 2 x 12-Position MPO Male (with guide pins) Elite Connectors
Connector B 12 x LC Duplex Female
Performance
MPO Insertion Loss ā‰¤0.35 dB
MPO Return Loss ā‰„20dB
LC Insertion Loss ā‰¤0.3dB
LC Return Loss ā‰„20dB
testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Yes
UL UL Listed Cable
Packaging Information
Package Quantity 1
Product Weight 1.13 lbs [0.51kg]
Warranty Information
Warranty Limited Lifetime
