Description

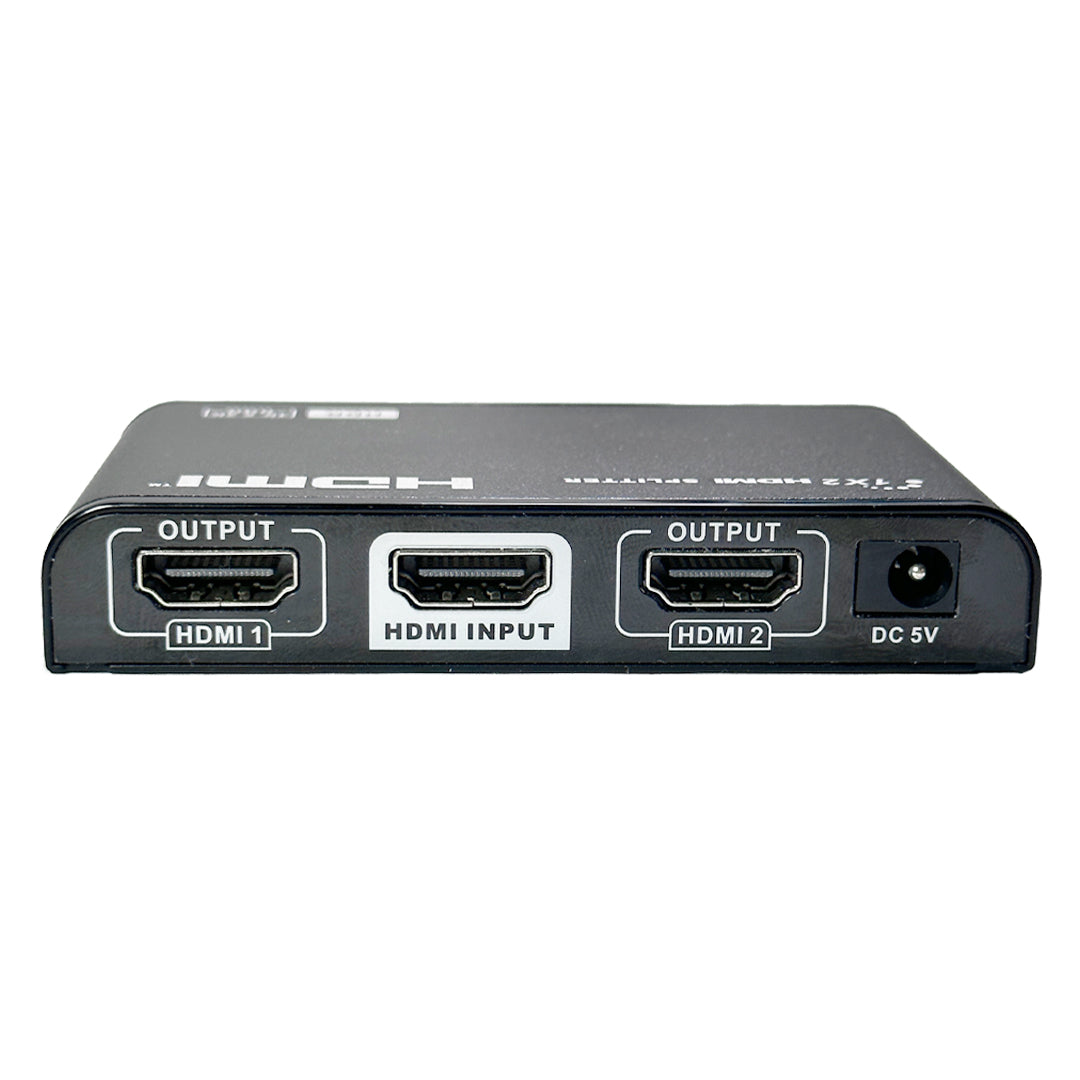

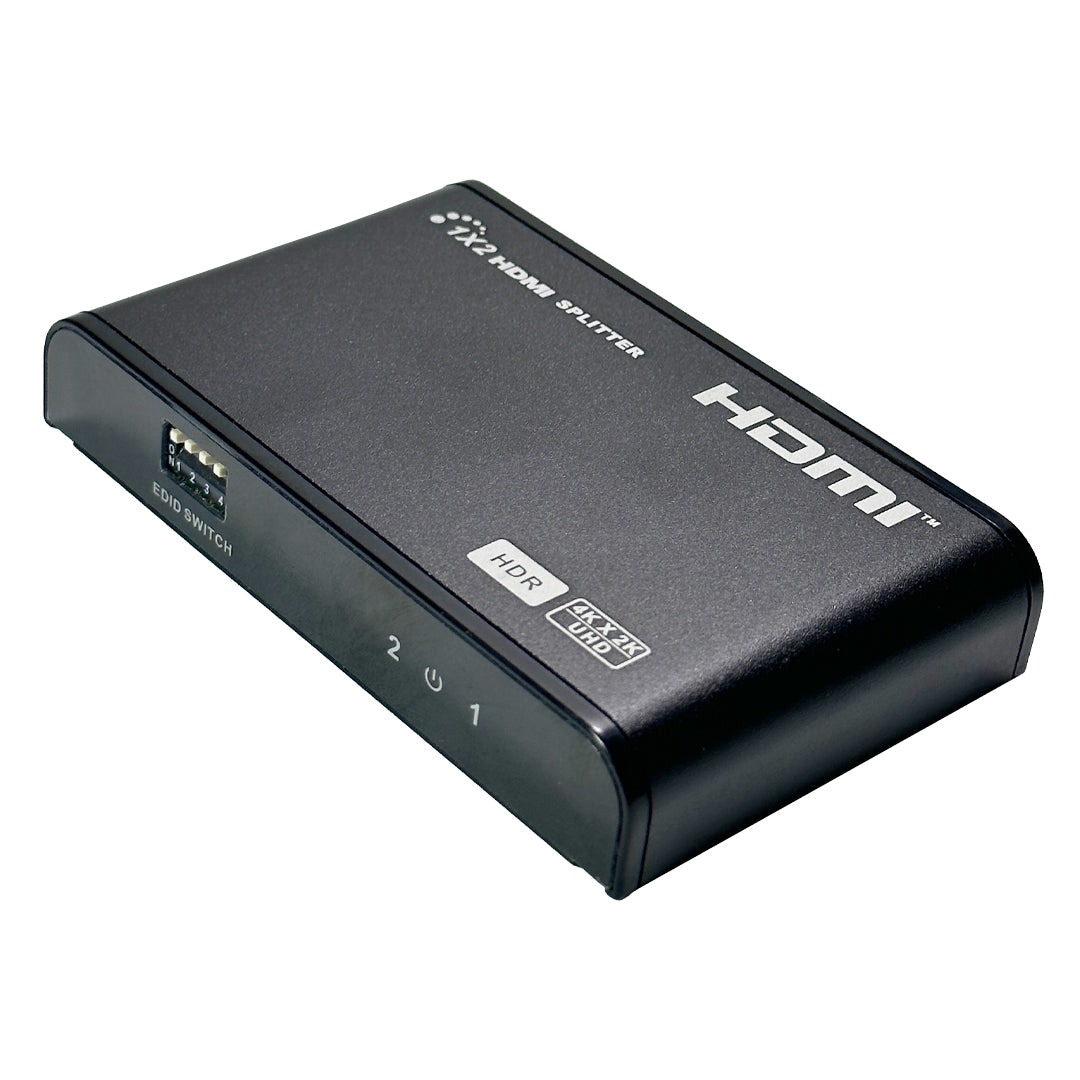

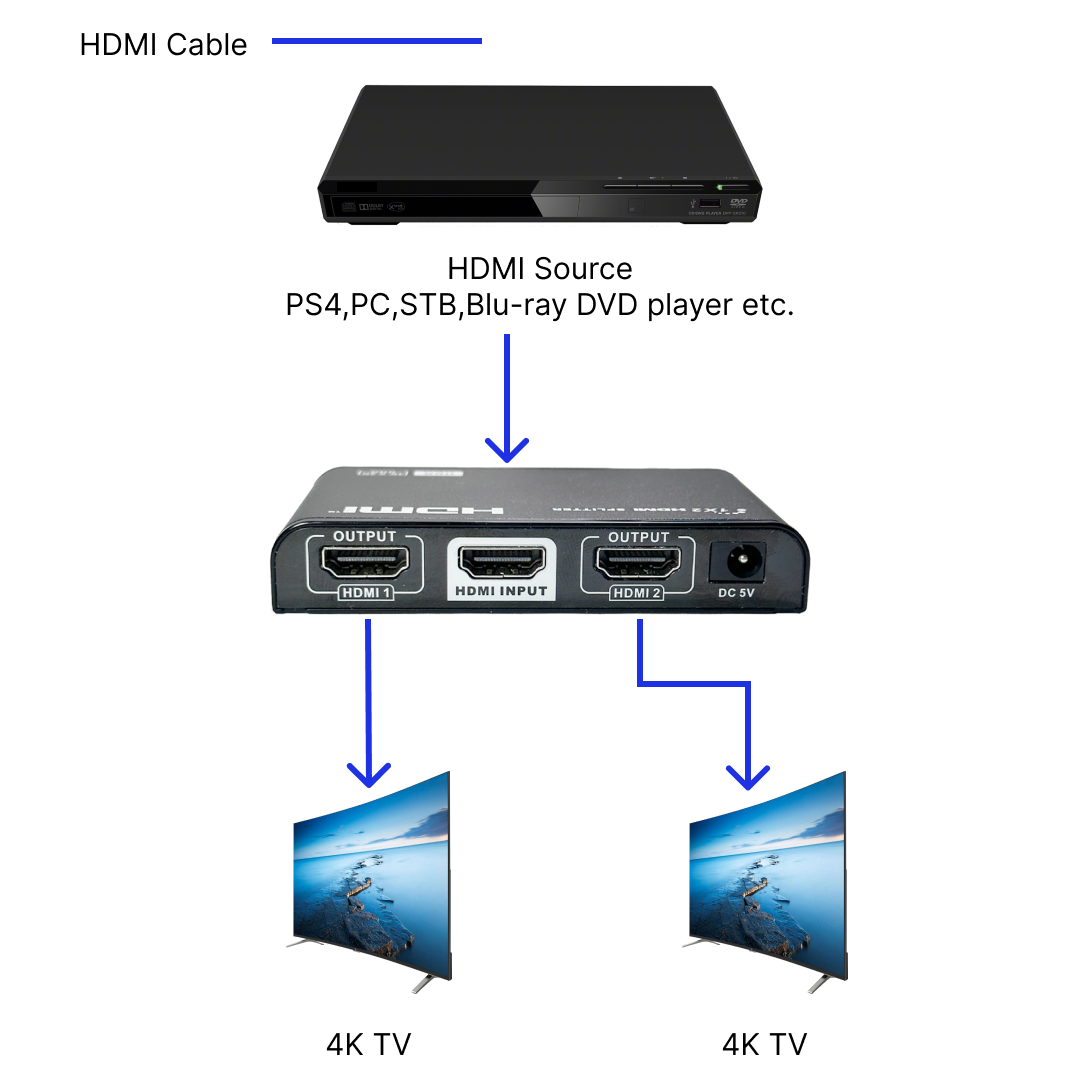

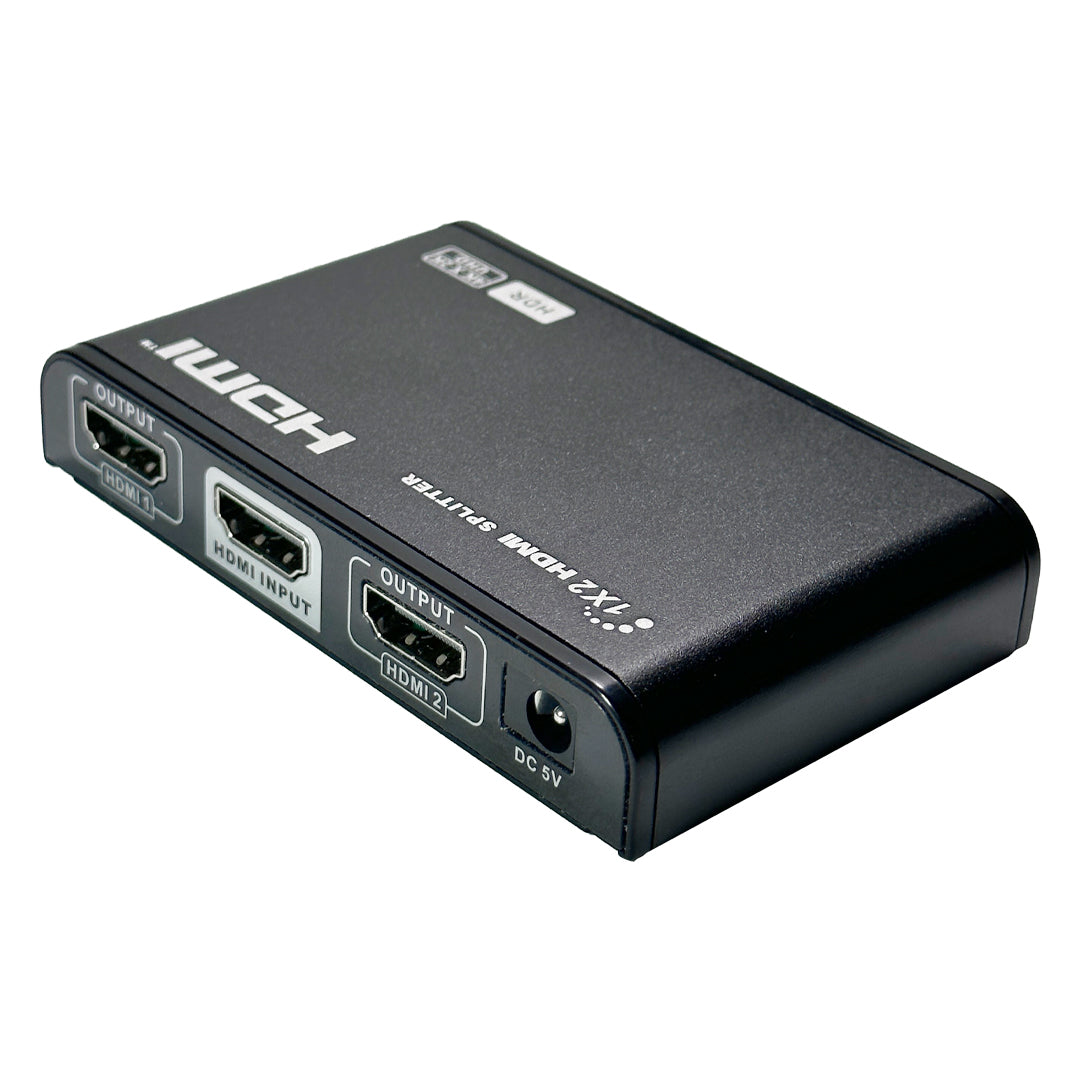

This 1x2 HDMI splitter enables you to display one HDMI device to two HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
| Physical Characteristics | |
|---|---|
| Input Voltage | 240V |
| Power Supply | 5V/1A DC |
| Power Consumption | <2.5W |
| Compatibility | |
| PC to Monitor | Compliant |
| PC to TV | Compliant |
| DVD to Monitor | Compliant |
| DVD to TV | Compliant |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 2 x HDMI Female |
| Performance | |
| HDMI Resolution | 480i/480p/576i/576p/720p/1080i/1080p/ 4Kx2K@24/25/30/60Hz |
| HDMI Version | Compatible with HDMI1.4,HDMI2.0 |
| 3D Video | Compliant |
| HDCP Compliant | Compliant, Supports HDCP2.2/1.4 |
| HDR Support | Compliant |
| Audio | Support standard audio and DSDï1/4ˆDirect Stream Digital) and HD(HBR) audio |
| Frequency Range | 25MHz~594MHz |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| EDID management | Support smart EDID management, available to display different resolution monitors at the same time |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |

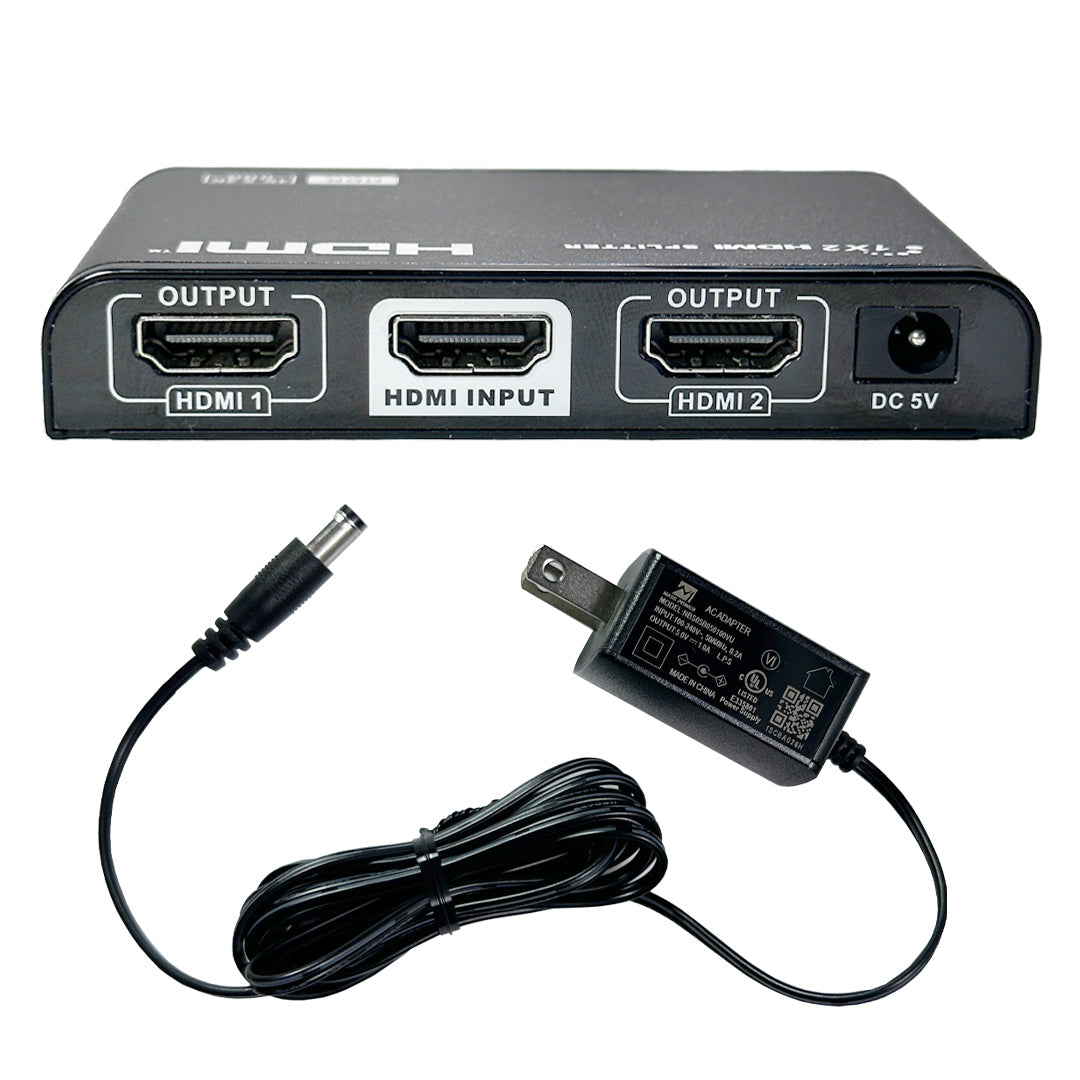

| Included in Package | 1 - HDMI Splitter |

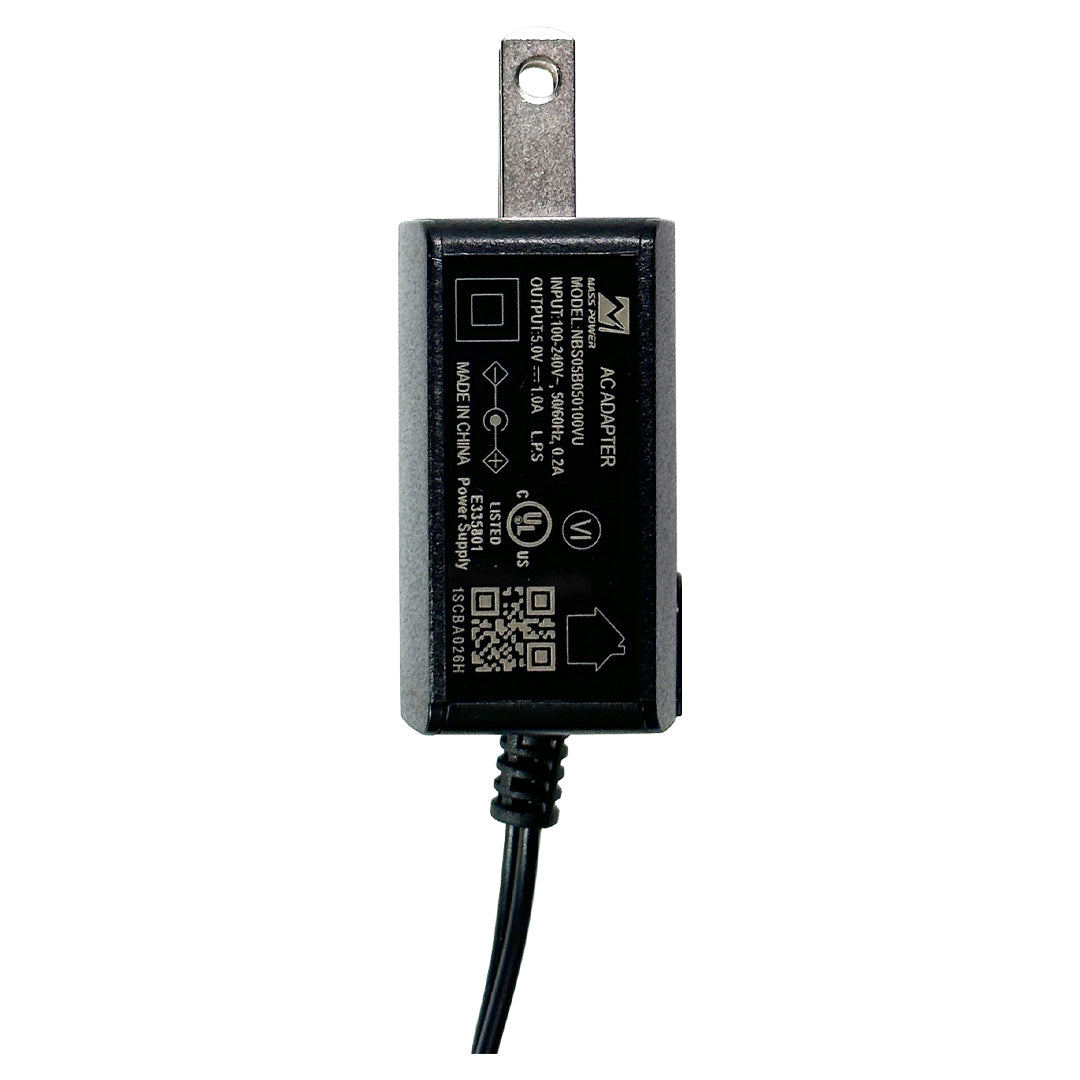

| 1 - DC5V Power Adapter | |
| 1 - Manual | |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| VP-HDMI-221 | 0.46 lb |
