Audio SplittersSKU: VP-TOS-03
Price:
$20.15 USD
Stock:
In stock


Description

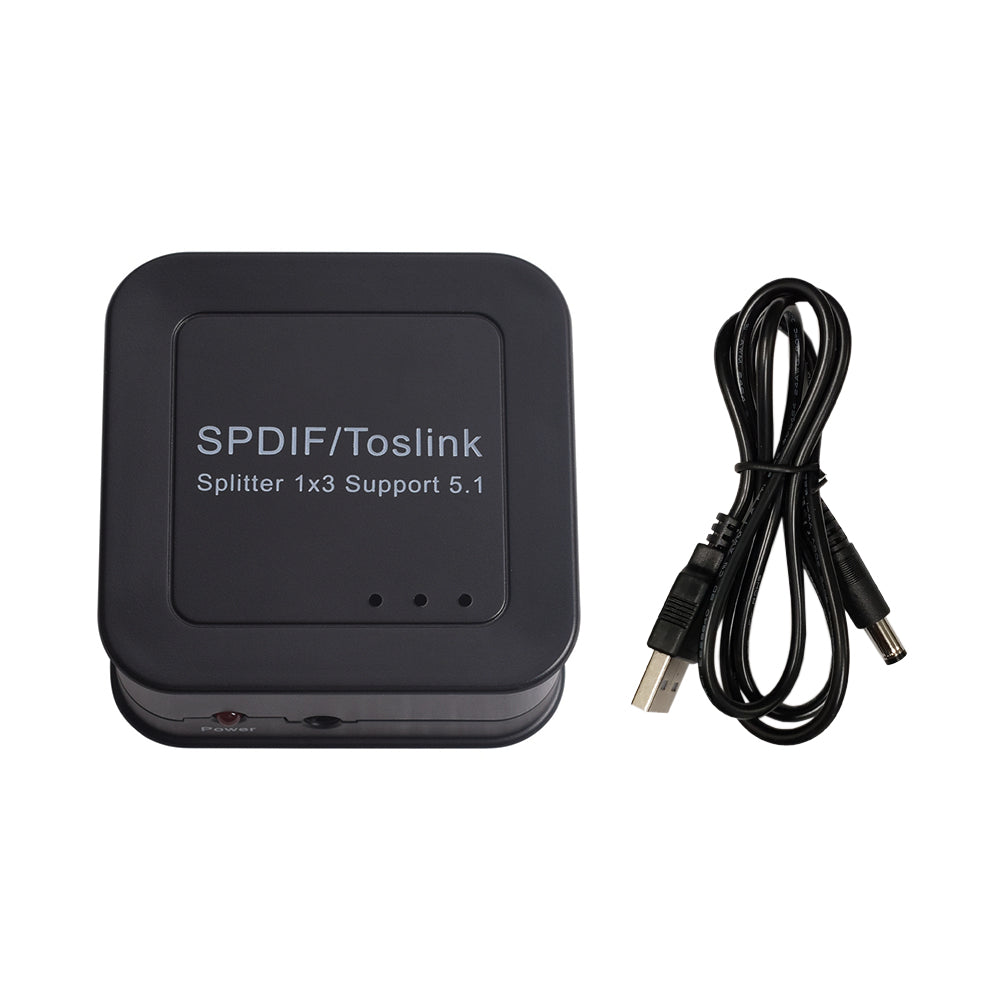

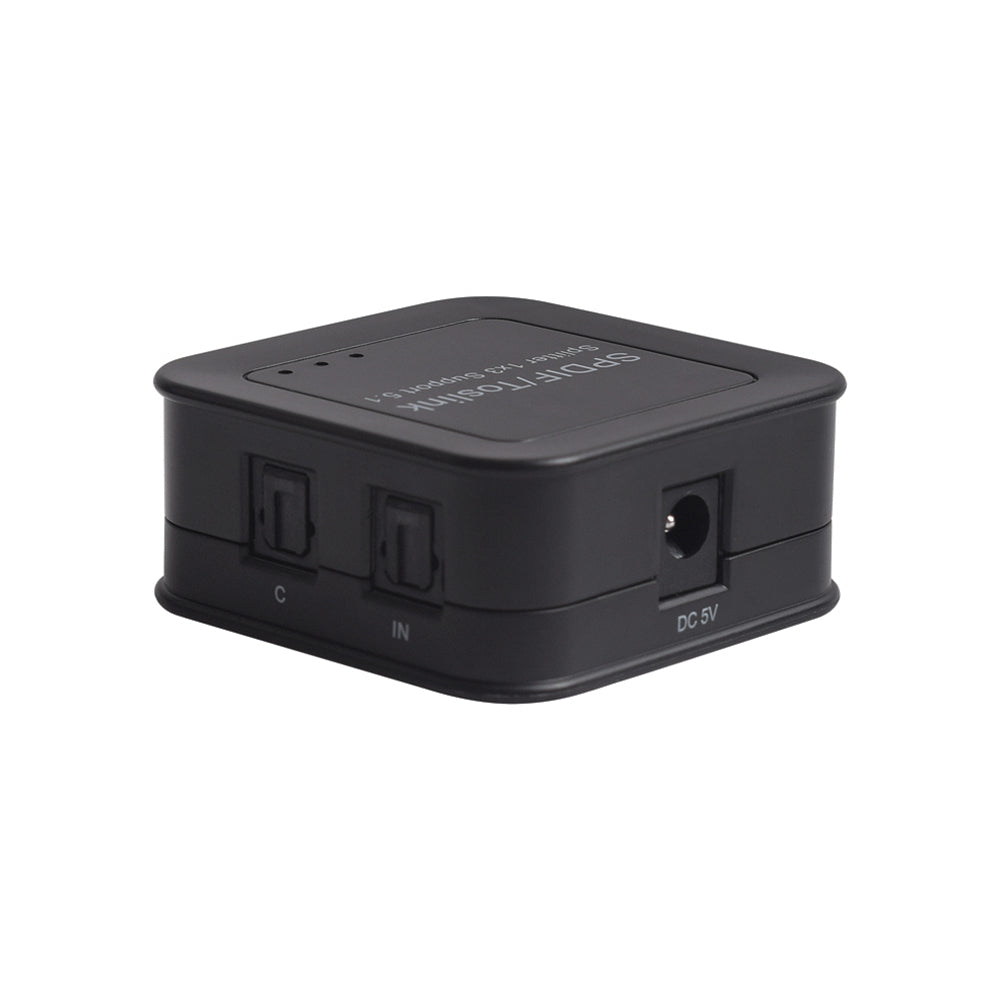

This 1x3 Toslink/Optical audio splitter connects and distributes one digital optical SPDIF Toslink source to three amplifiers.

Features

  • One way of optical fiber signal input splitter to three sets of SPDIF/Toslink signal receiving device
  • Audio format support: LPCM2.0/DTS/Dolby-AC3
  • Support signal retiming
  • Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
  • Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
  • No loss of quality
  • Installs in minutes
  • Needs DC5V/500mA power supply
Physical Characteristics
Color Black
Housing Plastic
Dimensions (L x W x H) 54 x 54 x 23.5mm
Operating Temperature 0 to +40 degree C
Operating Humidity Range 5 to 90%RH (No Condensation)
Power
Power Adapter Format
(Not included)		 Input: AC (50HZ, 60HZ) 100V-240V
Output: DC5V/500mA
Max Working Current 100mA
Power Barrel Size 5.5 x 2.1mm
Performance
Supported Audio Format LPCM2.0/DTS/Dolby-AC3
Peak Wavelength 650nm
Max Baud Rate 16Mbps
Output Cable Distance ?40m (Use the optical fiber cable loss less the 0.2Db/m)
Environmental
RoHS Compliant
Certification(s)
CE Compliant
FCC Compliant
Packaging Information
Package Quantity 1
Product Weight 0.07 lbs [0.03kg]
Contents
Included in Package 1 - Toslink/Optical Digital Audio Splitter
1 - USB Power Cable
1 - Manual
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
SKU Weight
VP-TOS-03 0.07 lb
