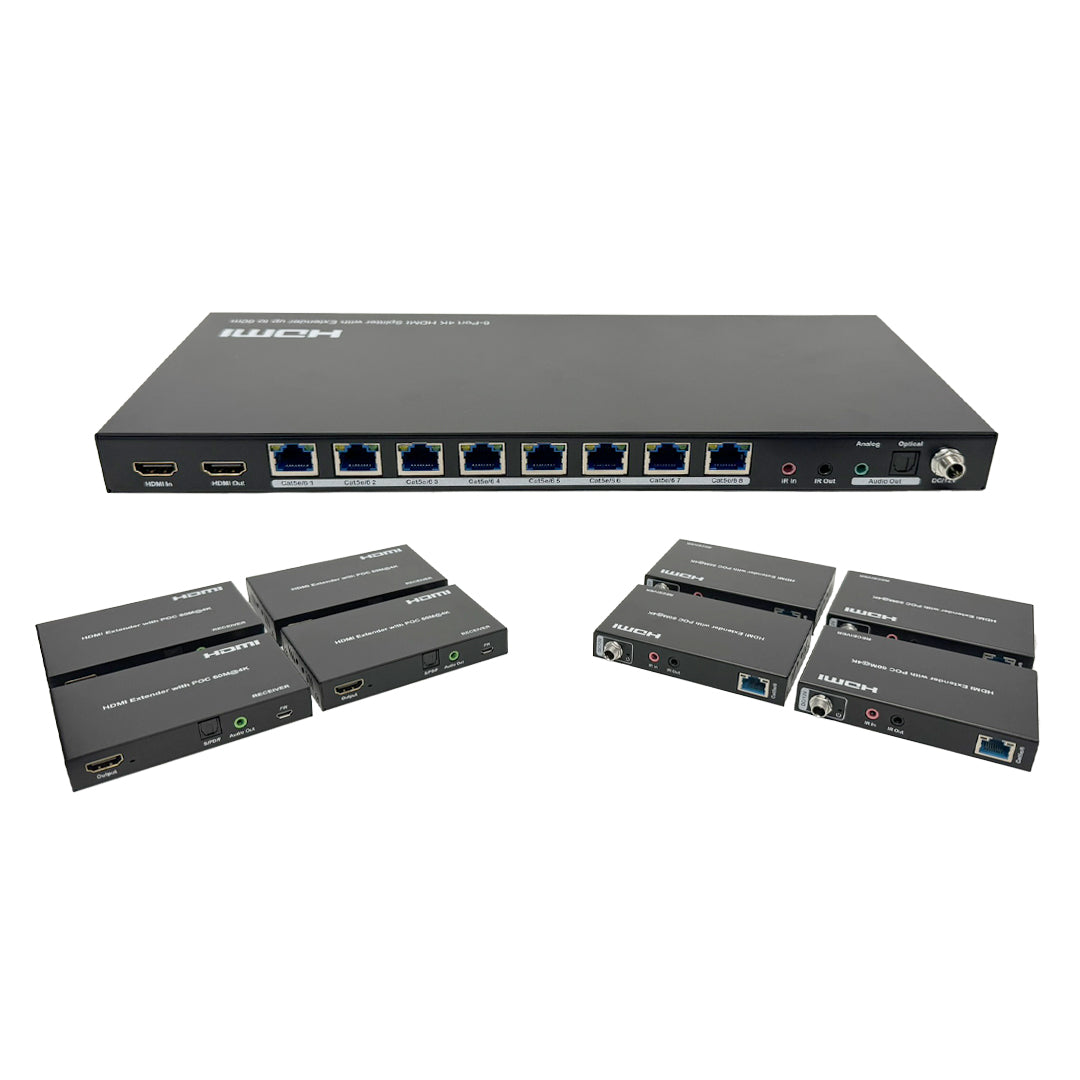

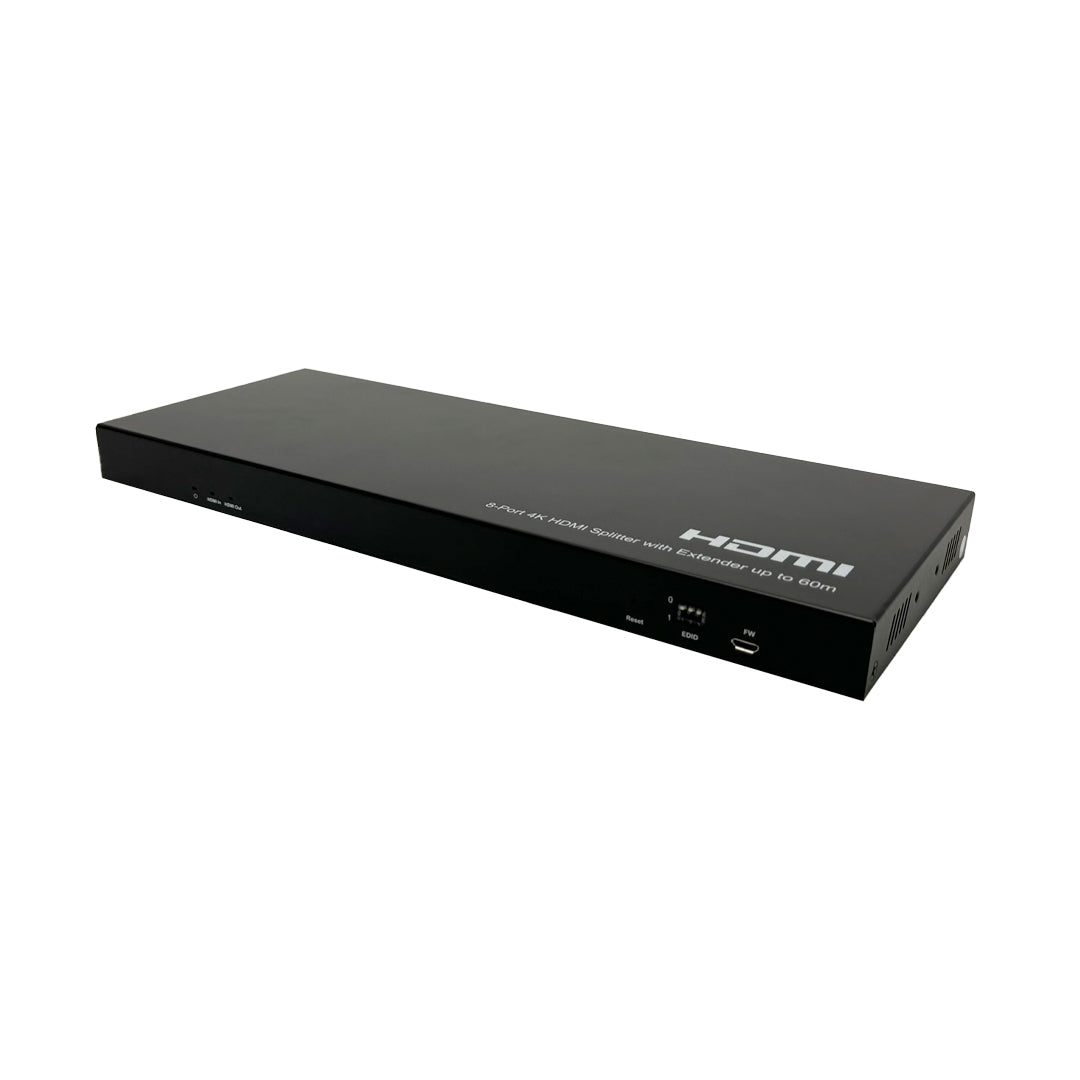

1x8 HDMI Splitter Extender - 60m (4K 60Hz 4:4:4) with Loop out & Receivers

Video ExtendersSKU: VE-HDPO-205

Price:
Sale price$552.30 USD
Stock:
Sold out

Description

Overview

This 1x8 uncompressed HDMI PoC extender/splitter allows you to extend four displays up to 60m away from your source device over CAT6/6a/7 cables at a resolution of 4K@60Hz or 60m/200ft at a resolution of 1080P@60Hz.

Features

  • HDMI2.0 splitter extender, bandwidth up to 18Gbps, deep color up to 4K@60Hz 8bit
  • Distributes 1 HDMI source (with 1 HDMI loop out) to 8x remote outputs over CATx cable
  • Transmission distance up to 60m at 4K@60Hz, 90m at 1080p@60hz over Cat5e/6 cable
  • HDCP2.2/1.4 Compliant
  • Support analogue and Toslink SPDIF audio out on both TX and RX side
  • Support HDR10, HLG
  • Support LPCM2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD
  • Support Bi-Directional wide band IR
  • Support auto downscale 4K@60hz to 1080P at RX end
  • Support EDID management
  • Support PoC(RX powered by TX)
  • Support firmware updating through Micro USB port
  • With one built-in reset button for factory reset

    Application

    Specifications

    Physical Characteristics
    Color Black
    Housing Metal Enclosure
    Operating Temperature -5ā„ƒ ~ 40ā„ƒ
    Operating HumidityĀ
    5 to 90%RH (No Condensation)
    Dimensions (L x W x H) TX: 316.5 x 123.4 x 24 mm
    RX: 110.2 x 68.3 x 18 mm
    Power
    Power Supply 12V/3A DC Power Adapter
    Power Consumption 30W Max.
    Connector(s)

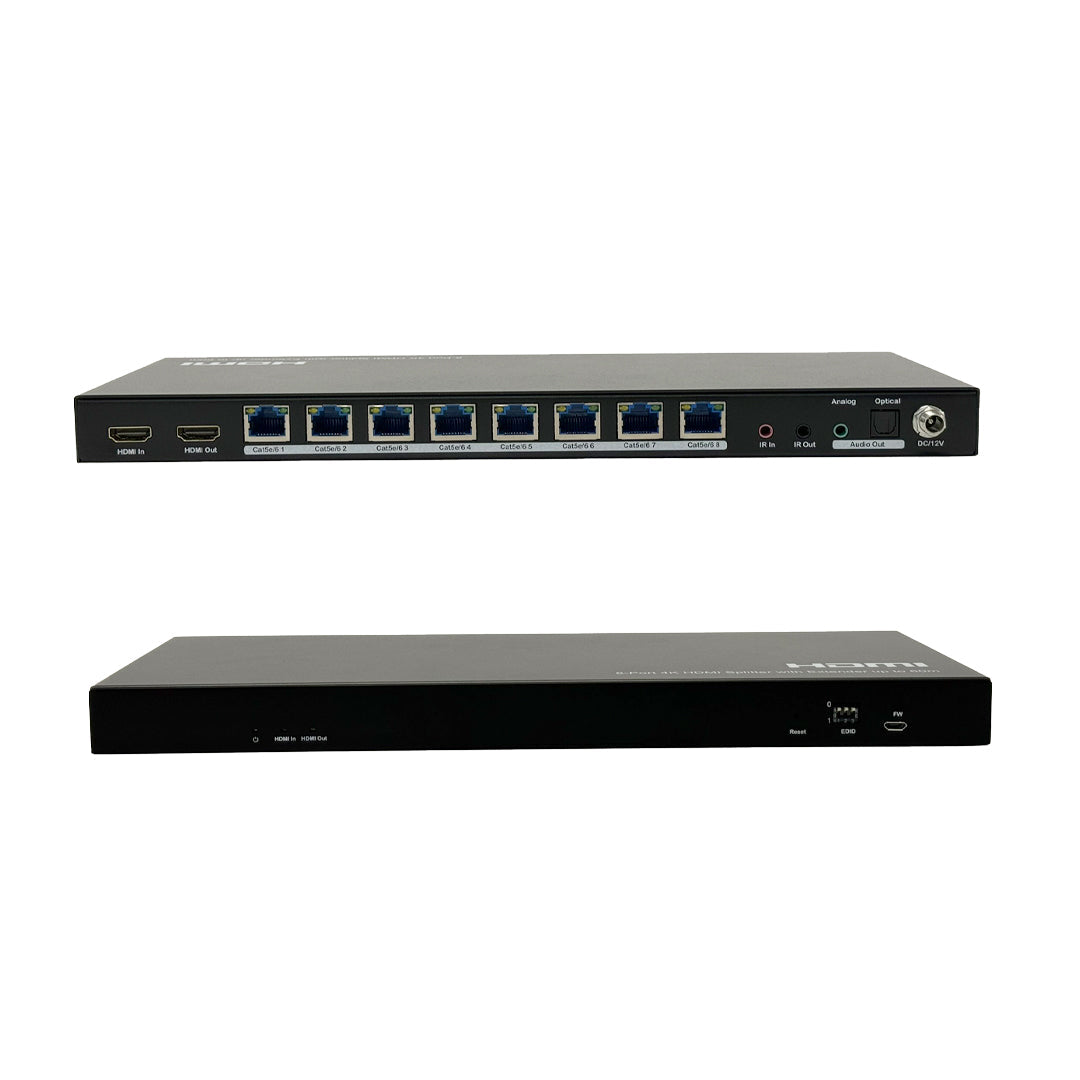

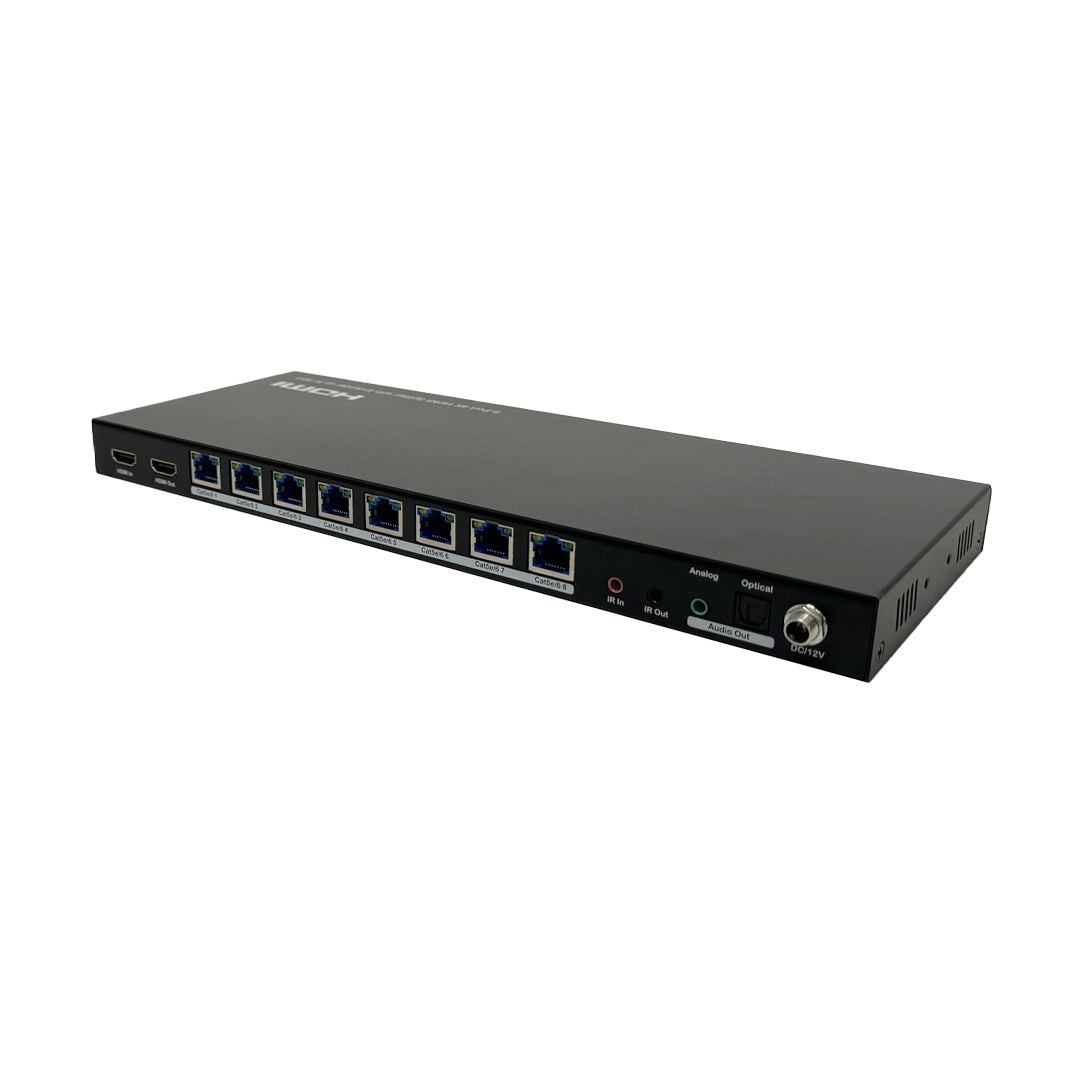

    Transmitter HDMI Input Female, HDMI Output Female, 8 x RJ45 Female

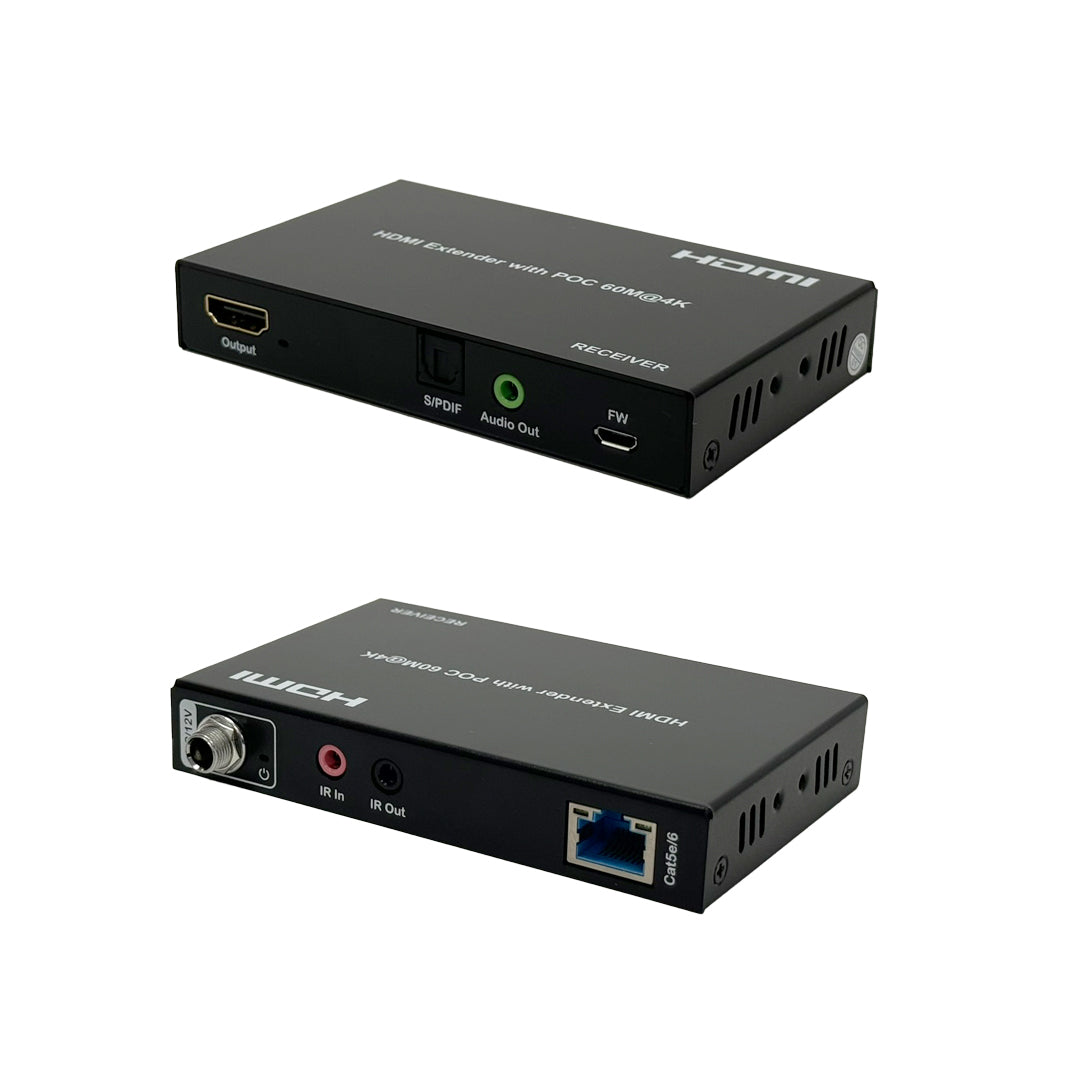

    Receiver HDMI Output Female, RJ45 Female
    Performance
    Input Video Format 720P/ 1080P/ 4K@60Hz
    Output Video Format DTV/HDTV: 480i/ 576i/ 480P/ 576P/ 720P/ 1080P/ 4K
    VESA Resolution
    Data transfer Speed 18 Gbps Max.
    Transmission Distance 60m at 4K@60Hz & 90m at 1080p@60Hz
    HDMI Signal HDMI 2.0, HDCP 2.2/1.4 CompliantĀ
    Approvals
    Power Adapter c(UL)us
    Environmental
    RoHS Yes
    Certification(s)
    CE Yes
    FCC Yes
    Packaging Information
    Package Quantity 1
    Package Weight 8.00 lbsĀ

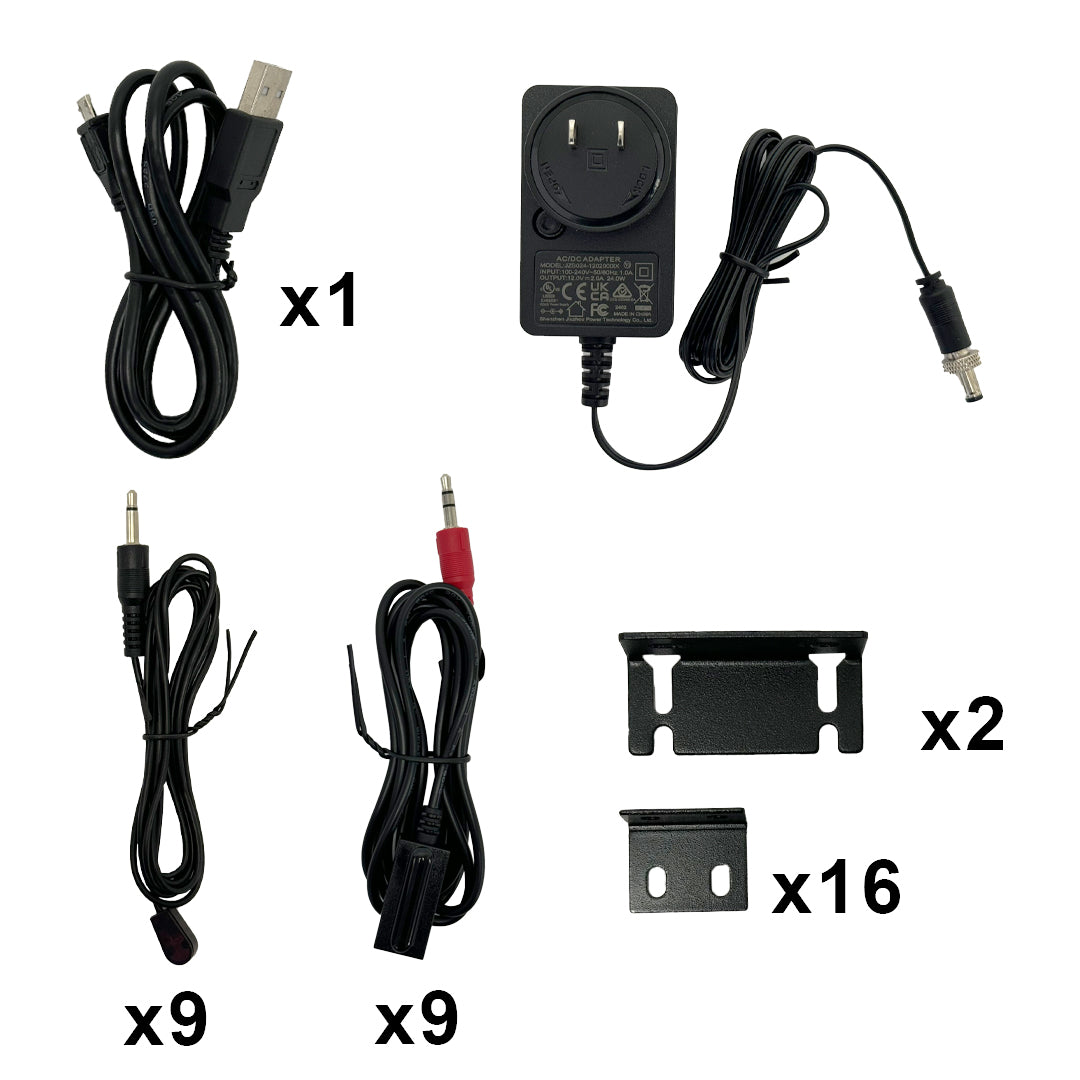

    Contents
    Included in Package 1 - Transmitter Unit
    8 - Receiver Unit
    9 - IR Tx Cables
    9 - IR Rx Cables

    1 - USB Cable
    1 - DC12V/3A DC Power Adapter
    1 - Manual

    18 - Mounting Ears (2pcs for TX; 16pcs for RX)Ā
    SKU Weight
    VE-HDPO-205 8.0 lb
