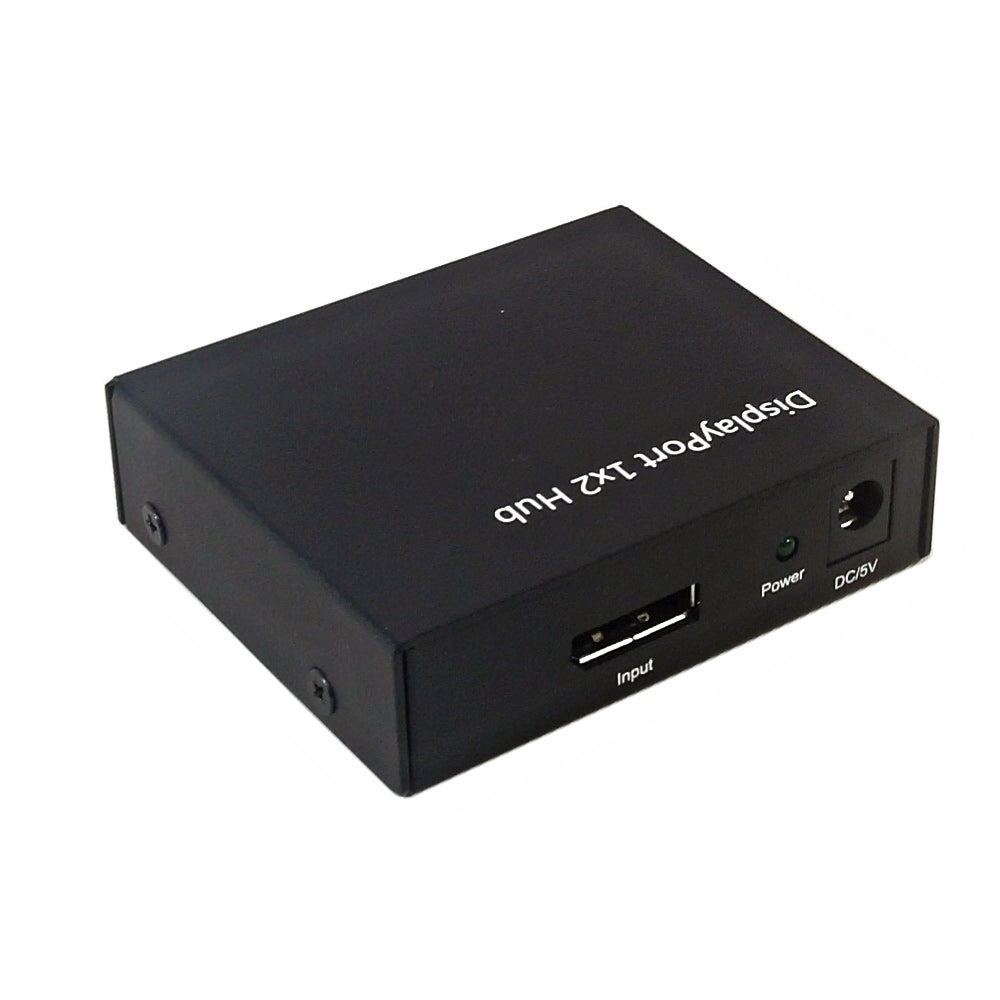

This two port DisplayPort hub is designed for transmitting signals from one DisplayPort source device to two DisplayPort displays. This hub has both SST and MST functions which allow you to display one picture with dual monitors or independent pictures on each monitor respectively. The input port supports DP1.2 and the dual output ports support DP++.
Features
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0Ā°C to +70Ā°C |
| Power | |
| Input Voltage | 125V |
| Power Supply | 5VDC@2A |
| Connector(s) | |
| Input | 1 x DP1.2 Standard type 20 pin female |
| Output | 2 x DP++ |
| Performance | |
| DisplayPort Resolution | 4k x 2k |
| HDMI Resolution | 4k x 2k |
| Vertical Frequency Range |
50/60Hz |
| Video Amplifier Bandwidth |
5.4Gbps per lane (HBR2) from the source |
| Approvals | |
| Power Adapter | cETLus |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| UL | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 0.8 lbs [0.4kg] |
| Contents | |
| Included in Package | 1 - DisplayPort Hub |

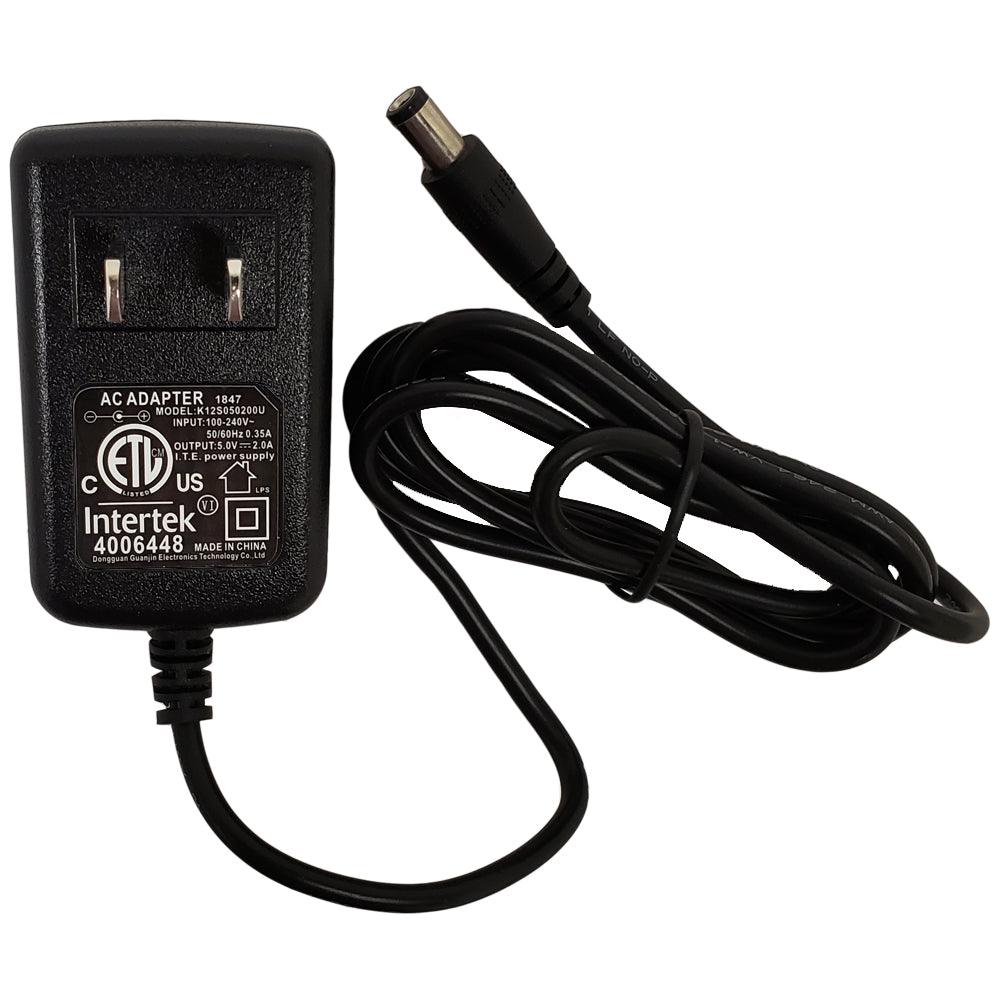

| 1 - DC5V Power Adapter | |
| 1 - Manual | |
One Monitor Works Only
|
Output Signal 1 |
Output Signal 2 |
Highest Resolution |
Highest Resolution |
|
DP1.2 |
DP 1.2 |
4Kx2K@60HZ |
4Kx2K@60HZ |
|
4Kx2K@60HZ |
4Kx2K@30HZ |
||
|
4Kx2K@30HZ |
4Kx2K@60HZ |
||
|
DP 1.2 to HDMI 2.0 |
DP 1.2 to HDMI 2.0 |
4Kx2K@60HZ |
4Kx2K@60HZ |
|
4Kx2K@60HZ |
4Kx2K@30HZ |
||
|
4Kx2K@30HZ |
4Kx2K@60HZ |
Two Monitors Work Simultaneously
Output Signal 1 |
Output Signal 2 |
Highest Resolution |
Highest Resolution |
DP 1.2 |
DP1.2 |
4Kx2K@30HZ |
4Kx2K@30HZ |
DP 1.2 to HDMI 2.0 |
DP 1.2 to HDMI 2.0 |
4Kx2K@30HZ |
4Kx2K@30HZ |
DP 1.2 to HDMI 1.4 |
DP 1.2 to HDMI 1.4 |
4Kx2K@60HZ(Practical output is 4KX2K30HZ |
4Kx2K@60HZ(Practical output is 4KX2K30HZ |
DP 1.2 to HDMI 1.4 |
DP 1.2 to HDMI 2.0 |
4Kx2K@30HZ |
4Kx2K@30HZ |
DP 1.2 to HDMI 2.0 |
DP 1.2 to HDMI 1.4 |
4Kx2K@30HZ |
4Kx2K@30HZ |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VP-400-02 | 0.8 lb |
