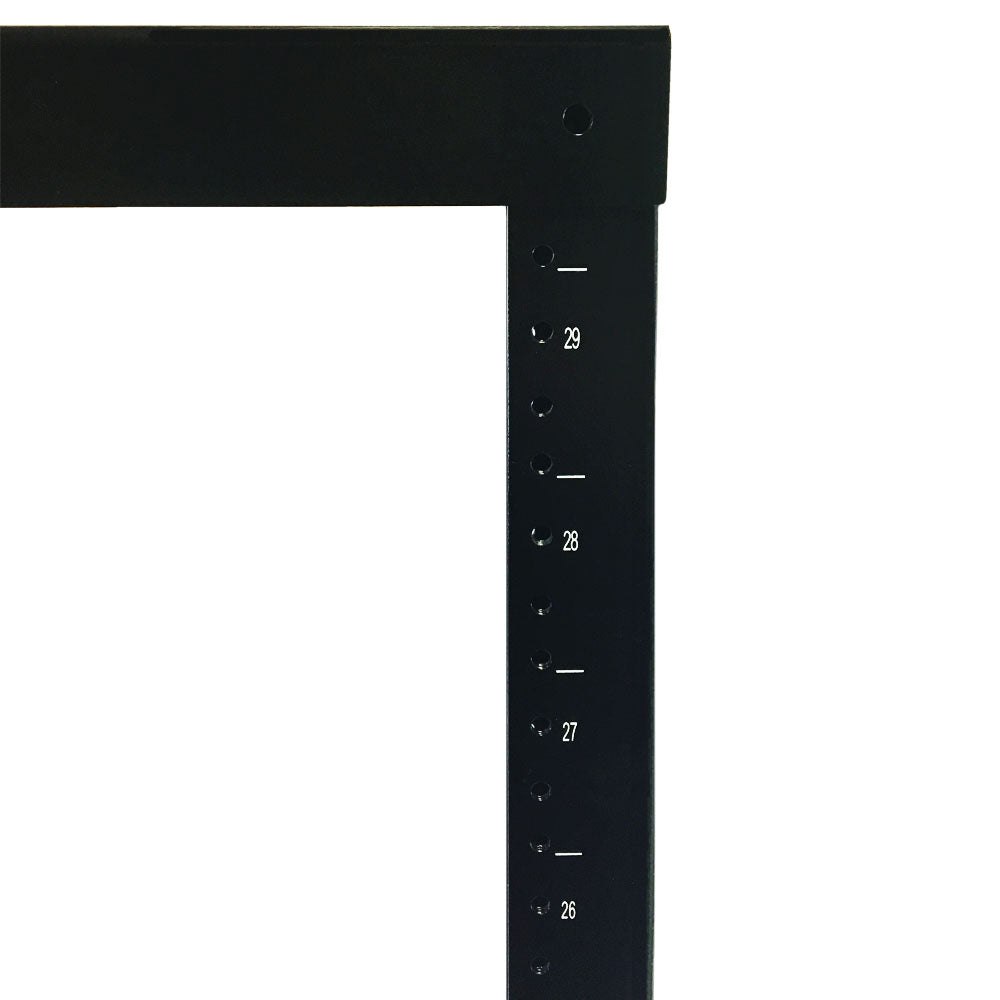

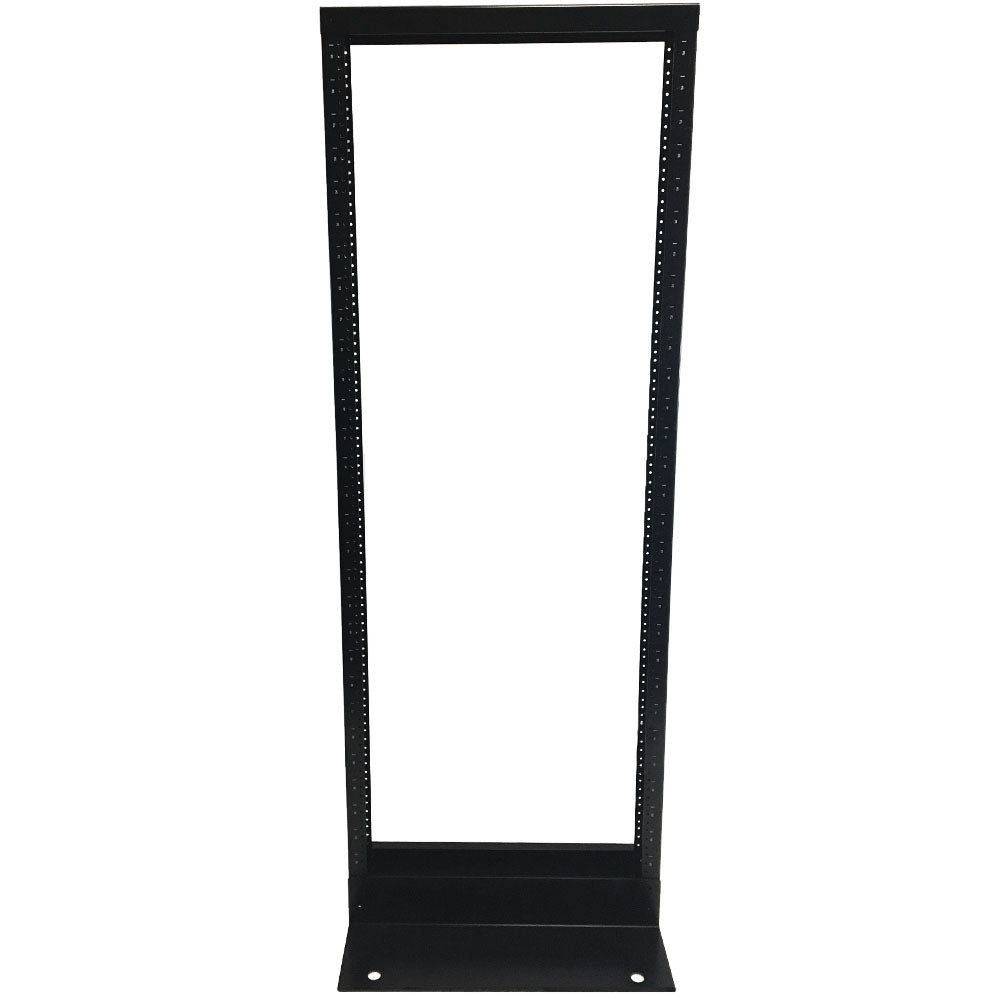

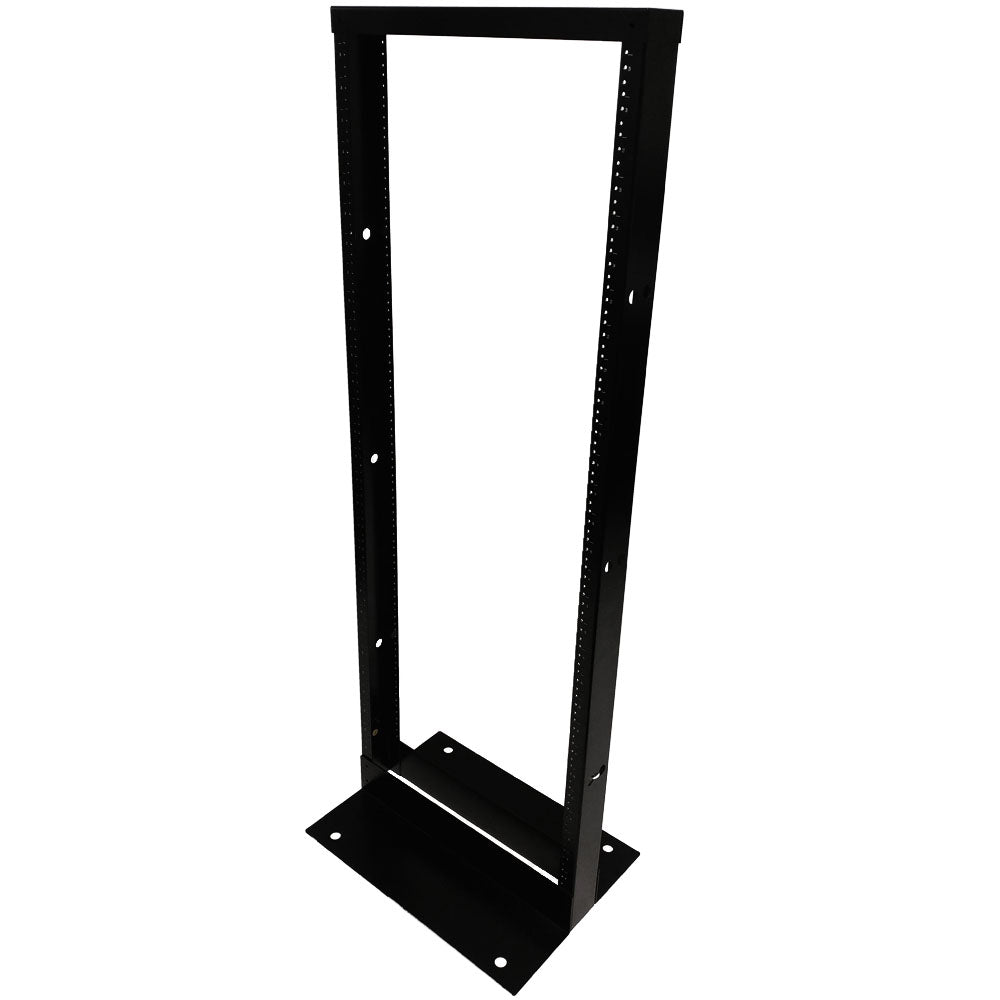

This double-tapped 2-post relay rack is 19 inches wide, and 29U in height. It is typically used to mount networking and audio/video rack mountable equipment. The rack is welded, no assembly required.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | SPCCC old Rolled Steel |
| Material Thickness | Rails:2.0mm,Others:3.0 mm |
| Height in units | 29U |
| Loading Capacity | Maximum 300kg |
| Mounting Rails | 19" EIA-310-D Compliant 10-32 Tapped Rails |
| Overall Dimensions in inches | 56H x 20W x 15D |
| Mounting Hardware | Included |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-29U - Vertical Cable Manager for Relay Rack - 29U RM-455-26U - 26U Vertical Cable Manager - Front Facing |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 10 - 10-32 Screws |
| Product Weight | 35 lbs [16kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-110 | 35.0 lb |
