Description
- Description
- Spec Sheets
- Product Weights
Description

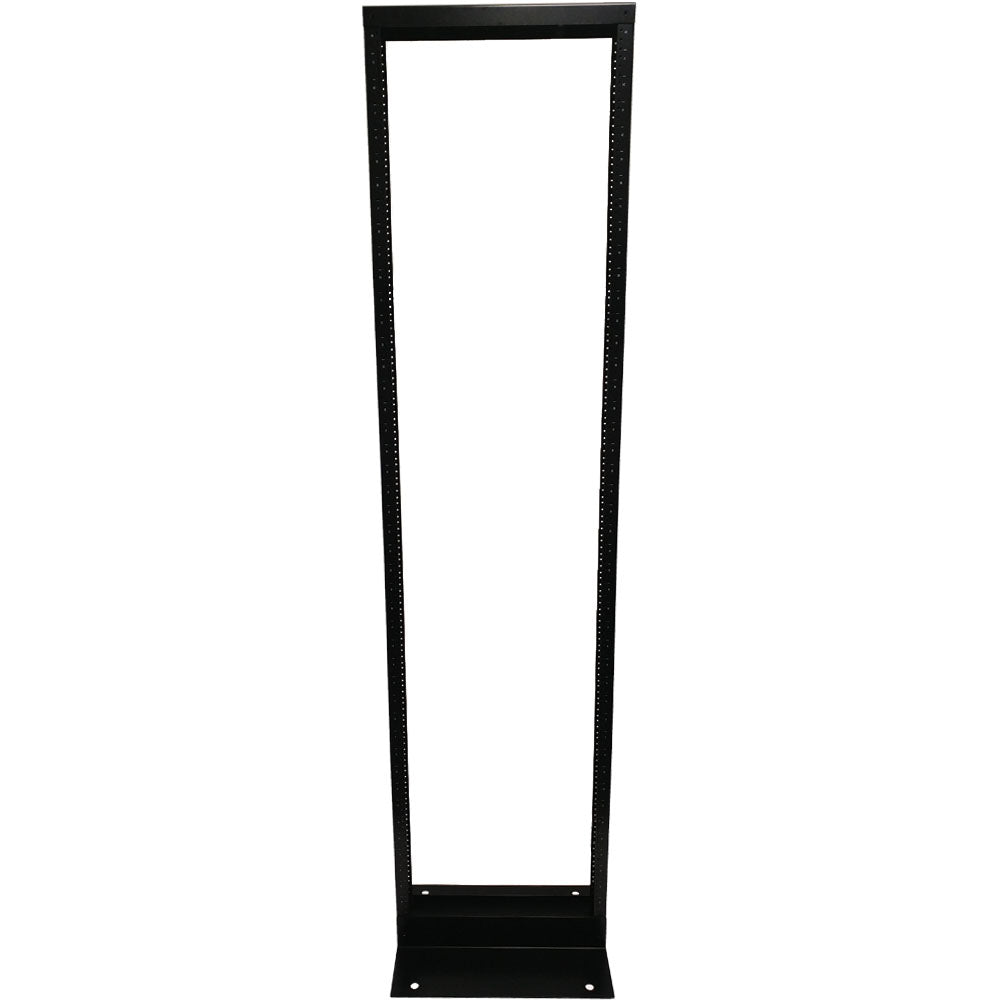

This double-tapped 2-post relay rack is 19 inches wide, and 44U in height. It is typically used to mount networking and audio/video rack mountable equipment. The rack is welded, no assembly required.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | SPCCC old Rolled Steel |
| Material Thickness | Rails:2.0mm,Others:3.0 mm |
| Height in units | 44U |
| Loading Capacity | Maximum 300kg |

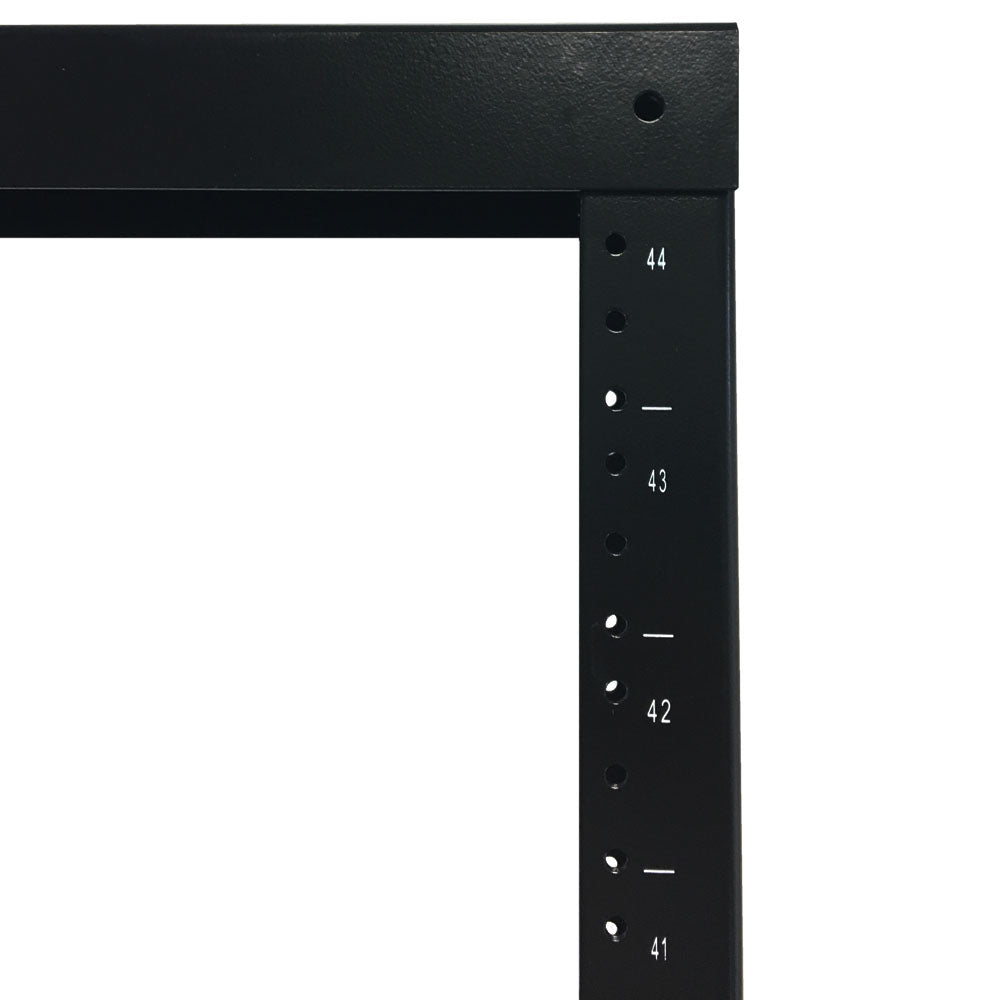

| Mounting Rails | 19" EIA-310-D Compliant 10-32 Tapped Rails |

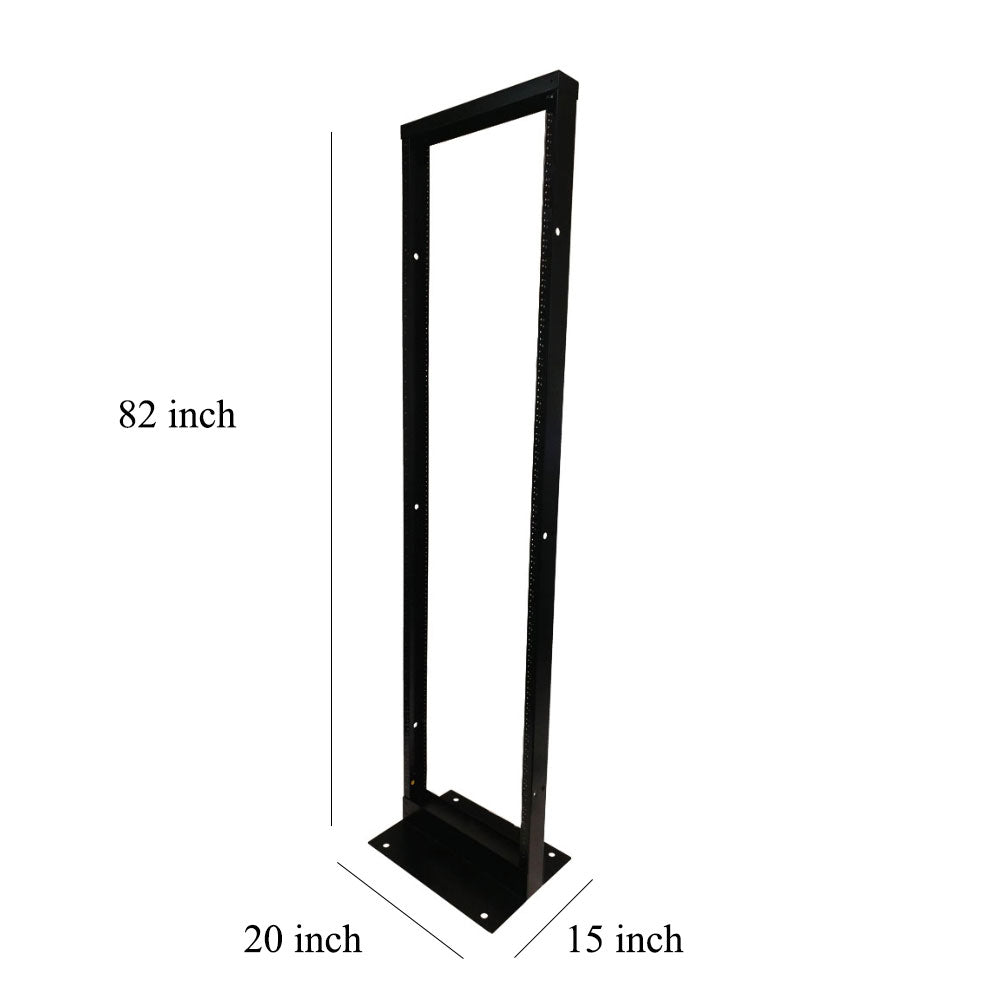

| Overall Dimensions in inches | 82H x 20W x 15D |
| Mounting Hardware | Included |
| Compatibility | |
| Compatible Vertical Cable Managers | RM-450-42U - Vertical Cable Manager for Relay Rack - 42U |
|
RM-455-42U - 42U Vertical Cable Manager - Front Facing |
|
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 18 - 10-32 Screws |
| Product Weight | 44 lbs [20kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| RM-115 | 49.0 lb |
