Overview

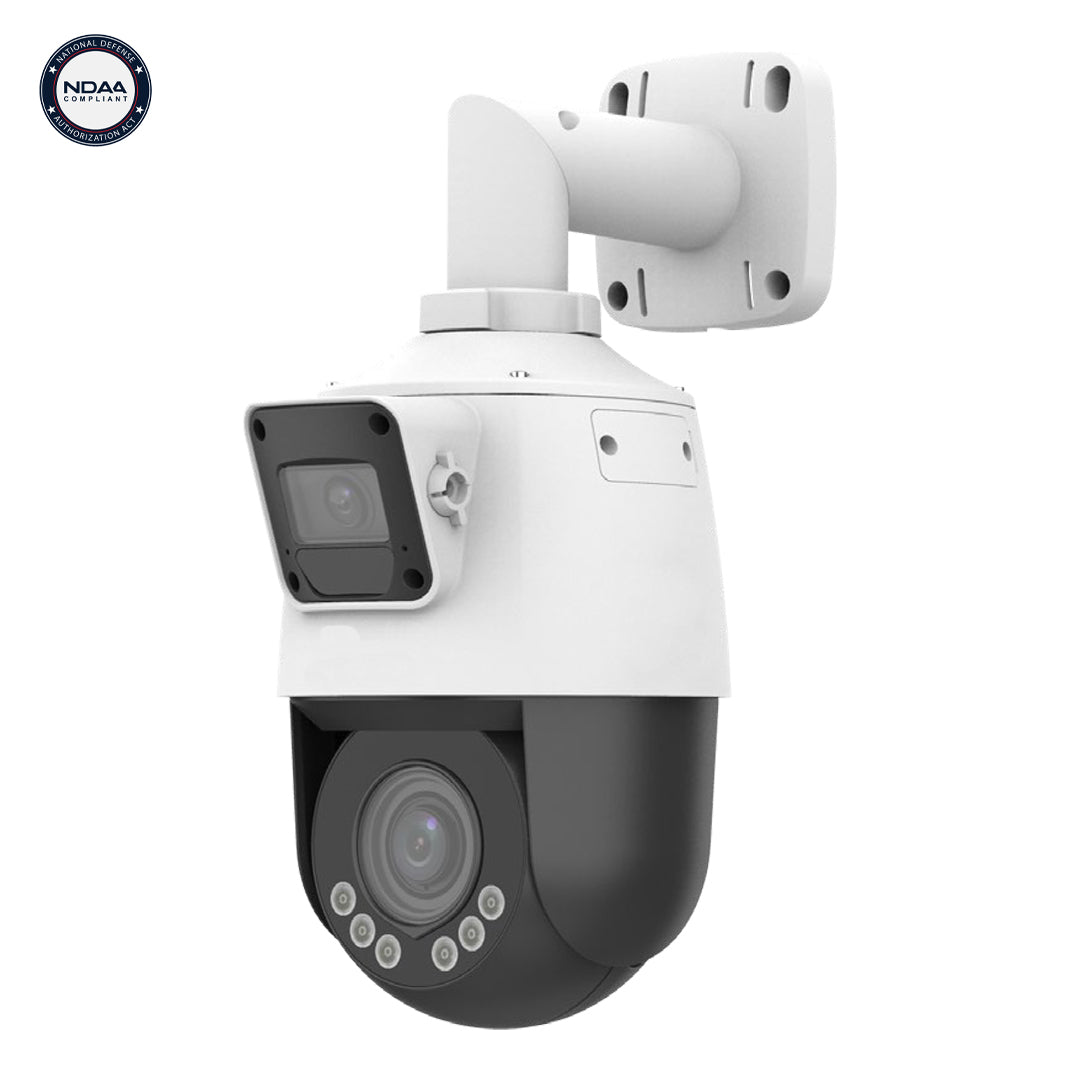

This pendant 2MP PTZ indoor IP camera provides sharp, high definition images in daylight or night time settings. This dual-lens camera has a 2.8mm fixed panorama lens and 2.8mm to 12mm varifocal lens with 4x optical zoom which delivers 104.1 Ā° to 30.6 Ā° horizontal field of view for detail lens. Its maximum resolution is 1920x1080 at 25 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. It has 98 feet of IR range using an IR cut filter and IR LEDs.
Note: This camera will utilize 2 channels on the NVR.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" (2 MP) CMOS |
| Minimum Illumination | Color: 0.002 lux @ (F1.6, AGC on) 0 Lux with IR/Warm light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52dB |
| WDR | 120dB |
| Lens | |
| Lens Type |
Panorama - 2.8mm@F1.6 Detail - 2.8~12mm@F1.6, AF automatic focusing and motorized zoom lens |
| Optical Zoom | 4x |
| Iris | Fixed Aperture |
| Angle of View (H) |
Panorama - 102.4Ā° Detail - 106.6Ā°~30.6Ā° |
| Angle of View (V) |
Panorama - 54.9Ā° Detail - 56.5Ā° ~ 17.4Ā° |
| Angle of View (O) |
Panorama - 133.1Ā° Detail - 138.6Ā° ~ 37.6Ā° |
| DORI | |
| DORI Distance |
Panorama - 2.8mm Lens, 43.4m(142.5ft) Detect, 17.4m(57.0ft) Observe, 8.7m(28.5ft) Recognize, 4.3m(14.3ft) Identify Detail - 2.8mm Lens, 43.4m(142.5ft) Detect, 17.4m(57.0ft) Observe, 8.7m(28.5ft) Recognize, 4.3m(14.3ft) Identify |
| Illuminator | |
| IR Range |
Panorama - Up to 10m (32.8 ft) Detail - Up to 50m (164ft) |
| Warm Light Range | Detail - Up to 10m (33ft) |
| Wavelength | 850nm (IR) |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 1080P (1920*1080),Max 25fps Sub Stream: 720P (1280*720), Max 25fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support (Main stream) |
| ROI |
Up to 8 areas |
| OSD | Up to 4 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180Ā° |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Motion detection, Audio detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Phantom CamView Phantom Cam Tools |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt | |
| Pan Range |
Detail - 0Ā° ~ 345Ā° |
| Pan Speed | Details - 0.1Ā°/s ~ 40Ā°/s Preset speed: 40Ā°/s |
| Tilt Range |
Panorama - 18Ā° Ā± 5Ā° Detail - 10Ā° ~ 110Ā° |
| Tilt Speed | Detail - 0.1Ā° ~ 50Ā°/s Preset speed: 50Ā°/s |
| Number of Presets | 256 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 1000s~1800s |
| Preset Image Freeze | N/A |
| Home Position | Supported |
| Interface | |
| Built-In Mic | Support (Mic*2) |
| Built-In Speaker | Supported |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC |
CE-EMC FCC |
| Safety |
CE LVD CB UL |
| NDAA Compliant | Yes |
| Environment | CE-ROHS |
| Protection | IP66 |
| General | |
| Power |
DC12V, PoE (IEEE 802.3af, Mode B ā Pins 4, 5, 7 and 8) Power consumption: MAX 16W |
| Power Interface |
Ć 5.5mm coaxial power plug |
| Dimensions (Ć x H) |

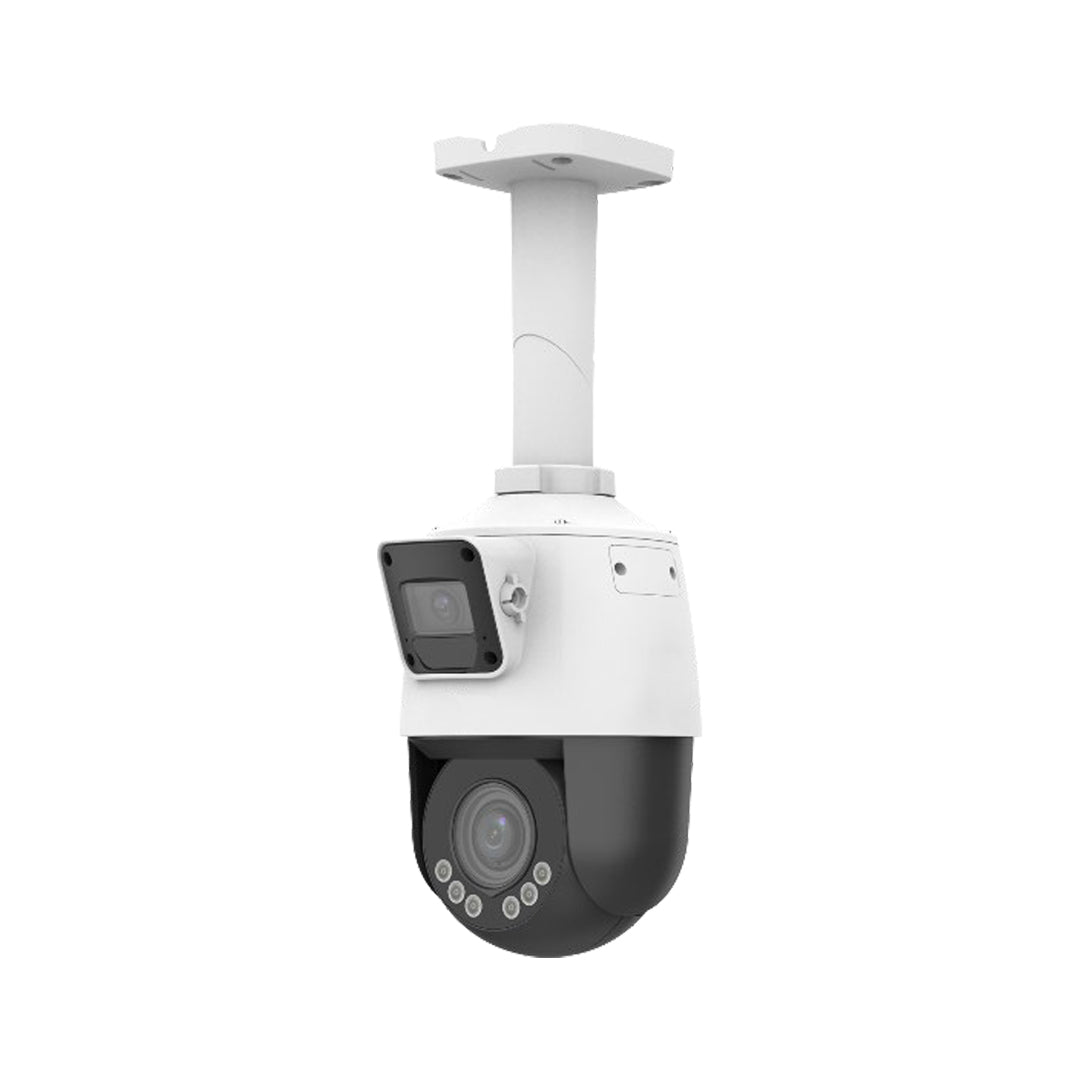

Wall Mount: Ī¦134 x 192 x 302mm (Ī¦5.3ā x 7.6ā x 11.9ā) Ceiling Mount: Ī¦134 x 154 x 363mm (Ī¦5.3ā x 6.1ā x 14.3ā) |
| Weight |
1.03kg (2.27lb) |
| Working Environment/Storage Environment |
-20Ā°C ~ 60Ā°C (-4Ā°F to 140Ā°F), Humidity:ā¤95% RH(non-condensing) -30Ā°C ~ 70Ā°C (-40Ā°F to 158Ā°F), Humidity:ā¤95% RH(non-condensing) |
| Surge Protection | 2KV |
| Reset Button | Supported |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SC-9325L-4X-PTZ | 2.27 lb |
