This HDMI extender allows you to extend your display up to 984ft (300m) away from your source device over OM3/OM4 multimode fiber optic cables at a resolution of 4K@60Hz.
Physical Characteristics
Color
Black
Cable Type
LC Duplex OM3/OM4 Multimode Fiber Cable
Housing
Metal Enclosure
Dimensions
Transmitter: 96 x 100 x 21mm Receiver: 96 x 100 x 21mm
Operating Temperature
-5ā ~ 40ā
Operating Humidity
5 to 90%RH (No Condensation)
Power
Power Consumption
Transmitter: 3W (Max) Receiver: 3W (Max)
Power Supplies
Input: 100-240V, 50/60Hz 0.4A Output: 12V, 1Amp DC Converter
Connector(s)
Transmitter
HDMI Input Female, LC Duplex Female
Receiver
HDMI Output Female, LC Duplex Female
Performance
Video Resolution
Maximum 4K*2K@60Hz YUV4:4:4
Bandwidth
Up to 18Gbps
Audio
LPCM 7.1, Dolby True HD, DTS-HD Master Audio
HDCP Compliant
HDCP2.2 In, Out or HDCP 1.4 In, Out
Automatic EDID
Compliant
Approvals
Power Adapter
c(UL)us, FCC, CE
Environmental
RoHS
Compliant
Certification(s)
CE
Compliant
FCC
Compliant
Packaging Information
Package Quantity
1
Product Weight
1.2 lbs [0.5kg]
Contents
Included in Package
1 - Transmitter
1 - Receiver

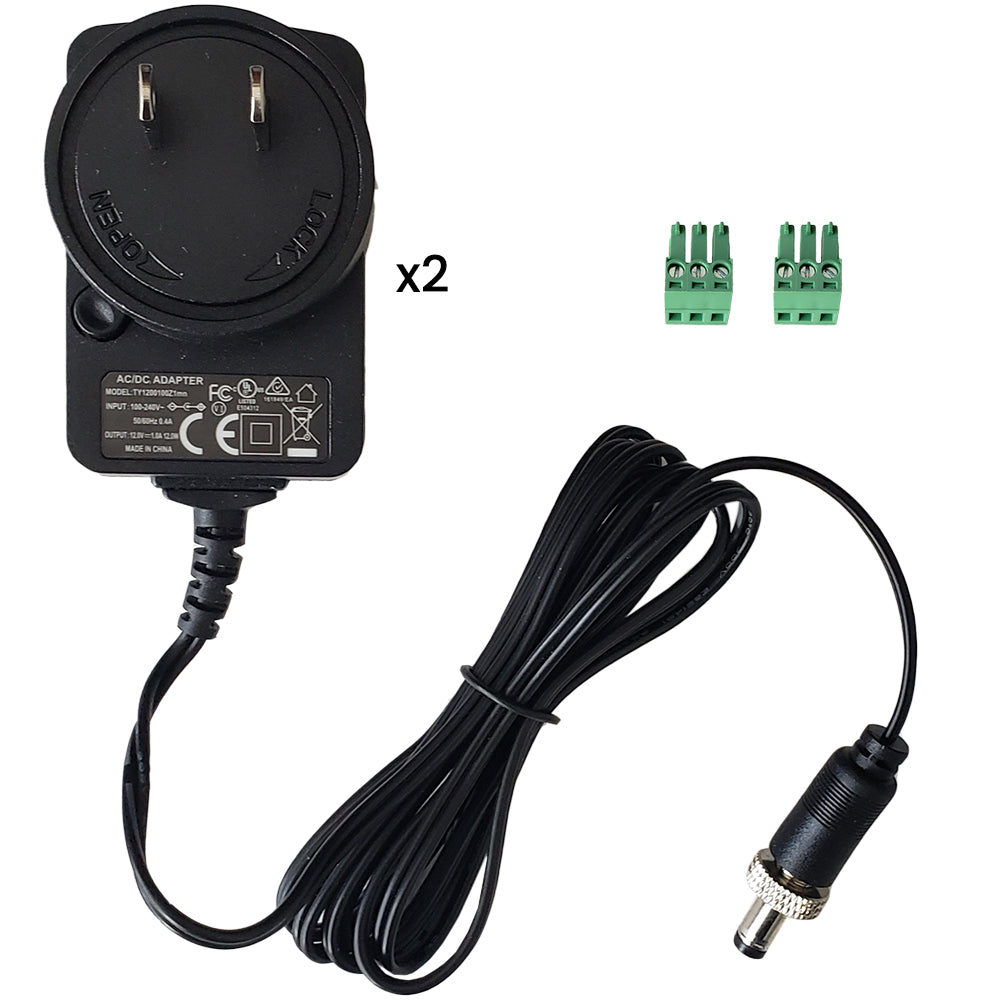

2 - DC12V Power Adapter
2 - Phoenix Plugs
1 - Manual
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
SKU
Weight
VE-HDFO-206
2.3 lb
