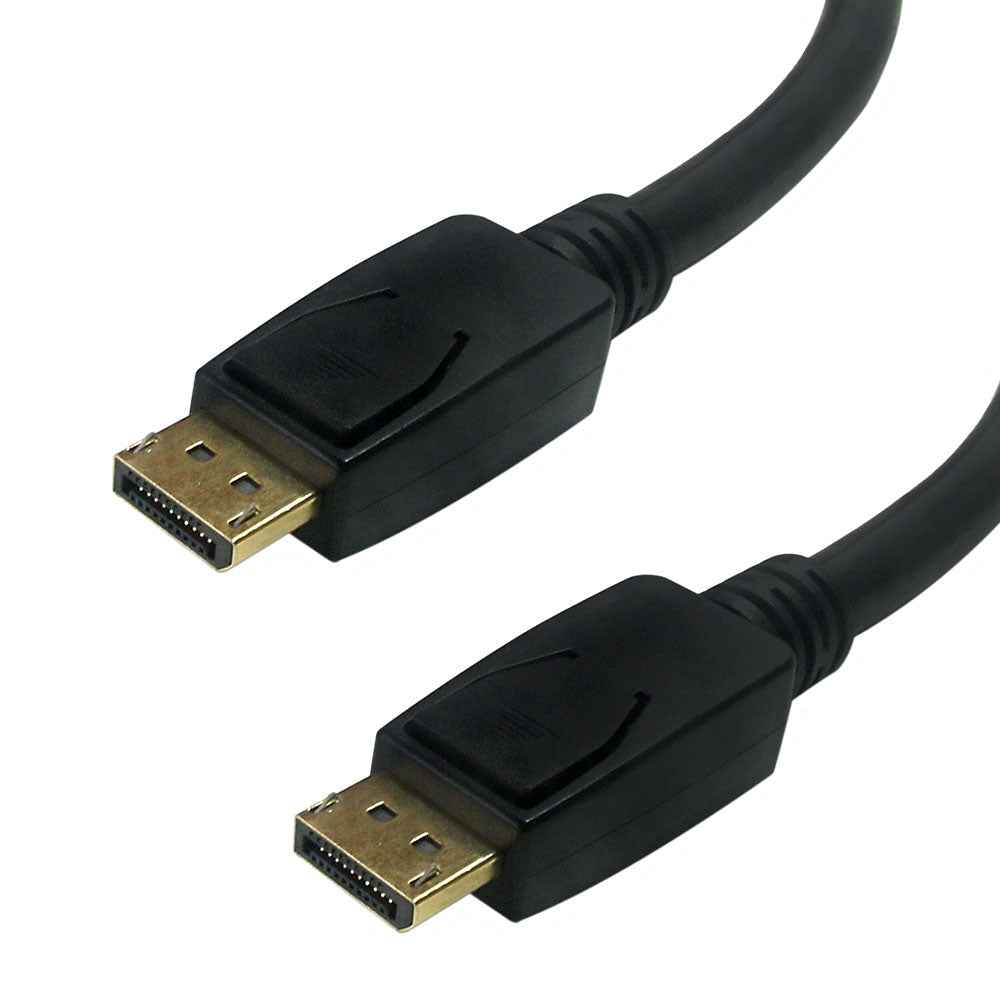

This cable has a DisplayPort male on one end and a DisplayPort male on the other. It is typically used to connect a DisplayPort source to a DisplayPort monitor.
Physical Characteristics |
Cable Length |
35 foot |
Color |
Black |
Connector Plating |
Gold |
Wire Gauge |
24 AWG |
Jacket Fire Rating |
CL3/FT4 |
Jacket Material |
PVC |
Connectors |
Connector A |
DisplayPort 20 pin male |
Connector B |
DisplayPort 20 pin male |
Performance |
Maximum Resolution |
4Kx2K (3840 x 2160) |
Maximum Frequency |
60Hz |
Maximum Bandwidth |
10.8 Gbps (2.7Gbps * 4 lanes) |
Supports 3D |
Compliant |
DP Version |
DP1.1 |
Standards |
c(UL)us |
Compliant |
Environmental |
RoHS |
Compliant |
Reach |
Compliant |
Conflict Minerals |
Compliant |
Packaging Information |
Packaging Quantity |
1 |
Product Weight |
1.95 lbs [0.88 kg] |
Warranty |
Warranty |
Lifetime Limited |
