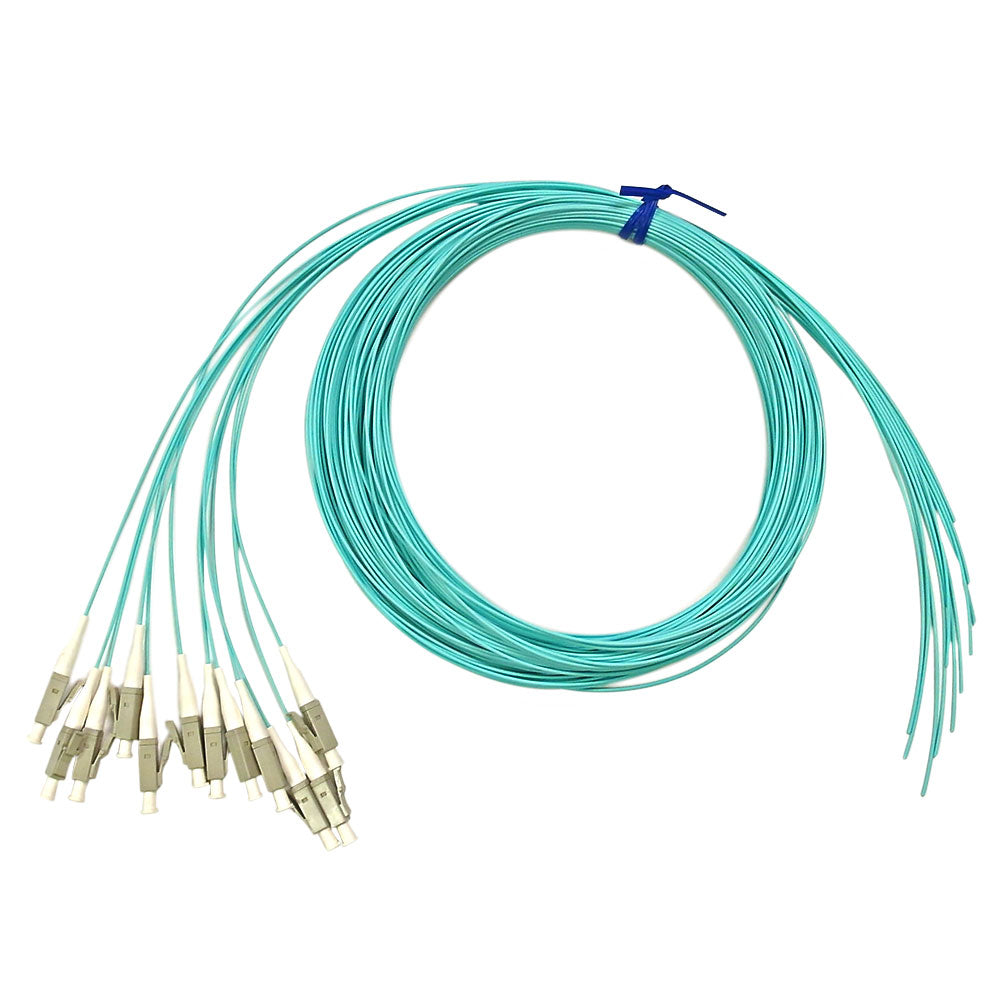

These 50 micron (OM4) fiber optic pigtails have terminated LC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
| Physical Characteristics |
| Cable Length | 3m [9.84 foot] |
| Color | Aqua |
| Cable Diameter | 900 micron |
| Fiber Size | 50/125 micron |
| Fiber Type | Multimode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM4 |
| Jacket Rating | Low Smoke Zero Halogen (LSZH) |
| Connector(s) |
|---|
| Connector A |
1 - LC/PC Simplex Male |
| Connector B |
Un-Terminated |
| Performance |
|---|
| Insertion Loss | Ā¹0.3db @ 1300nm |
| Speed | 10 Gbps |
| Environmental |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information |
|---|
| Package Quantity |
1 Pack of 12 Cables |
| Product Weight | 0.20 lbs [0.09kg] |
| Warranty Information |
| Warranty | Limited Lifetime |
