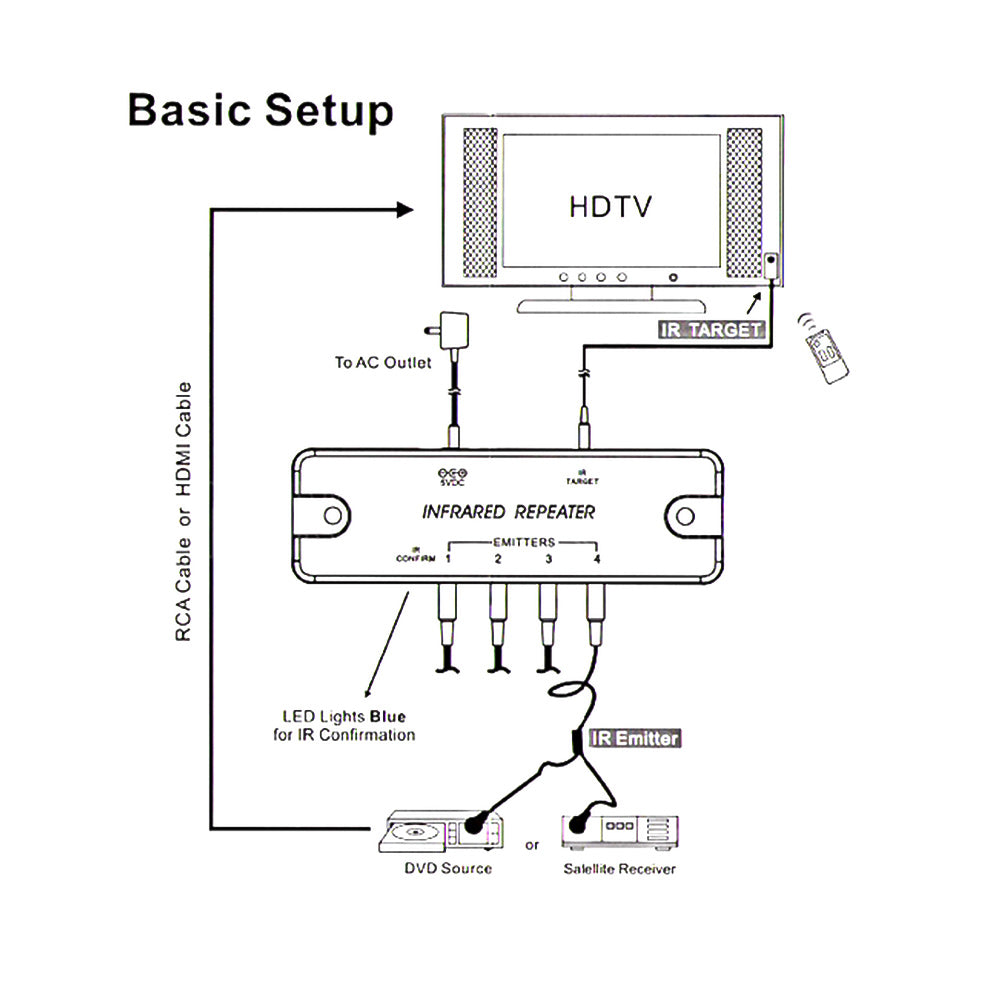

This 4-port active IR kit consists of two dual IR emitter, one IR target, one 4-port IR connecting block and one power supply. It is used to receive IR remote control commands and emits the signals to the IR inputs of audio/video components.
| Physical Characteristics |
| Color |
Black |
| Cable Length |
1x 10 foot [3m] - 3.5mm Mini Plug
2x 7 foot [2.1m] - Dual IR Emitter |
| IR Confirmation LED |
Compliant |
| Expandable |
Compliant (up to 8 ports) |
| CFL Friendly |
Compliant |
| Compatible Expansion Emitters |
IR-101-07
IR-102-07 |
| Connector(s) |
| Emitter Output Ports |
4 |
| Performance |
| IR Frequency Range |
30 KHz to 60 KHz |
| Range |
40ft. at 38 KHz
25ft. at 56 KHz |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
0.25 lbs |
| Contents |
| Included in Package |
1 - 4-port IR Connecting Block
2 - Dual IR Emitter
1 - IR Target
1 - Self-adhesive tape
1 - Power Supply |
*Note: The system is not compatible with the following IR receivers:
IR-200
IR-201
IR-202
IR-203
IR-258
