Overview

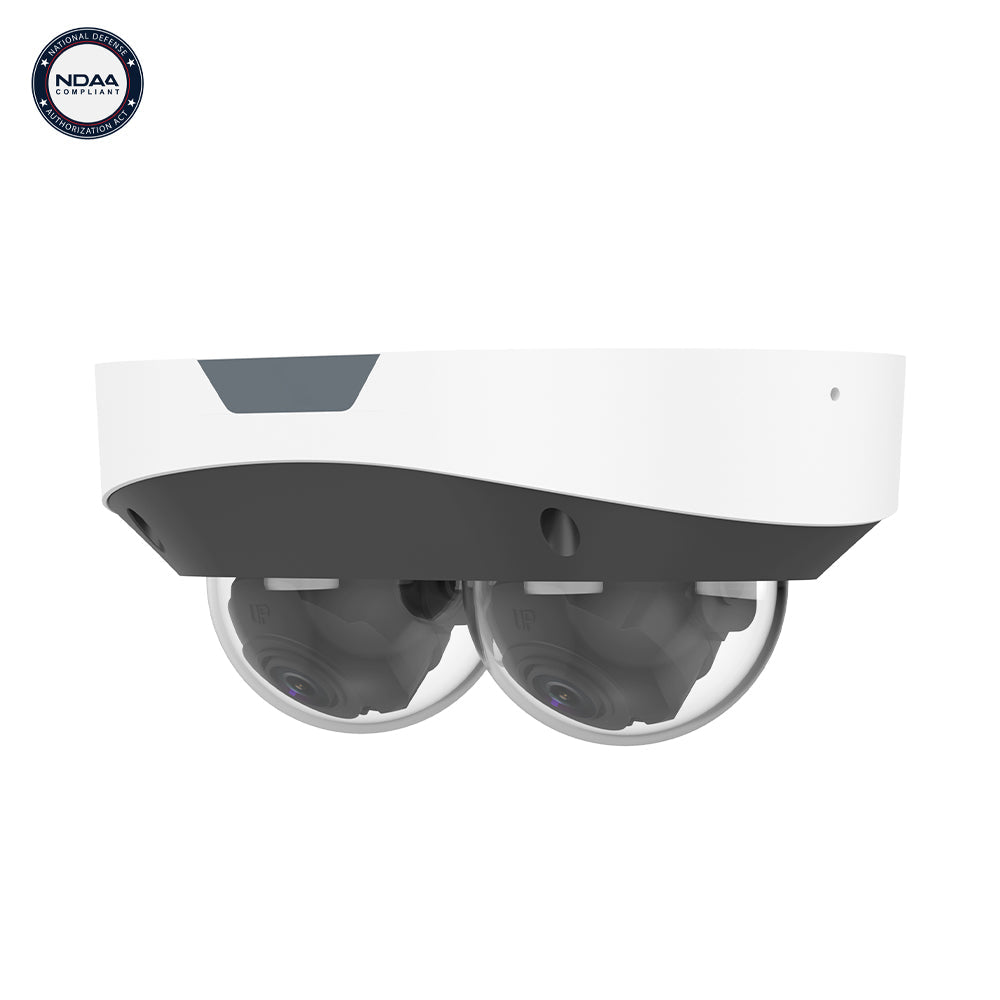

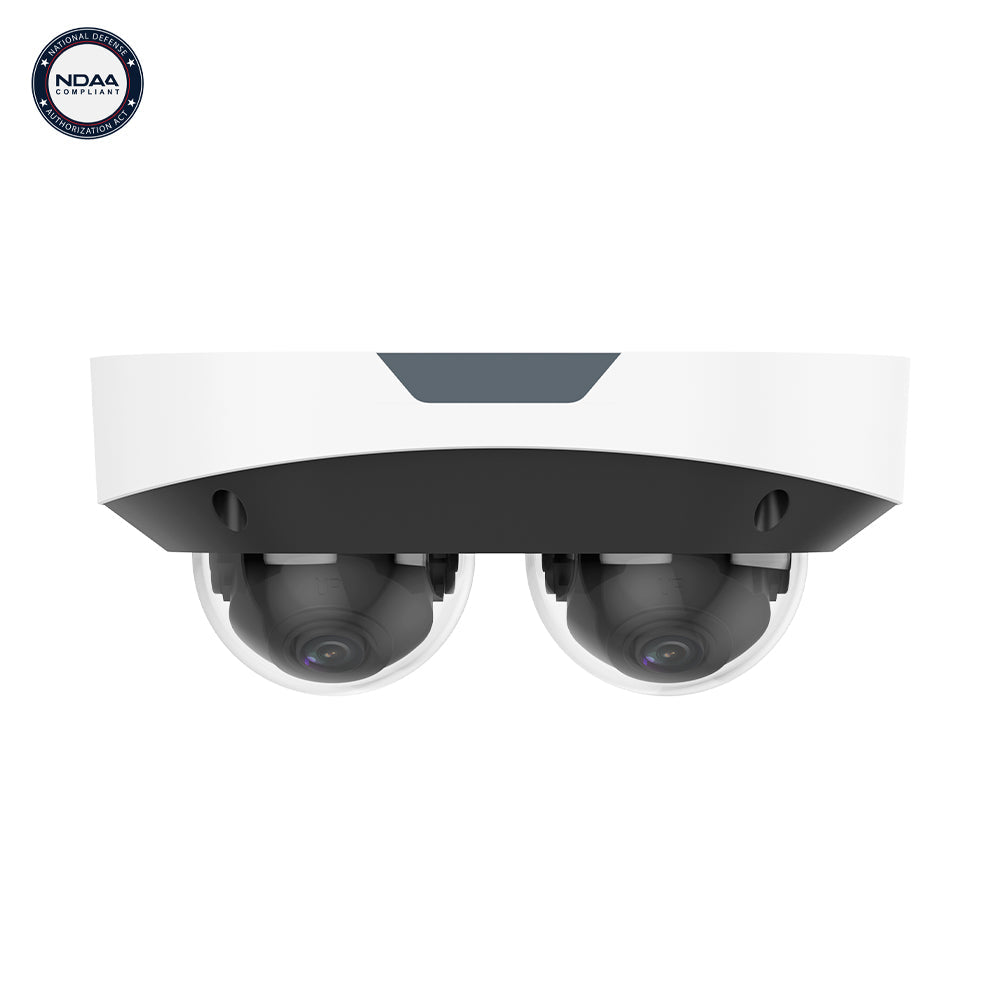

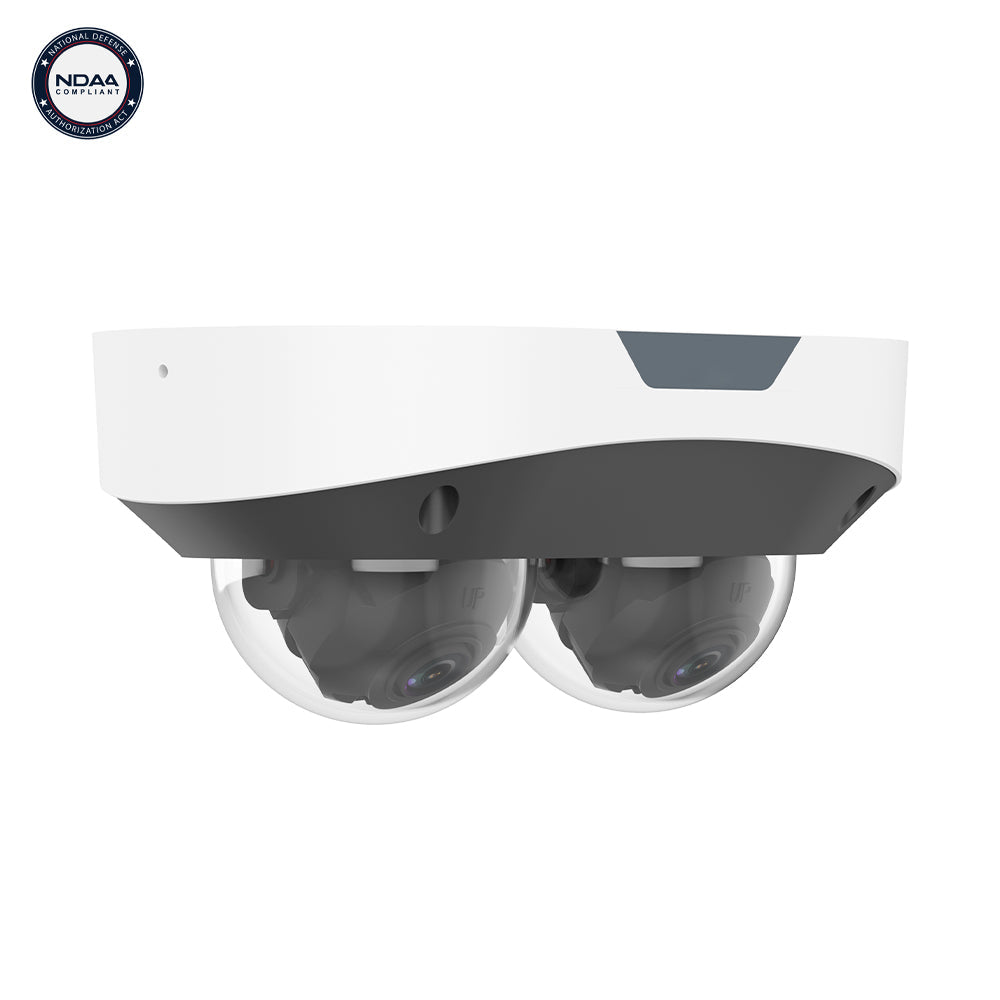

This dual-channel 4 MP dome camera, combines two independent cameras into one clean unit and utilizes only one network connection for both feeds. It PoE-ready and delivering simultaneous 2688×1520 @ 25FPS video streams with Ultra 265 compression. It has perimeter protection on both channels to help minimize false alarms, while channel 1 adds people-flow and crowd-density analytics. Other features include built-in dual mics, 130 dB WDR, one micro-SD slot (up to 512 GB) for device storge, rugged IP67 and IK10 design, plus adjustable IR-cut and up to 98 ft night vision, deliver sharp coverage day or night.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | ||
|---|---|---|
| Image Sensor | 1/3.0" CMOS | |
| Minimum Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
|
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment Angle | Pan: 0° to 180°, Tilt: 0° to 66°, Rotate: 0° to 346° | |
| S/N | >52dB |
|
| WDR | 120dB | |
| Lens | ||
| Lens Type | 2.8mm @F1.6 | |
| Angle of View (H) | 97.68° | |
| Angle of View (V) | 52.67° | |
| Angle of View (O) | 102.52° | |
| DORI | ||
| DORI Distance | 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify |
|
| Illuminator | ||
| Supplemental Light | IR | |
| LED Distance | Up to 30m (98ft) | |
| Wave Length | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
|
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate |
Main Stream: 4 MP (2688 × 1520) , max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720) max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
|
| Video Bit Rate | 128 Kbps~16 Mbps |
|
| U-code | Supported | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Supported | |
| Video Stream | Triple streams | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
| Digital Noise Reduction | 2D/3D DNR |
|
| Smart IR | Supported | |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|
| Dewarping | N/A | |
| HLC | Supported | |
| BLC | Supported | |
| Defog | Digital Defog | |
| Intelligent | ||
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|
| Events | ||
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
|
| Audio | ||
| Audio Compression | G.711U/G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | Supported | |
| Suppression | Supported | |
| Sampling Rate | 8KHz | |
| Storage | ||
| Edge Storage | Micro SD, up to 512GB |
|
| Network Storage | ANR, NAS(NFS) | |
| Network | ||
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
| Client | Phantom CamStation Phantom CamView |
|
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
| Interface | ||
| Audio I/O | 1 Input: Impedance 35kΩ; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p] |
|
| Alarm I/O | 1/1 | |
| Built-in Mic | Built-in dual-mic | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|
| Built-in Mic | Supported | |
| Serial Port, Built-in Speaker, WIFI, Video Output | N/A | |
| Certification | ||
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
|
| Safety |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
| NDAA Compliant | Compliant | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|
| Protection | Ingression protection: IP67 (IEC 60529-2013) Vandal resistant: IK10 (IEC 62262:2002) |
|
| General | ||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.10W |
|
| Power Interface | Ø 5.5mm coaxial power plug |
|
| Surge Protection | 4KV | |
| Reset Button | Supported | |
| Material | Metal | |

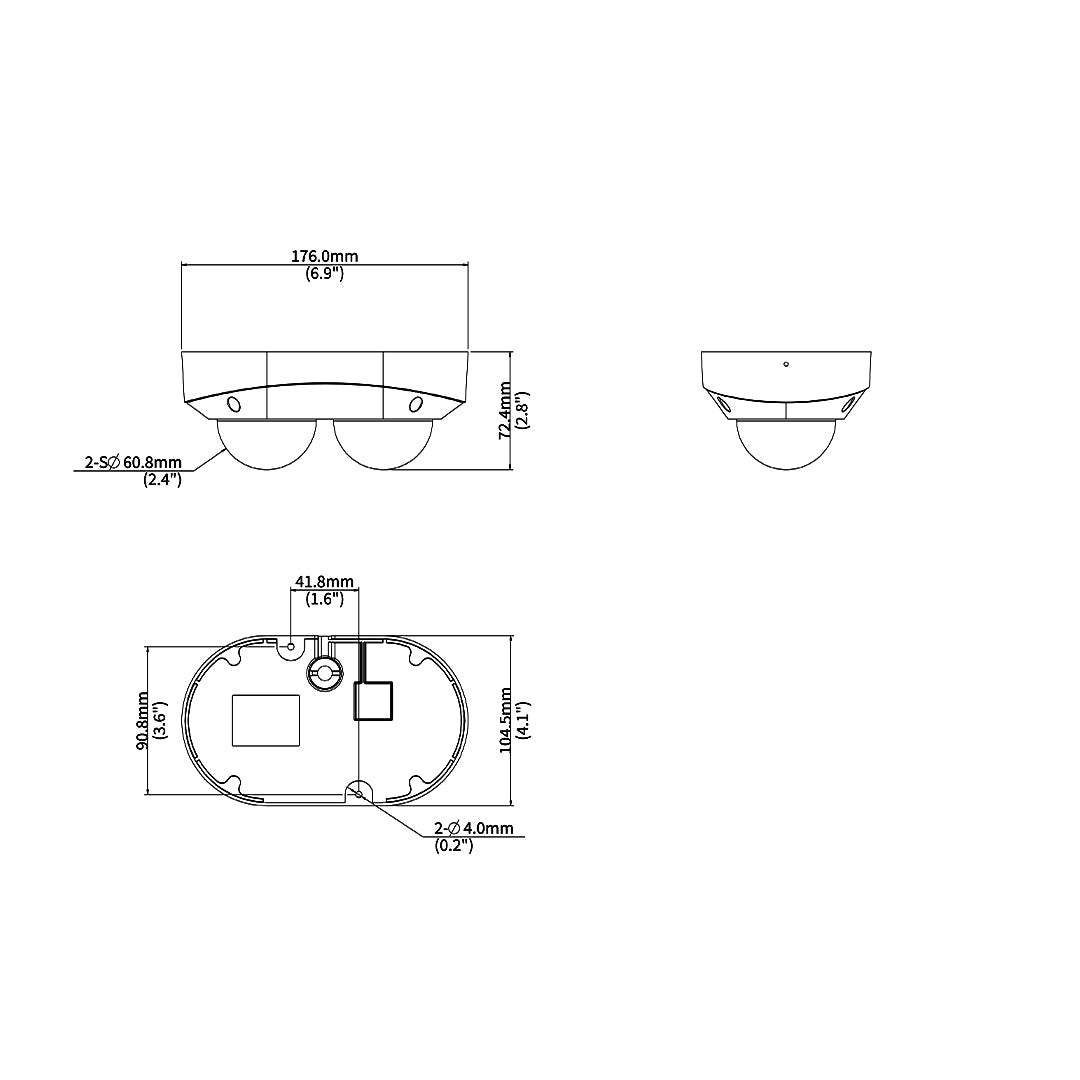

| Dimensions (Ø x H) |
176 mm × 104 mm × 72 mm (6.9" × 4.1" × 2.8") (L × W × H) |
|
| Weight | 1.37 lbs [0.62kg] | |
Compatible Mounts
|
SCD-JB08-IN-WH |
Junction Box Mounting Bracket for Dual Dome IP Dome Camera - WHITE |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SC-IPC3224SS-ADF28K-I1NB | 1.71 lb |
