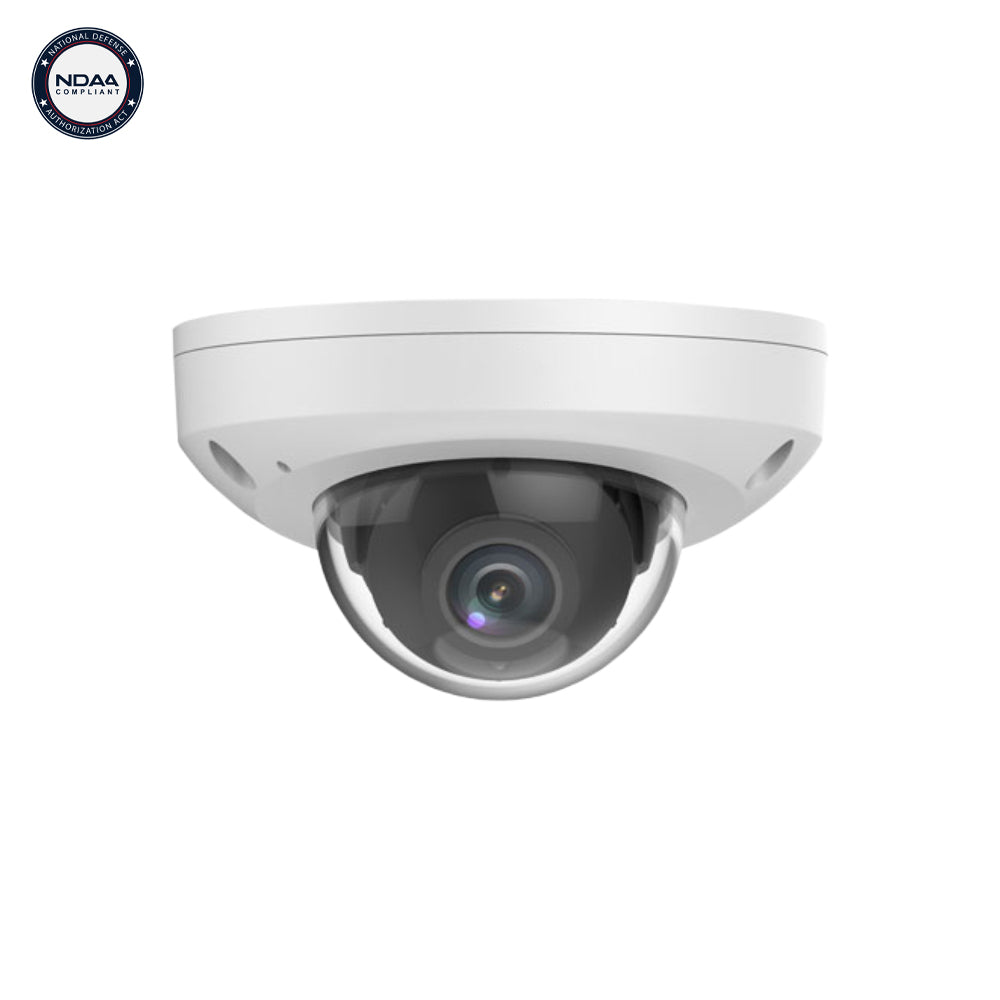

4MP Mini Dome IP Camera + Audio - Fixed Lens - Smart IR - IK10 IP67 Rated

Phantom IP Cameras & RecordersSKU: SC-3145AWD-I0-F28

Price:
Sale price$324.67 USD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.

Description

Overview

This 4MP indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm fixed lens which delivers a 101.1 ° horizontal field of view. Its maximum resolution is 2688*1520 at 30/25fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IK10 vandal-resistant and IP67 rated for outdoor use, and has 98 feet of night vision using an IR cut filter and IR LEDs.

Features

  • High quality image with 4MP, 1/3"CMOS sensor
  • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent face capture
  • Light Hunter technology ensures ultra-high image quality in low illumination environment
  • 120dB true WDR technology enables clear imaging in strong light scene
  • Supports 9:16 Corridor Mode
  • Built-in mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256Gb Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Supports PoE power supply
  • 3-Axis

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

NVR Setup



Standalone Camera Setup

Specifications

Camera
Image Sensor 1/3" (4 MP) progressive scan CMOS
Minimum Illumination Color: 0.003 lux @ (F1.6, AGC on)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 90°, Tilt: 0° to 68°, Rotate: 0° to 360°
S/N >56dB
WDR 120dB
Lens
Lens Type 2.8mm @F1.6
Angle of View (H) 101.1°
Angle of View (V) 55.3°
Angle of View (O) 111.1°
DORI
DORI Distance 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify
Illuminator
LED Distance Up to 30m (98ft)
Wave Length 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Face Capture Support
Statistical Analysis People counting, supports tripwire people counting and area people counting
Events
Basic Detection Motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
Client Phantom CamStation
Phantom CamView
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O 1 Input: Impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Alarm I/O, RS485, Built-in Speaker, WIFI, Video Output N/A
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
NDAA Compliant Yes
Environment CE-ROHS (2011/65/EU;(EU)2015/863);
WEEE (2012/19/EU);
REACH (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
Vandal resistant: IK10 (IEC 62262:2002)
General
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing)
Power DC 12V±25%,
PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8)
Power consumption: Max 6.0W
Power Interface Ø 5.5mm coaxial power plug
Surge Protection 4KV
Reset Button N/A
Material Metal

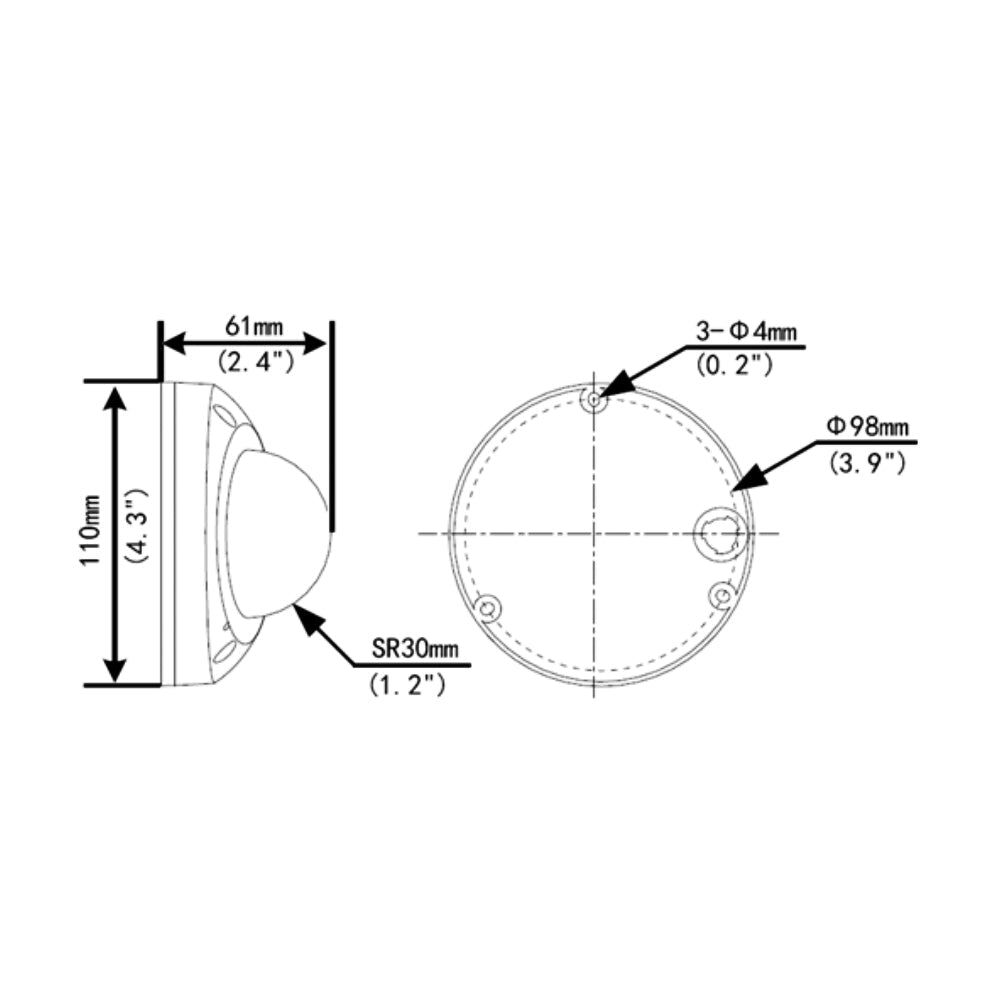

Dimensions
(Ø x H)
Φ110 x 61mm (Ø4.3" x 2.4")
Weight 0.82 lbs [0.37kg]

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
SC-3145AWD-I0-F28 1.3 lb
