Video MatrixSKU: VM-HDMI-204
Price:
$97.15 USD
Stock:
In stock

Description

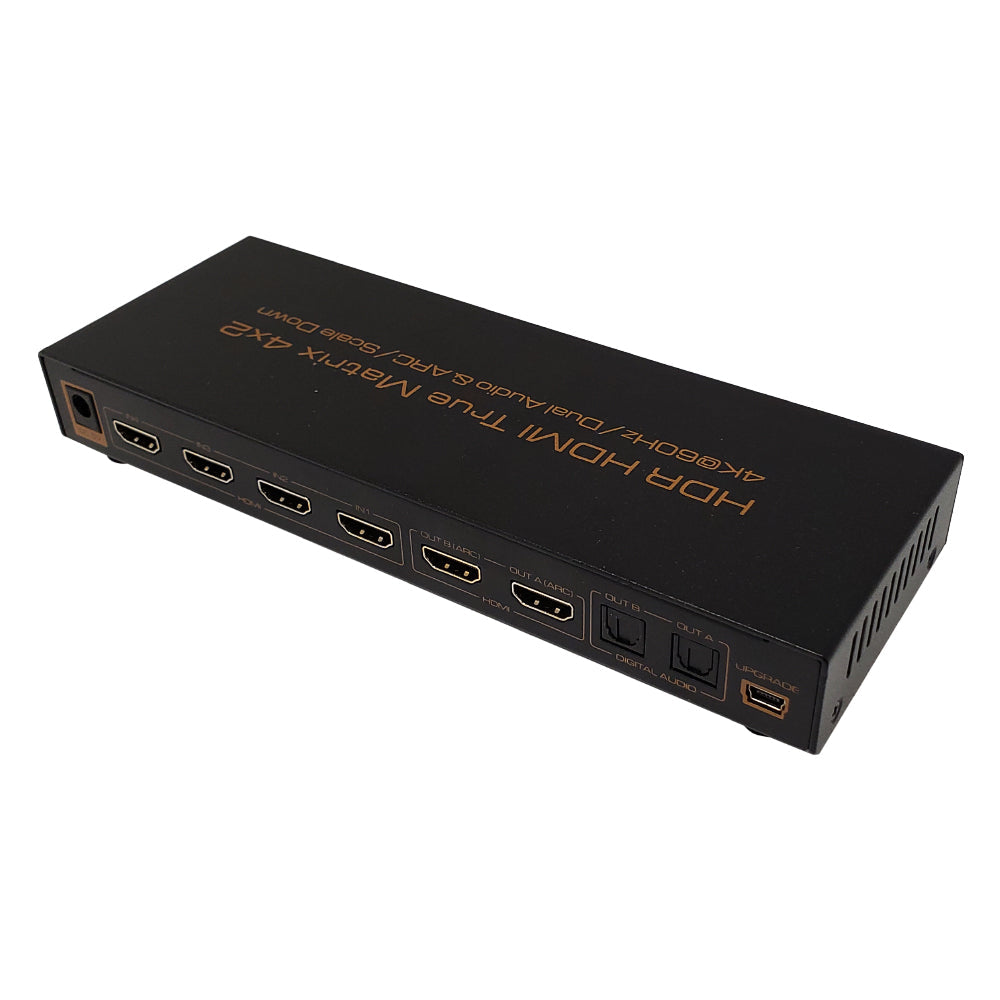

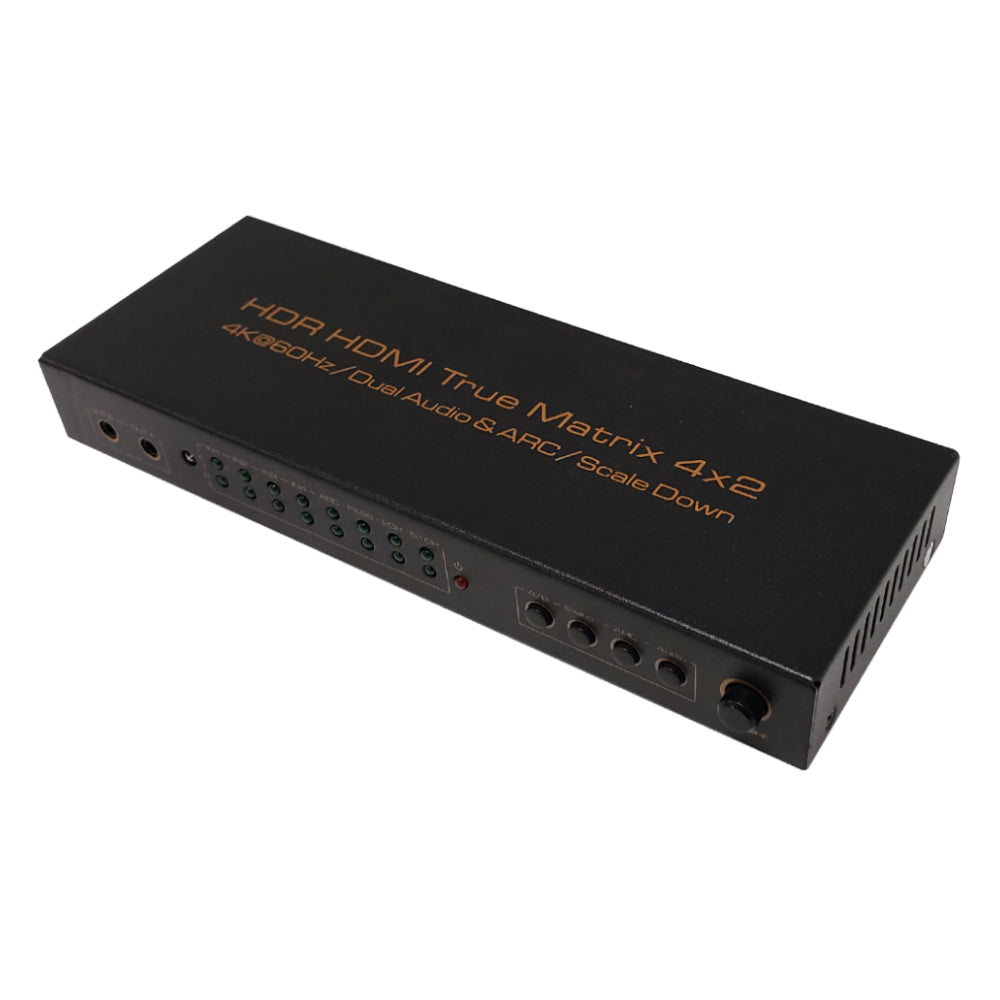

This 4x2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.

Physical Characteristics
Color Black
Housing Metal Enclosure
Dimensions 205 x 75 x 30mm
Operating Temperature -5° ~ 40°C
Operating Humidity Range 5 to 85% RH (No condensation)
Storage Temperature -15° ~ 55°C
Storage Humidity 5 ~ 95% RH (No condensation)
Power

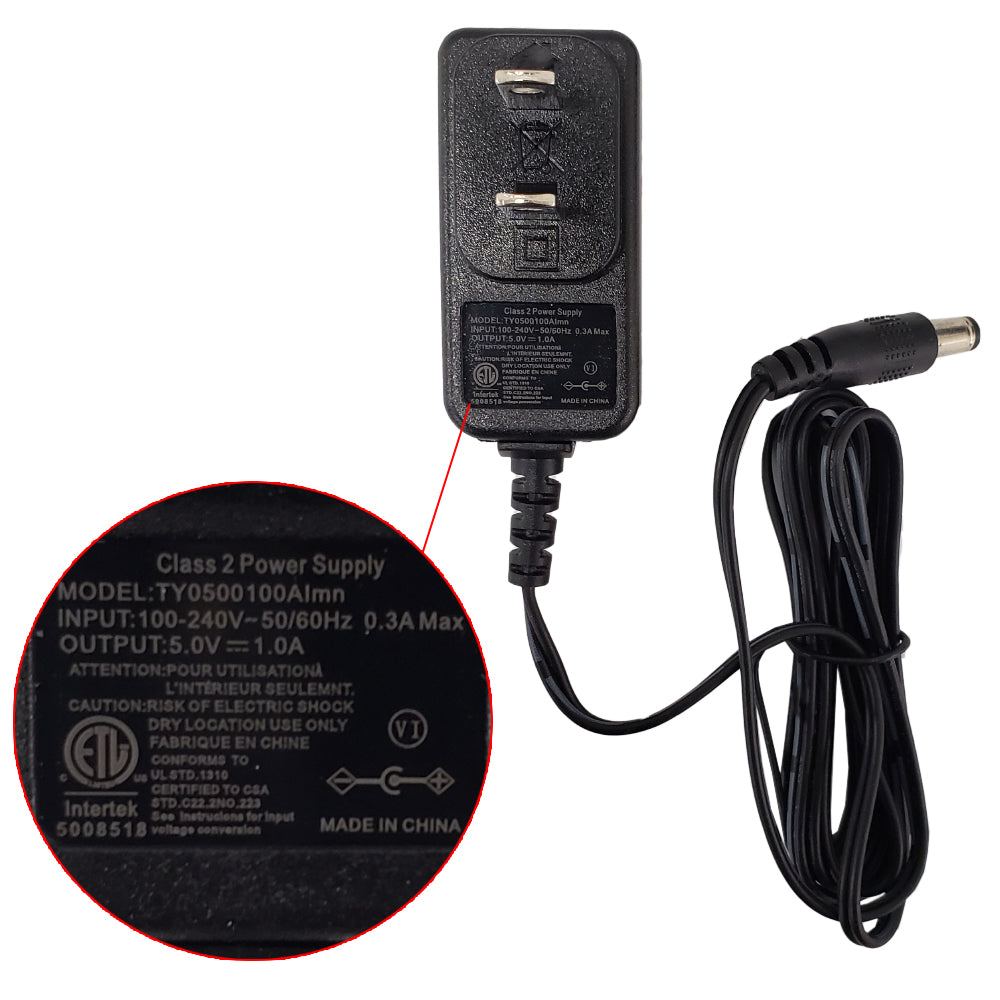

Power Adapter Input: AC 100~240V
Output: DC 5V/1A
Max Working Current 500mA
Connector(s)
Input 4 x HDMI Female
Output 2 x HDMI Female, 2 x Optical, x 2 AUX
Performance
Video 480i / 480p / 576i / 720p / 1080i / 1080p / 2160p (Supports HDR/Dolby Vision)
Deep Color 8/10/12Bit @ 480p / 720p / 1080p
8Bit @ 2160p
Audio Dolby HD / DTS HD / Dolby Atoms / Dolby AC3 / DTS / LPCM
Transmission Bandwidth 25~600MHz
Transmission Rate 0.75 ~ 18Gbps
HDMI Version HDMI 2.0v
Analog Output Level 2V RMS (1kHz@0dB)
Approvals
Power Adapter c(ETL)us
Environmental
RoHS Yes
Certification(s)
CE Yes
Packaging Information
Package Quantity 1
Product Weight 0.97 lbs [0.44 kg]
Contents

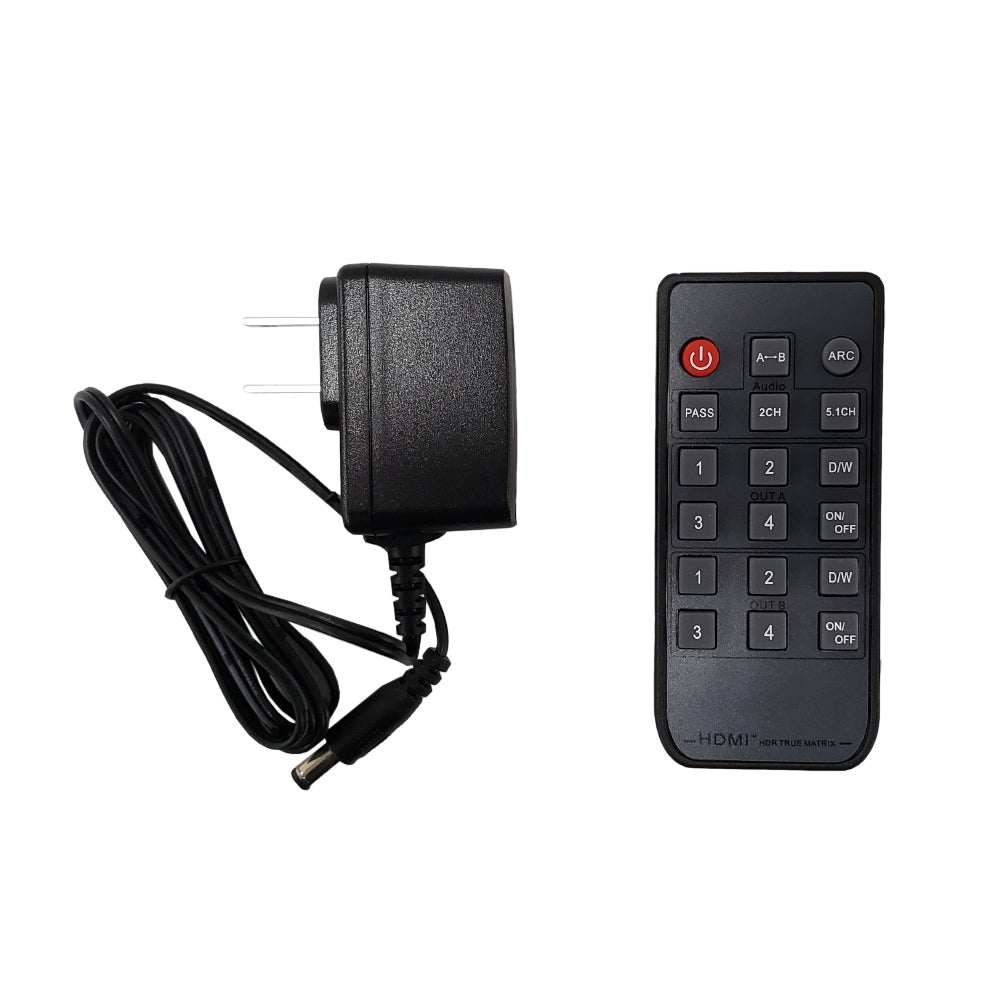

Included in Package 1 - HDMI Matrix
1 - Power Adapter
1 - Remote Control
1 - User Manual

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
VM-HDMI-204 26.4 lb
