Description
This 4x4 HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Key Features
- Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
-
Support analog & SPDIF audio extraction (VM-HDMI-202 only supports SPDIF audio extraction)
- Audio extraction to S/PDIF Coaxial audio & L/R audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays.
- EDID management and Route 4K video sources to 4K displays and 1080P displays simultaneously via downscaling
- Control via Push buttons, IR remote, RS-232 control, IP control, Web GUI
- Built-in LCD screen
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0ā ~ 40ā |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Power Consumption | 14W(Max) |
| Input Voltage | 100 ā 240 VAC |
| Power Supply (Transmitter) | 12 Volt DC 2Amps |

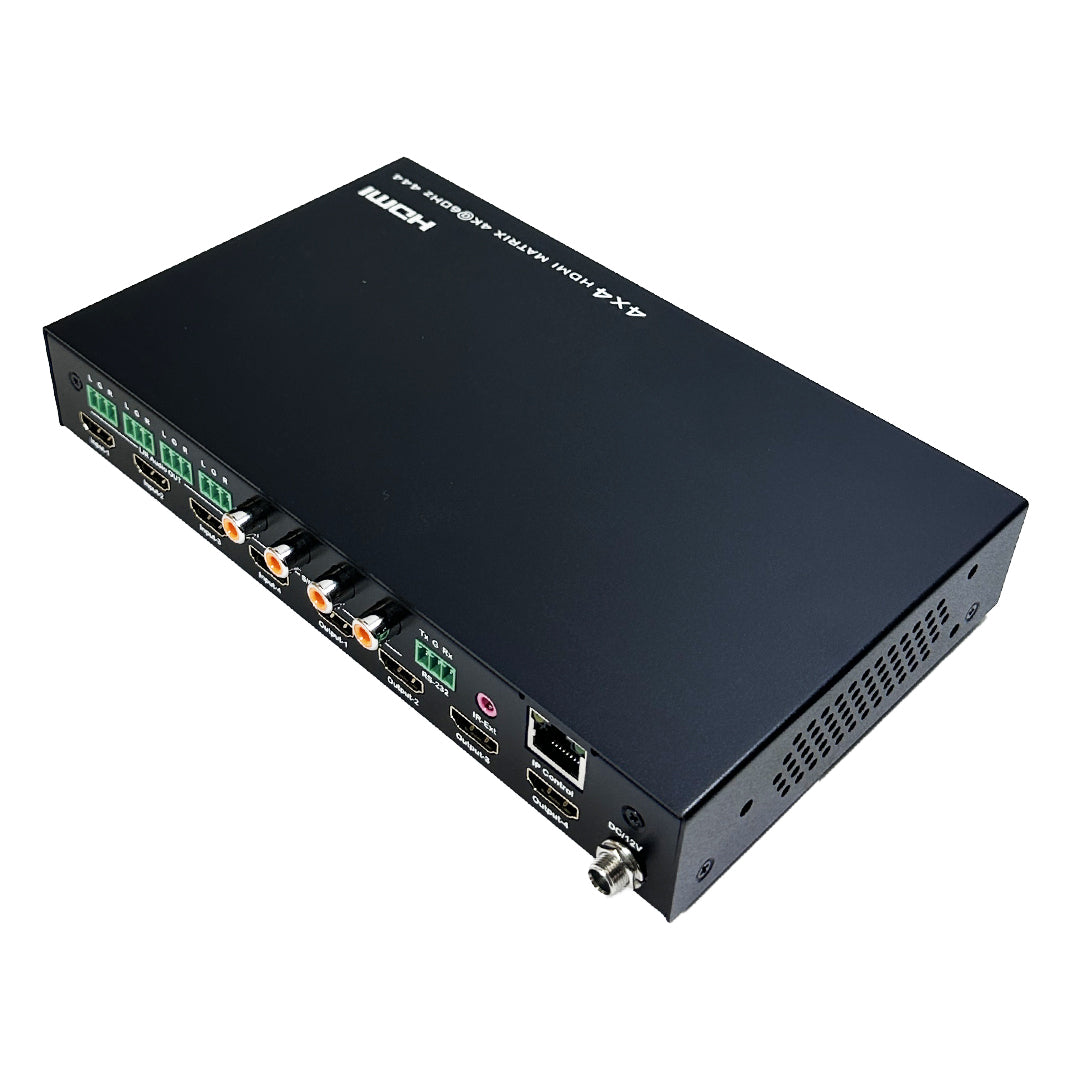

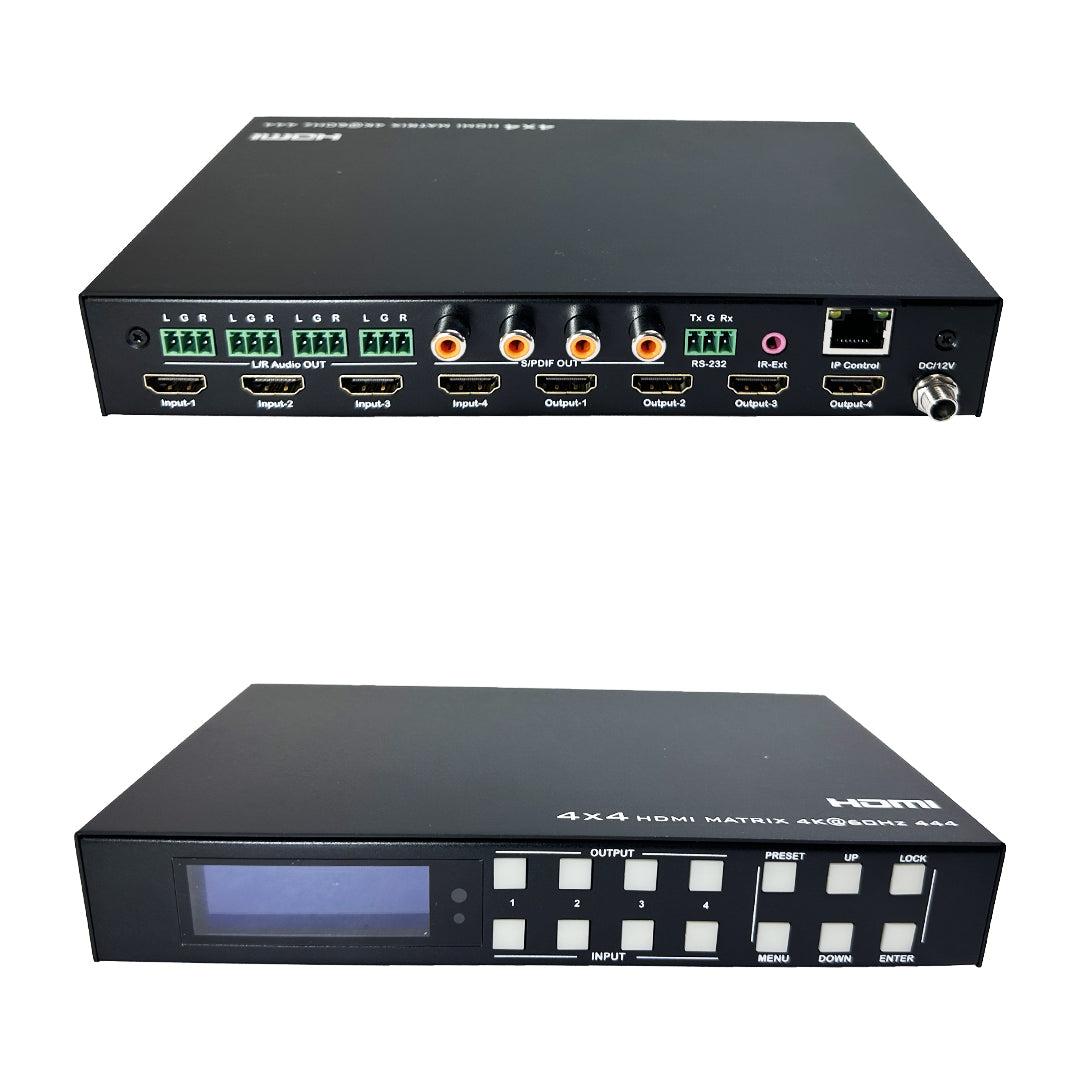

| Connector(s) | |
| Input | 4 x HDMI Female |
| Output | 4 x HDMI Female, 4 x SPDIF |
| Performance | |
| Video | 480i/ 480p/ 576p / 576i / 720p/ 1080i/ 1080p@60Hz / 4K@60Hz |
| Audio | PPCM2.0, Dolby True HD and DTS-HD master audio, DTS:X |
| HDMI Version | HDMI 2.0 (4K@60Hz YUV4:4:4) |
| Bandwidth | 18Gbps |
| HDCP Compliant | Compliant, HDCP 2.2/1.4 input, HDCP 2.2/1.4 output |
| IR Ext port | 1 x 3.5mm stereo jack |
| 3D Compliant | Compliant |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 1.04 lbs [0.47 kg] |
| Product Weight | 0.64 lbs [0.29 kg] |

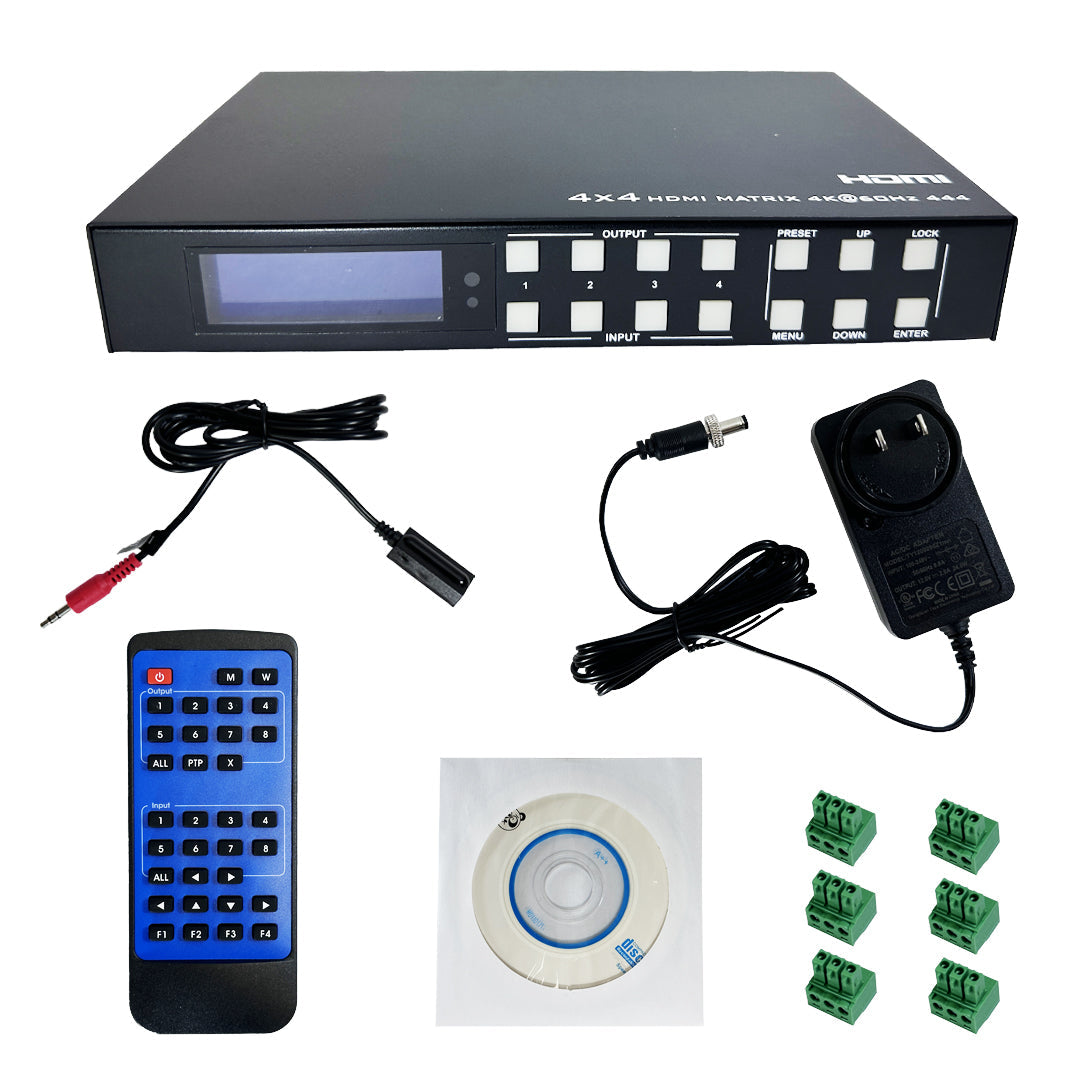

| Contents | |
| Included in Package | 1 - HDMI Matrix |

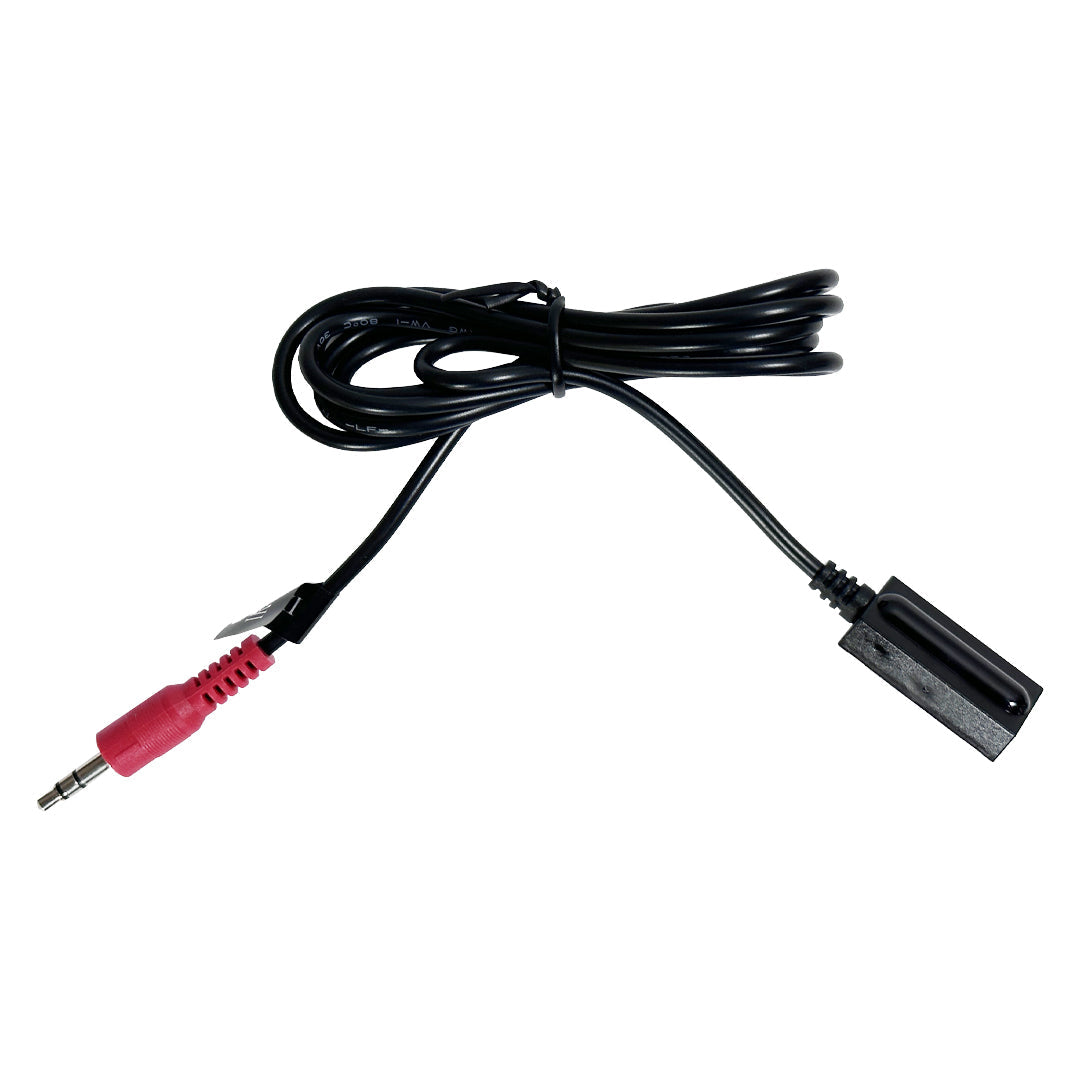

| 1 - IR Ext RX Cable | |
| 6 - Phoenix Plugs for RS232 Cable Termination & L/R Audio termination | |

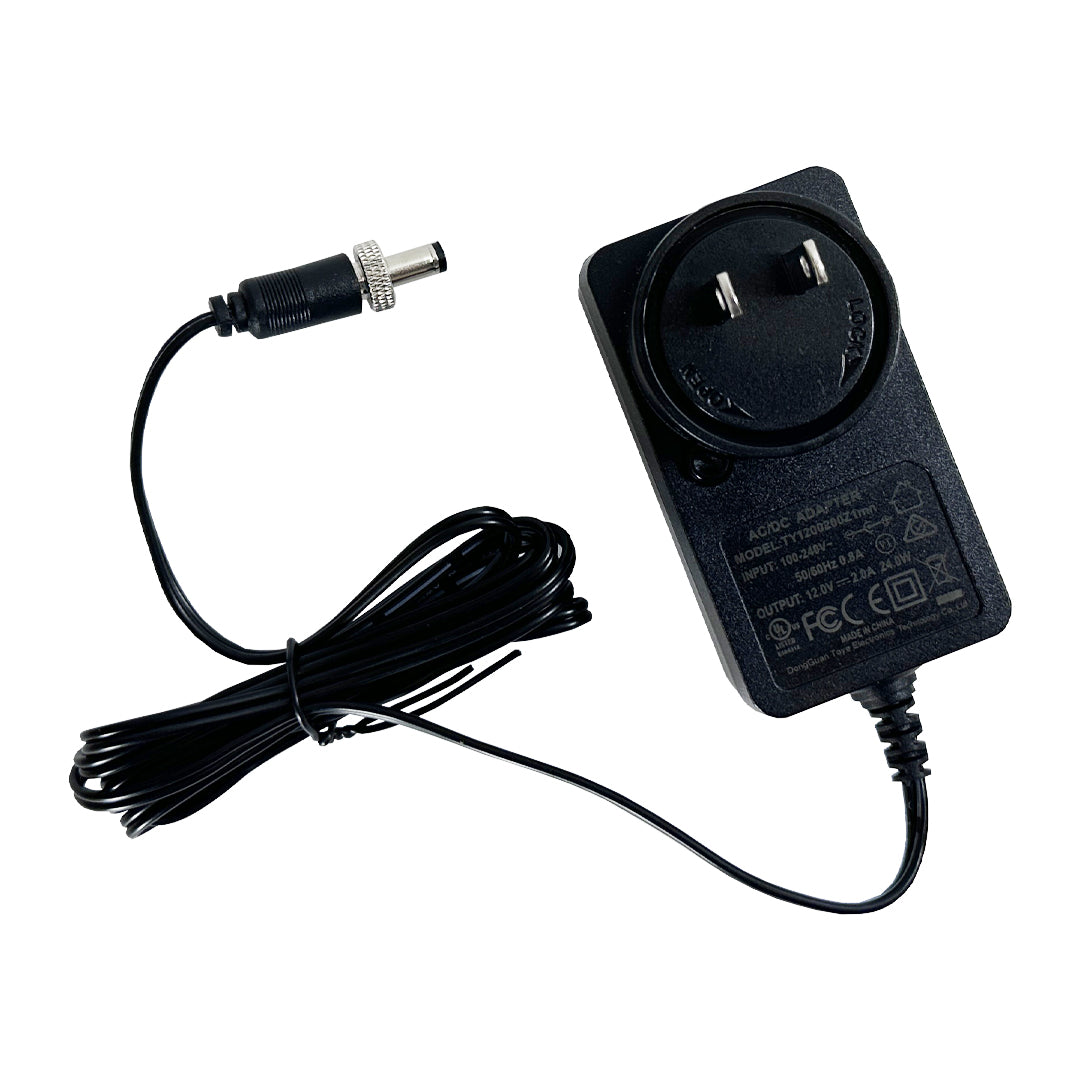

| 1 - 12V/2A DC Power Adapter | |

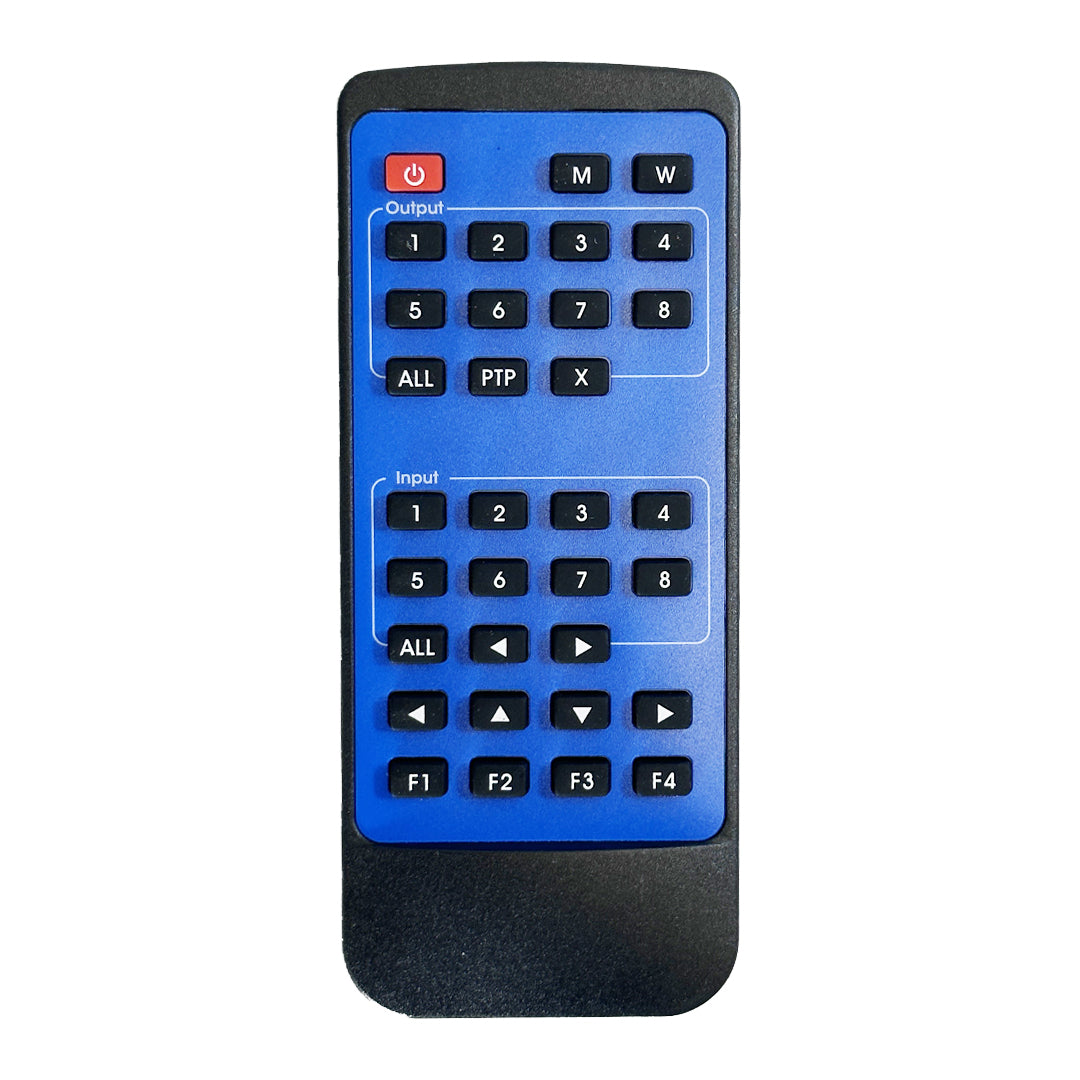

| 1 - Remote Control | |

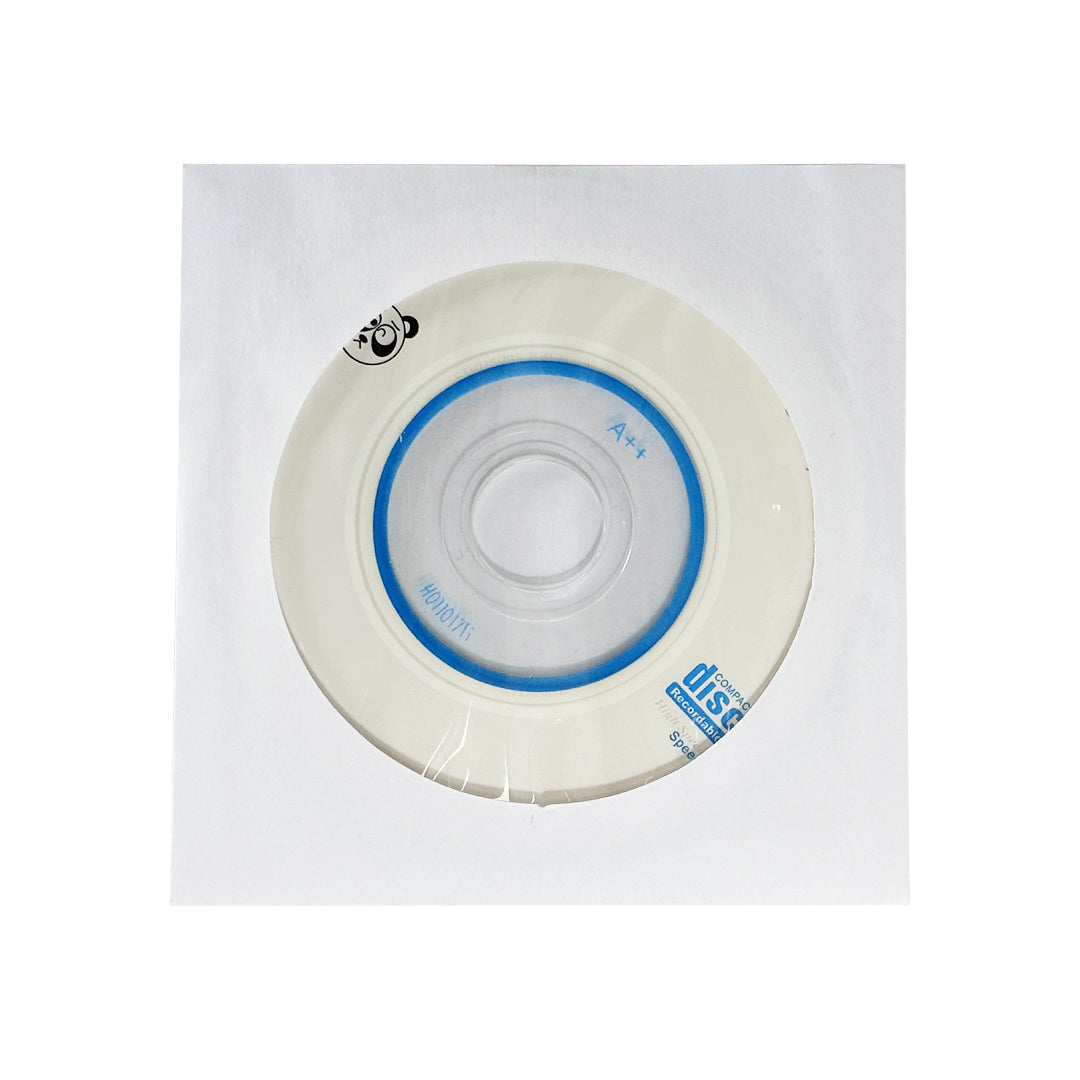

| 1 - CD for Control Software | |
| 1 - User Manual | |
Downloads
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| VM-HDMI-206 | 1.04 lb |
