Description

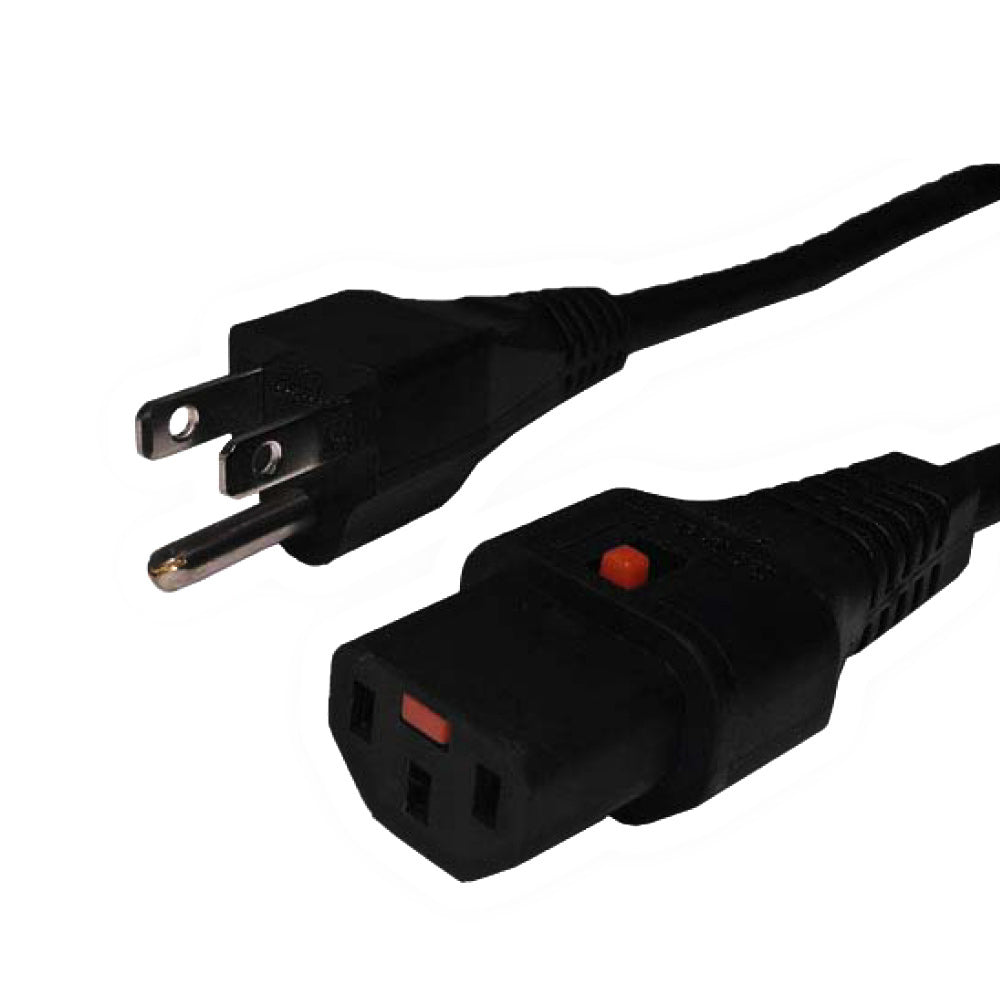

This power cord consists of a 5-15P male on one end and a locking C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. The unique lockable C13 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18AWG |
| Jacket | Heavy Duty SJT |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 Locking C13 - c(UL)us |
| Connector B | NEMA 5-15P - c(UL)us |
| Performance | |
| Power Rating | 10 Amp / 250 Volt |
| Approvals | |
| c(UL)us | Compliant |
| ISO | ISO 9001:2008 |
| Environmental | |
| RoHS | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 2ft | 3ft | 6ft | 10ft |
|---|---|---|---|
| 0.23 lbs | 0.29 lbs | 0.48 | 0.73 lbs |
Spec Sheets
Video
Product Weights
| SKU | Options | Weight |
| PWL-105-02 | 2ft | 0.29 lb |
| PWL-105-03 | 3ft | 0.36 lb |
| PWL-105-06 | 6ft | 0.65 lb |
| PWL-105-10 | 10ft | 1.03 lb |
