5.5mm x 2.1mm Plug to Receptacle DC Power Cable Riser FT4

DC Power CablesSKU: DC-5521-01

Length: 1ft
Sale price$6.23 USD
Sold out

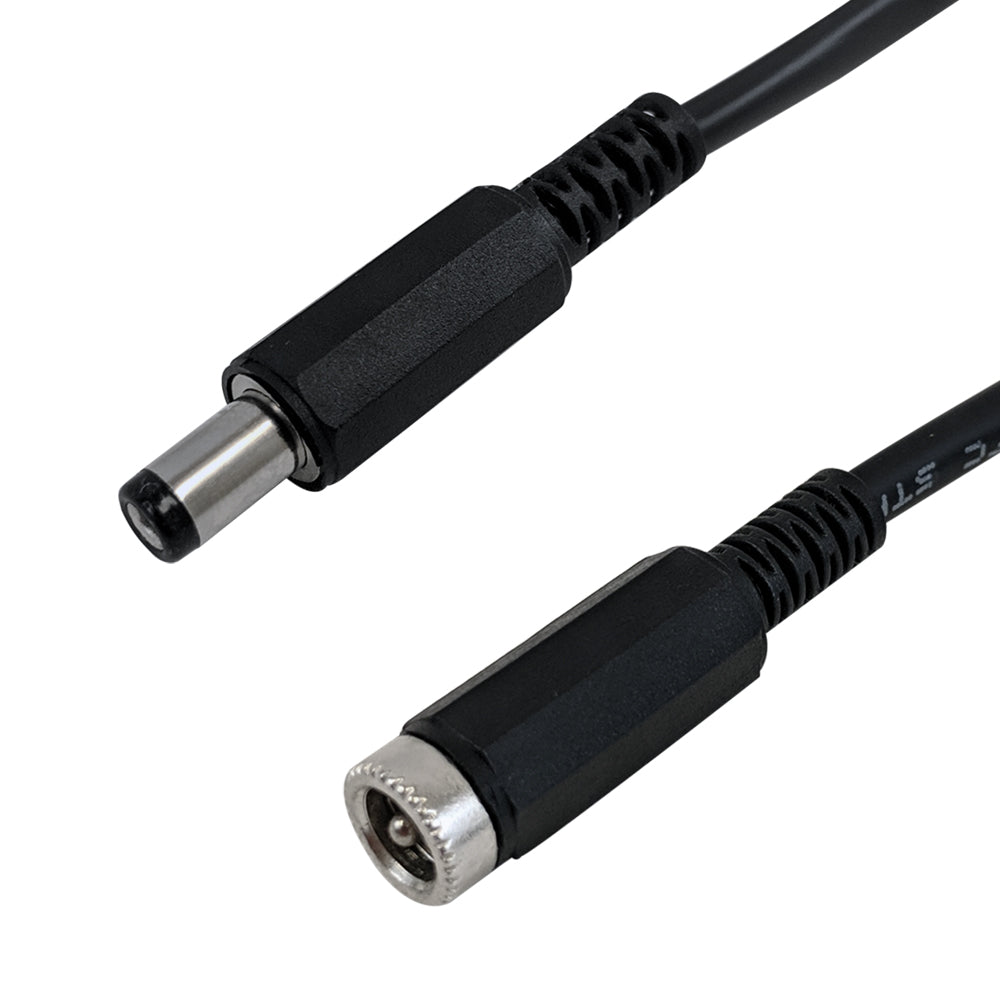

This power cable consists of a 5.5mm x 2.1mm plug to a 5.5mm x 2.1mm receptacle barrel power connector on the other end. It is typically used to extend power from a device to a AC/DC power adapter. These cables are riser (FT4) rated for use in the walls.

Physical Characteristics
Color Black
Jacket Material PVC
Inner Jacket Material PVC
Connector Plating Nickel
Number of Conductors 2 Conductors (Red/Black) Oxygen Free Copper (OFC)
Outer Diameter 4.20± 0.10mm
Min. Ave. Jacket Thickness 0.36 mm
Wire Gauge 18 AWG
Maximum Voltage 300V
Material (conductors) Bare Copper
Stranding 16/0.254±0.004mm
Individual Conductor 1.7±0.05mm
Ripcord Nylon
Temperature Rating 75℃
Flammability Test In Wall Riser CMR/FT4
Connector A 1 - 5.5mm x 2.1mm DC Male
Connector B 1 - 5.5mm x 2.1mm DC Female
Associated Products
6.5" 2-way Frameless Wi-Fi Ceiling Speaker - 60W max (single)
RoHS Yes
c(ETL) Cable - Yes
ETL Cable - Yes
Package Information
Package Quantity 1
Included in Package 1 - Cable
Cable Weights
1ft 3ft 6ft 10ft 15ft 25ft 35ft 50ft
0.06 lbs 0.07 lbs 0.1 lbs 0.13 lbs 0.16 lbs 0.28 lbs 0.4 lbs 0.61 lbs
