5-Port 10/100/1000Mbps Gigabit Ethernet Network Switch - Desktop - Unmanaged - 10Gbps Total Bandwidth

Network SwitchesSKU: NS-101-05

Sale price$17.38 USD
In stock


This 5-port switch is a gigabit Ethernet switch, providing 5 Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

Note: The ports labeled as uplinks can be used as a regular ethernet port or as an uplink port to another switch.


  • 5 x 10/100/1000M Gigabit Unmanaged Ethernet ports
  • Metal enclosure
  • Reliable fan-free design
  • -10°C to 50°C temperature range
  • Support auto MDI/MDIX
  • Panel indicators to monitor working status and help fault analysis
  • Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
  • Loop alarm
  • 10 Gbps total bandwidth



Physical Characteristics
Dimensions 100 x 70 x 26 mm
Shell Metal Material, Fan-Free Design
Operating Temperature -10°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity /
Storage Humidity
Working Humidity: 10%~90%, non-condensing Storage Humidity: 5%~90%, non-condensing

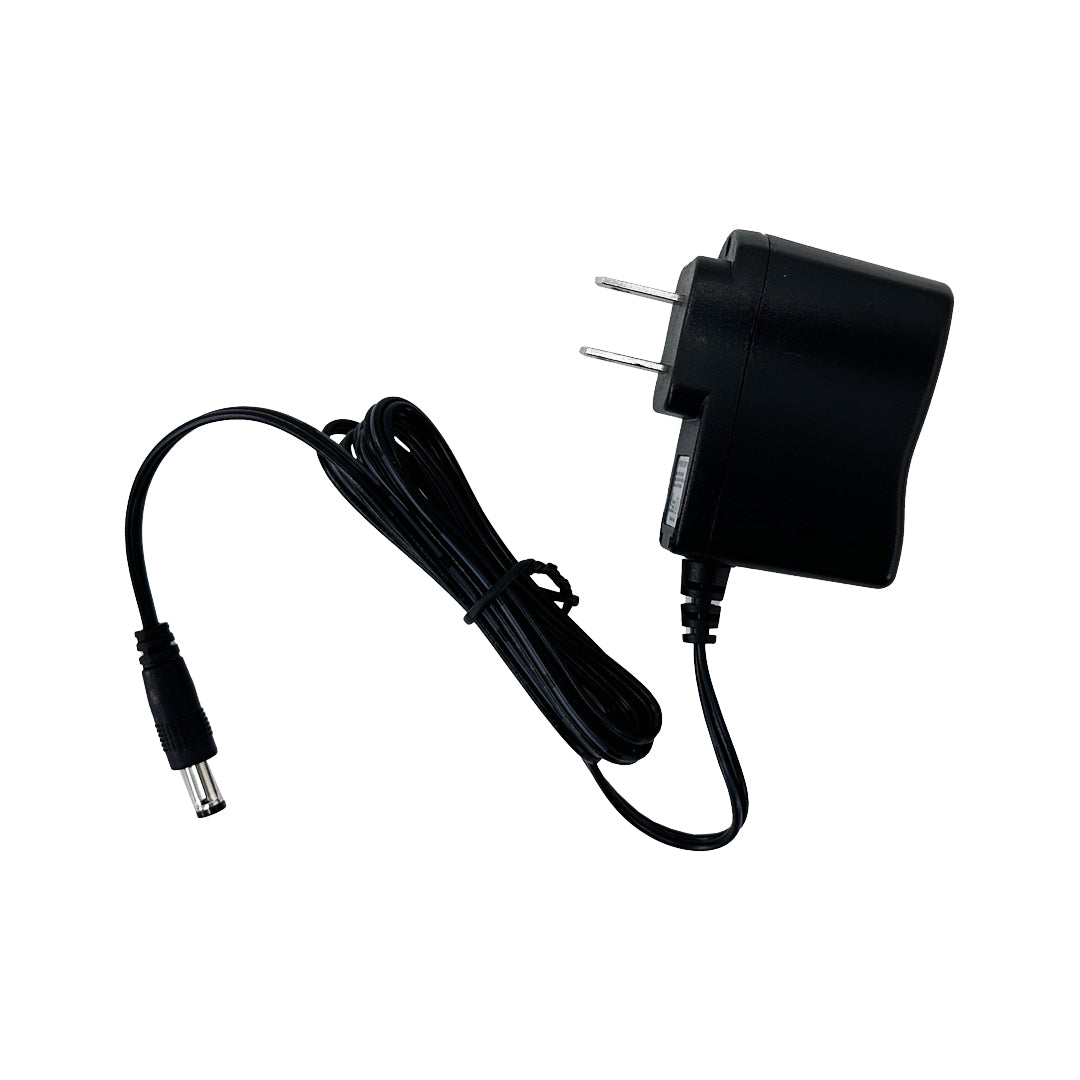

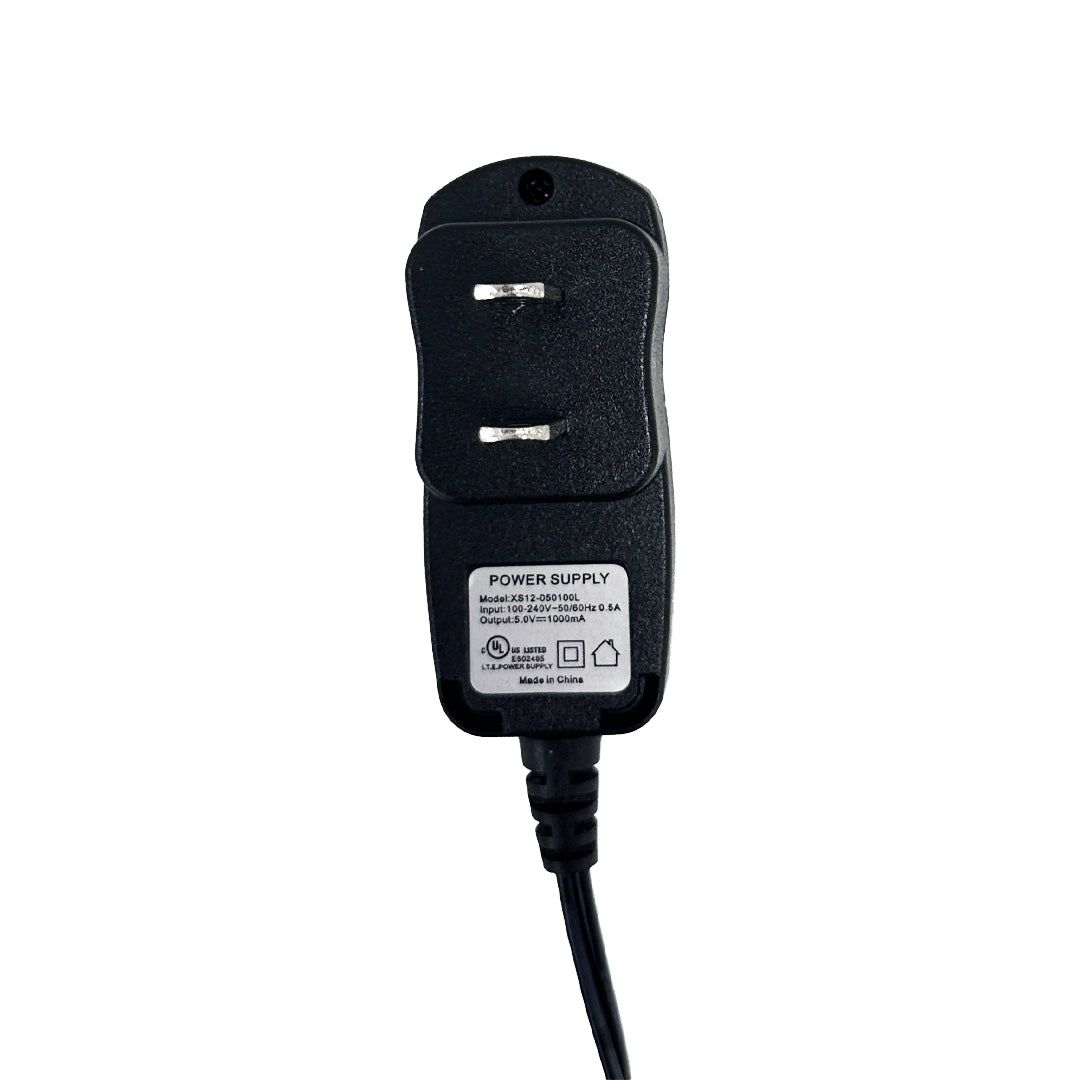

Power Supply Input: 100-240V AC, 50/60Hz, 0.3A
Output: 5V DC, 1A
Ports 5 x 10/100/1000Mbps auto-negotiation RJ45 ports
Port Loop guard Supported
Port Type RJ45 port, Full duplex, MDI/MDI-X adaptive
Uplink Port Port 5
LED Indicator 1 * Power LED
5 * Link/Act LED
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Total Bandwidth 10Gbps
Network Medium

10Base-T: Cat3, 4, 5 or above UTP (≤100m)

100Base-TX: Cat5 or above UTP (≤100m)

1000Base-TX: Cat5 or above UTP (≤100m)

MAC Address Table 1K
Jumbo Frame 2K
Transfer Mode Store-and-forward switching
Packet Forwarding Rate 7.44 Mpps
Internal Cache/ Buffer 1 Mbits
Switching Capacity 10 Gbps
MTBF 100000 hours
Environmental/ Certificates
RoHS Yes
CE Yes
c(UL)us DC power adapter - Yes
Packaging Information
Package Quantity 1
Product Weight 0.38 lbs
